| CRI (Only For White): | 90+ High Color Rendering (Base), 95 Excellent Color Rendering |
|---|---|
| Select Kit: | LED Strips (Base), 10m/32.8ft kit, 15m/49.2ft kit, 20m/65.6ft kit, 5m/16.4ft kit, 25m/82ft kit |
| Select Length: | 65.6ft (20 meters), 82ft (25 meters), 32.8ft (10 meters), 16.4ft (5 meters) (Base), 49.2ft (15 meters) |
| Select Light Color : | RGBAW 1800K~6500K (Base), RGBWW 2700K~6500K (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Surface Glued IP65 - Adhesive Back, Underwater IP68 - Adhesive Back, Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |
In RGBCW (RGB+Cool White+Warm White) or RGBAW (RGB+Amber+White) RGB tunable white lighting, extending LED strip lengths to 20 meters or even longer often requires additional power supplies to maintain consistent brightness. To address this need, we previously introduced a 20-meter-long RGBWW LED strip (Model 48V-RGBWW-20MX90) that simplifies wiring and installation. Building on this, we've upgraded the parameters to match the LED density of our densest RGBCCT strip.
This RGBTW LED strip features 112 five-in-one LEDs per meter, with a mere 8.93mm spacing between two LEDs. Operating at 48V, it can reach up to 20 meters in length with single-sided power supply, delivering bright performance whether showcasing RGB colors or tunable white light. This 5-in-1 LED design and ultra high-density LED arrangement allow for more light emitting points per unit length, dramatically reducing spot and graininess for a continuous light effect without shadows. Offering 92+ and 97+ CRI options, the light quality is good enough to meet the color reproduction needed for daily life lighting as well as commercial display lighting.
Our kit includes a 48V smart controller PW5 and 48V dc led power supply, enabling you to control the RGBWW lighting via a mobile app and RF remote control (sold separately).
• 5m/16.4ft kit: a 5m long led strip + a PW5 controller + a LRS-200-48 power supply + an AC plug;
• 10m/32.8ft kit: a 10m long led strip + a PW5 controller + a LRS-450-48 power supply + an AC plug;
• 15m/49.2ft kit: a 15m long led strip + a PW5 controller + a LRS-600-48 power supply + an AC plug;
• 20m/65.6ft kit: a 20m long led strip + a PW5 controller + a UHP-750-48 power supply + an AC plug;
• 25m/82ft kit: a 25m long led strip + a PW5 controller + a UHP-1000-48 power supply + an AC plug;

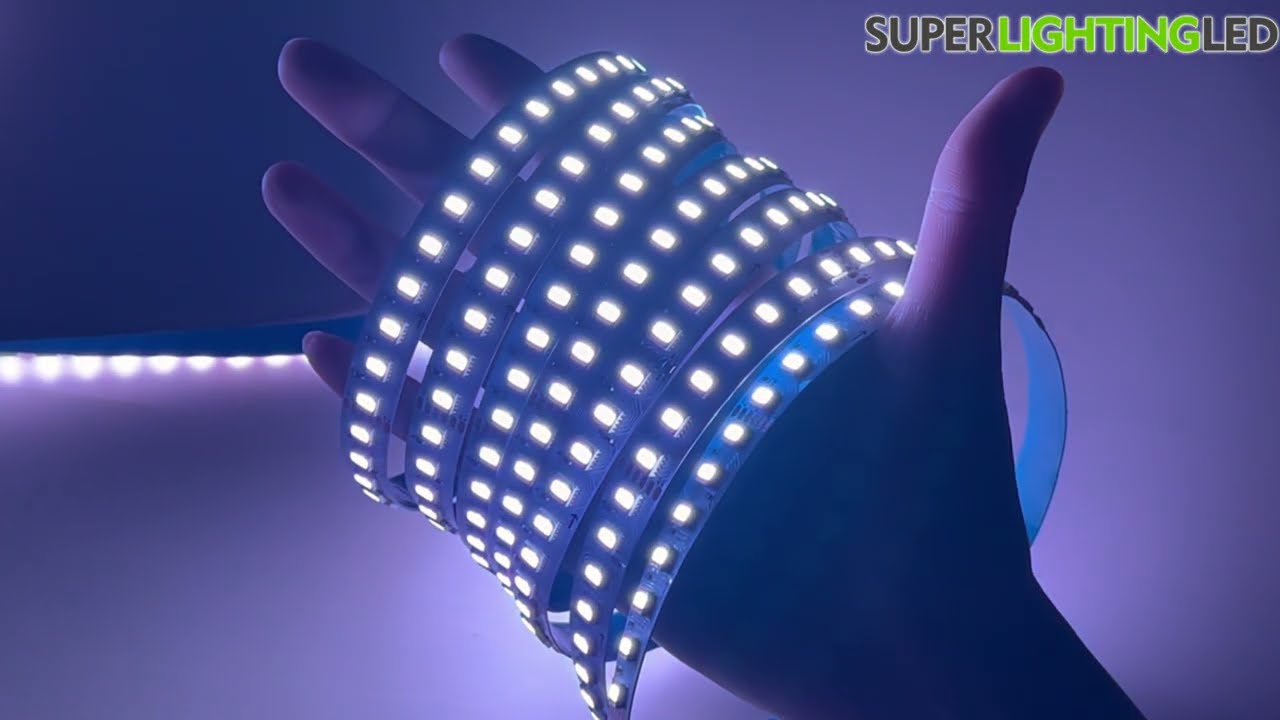

48V RGBCW LED Test
Product Specifications
| LED Strip Type: | Bright 48 Volt RGBTW LED Long Strip Lights |
| LED Chip: | SMD5050 5-in-1 LED |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Input Voltage: | 48 VDC |
| Light Color: | RGB+CCT (2700K-6500K / 1800K-6500K color temperature) |
| Length: | 5m/16.4ft, 10m/32.8ft, 15m/49.2ft, 20m/65.6ft |
| LED Quantity: | 112 LEDs/m, 34 LEDs/ft |
| Cut Unit: | 14 LEDs, 125mm/4.92in |
| Strip Width: | 12mm (0.47in) for IP20+IP65, 14mm (0.55in) for IP67+IP68 |
| Lumen: | 91.25lm/w @6500K, 89.12lm/w @2700K, 26.32lm/w @red, 89.32lm/w @green, 14.83lm/w @blue |
| Working Power: | 31W/m, 9.45W/ft; 155W-5m, 310W-10m, 465W-15m, 620W-20m |
| Beam Pattern: | 120 degree |
| CRI: | 92, 97 |
