MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan

Model: UHP-750-24
MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan
  • MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan
  • MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan
  • MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan
  • MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan
  • MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan
  • MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan

Select Specifications:

Select UL-Listed:

Starting at: $201.99 $179.9811% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$179.98
5-9
$176.38
10-14
$170.98
15+
$163.78
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    NOTE:

    This item is power adapter (transformer) of AC -DC Low Voltage for 24V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.

    Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.



    Product Features:

    Slim and low porfile(41mm)

    Fanless and conduction-cooled design

    Withstand 300VAC surge input for 5 seconds

    Built-in active PFC function

    -30~+70℃ working temperature

    Protections: Short circuit / Overload / Over voltage / Over temperature

    DC OK relay contact

    Operating altitude up to 5000 meter

    LED indicator for power on

    3 years warranty



    UHP-750-24 PDF



    Product Description:

    UHP-750 series is a 750W single-output slim type power supply with 41mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 12v, 24v, 36v and 48v. In addition to the high efficiency up to 95%, that the whole series operated from -30℃~70 ℃ under air convection without fan. UHP-750 has the complete protection functions and 5G anti-vibration capability; it is complied with the international sefety regulations such as TUV EN62368-1and UL62368-1. And design refers to EN61558-1 and EN60335-1. UHP-750 series serves as a high performance power supply solution for various industrial applications.

    Automatic Overload cut-off, Over Voltage cut-off, Automatic Thermal cut-off, Short circuit protection. built-in EMI filter, 100% load test ,Full range of input voltage, output voltage accurate and stable, Output over-voltage,  over-current and short-circuit protection, Output low ripple and noise



    Standards and Certifications

    CE FCC UL RoHS ISA SGS ISO warranty



    Product Specification

    Power Supply Type:   Mean Well Switching Power Supply

    Input Voltage AC:   115/230V

    Output Voltage DC:   24 VDC

    Output Power:   31.3A 750Watts

    Warranty:   3 years

    Average working no trouble:   >50, 000 hours

    Working temperature:   - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

    Storage temperature:   - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

    Height above sea level:   ≦2000M

    Connection Type:   Screw Terminals

    Input Frequency Range:   47 ~ 63 Hz

    IP Rating:   Non-Waterproof

    Output Channels:   3 channels

    Standards And Certifications:   UL Recognized

    Cooling method:   Natural cooling air convection

    Overload protection:   105% - 150% rated power,  automatic recovery

    Over-voltage protection:   105% - 150% of the rated voltage

    Protection type:   Shut off o/p voltage, clamping by zaner diode

    Over Temperature:   U1 Tj 140℃ typically (U1) detect on main control IC

    Protection type:  shut down o/p voltage, recovers automatically after temperature goes down.



    Product List

    1* UHP-750-24 LED power supply

    How to connect flexible led strip lights

    how to connect meanwell led power supply to led strip

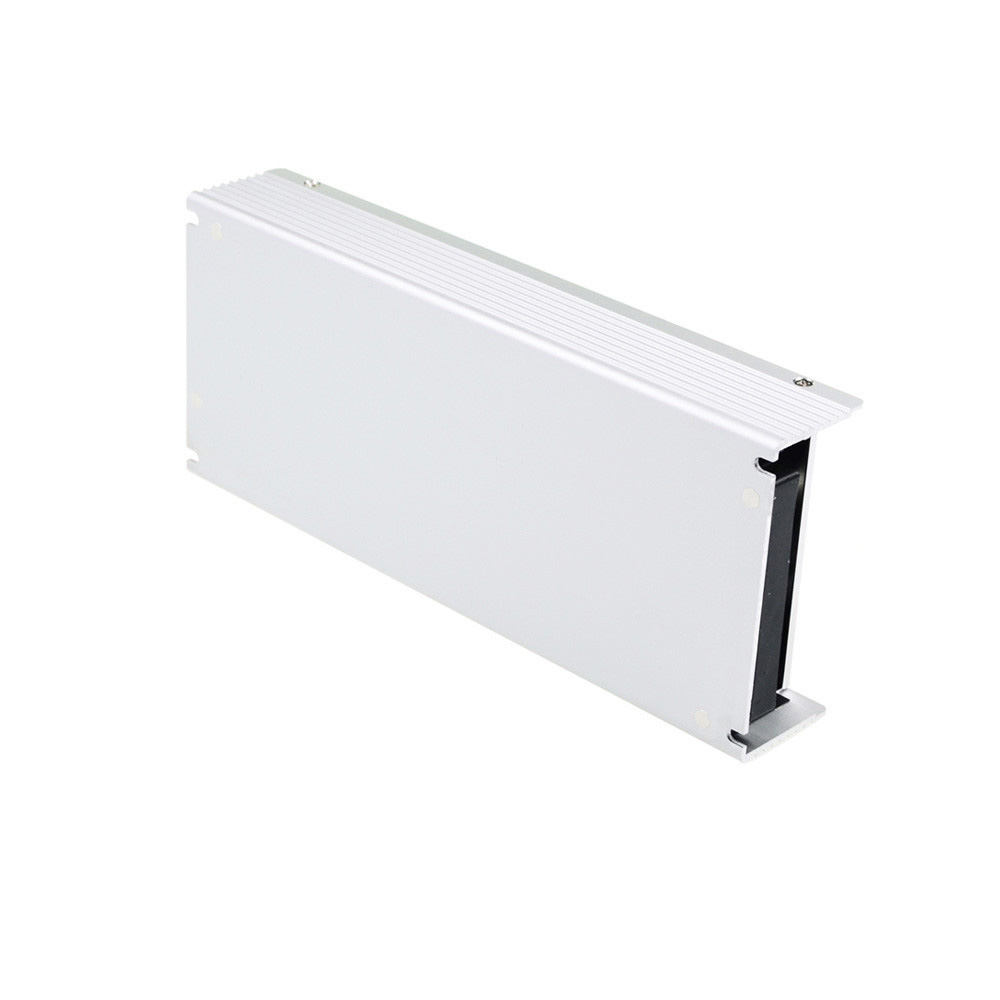

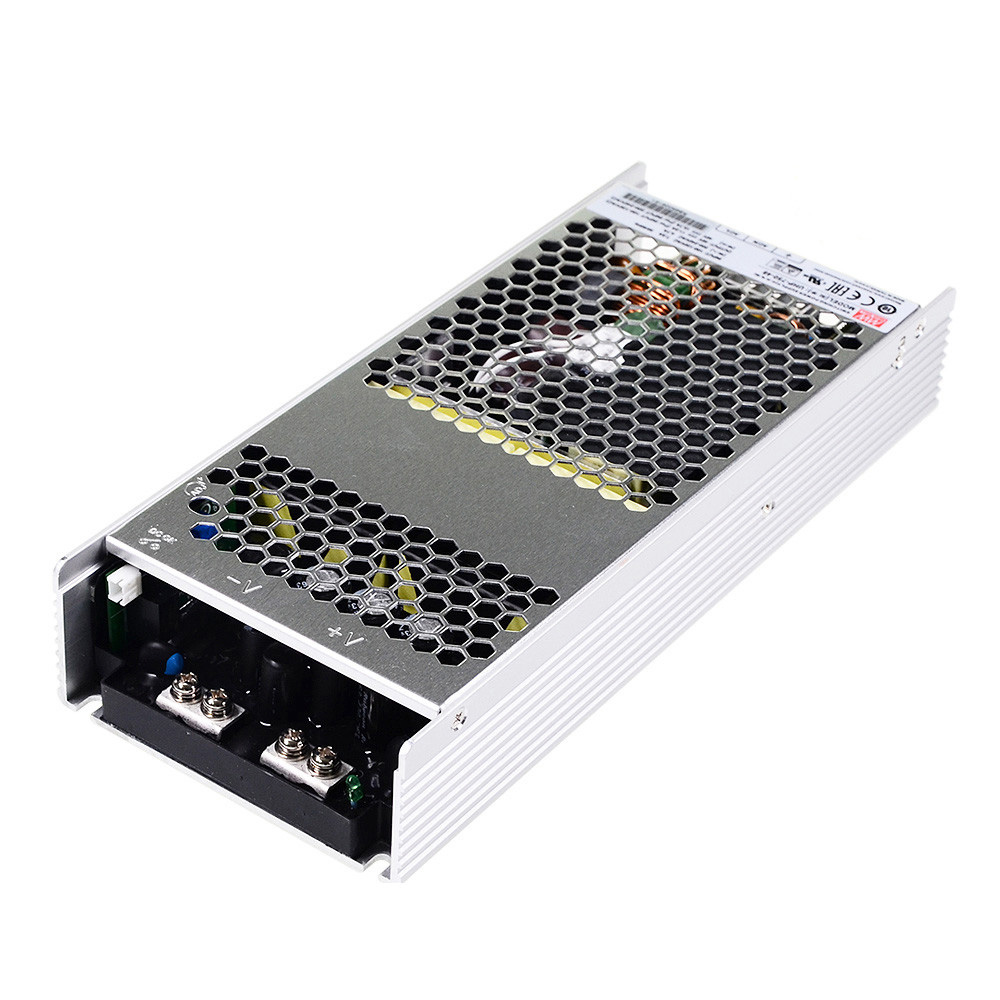

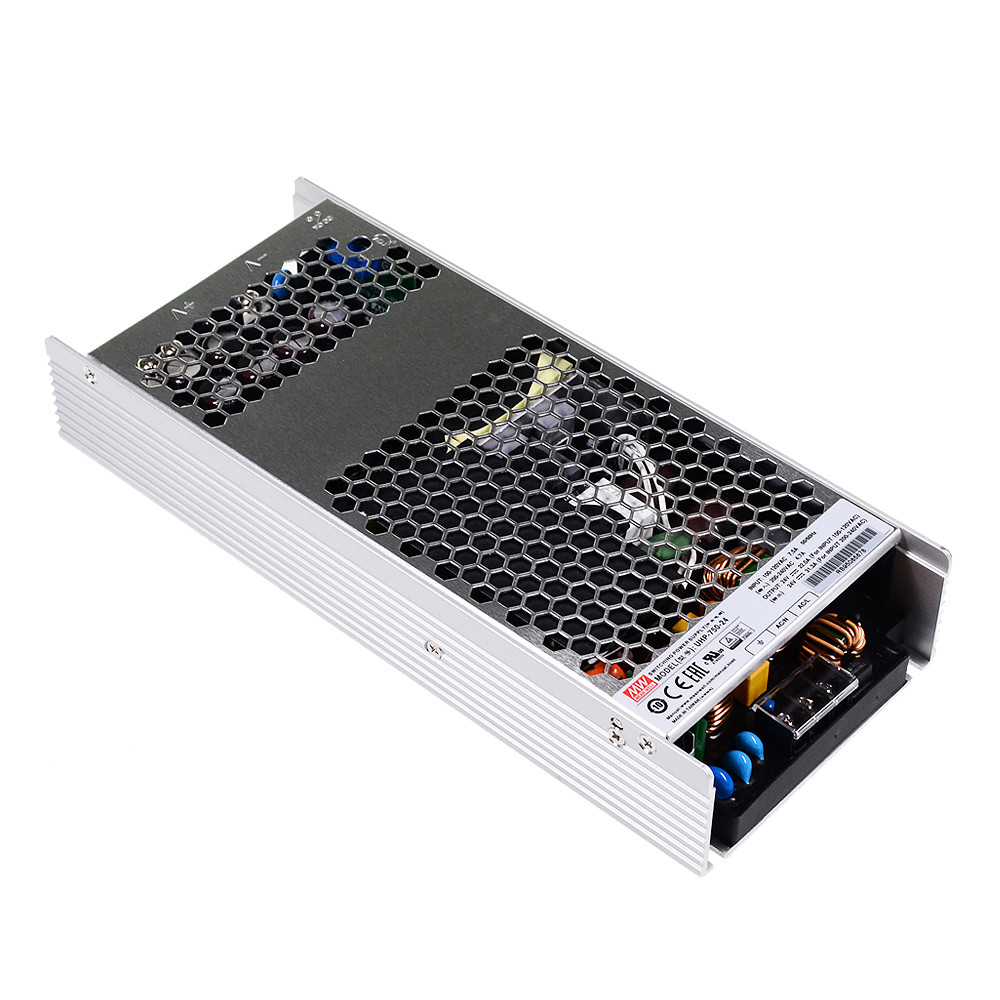

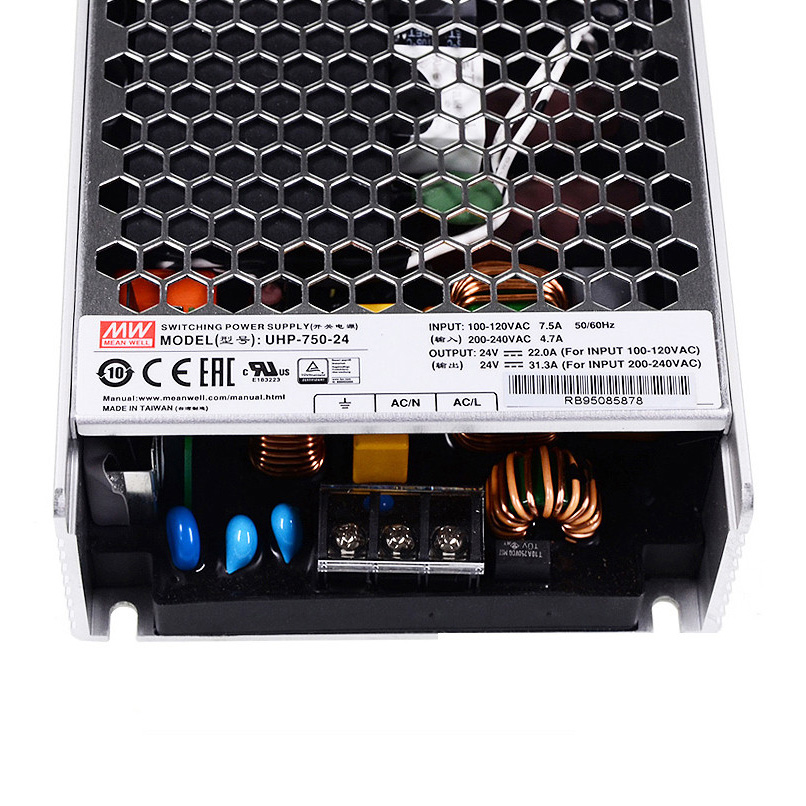

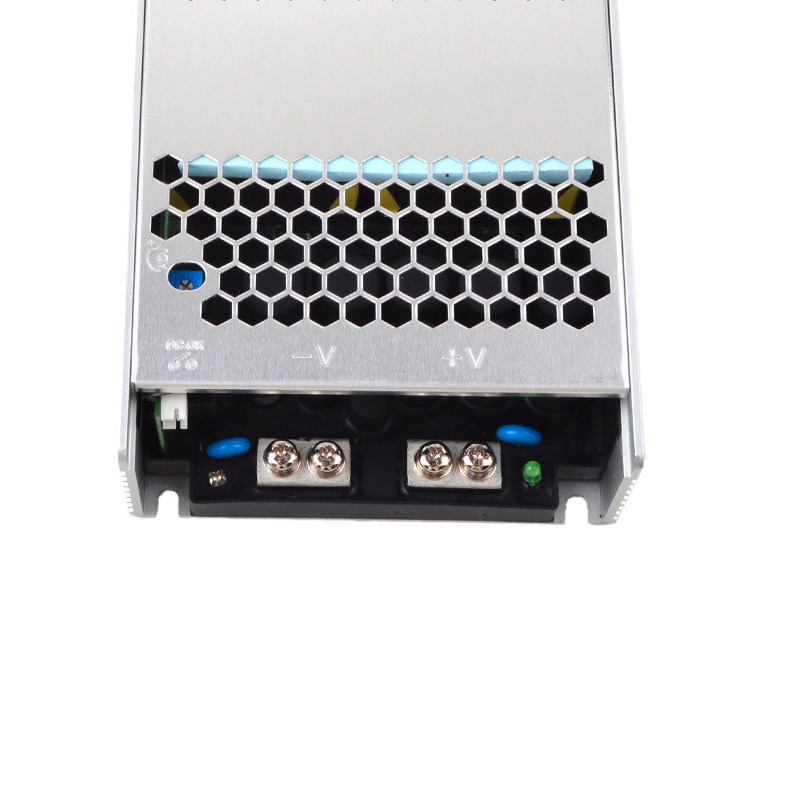

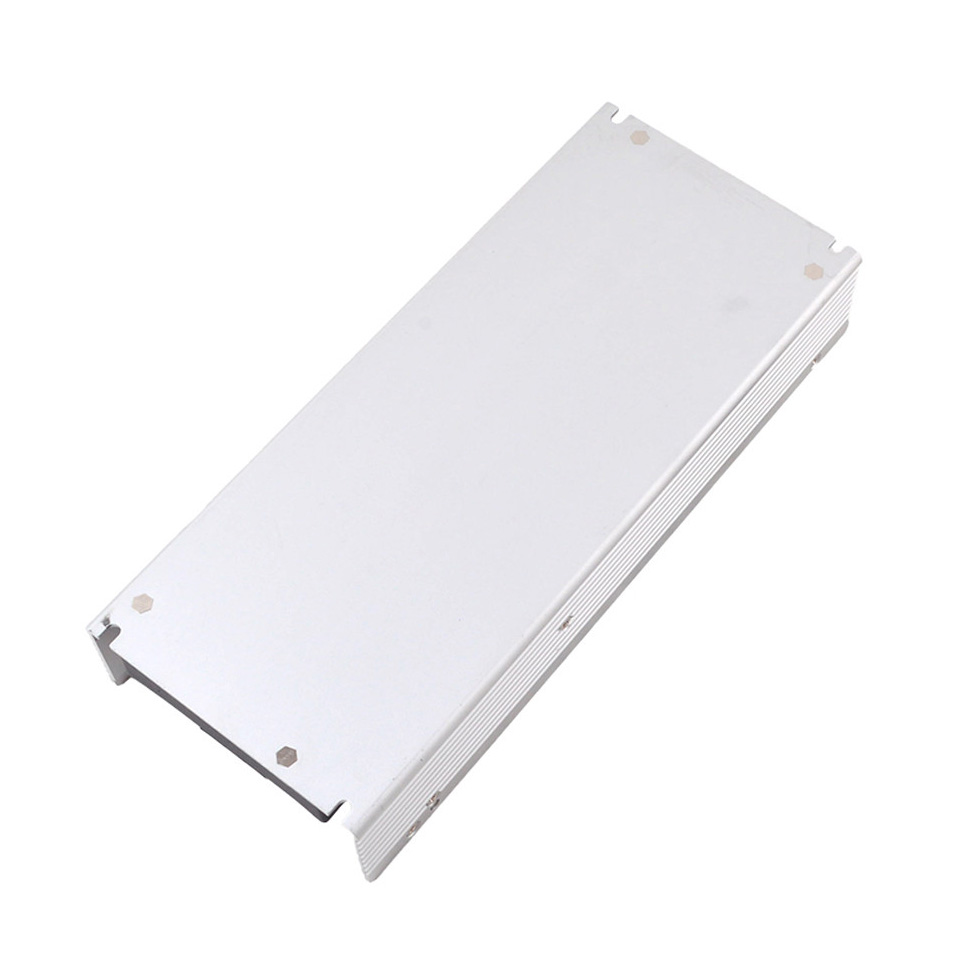

    MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    MeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling FanMeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling FanMeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling FanMeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling FanMeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling FanMeanWell UHP-750-24 DC24V 750Watt 31A UL-Listed AC110-220 Volt Switching LED Power Supply Without Cooling Fan
