Discontinued and can be replaced by our new model.

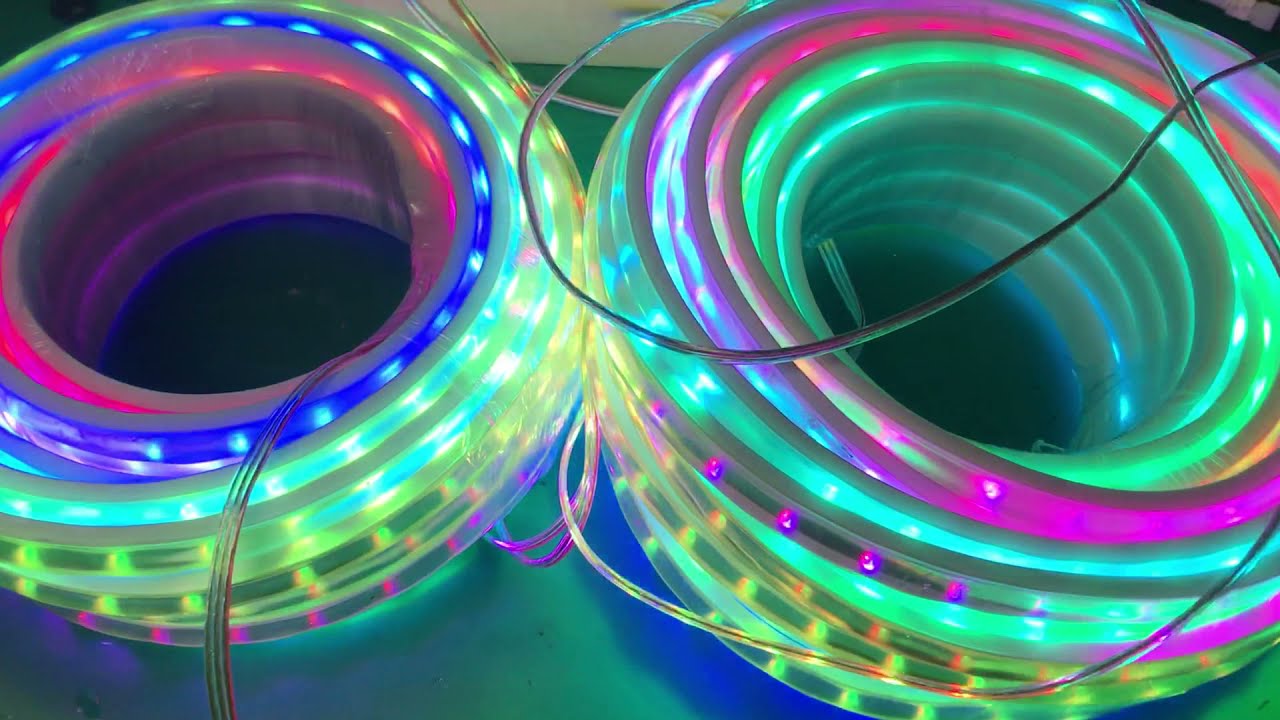

This is the 2021 newest addressable led strip lights kit. It breaks through the traditional 16.4 feet/5m in length, allowing the addressable low-voltage LED strip to reach 98.4feet/30m long without voltage drop.
The product uses a WS2811 chip and high-efficiency 5050SMD LEDs. Compatible with 98% of the SPI and Arduino controllers on the market, low-voltage safety, and low power consumption, using anti-glare waterproof casing, suitable for the indoor and outdoor complex working environment, every 1 meter/3.28' can be cut, 30 meters/98.4' total power only 240Watt, suitable for bars, KTV, shopping malls, parks and Christmas holiday places, can be used for edge lighting, contour lighting, shape lighting, making your LED project installation easier, use quick connector connection, saving a lot of wiring costs.
Coolest DIY Kits: The strips can be cut every 3.28ft/1m along the cutting marks. Every meter/3.28ft with 60 LEDs, one WS2811 IC controls 6 LEDs.
Smart and Energy Efficiency: The APP supports IOS and Android devices, Built-in 150 Kinds Color chasing modes and DIY color. You can customize the color order and ICs type, the controller supports up to 164 feet WS2811 led rope lights. 24V low working voltage more security.
Widely Application: With waterproof Rating of IP67, led lights strip is perfect for indoor and outdoor decoration. For the bedroom ceiling lighting, eave lighting, or anywhere anytime can be used.
If you want to use it outdoors, please install the controller in a dry environment, such as a waterproof box or a waterproof bag, and make sure that the AC plug is fixed out of the reach of children.
Click to view the SP107E Bluetooth music controller
Click to view the SP108E WiFi DIY Mode controller
Click to view the SP602E Blutooth music with RF remote controller
Note:
1. The max length we can make is 98.4ft/30m per roll, every 3.28ft/1m can be cut, easy to get the length you need. Or we can customize the lengths for you, if you need, please contact us.
2. When you need to run the LED strips over 98.4ft/30m long, please power at both ends to avoid the voltage drop.
3. Each kit, we will only send you one power supply, if you need two, please note when you are placing the order or contact us.
If you have a Linear Project when the length over 30m/98.4ft, We recommend using two 24V waterproof power supplies at each end.
If you have a circle Project, we recommend using a 24V waterproof power supplies, you can also power at both ends.
4. When you run 98.4ft/30m long, and just want to power at one end, when you choose R, G, B, or other color chasing effects, the lights will be fine. But when you choose white color, there will be 30% of voltage drop, if you mind this, please power at both ends.
5. The DC24V waterproof IP67 LED power supply can also be used under the water, please note, only the AC power cord part is not waterproof.
Specifications
Controller type: SPI Bluetooth(support IOS&Android device)
Length: 5M / 16.4foot, 10M / 32.8 foot, 15M / 49.2foot, 20M / 65.6foot, 25M/ 82foot, 30M / 98.4foot
LED Quantity: 60LED/m, 10 Pixels/m
Color: Addressable RGB
Beam angle: 120 degrees
Input voltage: 24V DC
Working Power: 8W/m, 40W/5m( per 16.4ft), 240W/30m(per 98.4ft)
Working Temperature: -20° to 50°
Waterproof Level: Waterproof IP67
Lifetime: 50,000+ hours
Control Function
Search for and install "LED Chord" via App Store or Google Play, then open the phone Bluetooth, open the app, search for LED Chord and connect it, then click directly to enter (we have completed the setup)
There are 120 color chase modes in the operation interface, you can mark the mode you like, and select 256 kinds of the single color by sliding the color ring. All modes can adjust brightness and speed.
At SuperLightingLED, your product’s warranty covers any items that are damaged upon arrival. If you received a defective item, please contact us before any negative feedback or reviews, and we will be happy to replace it at no cost.
Package Included
We send the whole LED strip light kit by default, if you choose the length of LED strip light kit, like 5m/16.4Ft, we will also send you the corresponding power supply.
1 x 5 Meter/16.4 Foot 5050SMD WS2811 LED Light Strips (Waterproof IP67), if you purchase 30meters LED strip light, we will send you a whole roll without cut.
1 x SP107E Bluetooth MUSIC LED controller or other controllers (Non-waterproof), if you need to use for outdoor environment, you can purchase an extra waterproof BOX
1 x 24V 100W Power Supply ( waterproof IP67 power supply)
Mounting brackets (Purchase separately)
Please Note
If you purchse our LED neon light kit, we will send the length of LED neon light according to your choice, we also send some waterproof accessories.
For LED mounting bracket, we will send you 10PCS per 5 meters, if you choose 10m LED neon light kit, we will send you 20PCS LED mounting brackets.
For 5m-50m/16.4-164Ft kit, you only need to power at one side, so we will send you the following LED power supply
| Length | LED power supply |
| 5m/16.4ft | 1*100watt power supply at one end |
| 10m/32.8ft | 1*150watt power uspply at one end |
| 15m/49.2ft | 1*200watt power supply at one end |
| 20m/65.6ft | 1*250watt at one end or 2*150watt at both end |
| 25m/82ft | 1*300watt at one end or 2*150watt at both end |
| 30m/98.4ft | 1*350watt at one end or 2*200watt at both end |
| 40m/131.2ft | 1*400watt at one end or 2*200watt at both end |
| 50m/164ft | 1*400watt at one end or 2*200watt at both end |
Linear wiring is that you connect the LED power supply, LED controller, LED strip light as a straight line.
Circle wiring is that the input port of the LED strip light is nearby the output port.
If you need other lenghts, we can also customize for you, please contact us via email or live chat. Welcome your inquiry!
