IP68 Waterproof LED Strip Lights Kit - TM1914 Addressable RGB Light - 5m~50m
This is the 2021 newest addressable led strip lights kit. It breaks through the traditional 16.4 feet/5m in length, allowing the addressable low-voltage LED strip to reach 164 feet/50m long without voltage drop.

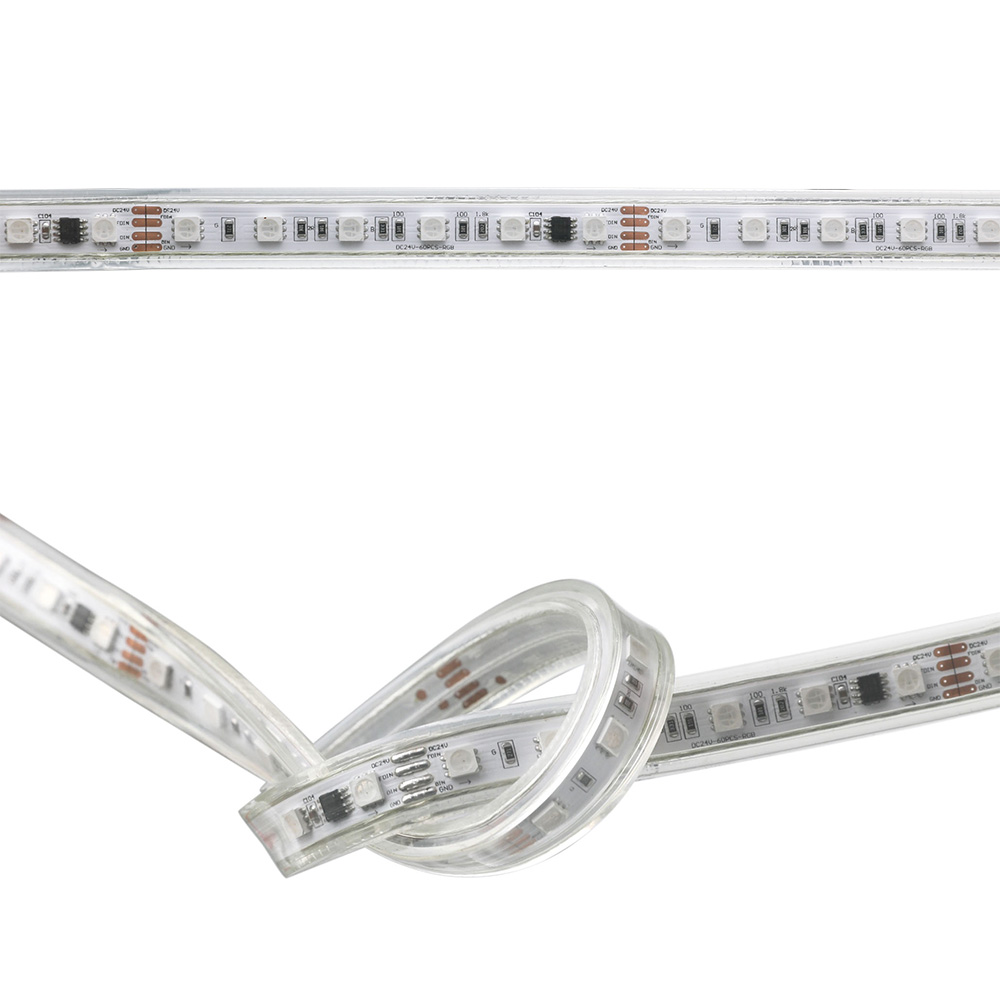

The product uses a TM1914 chip and high-efficiency 5050SMD LEDs. Compatible with 98% of the SPI and Arduino controllers on the market, DC24V-low-voltage safety, and low power consumption, using IP68 waterproof casing, suitable for the indoor and outdoor complex working environment, 50 meters/164'(every 1 meter/3.28' can be cut) total power only 600Watt. Suitable for bars, KTV, shopping malls, parks and Christmas holiday places, can be used for edge lighting, contour lighting, shape lighting, making your LED lighting project installation easier, saving a lot of wiring costs.
►TM1914 Breakpoint resume series(VCC, DAT, Backup, GND), the failure of one RGB LED light does not affect the work of other LED lights.
►60 LEDs/m, 10ICs/m. One IC controls 6 RGB LED lights.
►DC24V working voltage
►Outdoor waterproof IP68

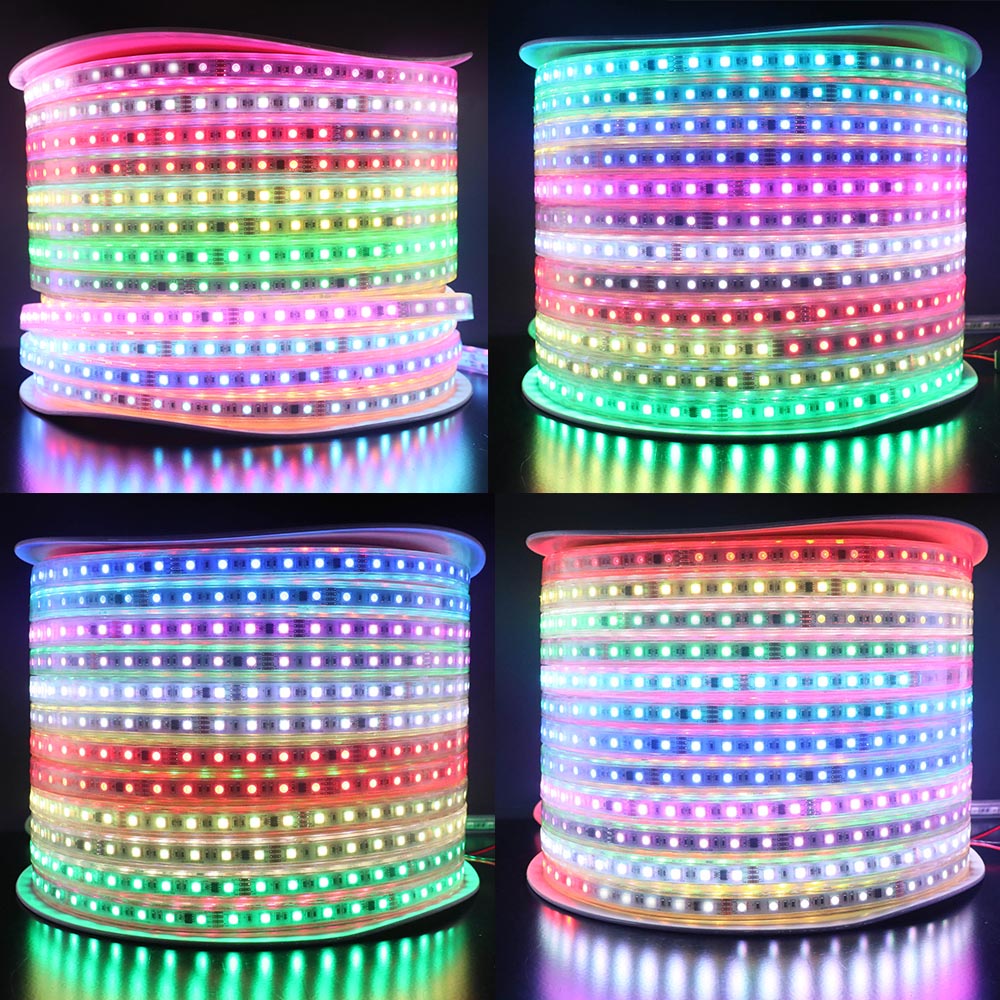

What are addressable color chasing RGB LED strip lights?
The addressable RGB led strip has one more IC chip than other ordinary RGB led tape lights. The addressable led lights receive the digital signal data from the addressable led controller, then delivers the data to IC, and IC controls RGB LED lights. One IC can control one or more RGB LED lights.
You can send different control commands to each IC. The RGB LED lights in the adjacent IC control area can have different light colors and different brightness. Therefore, it enables us to develop complex illumination lighting effects.
Addressable RGB vs RGB
Addressable RGB led strips can be regarded as an upgraded version of non-addressable RGB color changing led strip lights. Ordinary RGB led rope lights can only realize the color jump and the brightness adjustment of the whole light strip. The entire rope light can only appear in one color at a time, two different colors cannot exist at the same time. Instead, addressable RGB color chansing led strip lights can achieve various color changes in one strip through the control system, including color chasing, multi-color cycling, single color walking, and so on.
More addressable LED strip lighting knowledge: Ultimate Guide to Choosing the Right Addressable LED Strip.
How to choose the waterproof addressable RGB LED lighitng kit?
1. Addressable SPI controller optional
✅ Smart and Energy Efficiency: The APP supports IOS and Android devices, Built-in 150 Kinds Color chasing modes and DIY color. You can customize the color order and ICs type, the controller supports up to 164 feet led rope lights. 24V low working voltage more security.
✅ Widely Application: With waterproof Rating of IP68, led lights strip is perfect for indoor and outdoor decoration. For the bedroom ceiling lighting, eave lighting, or anywhere anytime can be used.
✅ If you want to use the SPI controller outdoors, please install the controller in a dry environment, such as a waterproof box or a waterproof bag, and make sure that the AC plug is fixed out of the reach of children.
2. Choose a suitable LED power supply
In the kit, you can choose one power supply or two power supplies. Circle 1*power supply for 5m-20m/16.4-65.6Ft light strip kit, linear 2*power supplies for 5m-20m/16.4-65.6Ft lighting kit.
Circle wiring is that the input port of the LED strip light is nearby the output port. For 5m-20m/16.4-65.6Ft kit, you only need to power at one side, so we will send you the following LED power supply.
If you choose the linear 2*power supplies for 5m-20m/16.4-65.6Ft light strip kit, we will send you a circle 1*power supply too. Because one LED power supply is enough for the addressable RGB lighting strip whether you are a linear project or a circular project.
|Strip Length||LED power supply (Circle 1*power supply)|
Linear wiring is that you connect the LED power supply, LED controller, LED strip light as a straight line. For 30-50m/98.4ft-164ft lighting strip kit, you need to power at two ends to prevent LED voltage drop.
Therefore, please be careful to choose the power supply option.
|Strip Length||LED power supply (Linear 2*power supplies)|
*What is LED voltage drop when running ultra long LED lighting(the white LED light change into red at the end):
Standards and Certifications
|IC type:||TM1914 Addressable RGB|
|Length:||5m/16.4ft, 10M/32.8ft, 15M/49.2ft, 20M/65.6ft, 25M/82ft, 30M/98.4ft, 35M/114.8ft, 40M/131.2ft, 45M/147.6ft, 50M/164ft|
|LED Quantity:||60 LEDs/m, 10 Pixels/m|
|Input voltage:||24V DC|
|Working Power:||12W/m, 60W/5m( per 16.4ft), 600W/50m(per 164ft)|
|Waterproof Level:||Highest IP68 Waterproof Rating|
|Beam angle:||120 degrees|
|Working Temperature:||-20° to +50°C|

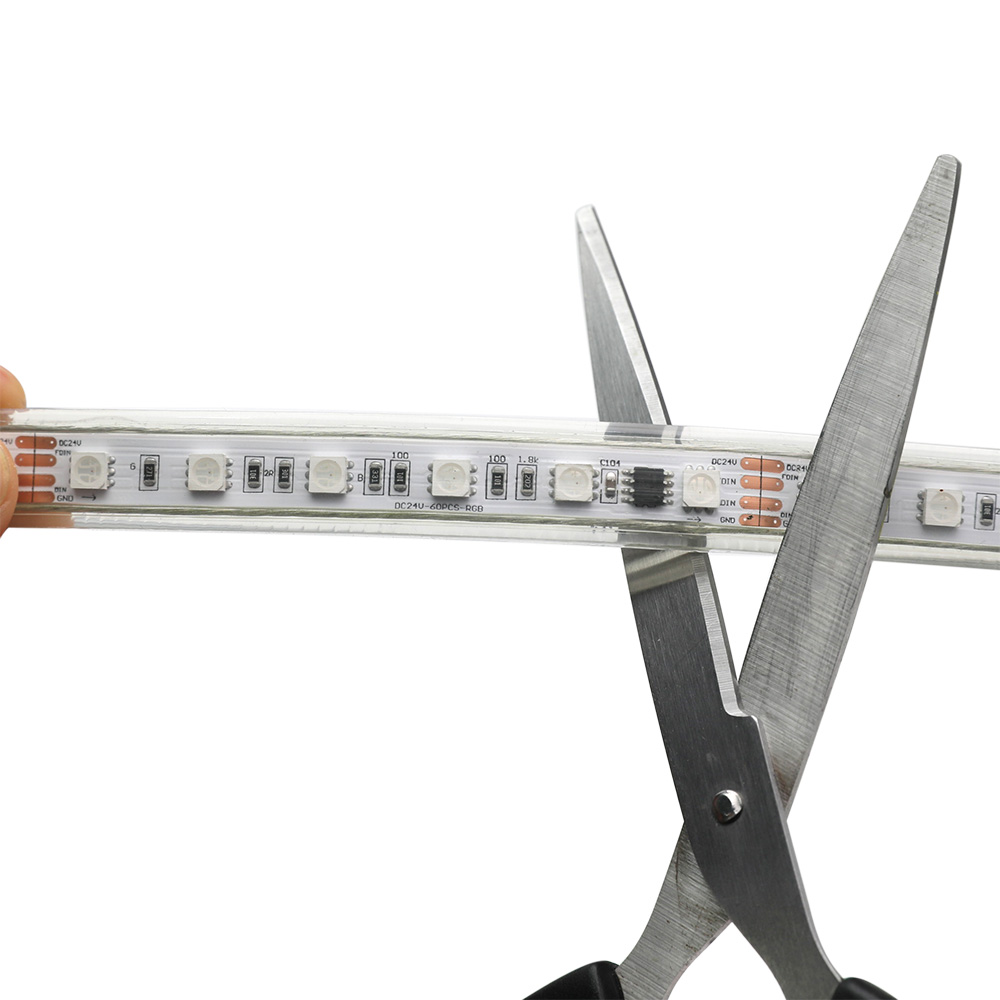

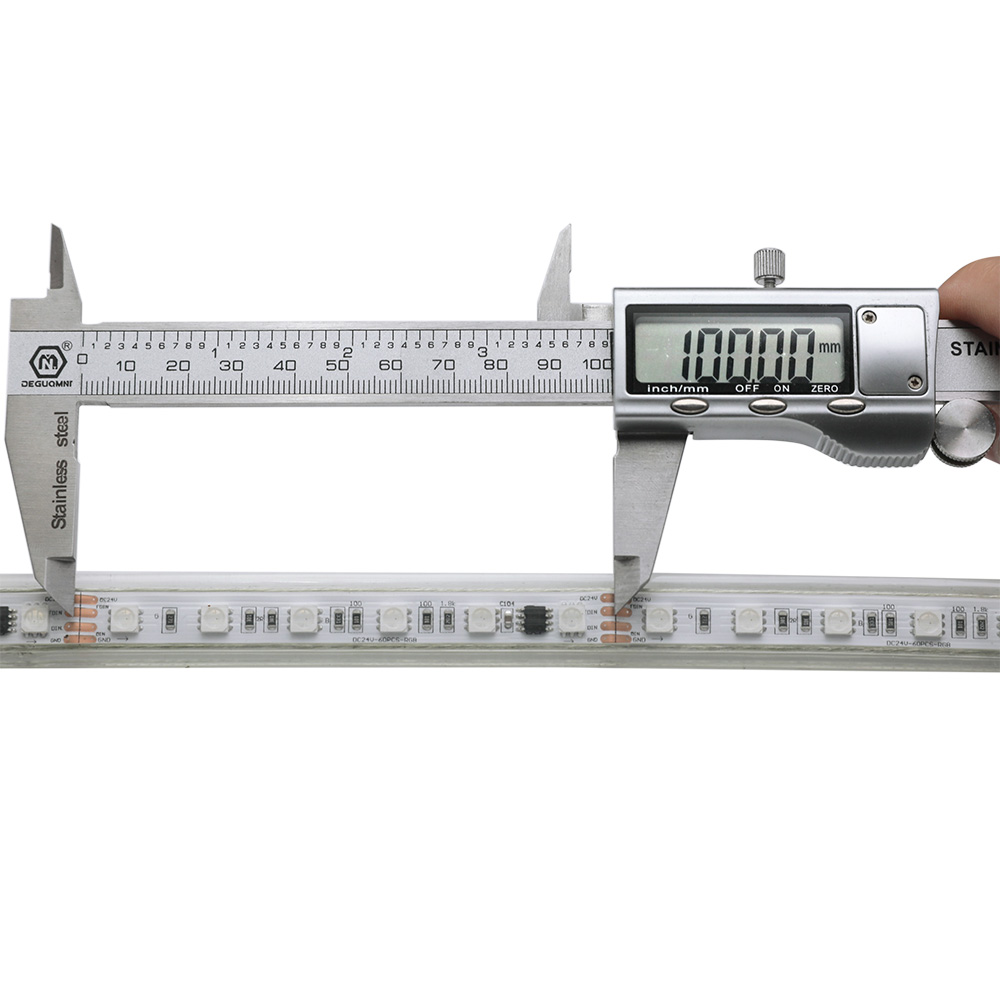

1. The max length we can make is 164ft/50m per roll, every 3.28ft/1m can be cut, easy to get the length you need. Or we can customize the lengths for you, if you need, please contact us.
2. When you need to run the addressable LED strips over 98.4ft/30m long, please power at both ends to avoid the voltage drop.
When you run 164ft/50m long, and just want to power at one end, when you choose R, G, B, or other color chasing effects, the lights will be fine. But when you choose white light color, there will be 30% of voltage drop, if you mind this, please power at both ends.
3. The DC24V waterproof IP67 LED power supply can also be used under the water, please note, only the AC power cord part is not waterproof.
4. If you purchse our addressable RGB light kit, we will send the length of strip lighting according to your choice, we also send some waterproof accessories.
For LED mounting bracket, we will send you 10PCS per 5 meters, if you choose 10m waterproof addressable light kit, we will send you 20PCS LED mounting brackets.
We send the whole LED strip light kit by default, if you choose the length of LED strip light kit, like 5m/16.4Ft, we will also send you the corresponding power supply.
1 x 5 Meter/16.4 Foot 5050SMD TM1914 LED Light Strips (Waterproof IP68), if you purchase 50meters LED strip light, we will send you a whole roll without cut.
1 x SP107E Bluetooth MUSIC LED controller or other controllers (Non-waterproof), if you need to use for outdoor environment, you can purchase an extra waterproof box.
1 x 24V 100W Power Supply ( waterproof IP67 power supply)
10 x Mounting brackets ( for 5m/16.4ft LED tape lights, every 1m use two)
How to connect addressable RGB LED strips?
For more information about addressable LED controllers and more wiring content, please read: How to wire addressable led strips?
|You can cut the strip every few inches, allowing you to freely design your project without worrying about space requirements to many different surfaces.||The back of the addressable strip is fitted with a strong 3M tape, allowing you to peel and stick lights.||IP67/IP68 waterproof LED type which will come with mounting brackets.|
If you need other lenghts, we can also customize for you, please contact us via email or live chat. Welcome your inquiry!
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
