| Select Aluminum Profile: | Forward+Flange(Silver) (Base), Forward(Silver) (Base), 90° Light-emitting(Silver)*Recommend* (Base), Forward(Black) (Base), Forward+Flange(Black) (Base), 90° Light-emitting(Black) (Base), No |
|---|---|
| Select Controller type: | SP107E Music Bluetooth Controller (Base), SP530E Wifi+Bluetooth Controller (Base), SP530E Controller + 1*RF Remote + 1*RF Panel, SP530E Controller + 1*RF Remote + 2*RF Panel, SP530E Controller + 2*RF Panel |
| Select Electrical Enclosure: | No (Base), Yes - Package controller and power supply |
| Select Light Color : | Addressable RGB (Base), Addressable RGB+Daylight White(6000K), Addressable RGB+Warm White(3000K) |
| Select Operating Voltage: | DC 12V (one pixel per 50mm) (Base), DC 24V (one pixel per 100mm) (Base) |
| Select Plug Type: | US (Base), UK (Base), EU (Base), AU (Base) |
| Select Stair Width: | 1.96ft (0.6meter) (Base), 1.64ft (0.5 meter), 2.62ft (0.8meter), 3ft (0.9 meter), 3.28ft (1 meter), 3.77ft (1.15m), Customized length, Note when placing an order |
| Select Steps Number: | 8, 10, 12 (Base), 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 6 |
| Select Waterproof Rating: | IP20 Indoor Use (Base) |
| Availability | In Stock |
| Condition | Brand New |

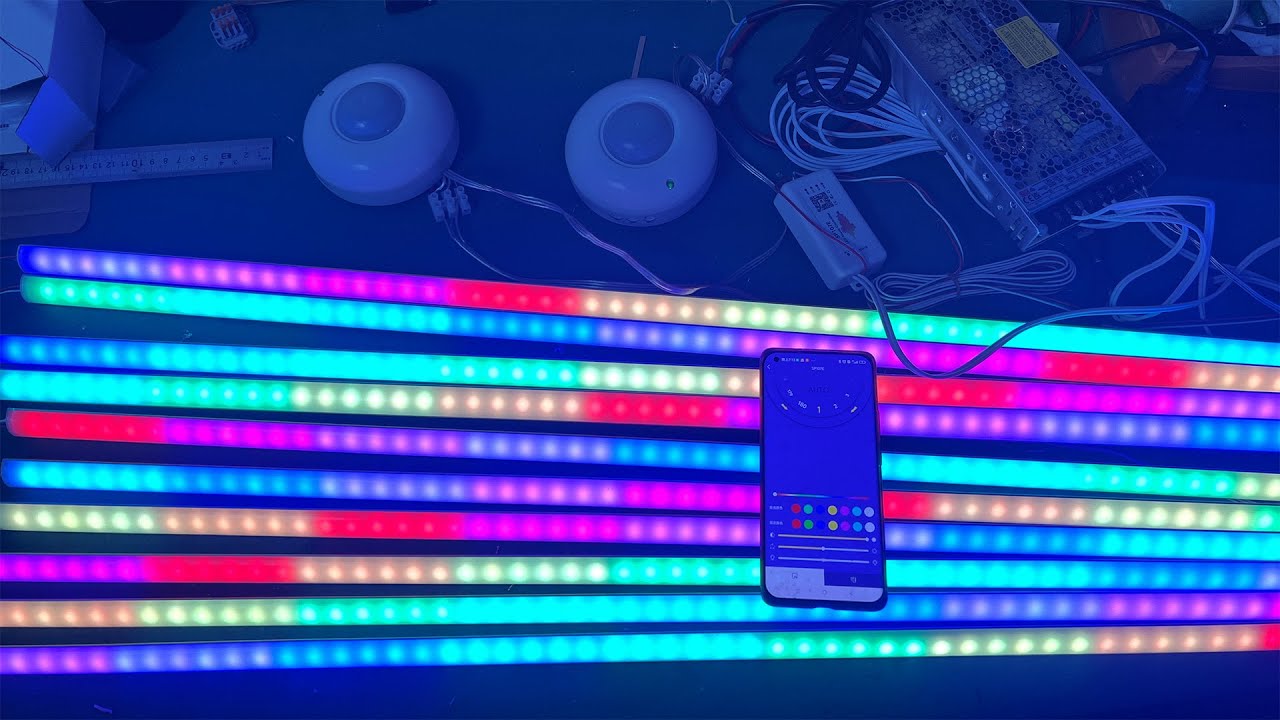

A complete multi-color changing & color chase stair lights kit to light your individual treads, led strip lights for stair treads provide more light to your staircase. It adapts addressable RGB led strips (with fast connectors at both ends of each strip for easy connection) to illuminate stair steps, the lights are controlled by an SP107E Bluetooth music controller or SP530E Bluetooth+WiFi+RF+Timer music controller, allowing you to adjust brightness and speed/ change static colors or dynamic modes/ music rhythm via a mobile software. With both functional and fun. SP530E also allows the whole stair light system to be time controlled to achieve the purpose of not working during the day and working at night.
|
Warm Tips: 1. No motion sensing function. (If you need, please look for AC PIR sensors like this one.) 2. This staircase light kit uses SMD LED strips as light source, even used with aluminum profiles and there are still light spots if your stairs can not hide the fixture well. If you need spotless lighting, please check out this ES32 Color-Changing LED Kit. 3. After opening the “LED Chord” app for the SP107E or the “BanlanX” app for the SP530E, you must first set the LED IC type and color type so that all your lighting operations will display correctly. |
We offer different length options to fit the width of your stairs. Measure your stair tread length to choose the suitable strip length to install or customize your desired length (need to note when placing an order).
The motion sensor step strip lights installation depends on the type of stairway you have and your preference, under the treads with LEDs downlighting, attach directly to the stair steps, or with an aluminum channel embedded into the stair treads.
LED strips with aluminum profiles will have aesthetic installation effects. The diffuser cover smooths LED output and the metal channel gives the LED strip optimized heat management, so as to prolong LED life.
1x SP107E Bluetooth controller or SP530E Bluetooth + WiFi + RF controller
Stair lighting LED pixel strip of specified length, with 50cm/19.7in 3-pin JST quick connectors on both ends for daisy-chaining LEDs
Aluminum profile of specified length and model (optional)
If you choose the aluminum profile LED type, the profile length will vary slightly. This is determined by the fact that the light strips can be cut every 50mm or every 100mm:
| Your selected profile length | Actual profile length | Number of ICs per strip |
| 0.5 meters (1.64ft) | 0.52 meters (1.7ft) | 10 (DC12V) / 5 (DC24V) |
| 0.6 meters (1.97ft) | 0.62 meters (2ft) | 12 (DC12V) / 6 (DC24V) |
| 0.8 meters (2.6ft) | 0.82 meters (2.7ft) | 16 (DC12V) / 8 (DC24V) |
| 0.9 meters (2.95ft) | 0.92 meters (3ft) | 18 (DC12V) / 9 (DC24V) |
| 1 meter (3.28ft) | 1.02 meters (3.35ft) | 20 (DC12V) / 10 (DC24V) |
| 1.15 meters (3.8ft) | 1.12 meters (3.67ft) | 22 (DC12V) / 11 (DC24V) |
1x 5-meter JST extension cable (Connect the pixel strip on the first step to the SP107E or SP530E controller)
1x 12V DC / 24V DC Mean Well power supply
1x AC plug
1x Waterproof enclosure (optional; note that this enclosure is sized only to accommodate the controller and power supply stacked on top of each other; please do not select this option if this is a concern)
| Color | Voltage | Light strip model | Remote & Panel model |
| Addressable RGB | DC12V | DCFLS-12V-WS2811X300 | RB3, RC3 |
| Addressable RGB | DC24V | DCFLS-24V-WS2811X300 | RB3, RC3 |
| Addressable RGB + White | DC12V / DC24V | SM16704-5050X60-RGBW-12V | RB4, RC4 |
When there are an excessive number of stair treads, we will add additional power supply configurations as needed to ensure your custom IC stair tread lighting kit operates perfectly.
SP530E Manual
RB&RC Series Remote Control Manual
Standards and Certifications
Product Specification
| Product Type: | Color Chase LED Stair Lights Kit |
| LED Strip Type: | 12V/24V Low-Voltage Addressable LED Strips |
| Controller Type: | SP107E Bluetooth Music SPI Contorller / SP530E Bluetooth+WiFi+RF+Music+Timer SPI Controller |
| Stair Light Effect: | All Bright or Color Chasing |
| Motion Sensor: | No |
| Light Color: | Addressable RGB / RGB+W |
| Step Width (Tread/Strip Length): | 0.5m/1.64ft, 0.6m/2ft, 0.8m/2.26ft, 0.9m/3ft, 1m/3.28ft, 1.15m/3.77ft |
| Strip Wire Length: | 0.5m/19.7" at both ends of every strips |
| Steps Number: | 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 PCS |
| Aluminum Channel: | 16*16mm Corner Channel, 17.4*7.6mm Surface Mount Channel, 24.8*7.5mm Recessed LED Channel |
| Waterproof Rating: | Non-waterproof (IP20), For Indoor Stairs |
