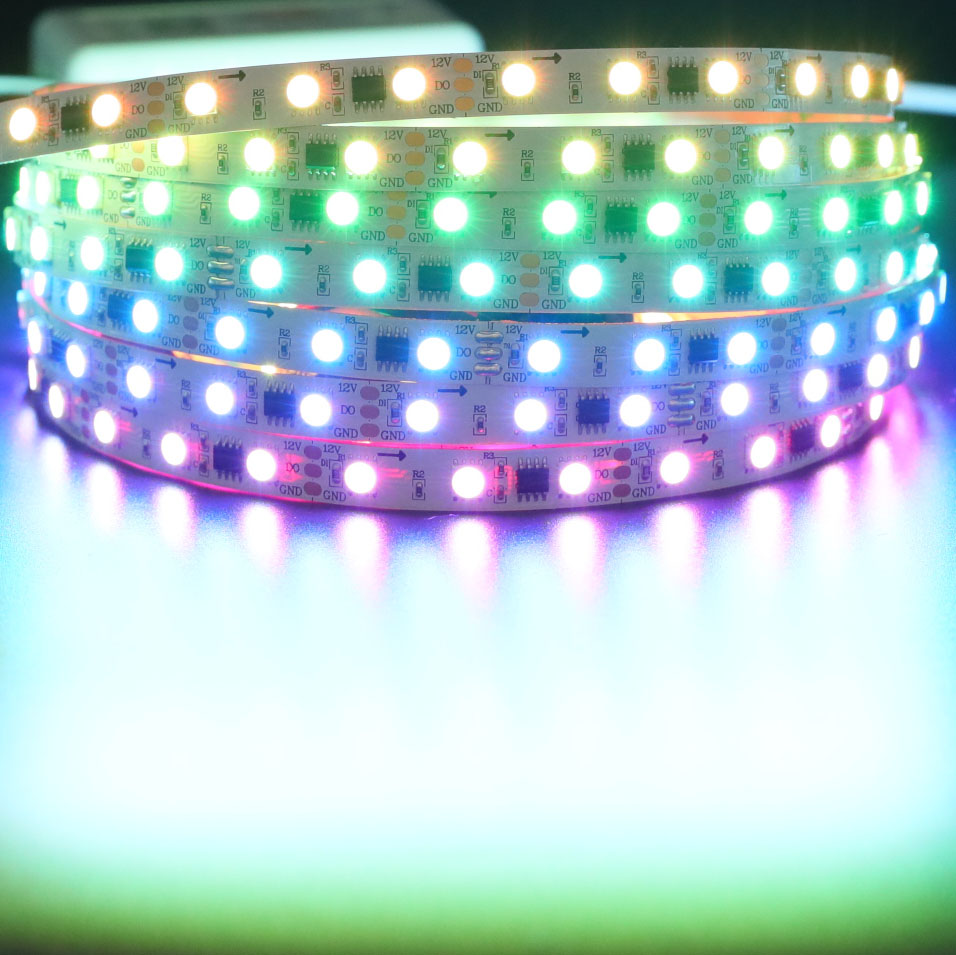

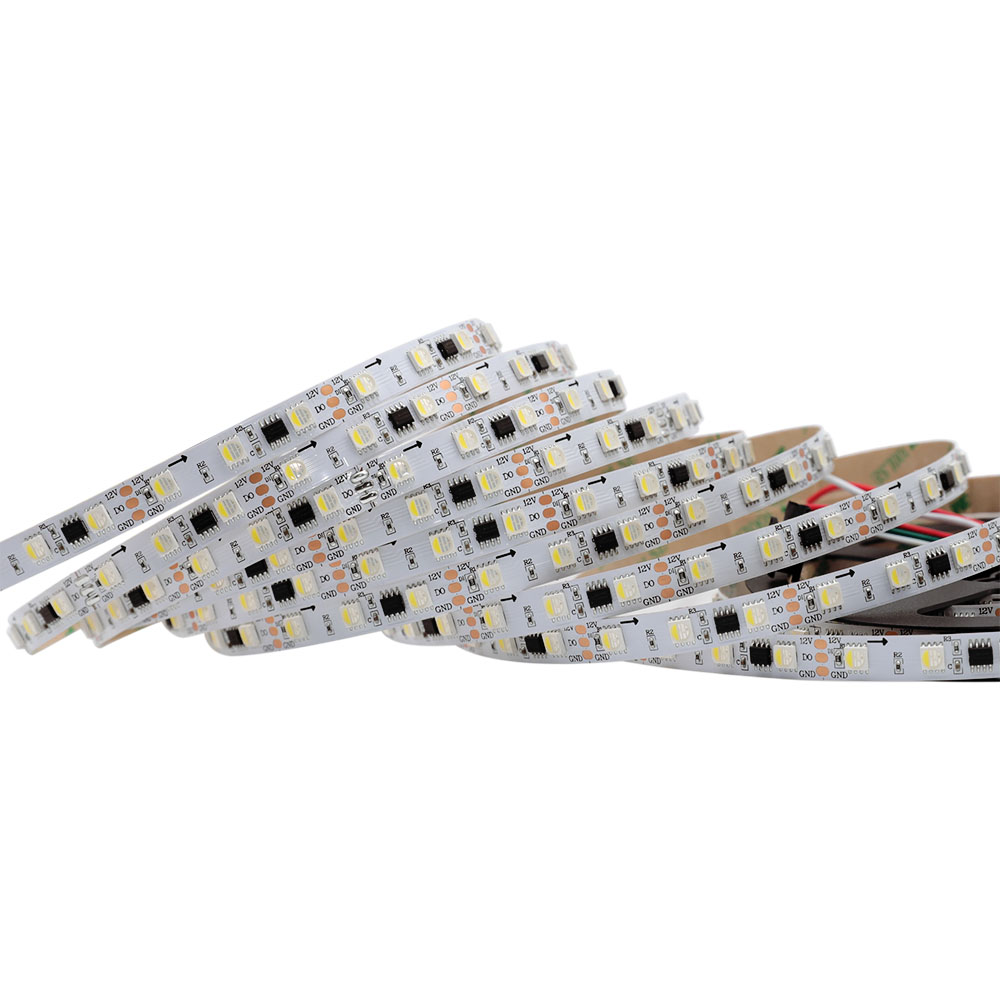

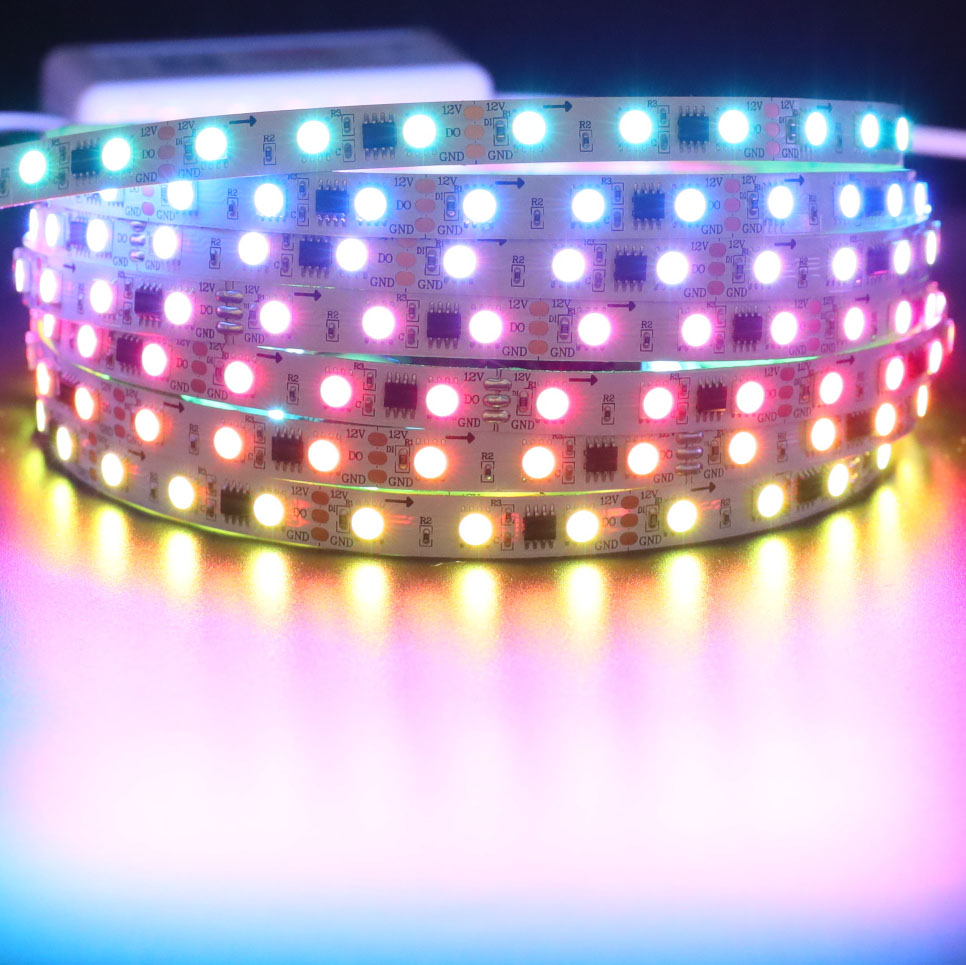

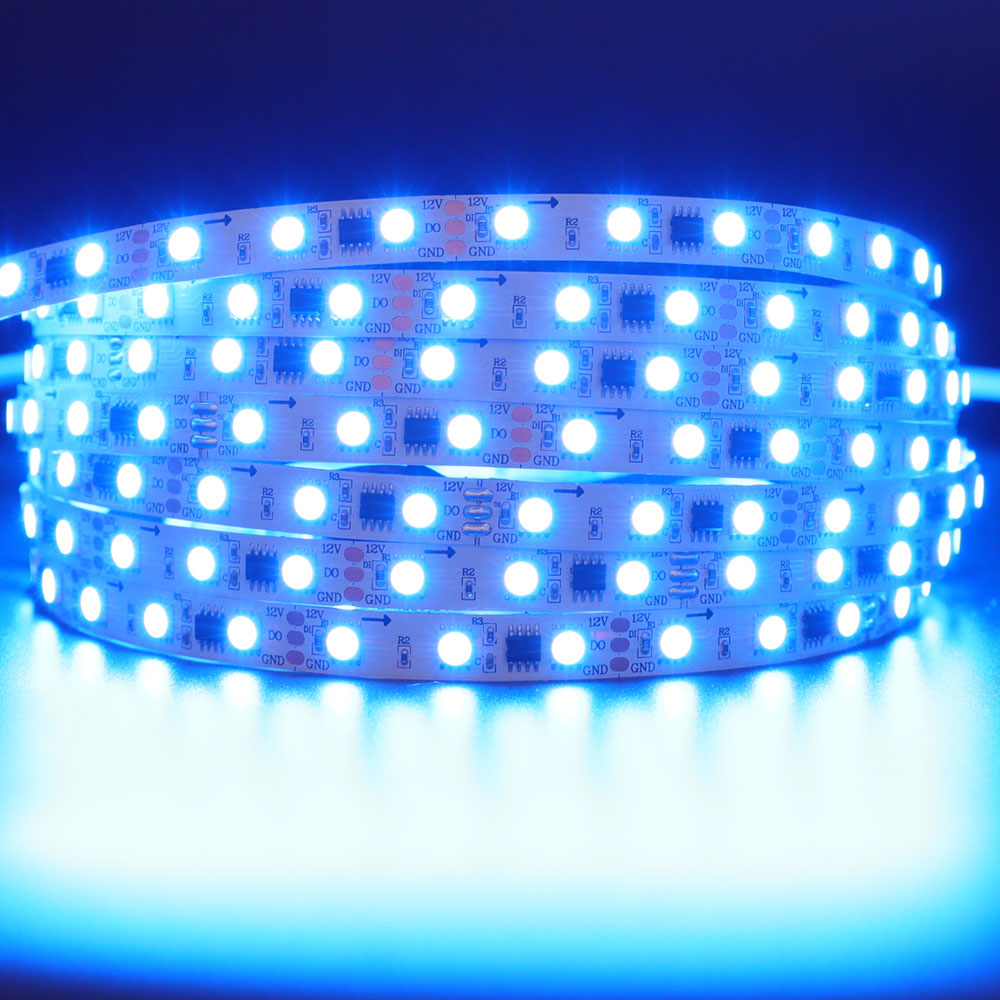

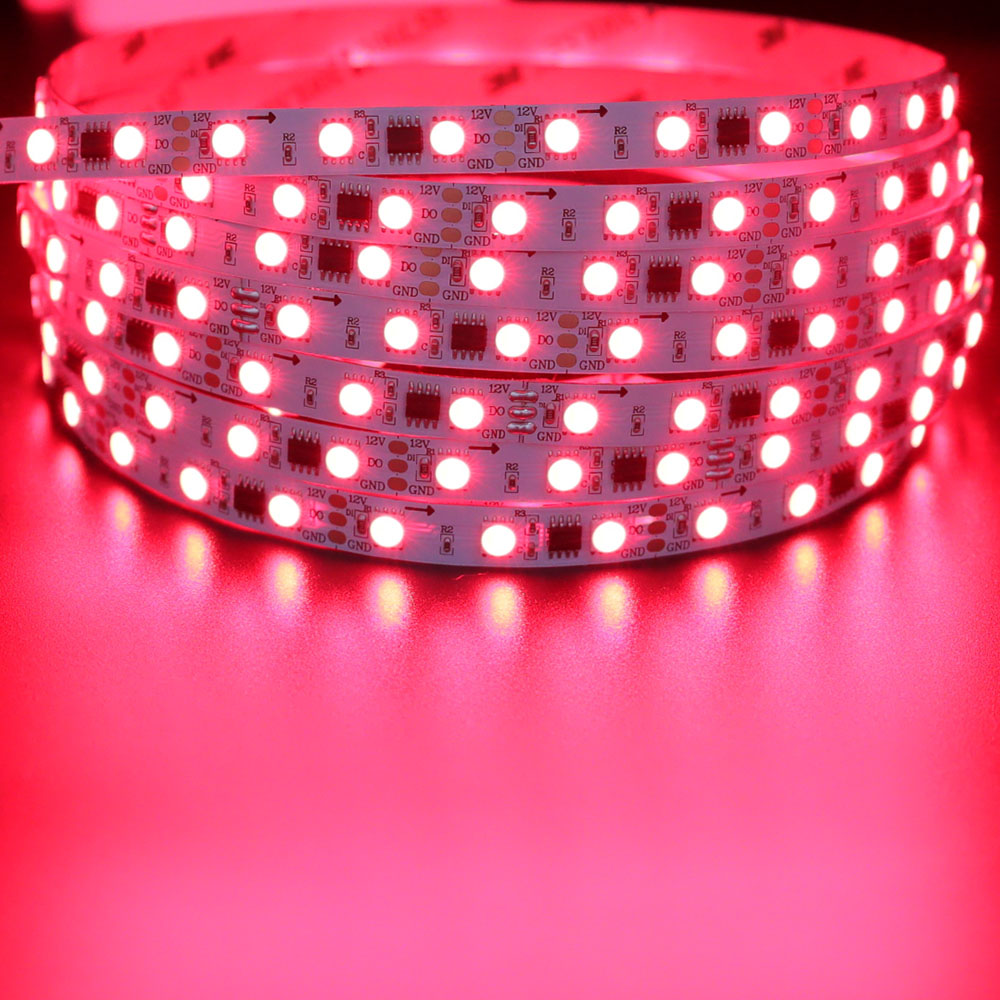

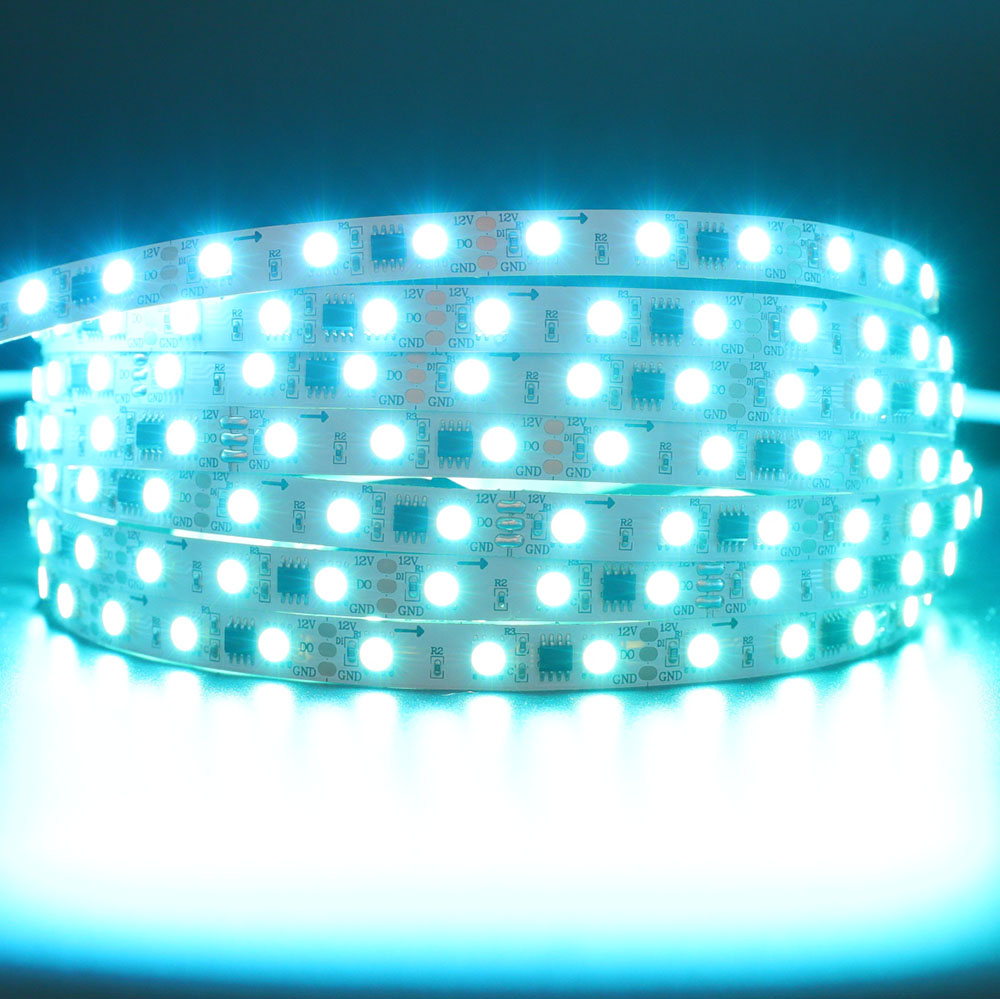

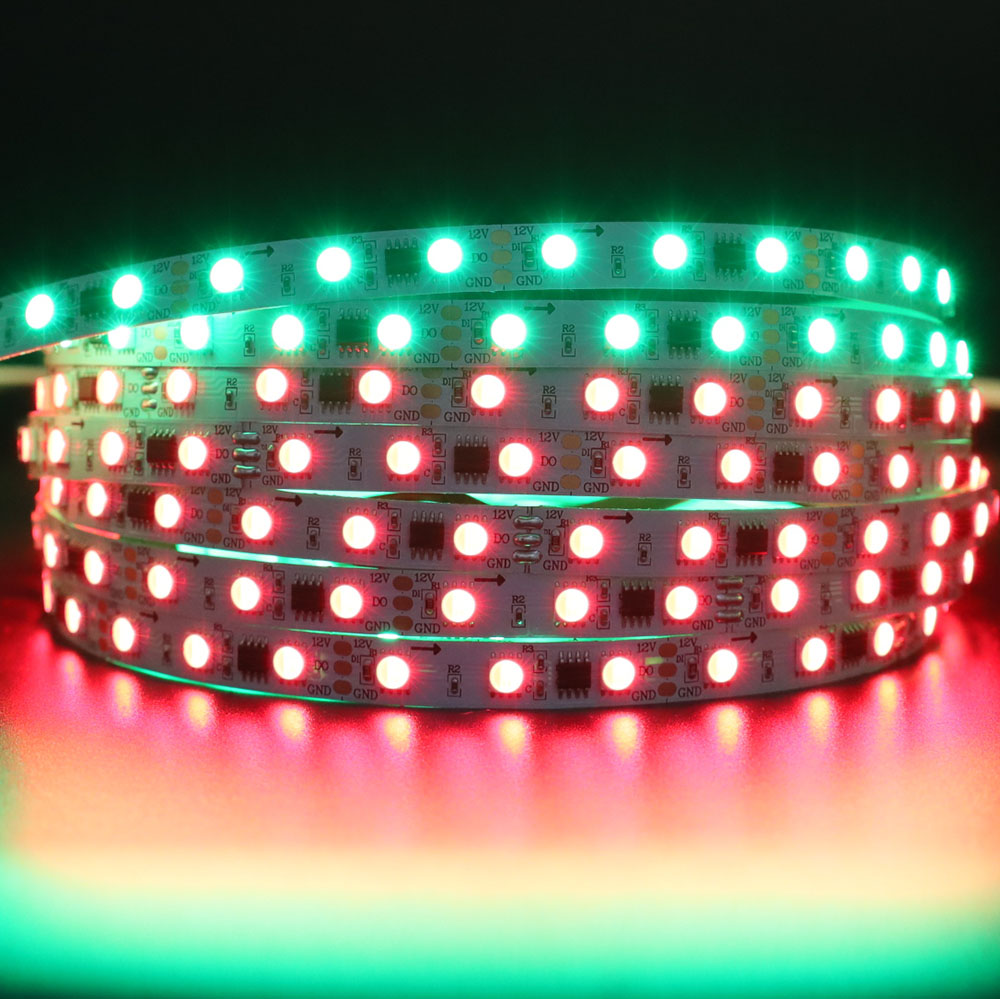

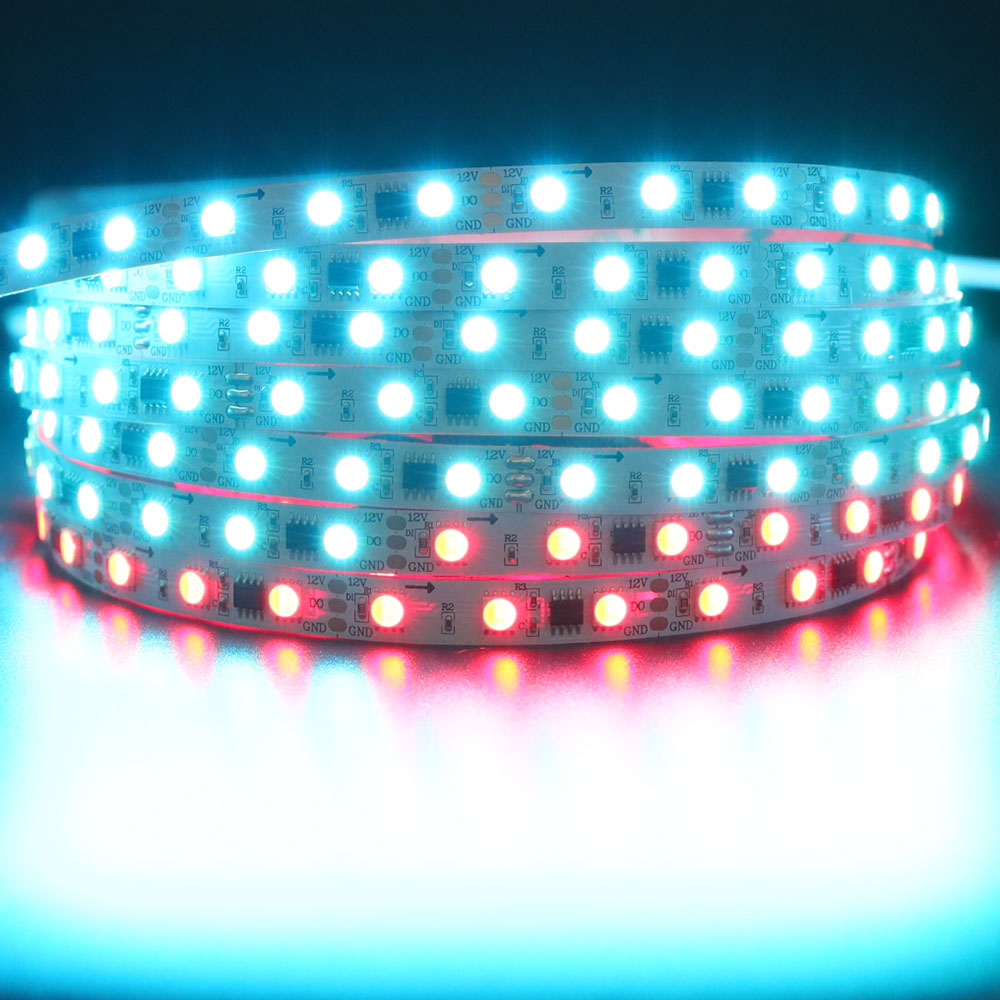

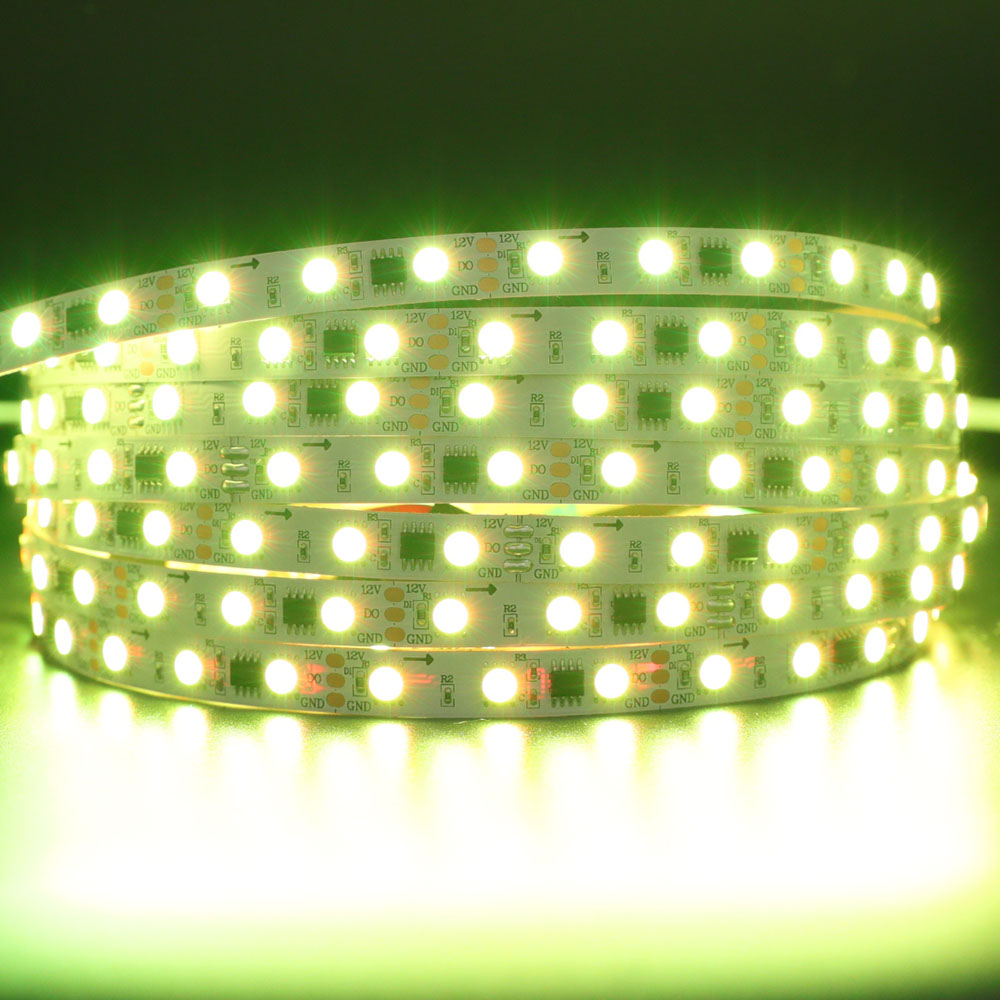

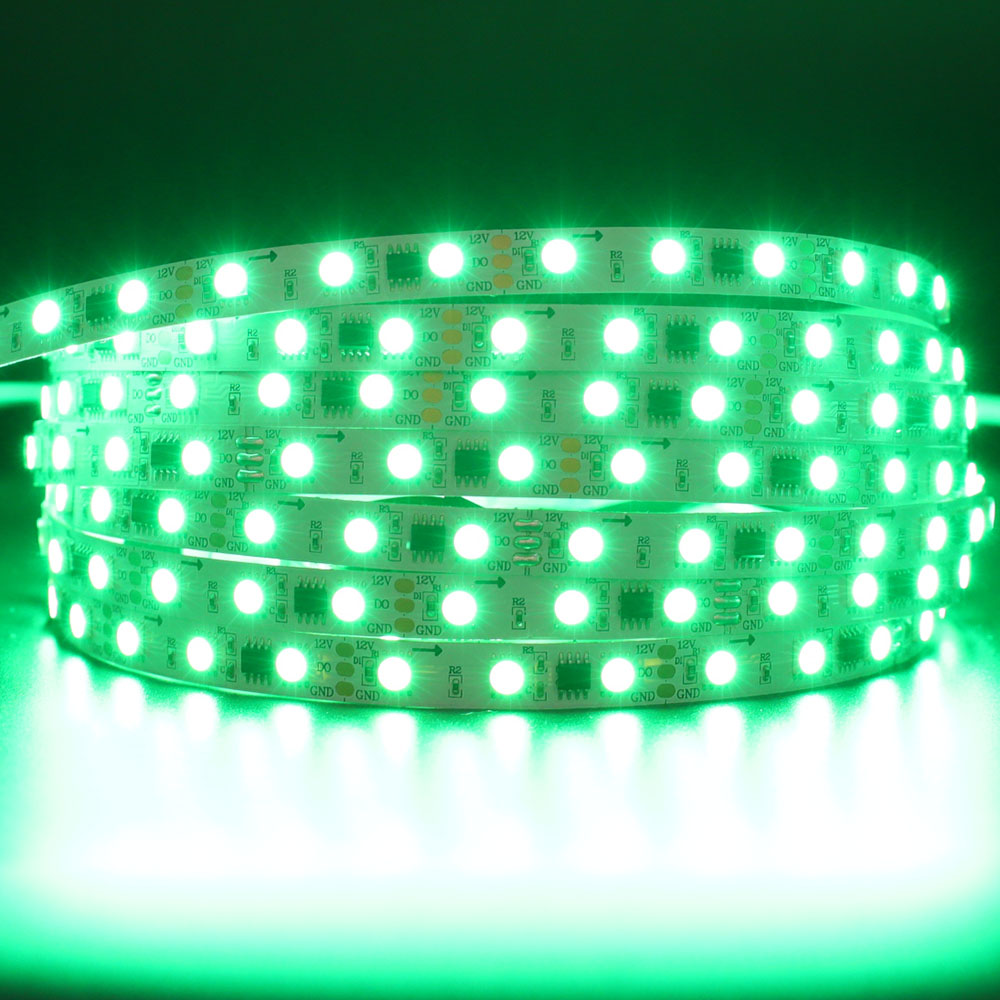

SM16704 Addressable RGBW 60LEDS/M DC12/24V Digital Dream Color Flexible LED Strip Lights - Similar to SK6812 RGBW LED Strips.

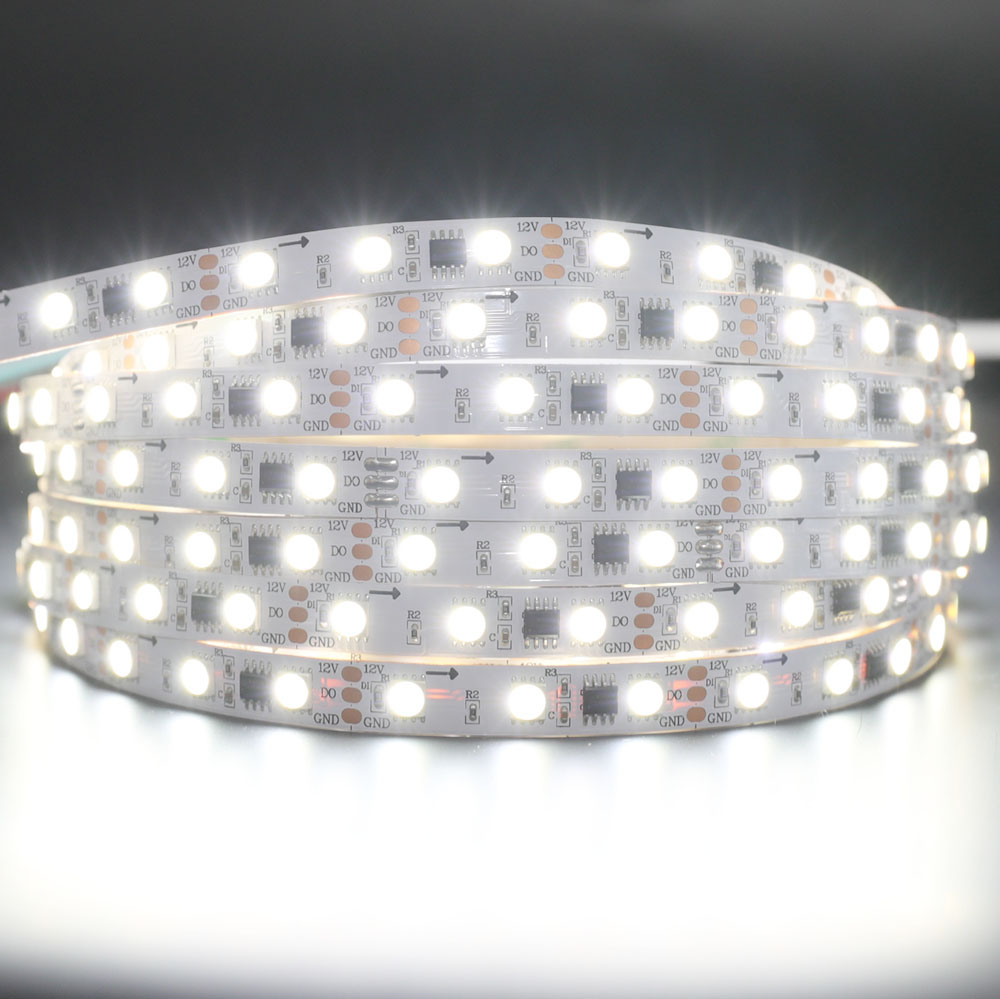

1. High Bright 5050RGB+W 4in1 LED chips, offer you a purer white color than the common RGB LED strips, able to control the brightness of the single white color.
2. Adopting high quality materials, based on flexible FPC tape, be good at conductivity, better heat dissipation, and resistant to bending, you can bend to the shape you need.
3. Low voltage DC12/24V, safe and green, stable current, low consumption.
4. Using the SM16704 external IC, can program via the addressable LED controller to create your own unique color chasing effects.

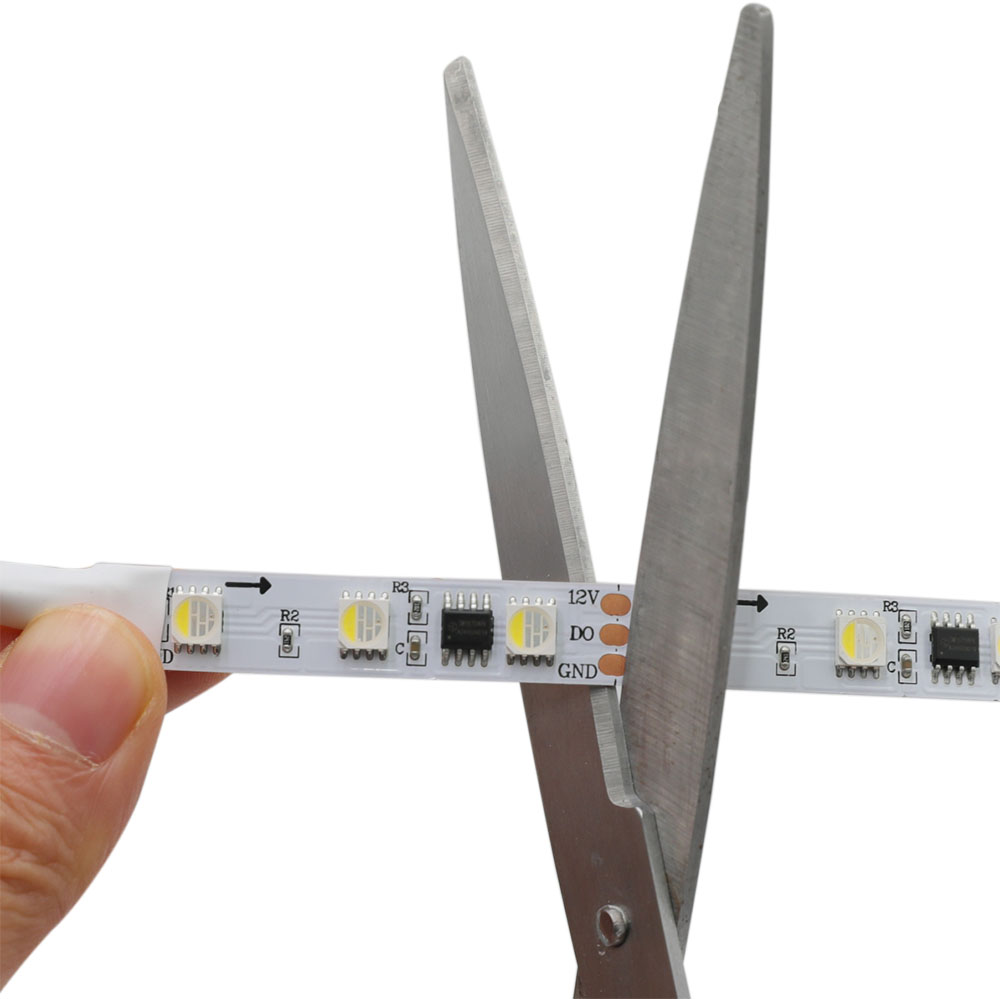

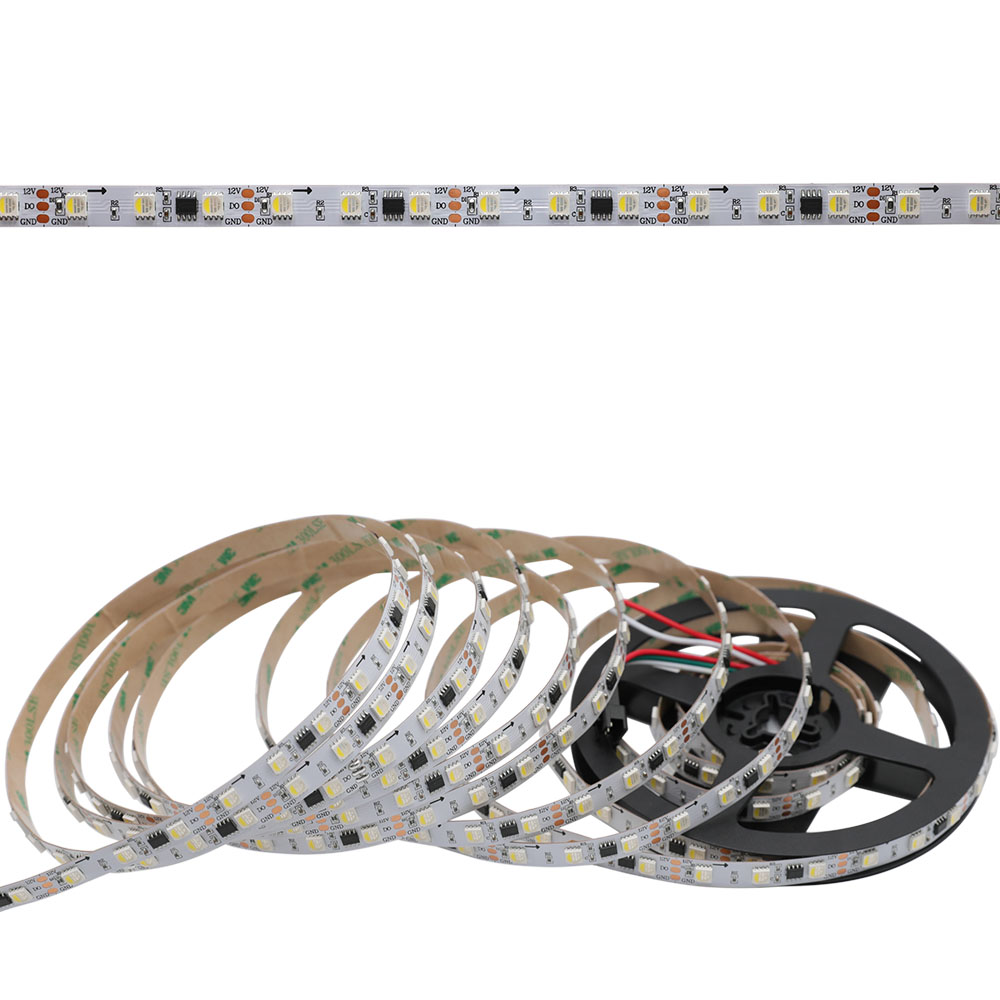

5. Every 3/6 LEDs can be cut, easy to get the length you need, with 3M adhesive backing tape, convenient to install anyplace (only for IP20, IP65).
6. Offering various waterproof rating, non-waterproof IP20, waterproof IP65, IP67, IP68, suitable for indoor and outdoor LED lighting projects.
SM16704 Chips Specifications Download
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
Input voltage: DC12/24V
Power: 14.4watt/meter, 72watt/roll
LED Chip Model: SMD 5050
LED resource: SM16704 RGBW
IC Type: SM16704 IC (1 IC drives 3/6 led chip)
Q'ty of LED: 60 LEDs/Meter
Q'ty of IC: 20/10 pixel /Meter
Cuttable: every 3/6 LED is cuttable

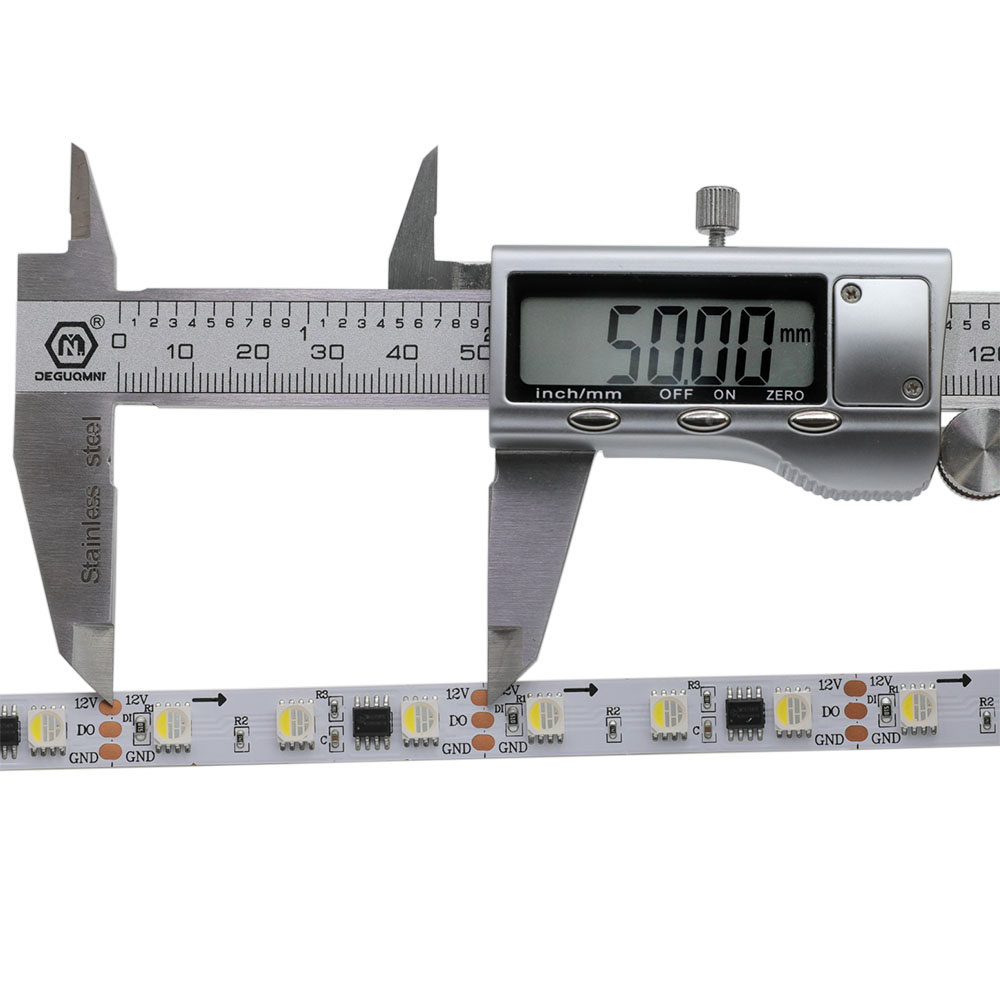

Dimensions: L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.1 in )
Color Temp(K): RGB+W full color
FPC color: WHITE
Protection rate: Non-waterproof IP20 or IP 65( gel coating) IP67 waterproof (sealed in silicone tube) or IP68
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
Average Life (hrs): 50000Hours+
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work
