Special Price: $279.98

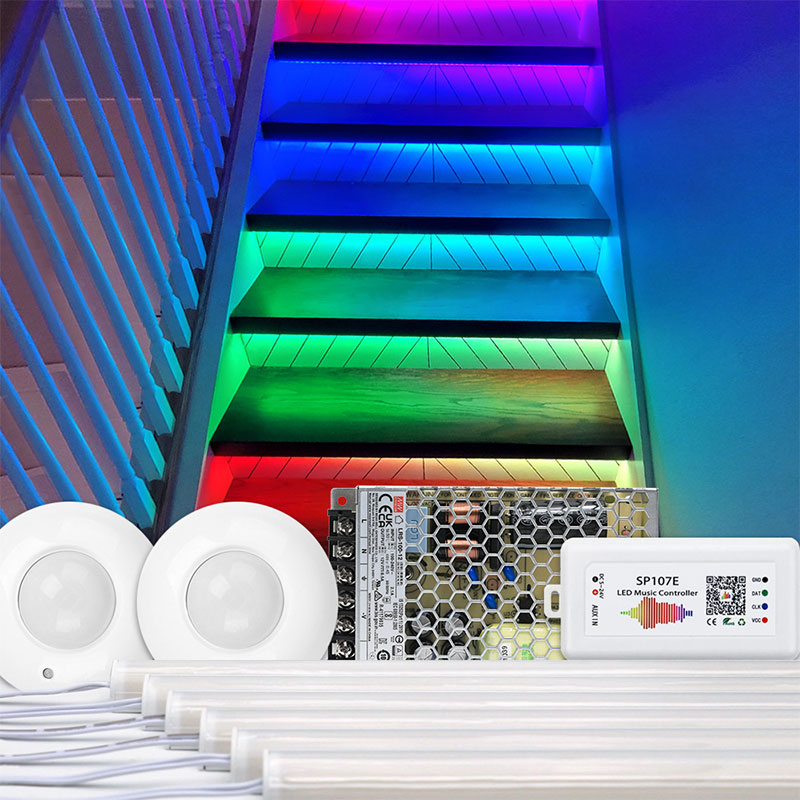

Use energy-saving addressable LED strip lights to light up your indoor stairs. Adapt intelligent motion senser technology, the stair lights automatically turn on when you approach the staircase, free your hands. This indoor stair lighting kit is to create colorful stair light effects. (Note: the ES32 controller is no all-lights-on function.) Every 10m/32.8ft length addressable stair strips should be powered on both ends.
A new smart APP controlled AC switch option has been added to allow the whole stairway light system to be time controlled to achieve the purpose of not working during the day and working at night.
Why choose superlightingled.com to purchase stair lights?
1. Use ES32 LED stair lighting controller, PIR senser, intelligent control.
2. Use addressable RGB light strips as stair light sources, with rich colors and adjustable stair effects. <Red, Orange, Yellow, Green, Cyan, Blue, Purple, White, Color Queue (7 Color + White), Color Chase (7 Color + White), Color Fade ( Color Fade), Rxxx Gxxx Bxxx (User Define)>
3. The number of stair steps is optional.
4. You can choose whether to match aluminum profiles for your stair light strips.
5. The width of stairs (length of led strips) is optional.
6. Complete LED stair lights kit, no need to buy additional items.
What lights to use for stairs?
The use of LED strip lights for staircase lighting has the following advantages:
-
LED lights are energy-saving;
-
High applicability, can be used for different types of stairs;
-
Easy installation;
-
Up to 50,000 hours of service life;
-
Linear light, illuminates every corner of the stairs;
-
LED high brightness, providing sufficient illumination.
How do you put lights on stairs?
The LED strip lights used in our stair lights kit are wrapped in angular aluminum channels and fixed to the surface of the stair treads by mounting clips. You can also choose to stick the light strips directly on the stair tread without installing the aluminum profile housing.
1) LED corner channel: 16*16mm size, 90-degree lighting emitting, the choice of most people.
2) Surface mount led channel: 17.4mm*7.6mm size (Forward), the led aluminum channel fixed on the stair surface by mounting brackets or adhensive tapes.
3) Recessed LED channel: 24.8mm*7.5mm size (Forward + Flange), the led channel profile recessed in the stair, need to reserve size first.
Standards and Certifications
| Product Type: | Motion Sensor Indoor LED Stair Light Kit |
| LED Strip: | DC24V Addressable RGB LED Strip |
| Stair Controller: |
ES32  |
| LED Strip Housing: | Aluminum Channel or Not |
| Light Color: | Multi-Color RGB Chasing |
| Step Width: | 0.6m/2ft, 0.5m/1.64ft, 0.8m/2.26ft, 0.9m/3ft, 1m/3.28ft, 1.2m/4ft |
| Stair Steps: | 20, 6, 8, 10, 12, 14, 16, 18, 22, 24, 26, 28, 30, 32 PCS |
| Waterproof Rating: | Non-waterproof(IP20) |
ES32 LED Stair Controller Lighting Modes:
1) Color flow LED stair lighting;
2) Step-by-step staircase lighting;
3) Stair light step-by-step and color flow.

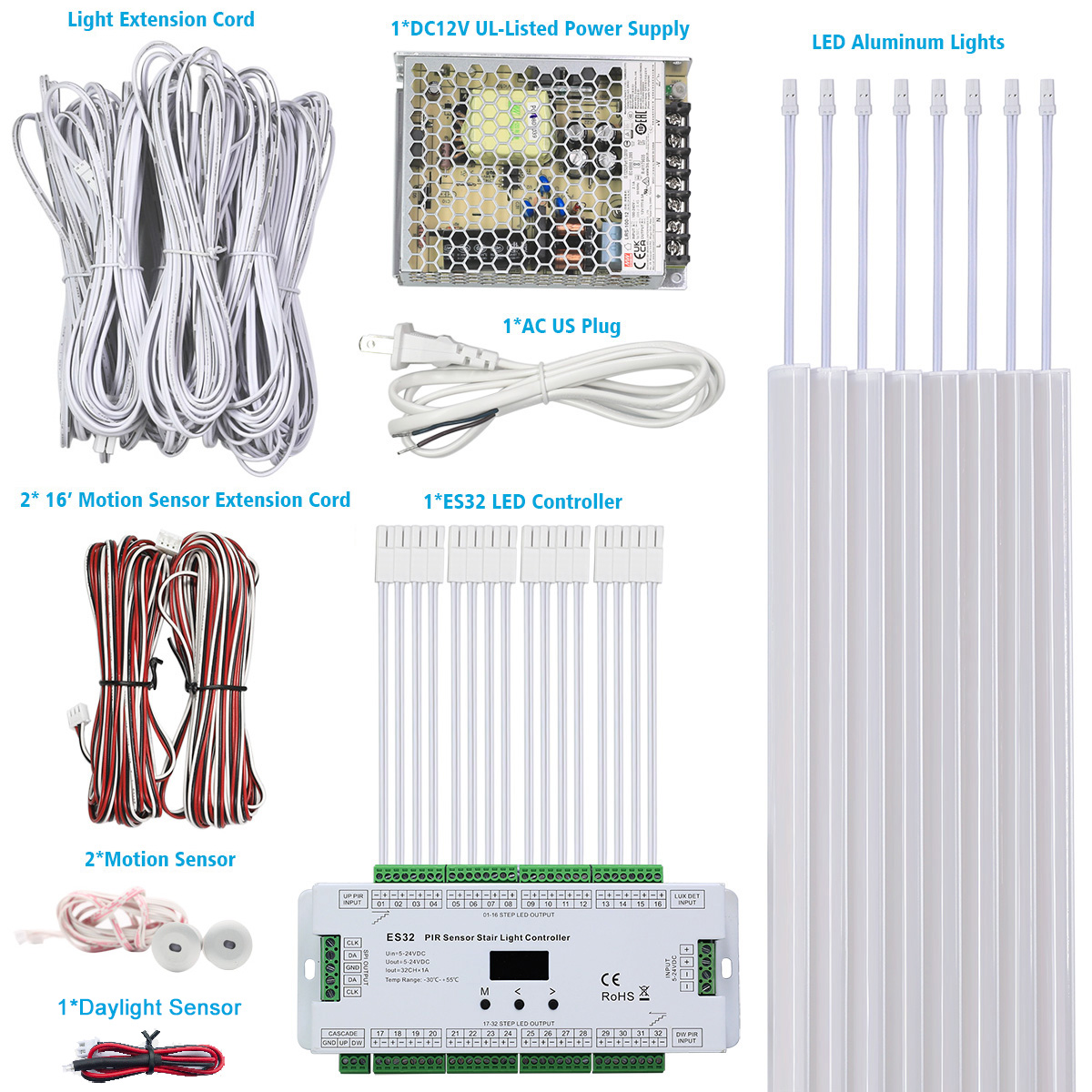

What includes in the motion sensor stair lights kit?

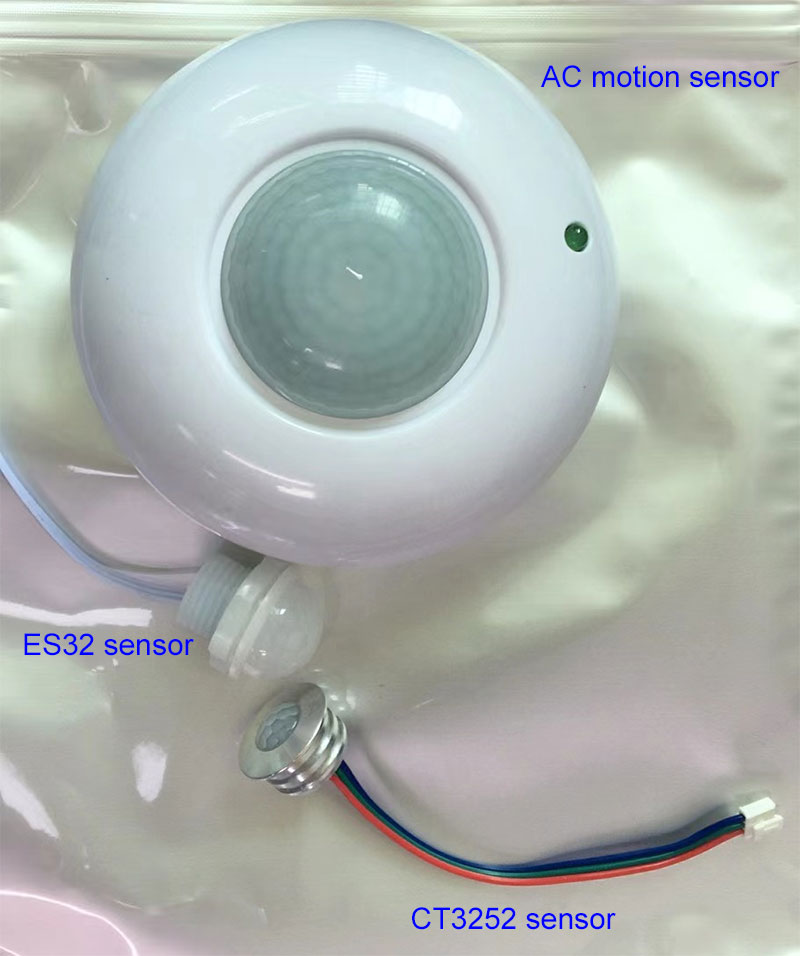

ES32 LED Stair Lighting Controller With 2 PIR Sensors and 1 Daylight Sensor
RGB Addressable LED Strip Lights With Aluminum Channel Housing Or Not
UL-Listed Power Supply + AC Plug
Motion Sensor Extensiion Cord
LED Step Light Extension Cord
The electrical enclosure box is used to store the stair controller and DC power supply to make your whole staircase installation look more simple and clean.
