| Note: | No Motion Sensor Function (Base), 1* Motion Sensor E1-RS, 2* Motion Sensors E1-RS |
|---|---|
| Select Aluminum Profile: | NO(No spot) (Base), Forward+Flange(Silver), Forward(Silver), 90° Light-emitting(Silver)*Recommend*, Forward(Black), Forward+Flange(Black), 90° Light-emitting(Black) |
| Select Electrical Enclosure: | No (Base), Yes - Package controller and power supply |
| Select Emitting Color: | Warm White (2800-3200K) (Base), Natural White (4000-4500K) (Base), Daylight White (6000-6500K) (Base), RGB, RGB+Warm White 2700K, RGB+Warm White 3000K, RGB+Natural White 4000K, RGB+Daylight White 6000K, RGBCCT, 2800K-6500K Color Temperature Adjustable (Base) |
| Select Panel color: | White (Base), Black (Base) |
| Select Plug Type: | US (Base), UK (Base), EU (Base), AU (Base) |
| Select Steps Number: | 8, 10, 12 (Base), 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 6 |
| Select Waterproof Rating: | IP20 Indoor Use (Base) |
| Stair Width (Strip Length): | 2ft (0.6meter) (Base), 1.6ft (0.5 meter), 2.6ft (0.8meter), 3ft (0.9 meter), 3.3ft (1 meter), 4ft (1.2 meter), For customized length, Note when placing an order |
| Availability | In Stock |
| Condition | Brand New |
Check our WiFi Tuya APP controlled, Alexa/Google Assistant voice controlled, and RF wireless touch wall panel controlled tunable white COB led stairs strip lights kit, allows you to adjust the color temperature of your stairway lights freely to suit your mind and day-night variations.
This wireless stair lights kit with dotless light, makes the strip lighting more evenly distributed on the surface of each stair tread, which ensures that each step is visibly illuminated and for safer walking.
Unlike traditional wall switch LED stairlights, both these two lighting control panels of this stair step lighting kit are wireless, you can install them anywhere you want within 30-meter accessible control distance indoors. And they are battery-powered, independent of outlet location.
Once powered on, the whole led stair lights are in always-on mode, you can turn it on and off at any time via the on/off function on the panel or on the APP or voice commands by Alexa and Google Assistant. Color temperatures within 2700/2800K-6500K can be displayed at will.
The kit does not include motion sensor, if needed, please select the relevant option E1-RS.

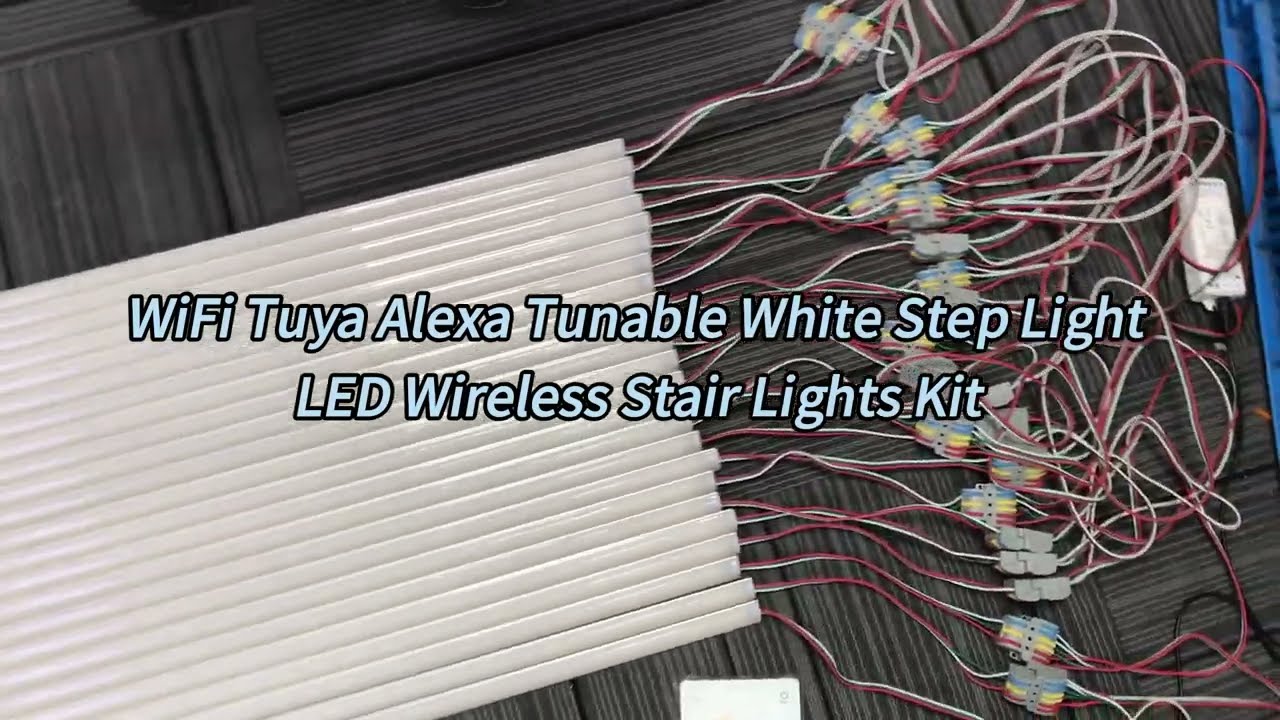

(Note: The wire-to-wire connection method shown in this video has since been updated. We will now provide a main cable with your order to allow for quick connection of your stair strip lights.)
1 x WT1 Smart 2-in-1 controller (for white and CCT lights) / WT5 Smart 5-in-1 controller (for RGB and RGB+white lights), controllable via Tuya Wi-Fi and SkyDance RF series products
E1-RS wireless sensors with DuPont connectors for power connection (optional, functioning here as sensors for the controller)
5-meter E1-RS sensor extension cables (optional)
2 wireless wall panels
1 x LED strip main cable [connects the step LED strips to the controller]
DC24V Cob LED strip of specified length for stairs, with a quick connector on one end (for connection to the main cable)
Aluminum profiles of specified length and model (optional)
Appropriate number of 5-meter LED strip extension cables (for connection to the main cable)
1 x DC24V Mean Well power supply
1 x AC plug
1 x Waterproof enclosure (optional; note that the dimensions of this enclosure only allow the controller and power supply to be stacked; please do not select this option if this is a concern)
| Color | Voltage | Light Strip Model | Panel Model |
| Warm / Natural / Daylight white | DC24V | FSLCOB-312-W8 | TW1 |
| 2700/2800K-6500K color temperature adjustable | DC24V | FSLCOB-CCT-624X10M-W10 | TW2 |
| RGB | DC24V | FCOB-12V/24V-RGB-576 (10mm 576LEDs/m) | TW4 |
| RGB + warm / natural / daylight white | DC24V | FSLCOB-24V-840RGBW | TW4 |
| RGBCCT | DC24V | FCOB-24V-RGBCCT | TW5 |
We will configure one or two controllers based on power requirements; the controllers, motion sensors, and wireless panels are all synchronized.
Product Specification
| Product Type: | Tunable White Step Light LED Wireless Stair Lights Kit |
| Light Source: | COB LED Strip Lights |
| Controller Type: | WT1 CCT controller or WT5 5-in-1 controller |
| CRI(RA>): | 90 |
| LED Color: | Optional |
| Input Voltage: | DC24V |
| Strip Length (Stair Width): | 0.5m-1.2m (1.64ft-4ft) / Customizable |
| Step Quantity: | 6-32 |
| COB Strip Size: | 8mm wide for CCT, Single Color, and RGB; 12mm for RGBW and RGBCCT |
| Beam Pattern: | 180 degree |
| LED Strip Power: | 14W/m |
| Power Supply Waterproof: | Non-waterproof (IP20) |
| Power Supply Input: | Wide-voltage (Meanwell) |
Caution
The interval between every two staircases steps should preferably be more than 0.5 meters, otherwise, it is not good for wiring.
Each step light strip will leave about 20-30cm (8-12 inches) of wire on one side.
