Special Price: $12.98 $11.988% off
What is COB? COB VS LED

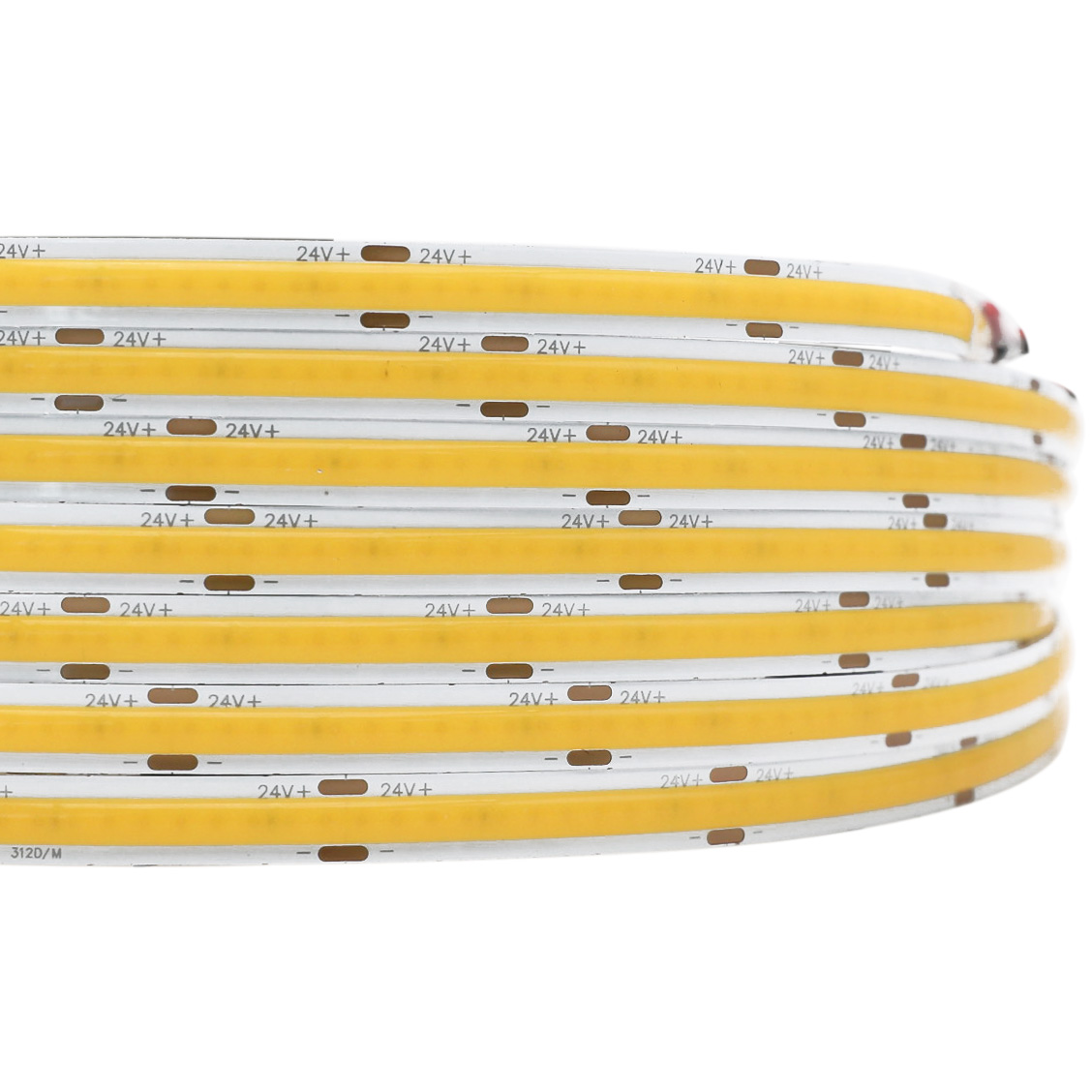

COB stands for chip-on-board, the LED chip is placed directly on the PCB board, sealed by a sealing layer, and showing different colors through different sealing layers. The COB LED light strip has a linear luminescence and no light spot due to the linear sealing layer, which is the most obvious difference between COB and LED light strips. COB LED strips have the general characteristics of light strips, energy-saving, high flexibility(more flexible than LED strips), high CRI, can be cut, and the 3M adhesive design is easy to install.

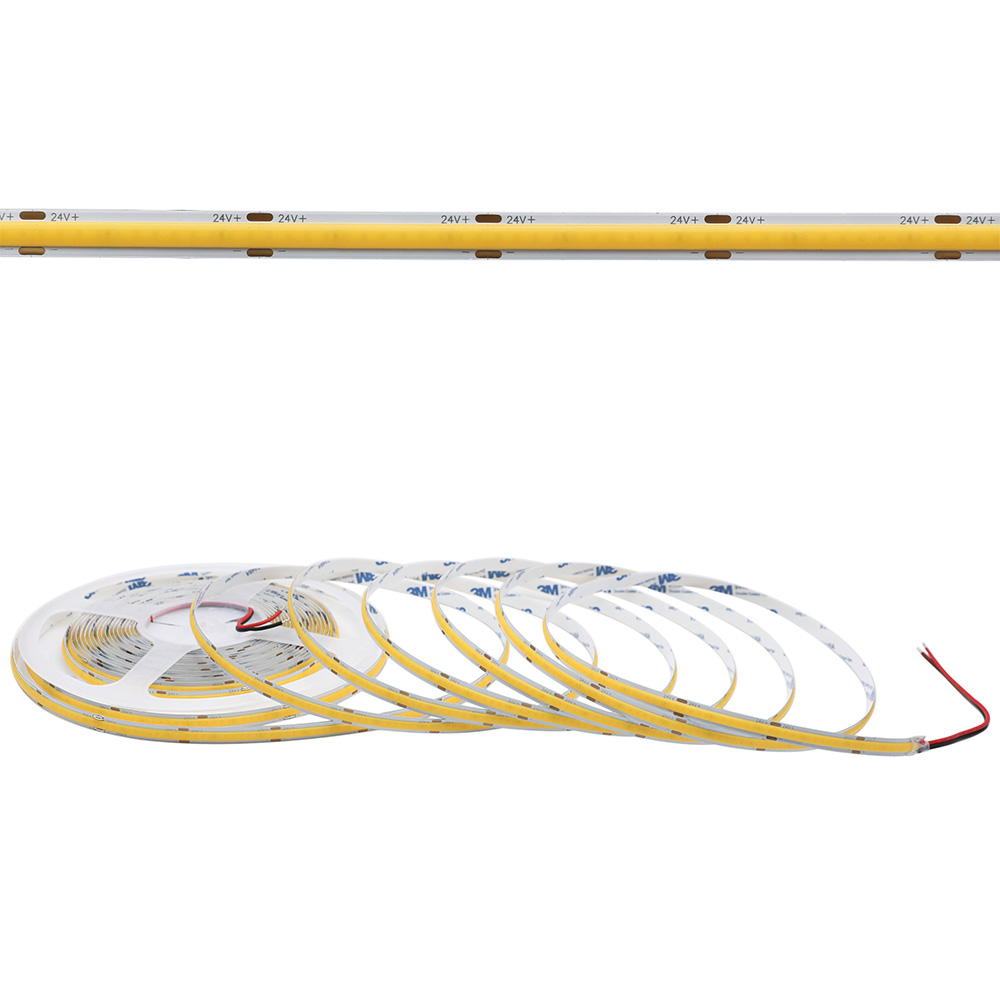

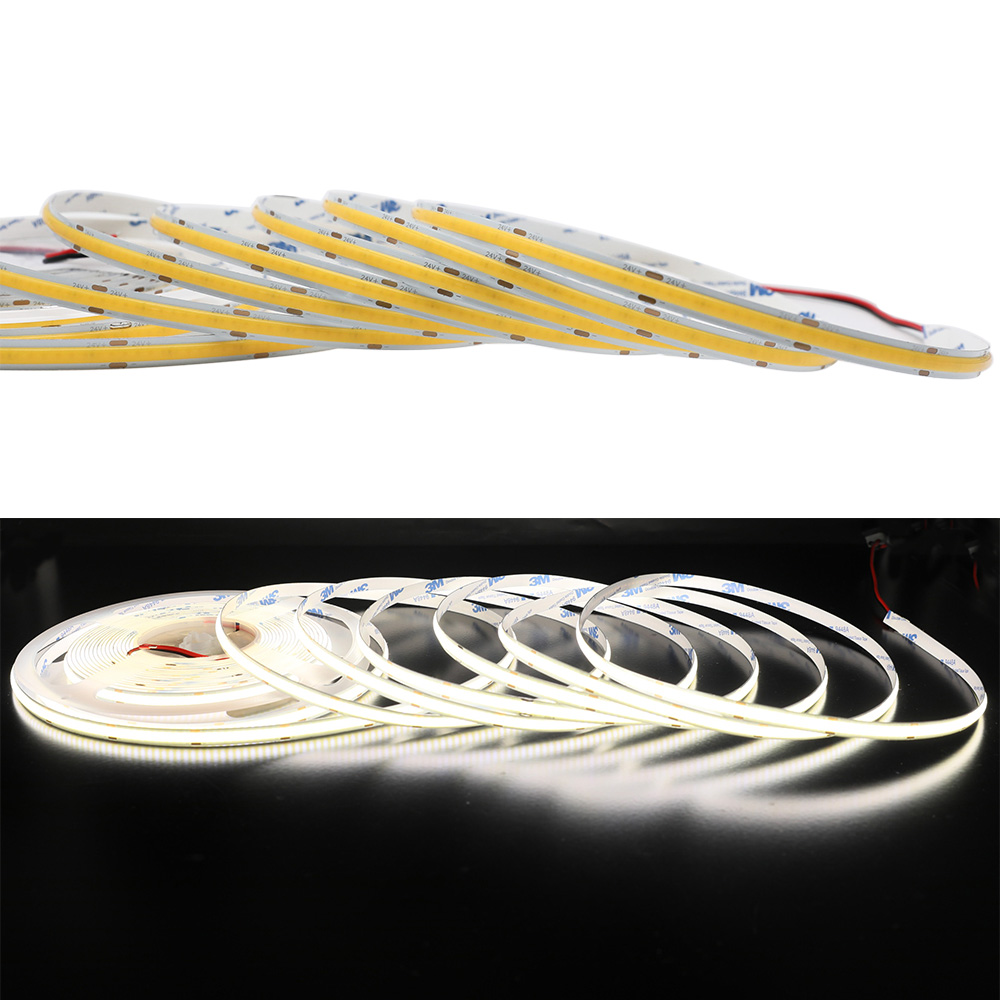

This COB LED is our lasted new product, 10 meters without voltage drop, suitable for long distance installation, the LED brightness and color are always consistent. Learn more: What is COB LED strip light?

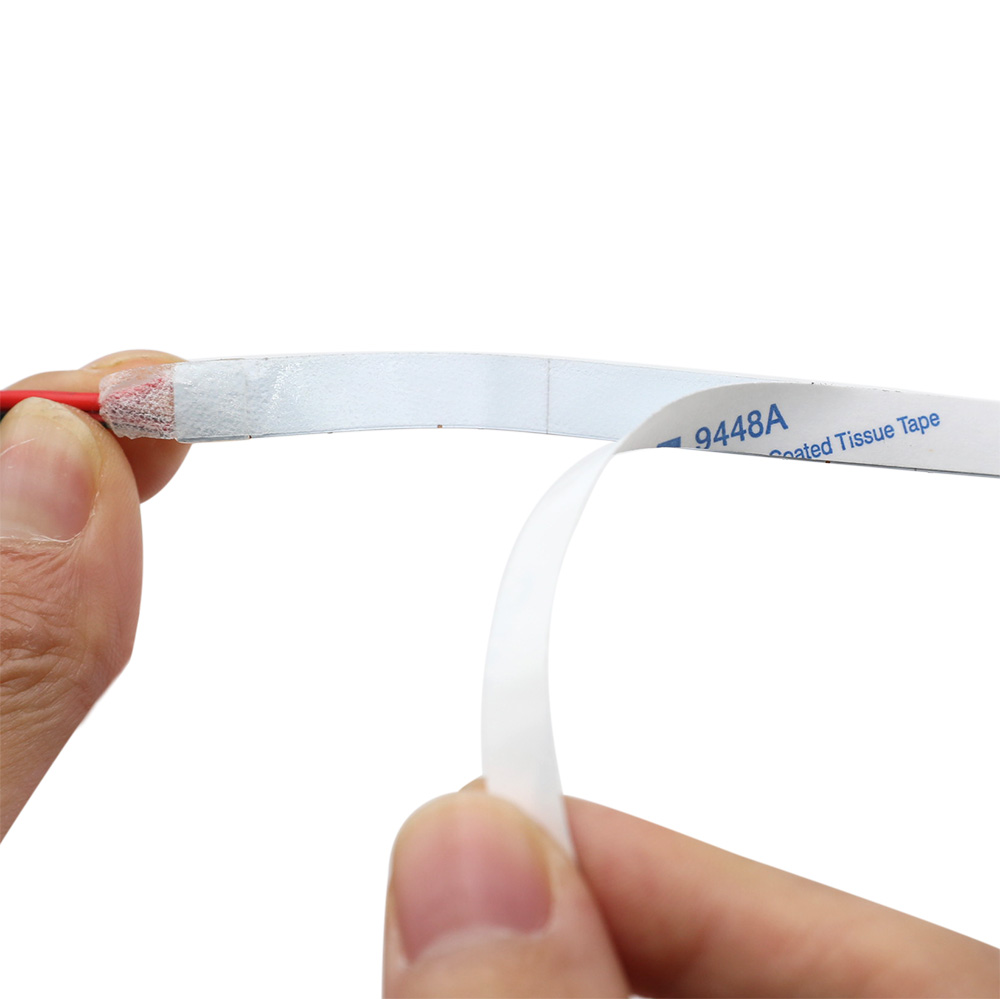

• 312 or 480 LEDs per meter • 8mm wide • 10W/m • Supports 12V and 24V • Various colors and color temperatures • Waterproof optional IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor) IP67 Waterproof (Heat shrink tube waterproof, PCB is encapsulated with heat shrink tube, with a plastic fastener, better waterproof, For Outdoor) |
How to choose LED strip lights?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
LED Strip |
Length | Power | Voltage | Kit |
COB LED Strip | 5m / 16.4ft | 50W / 5m | DC12V |
Controller: V1 + RT1 Power supply: 12V 72W power supply adapter |
DC24V |
Controller: V1 + RT1 Power supply: 24V 72W power supply adapter |
|||
COB LED Strip | 10m / 32.8ft | 100W / 10m | DC12V |
Controller: V1 + RT1 Power supply: 12V 150W power supply adapter |
DC24V |
Controller: V1 + RT1 Power supply: 24V 120W power supply adapter |
Standards and Certifications
Product Specification
LED Strip Type: | COB LED (COB Flexible led strip light specification ) |
LED Chip: | Epistar Chip (SMD5050 ) |
Input Voltage: | DC24V |
Power: |
10W/m - 312Chips/m 12W/m - 480Chips/m |
Working Temperature: | -20℃~+45℃ |
Storage Temperature: | -20℃~+60℃ |
LED Color: | Warm white(3000k), Nature whtie(4000K), Daylight White(6000K), Bule, Green, Red, Pink, Ice Bule |

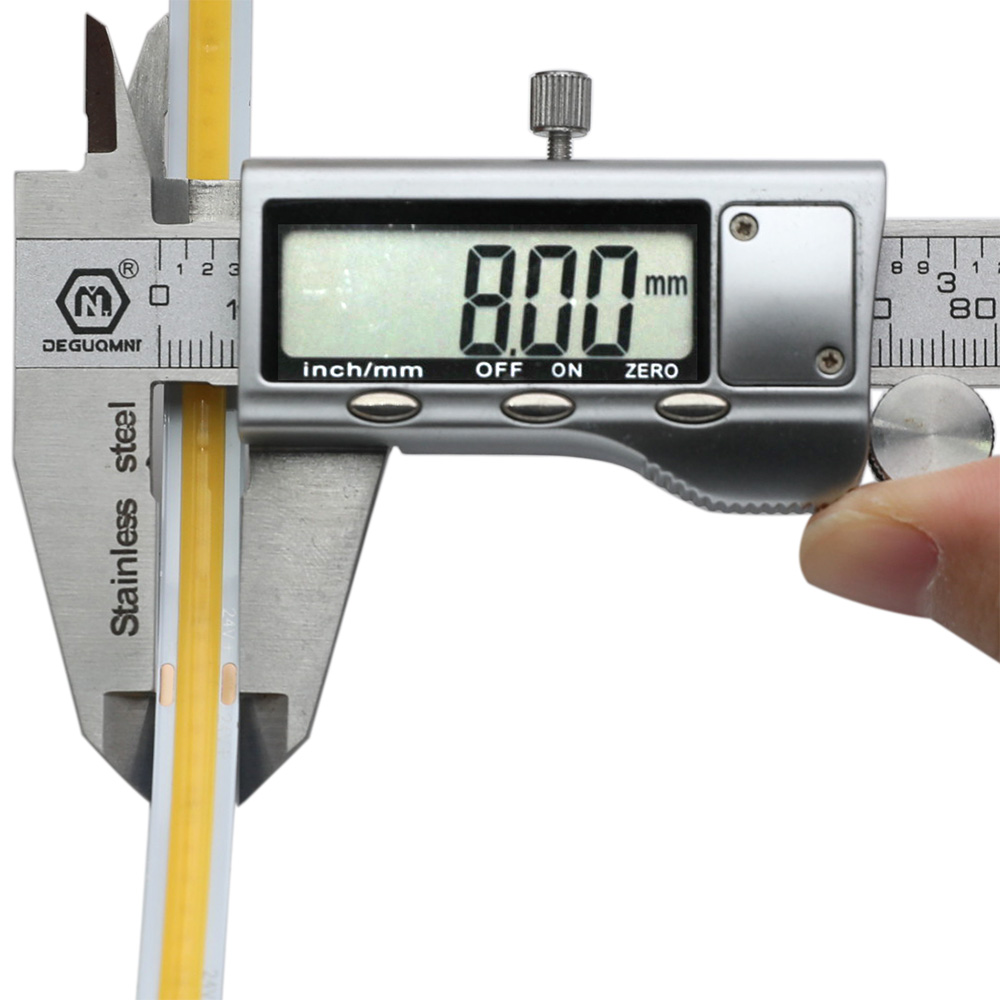

PCB Width: | 8mm |
LED Quantity: | 312 Chips/m, 480 Chips/m |
Waterproof Rating: | IP20 / IP67 |

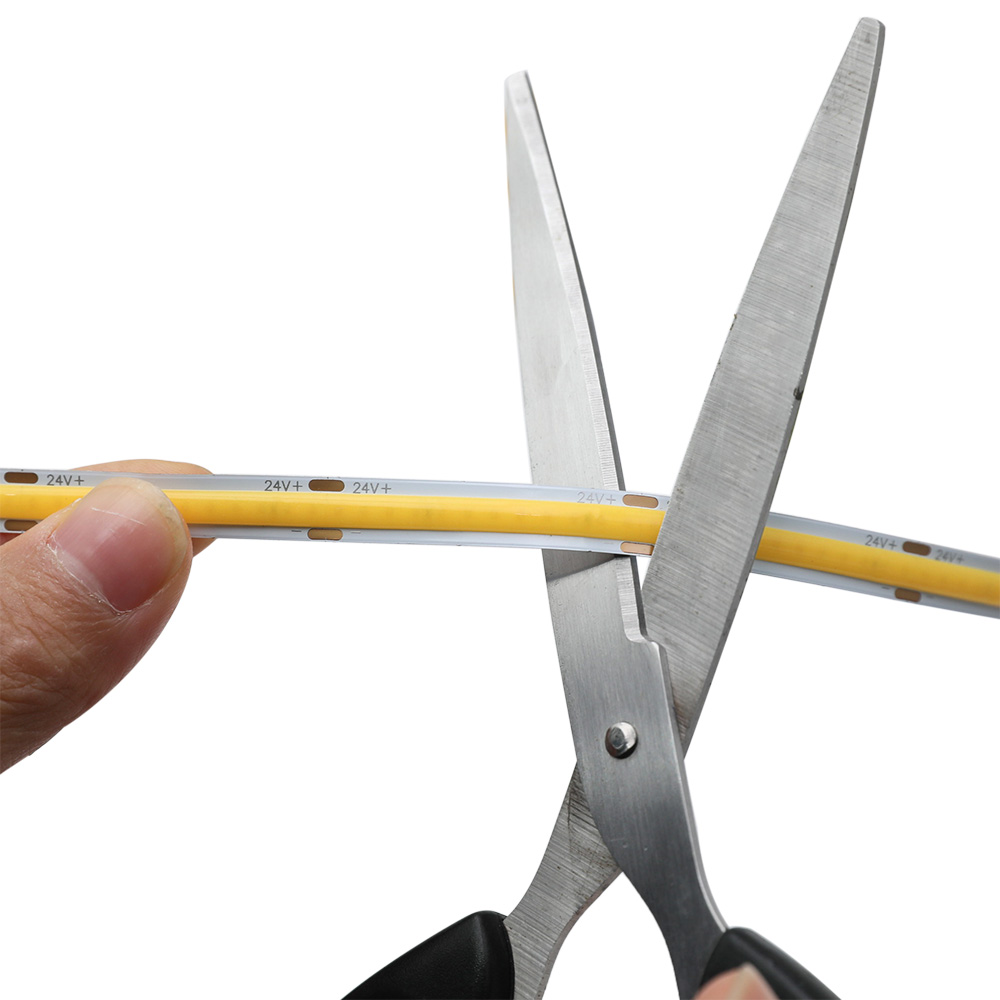

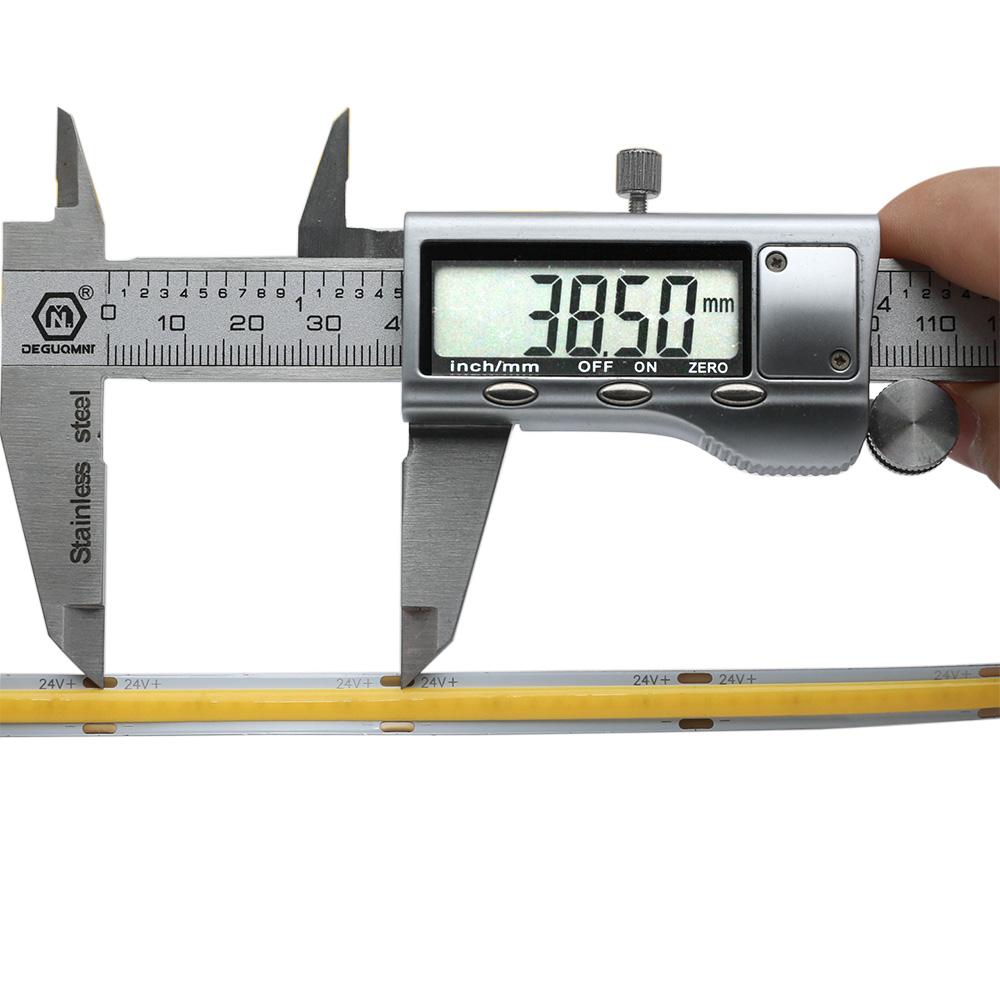

Cut Length: |
312Chips/m - 38mm/1.496'' (24VDC), 19mm/0.748'' (12VDC) 480Chips/m - 50mm/1.96" (24VDC), 25mm/0.98" (12VDC) |
PCB Color: | White |
Color Rendering Index: | Ra>90 |
Beam Angle: | 180° |
Strip Length: | 5m/16.4ft, 10m/32.8ft |
Color Temperature and CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.
• Warm white 3000K LED light is similar to the color of sunset, giving people a warm and comfortable feeling, suitable for installation in the living room, bedroom and other places.
• Natural white 4000K LED light is suitable for task lighting like kitchens or offices and is closer to white than 3000K. Requires more precision for lighting objects, 4000K light strips are more suitable for you than 3000K.
• Daylight white 6000K LED light shows more details and create a clear and transparent environment, suitable for working and task lighting.
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
LED Strip Light Installation Diagram
The basics are all similar. You will need a led strip light, a power supply, and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and the dimming option required.
1. LED Strips with a direct connecting diagram
2. Multiple Strips connecting diagram
3. Strips with a two-way connecting diagram
4. You can also use our wireless controller, Multiple controller wireless matching synchronizations within 30 meters, can replace the traditional amplifier wiring.
More wiring content: How to wire single color led strip lights?
