Name: DC24V RGB CCT Color Changing Flexible COB LED Strip
Brand: SuperLightingLED
SKU: FCOB-24V-RGBCCT
Price: 32.98 USD
Availability: InStock
Rating: 5 (2 reviews)

Product Information

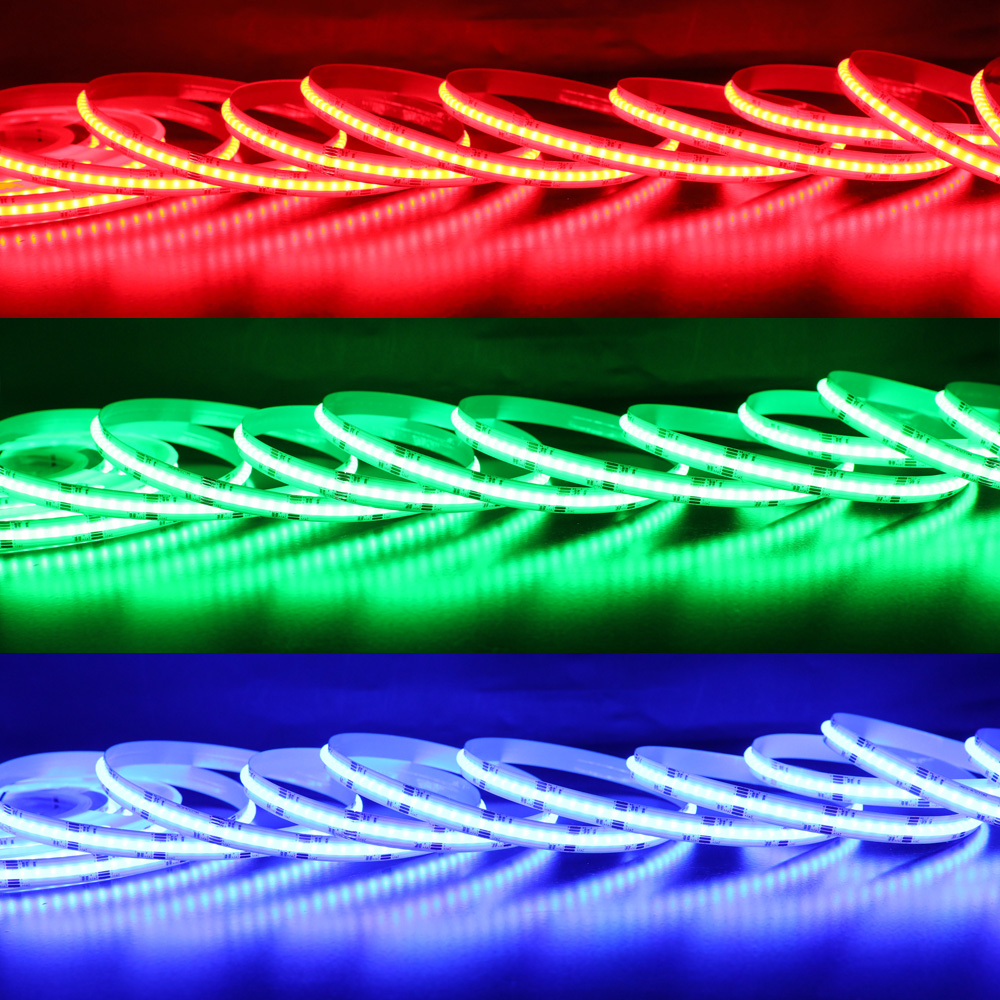

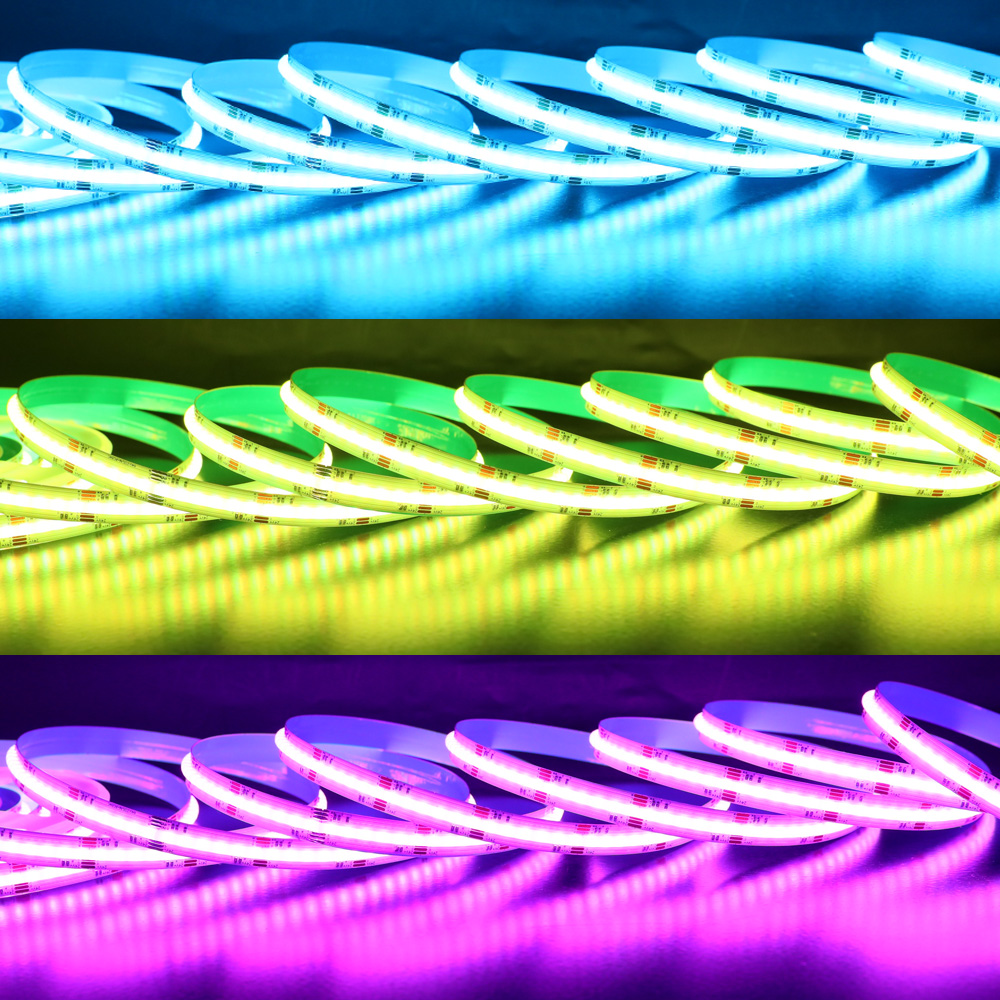

This RGBCCT COB led strip as a linear lighting fixture with uniform illumination, has both RGB color and tunable CCT white color from 2800K warm white to 6500K daylight, high color efficiency, which is 12mm width with DC24V low working voltage.

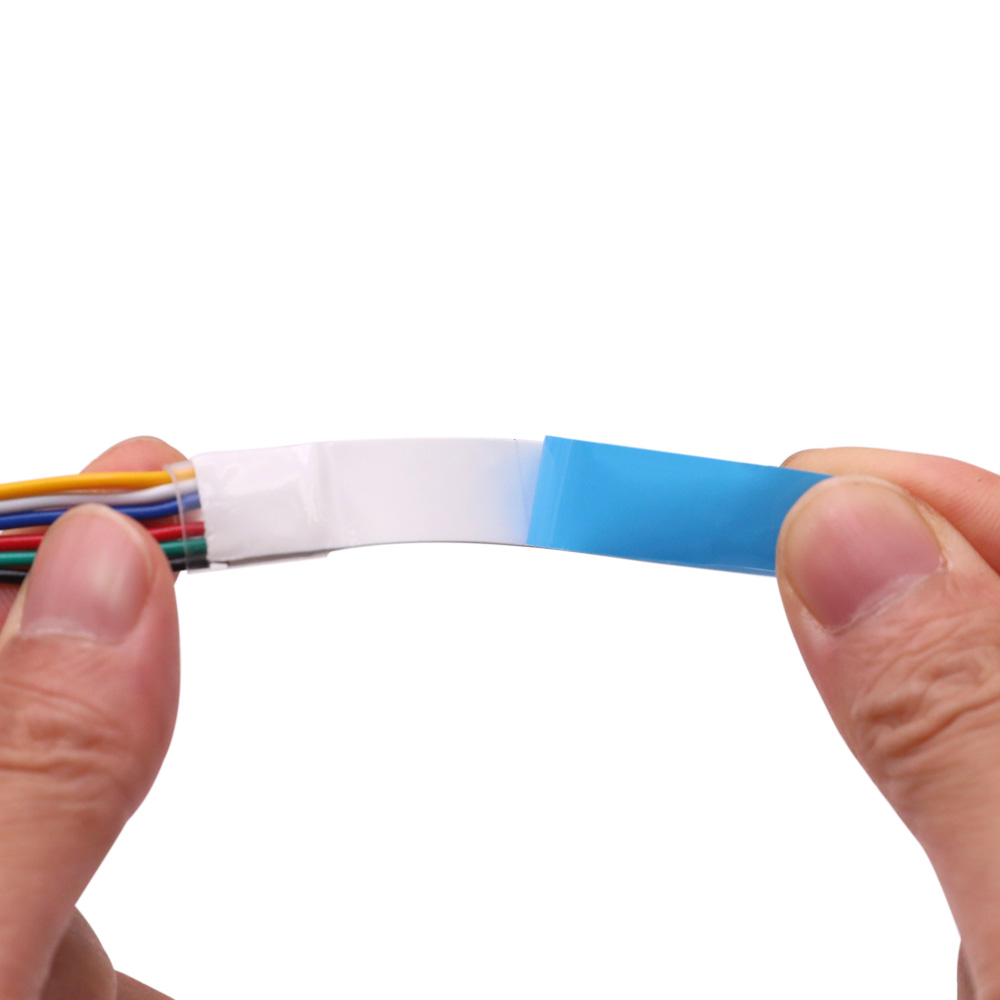

180-degree beam angle, large luminous area, 840 LEDs per meter, high brightness. Better flexibility of this RGBWW COB led strip lighting than SMD LED strip lights, can be bent at will. With 3M adhesive backing, easy to paste and install. IP20 non-waterproof COB led lighting strip and IP67 outdoor waterproof COB led light strip are available, suitable for indoor and outdoor lighting environments. The RGBCW COB LED strip light is inseparable from the LED DC power supply and RGB+CCT LED controller to achieve rich led color effects.

If you prefer RGBCCT dotess lighting effects, you can check the upgraded version of this product, designed with a thicker encapsulation coating to minimize light spots.

We recommend this WIFI & Bluetooth Tuya WB5 5 in 1 led controller and this 12V / 24V 150W MW power supply.

If you choose the COB led strip light kit, you will receive a 5m/16.4ft RGB+CCT COB led strip, a WB5 5 in 1 controller, and a 12V / 24V DC 150W led power supply.

Testing has shown that the cob 2.2mm-height RGBCCT light strips with IP68 waterproofing exhibit an excessively high failure rate. It is recommended to opt for IP67 waterproofing or select a 3.4mm-height RGBCW alternative.

Spectrum Test Report

Standards and Certifications

LED Strip Type:	COB RGBCCT LED Strip
Brand:	SuperLightingLED
Input Voltage:	DC24V

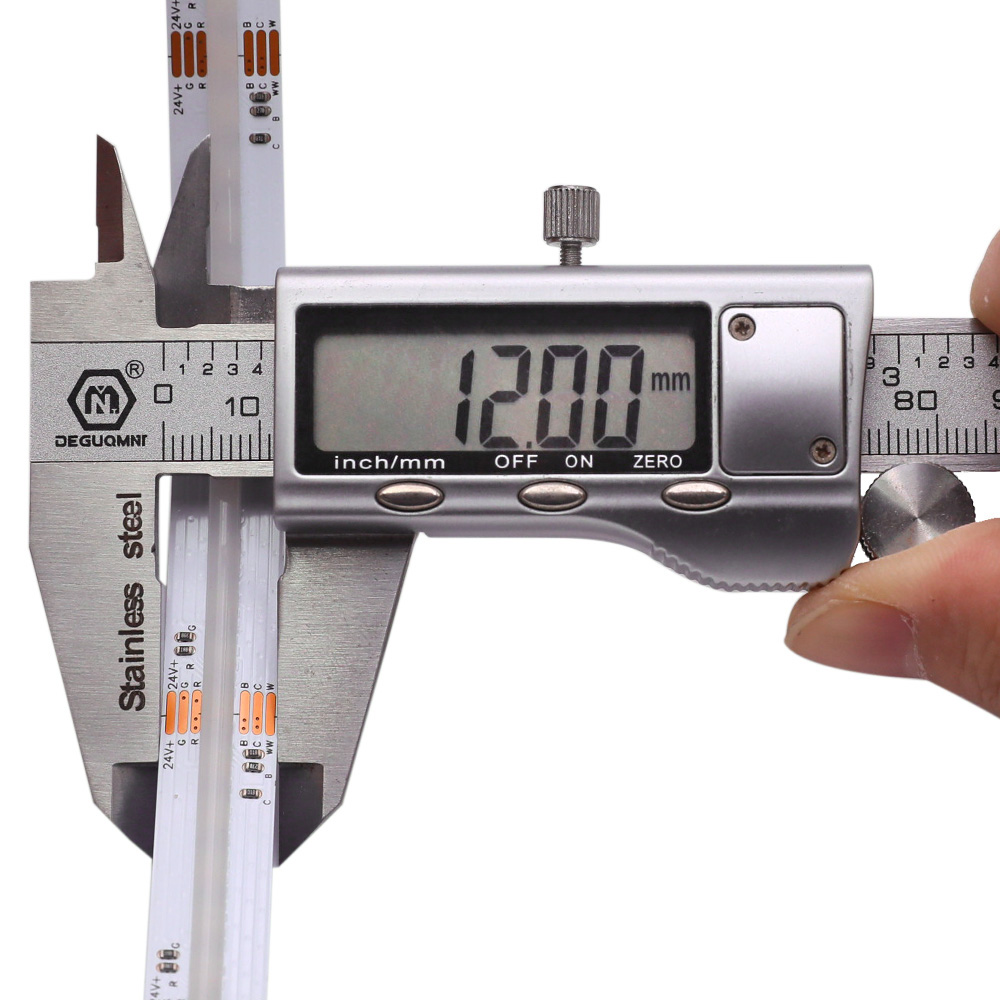

PCB Width:	12mm/0.47in
Working Temperature:	-20℃~+45℃
Storage Temperature:	-20℃~+60℃
Power:	20W/M, 90watt/roll

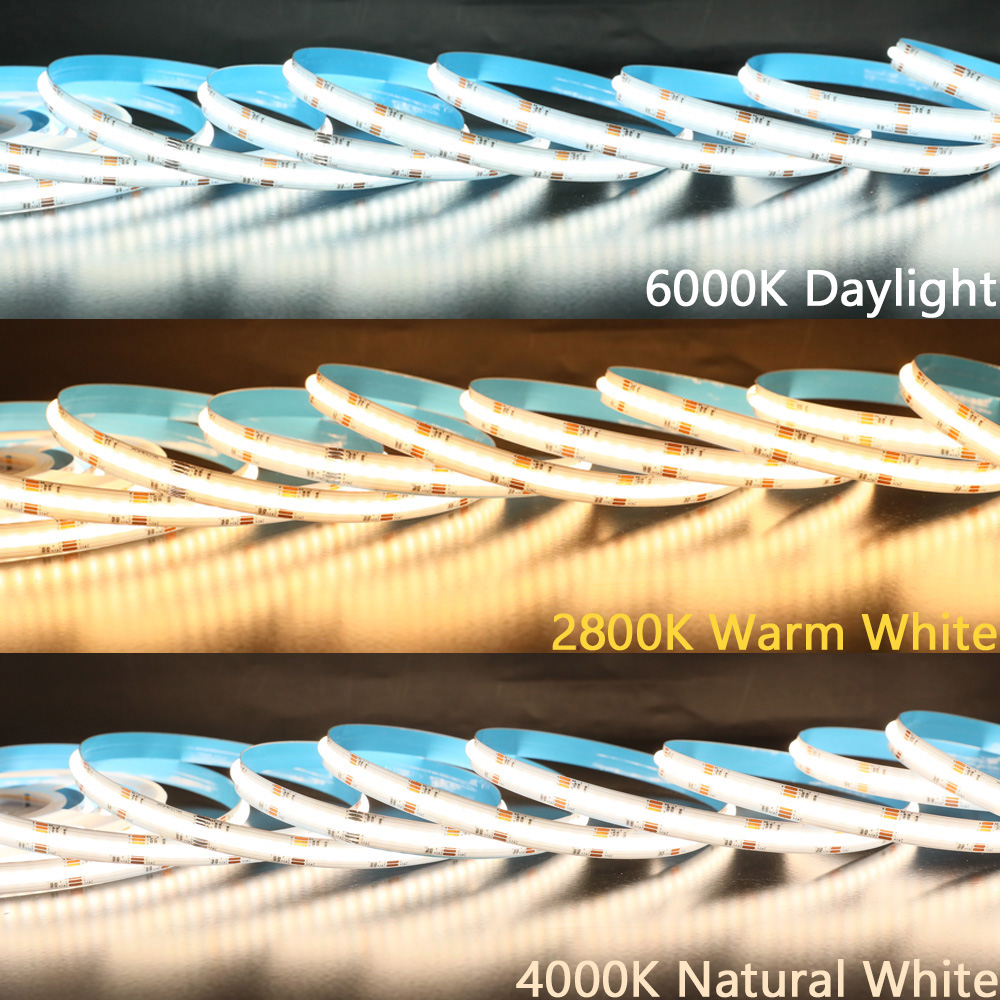

LED Color:	RGB+CCT, Warm White(2800-3200K); Netural White(4000-4500K); Daylight White(6000-6500K)
LED Quantity:	840 LEDs/m, 4200 per roll
Lumen:	R: 505 lm/m G: 2010 lm/m B:392 lm/m C:1342lm/m W:1296 lm/m RGBCW: 1071 lm/m

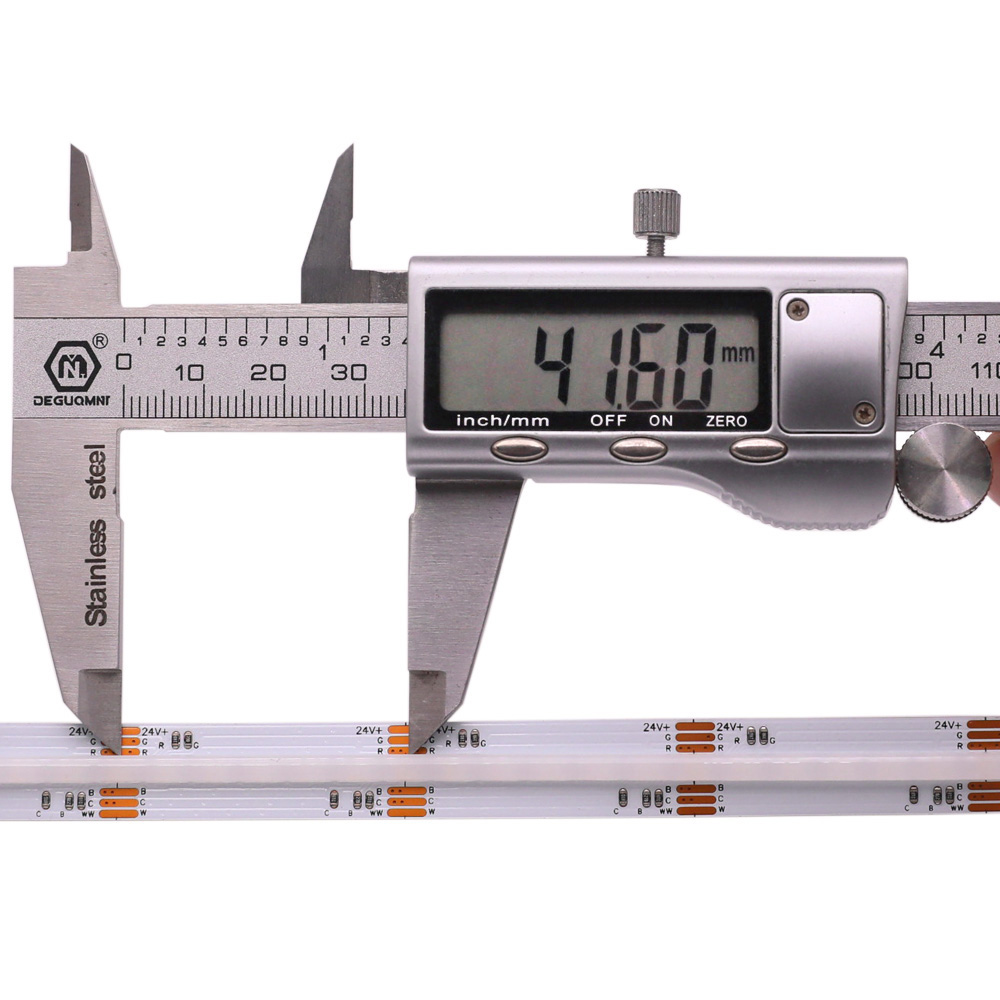

Cut Length:	41.6mm/ 1.63in
Beam Angle:	180°
CRI:	Ra>90
Length:	5m/16.4ft

How To Wire RGBCCT LED Strip Lights?

1. RGBCCT led strip wiring diagram:

rgb cct led strip wiring diagram

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

K

Kihan Chung Verified Customer

01/27/2026

Seamless lighting perfection - The ultimate all-in-one strip

I recently specified this RGB+CCT COB strip for a high-end kitchen cove lighting project, and the results are flawless. The COB technology is a massive leap forward; there are absolutely no visible dots or "hot spots," even when the strip is reflected on polished marble surfaces. It creates a perfectly continuous glow that looks integrated into the architecture. The ability to switch between vibrant RGB colors and high-quality Tunable White (CCT) is a huge advantage. My clients can have crisp 6000K daylight for cooking and then shift to a cozy 2700K warm white for dinner. The 24V system is very stable with no flickering. If you want a premium, professional-looking installation that offers both ambiance and utility, this is the strip to choose.

N

NAPHTALI DEUTSCH Verified Customer

04/20/2023

Was looking for an RGB+CCT COB LED light and this fit the bill. After install, I noticed some a small part of the strip was a different color and did not match the rest when I was playing with the RGB settings. I contacted a vendor and they sent a new strip free of charge. Amazing support. The lights are a great and small form factor and extremely bright!

Downloads

Files for FCOB-24V-RGBCCT

PDFFCOB-24V-RGBCCT product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

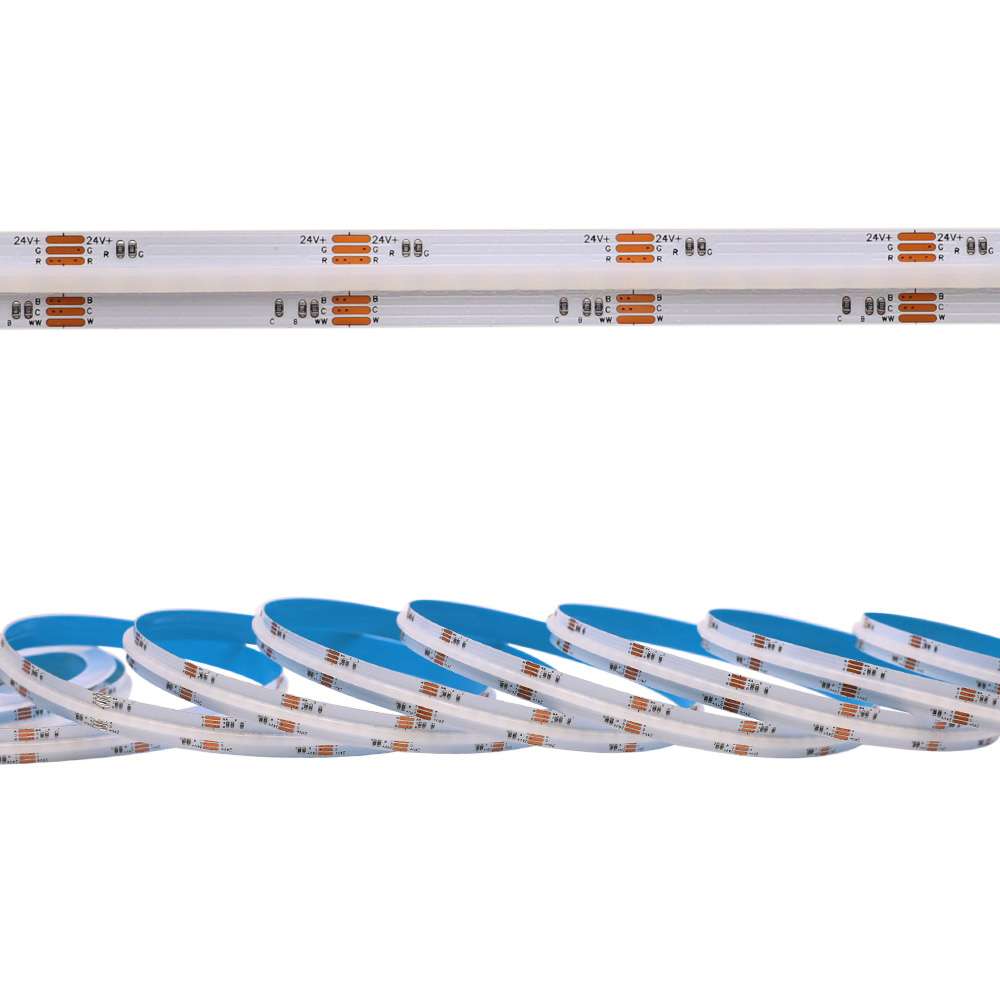

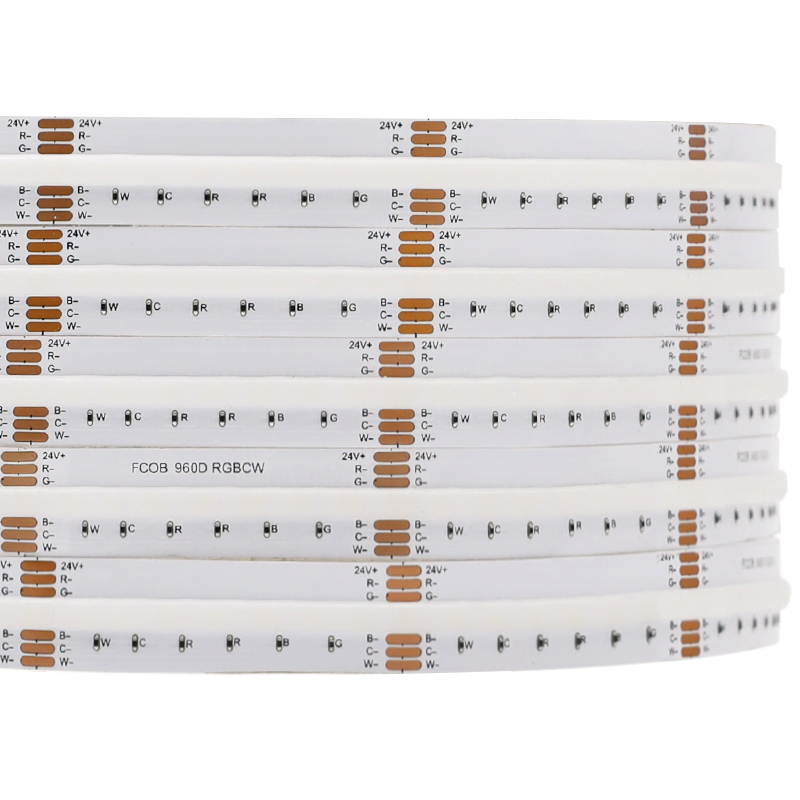

DC24V RGB CCT Color Changing Flexible COB LED Strip

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in DC12V · DC24V. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which waterproof rating should I choose?

Available on this model: Outdoor Silicone Tube IP67 - With Brackets · Outdoor Silicone Tube IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

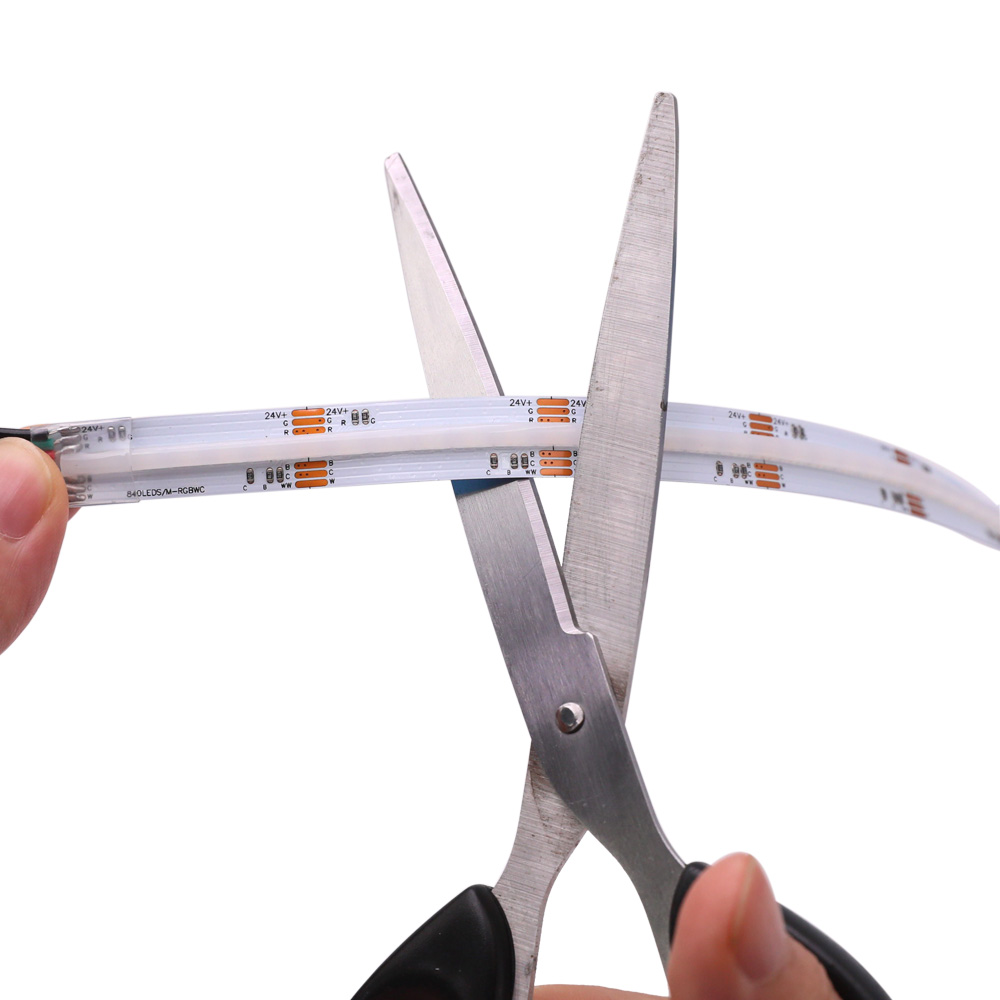

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 12mm (0.47in) · LED density 840 Chips/m. Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
