Product Information

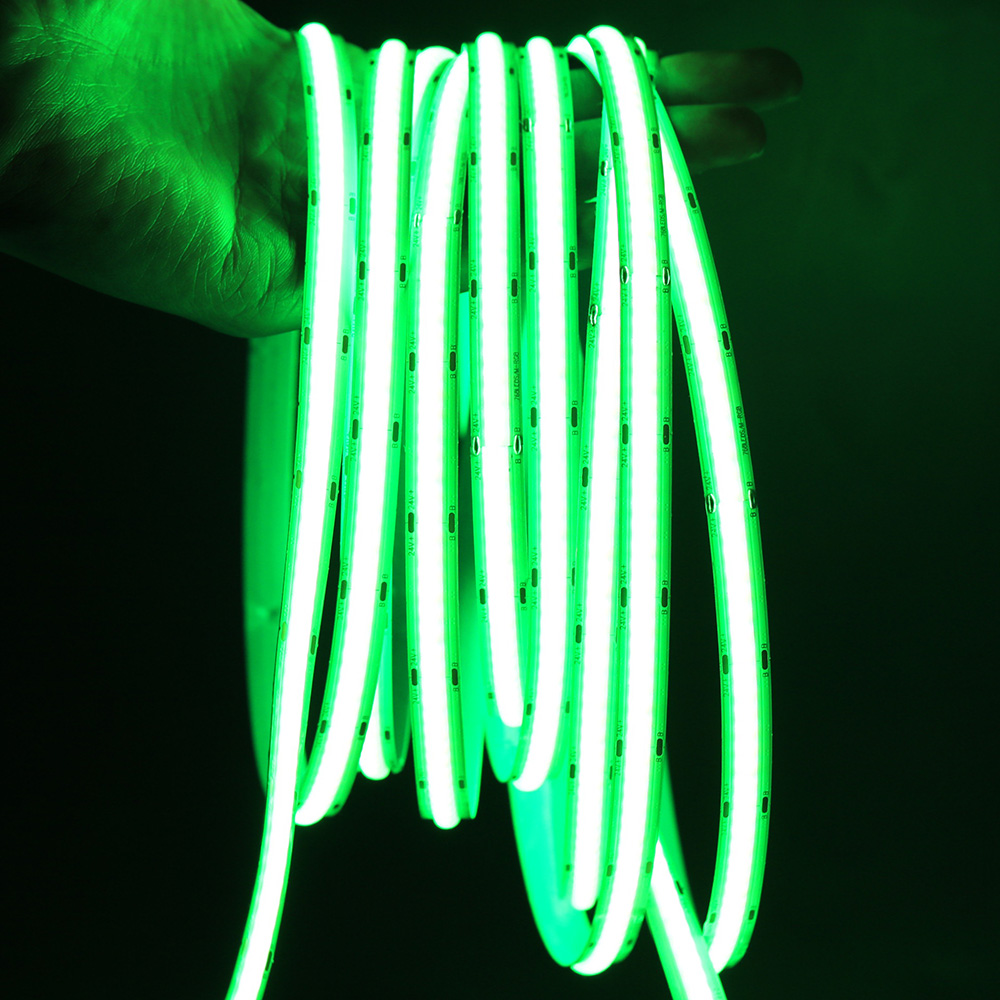

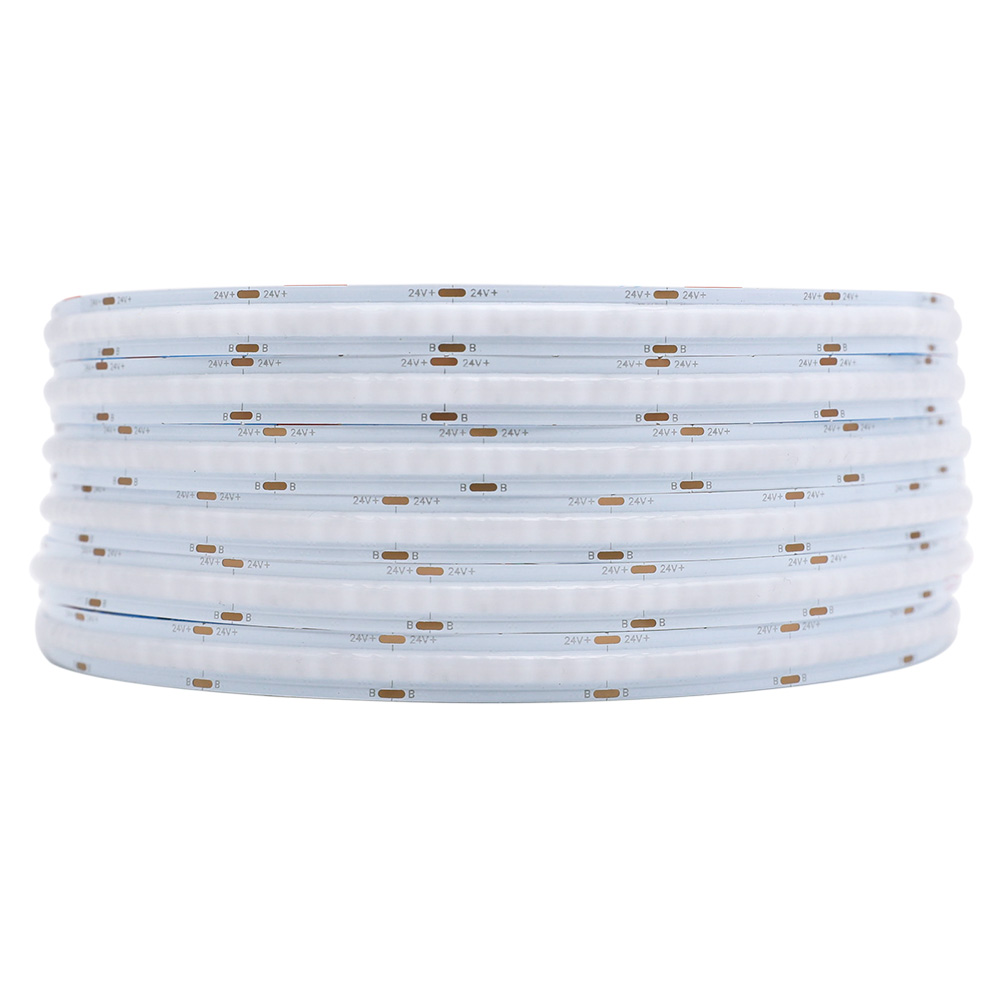

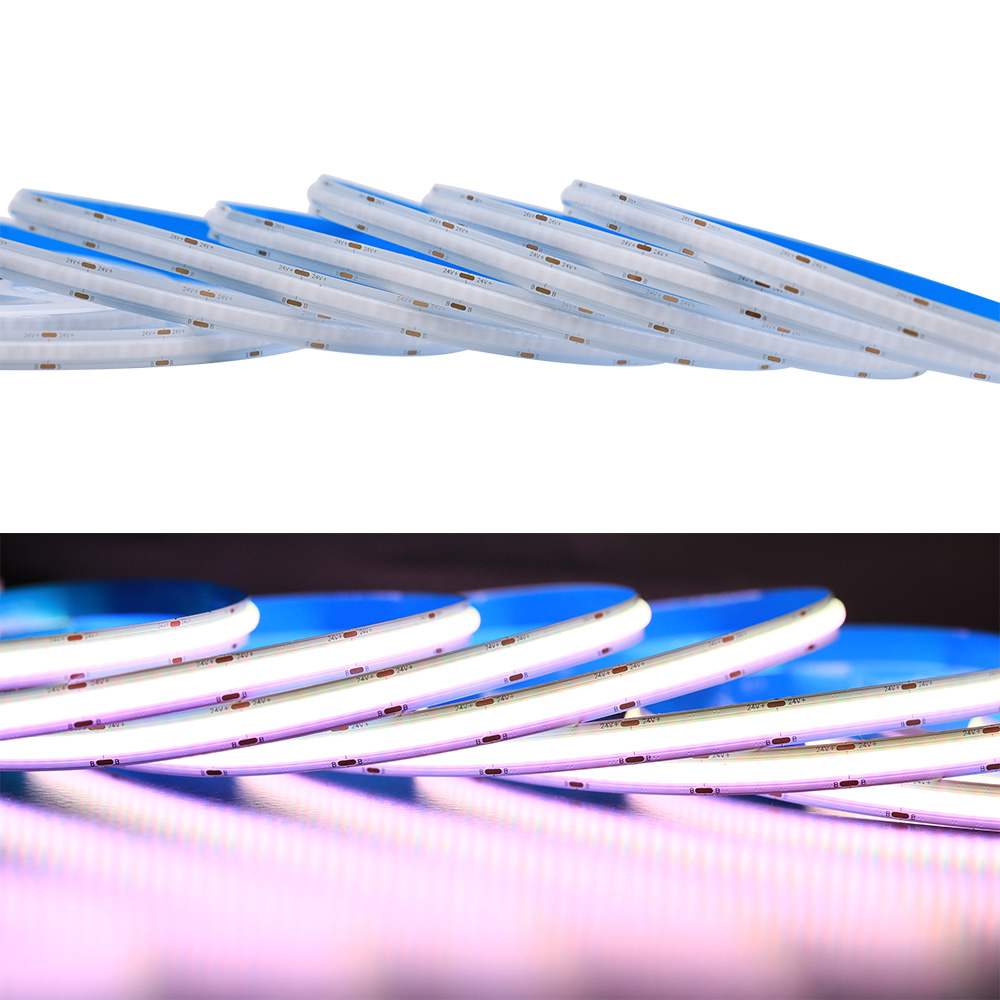

This RGB COB light strip adopts the chip-on-board design method, with a large 180-degree light-emitting angle, smaller LED volume and denser LED density (576LEDs/m, 810LEDs/m). It is higher in brightness than ordinary LED light strips. The COB RGB lights are evenly arranged on the PCB board, with linear lighting, and no light spots.
Made of high-quality PCB material, this multi-color COB RGB led strip lights have good flexibility and can be bent at will. With a 3M adhesive on the back, it can be installed in the aluminum LED channel or LED neon tube for perfect lighting effects. Ideal for bedroom, ceilings to create atmosphere.
Product Features:
1. RGB COB LED strip, 180-degree light-emitting angle, linear lighting, no LED spots

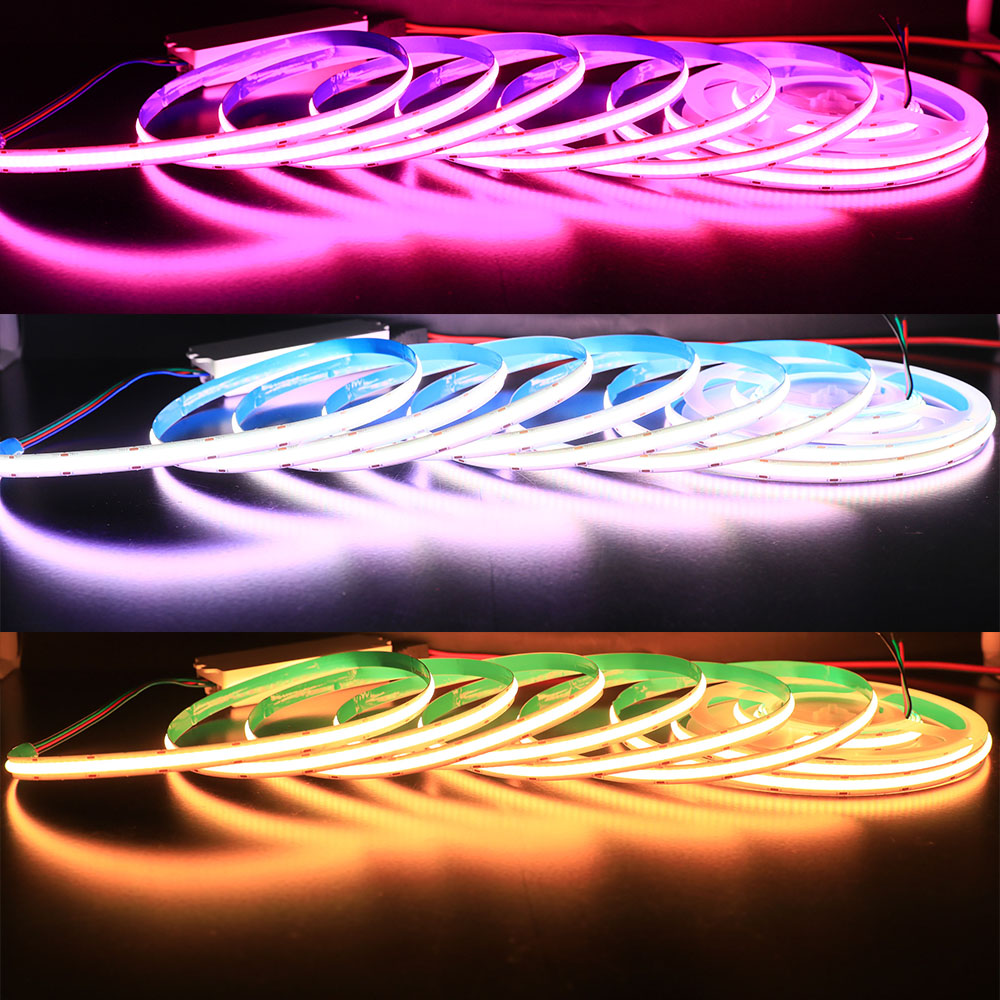

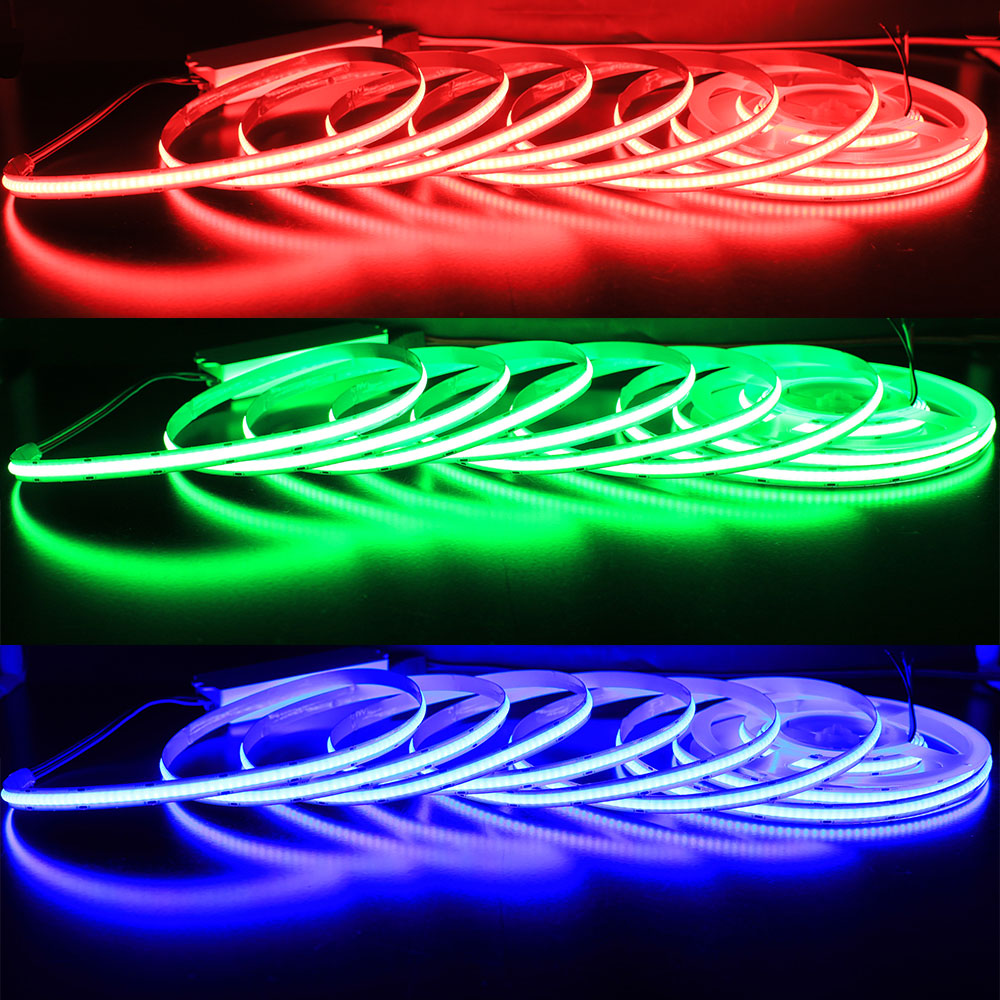

2. RGB color mode, adapt RGB controller to achieve various color change.

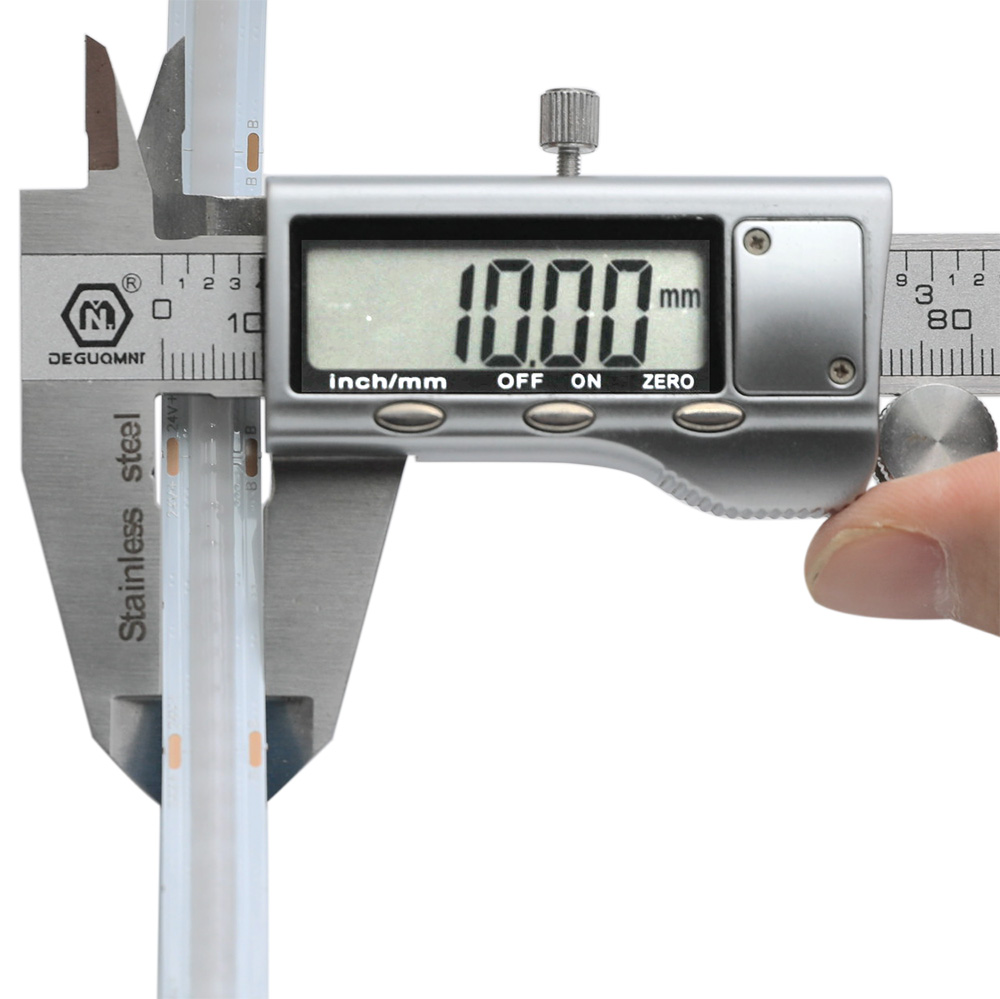

3. 12V or 24V low operation voltage, 10mm wide.
4. 576 LEDs per meter, 2880 COB LEDs per roll/16.4ft, super bright and high light brightness.

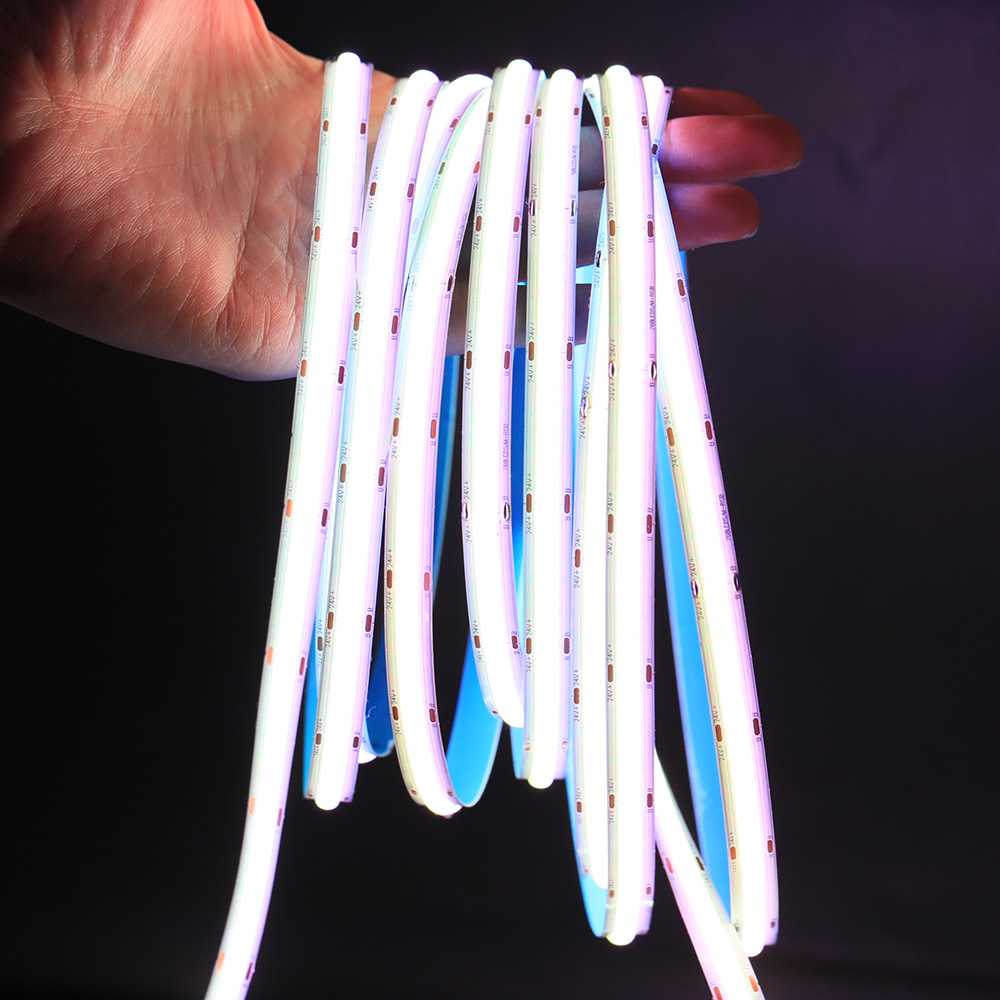

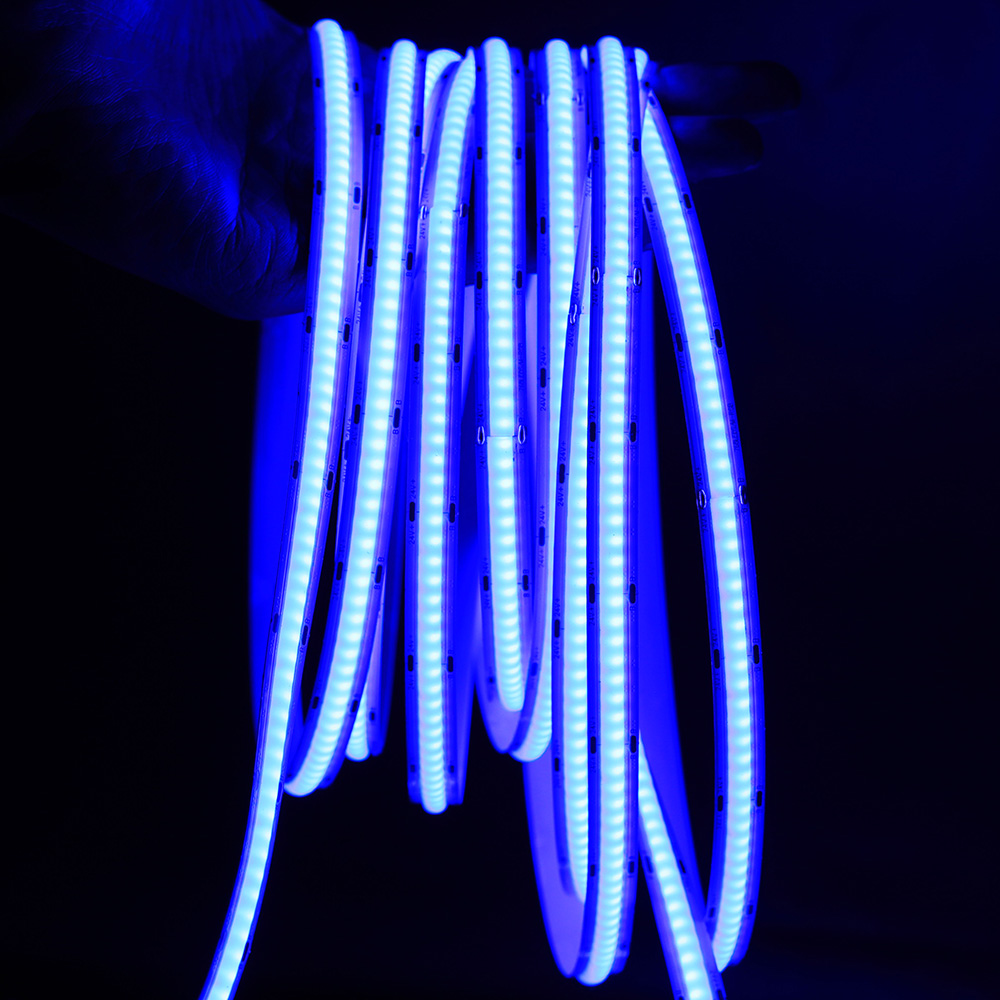

5. Better flexibility than SMD LED strip lights.
6. Can be used with LED strip diffuser or neon tube to get more aesthetic installation effects.
RGB Color Changing LED Strip Lights Kit:
You can choose the LED light controller or LED power supply for this COB LED strip. In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories. And if you have any requirements for other types of the LED Controller, you can visit our Color Change RGB Controller Series.
|
LED Strip |
Power | Voltage | Light Kit |
| 5m/16.4Ft COB Light Strip | 70W / Roll | DC12V |
RGB Controller: WB5 12V LED Power supply: PSPS-12V-96W |
| DC24V |
RGB Controller: WB5 24V LED Power supply: PSPS-24V-96W |
Standards and Certifications
| LED Strip Type: |
COB RGB LED Strip  |
| LED Chip: | Epistar Chip |
| Input Voltage: | 12/24V DC |
| PCB Width: | 10mm/8mm |
| Working Temperature: | -20℃ ~ +45℃ |
| Lumen: | 864lm/m |
| Power: |
576LEDs/m, 810LEDs/m - 14W/M, 70watt/roll 420LEDs/m - 15W/m, 75W/roll |
| Length: | 5m/16.4Ft |
| LED Quantity: | 576 Chips/m |
| LED Color: | Color Change RGB |

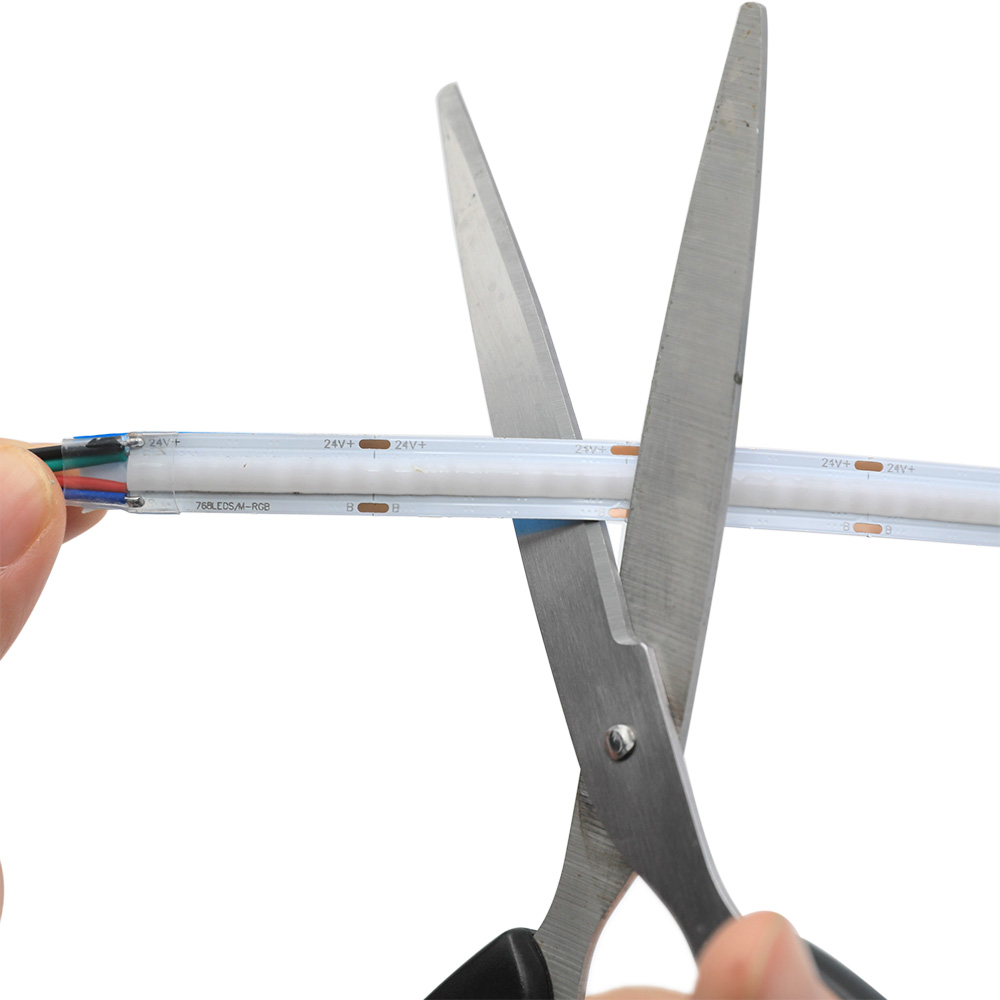

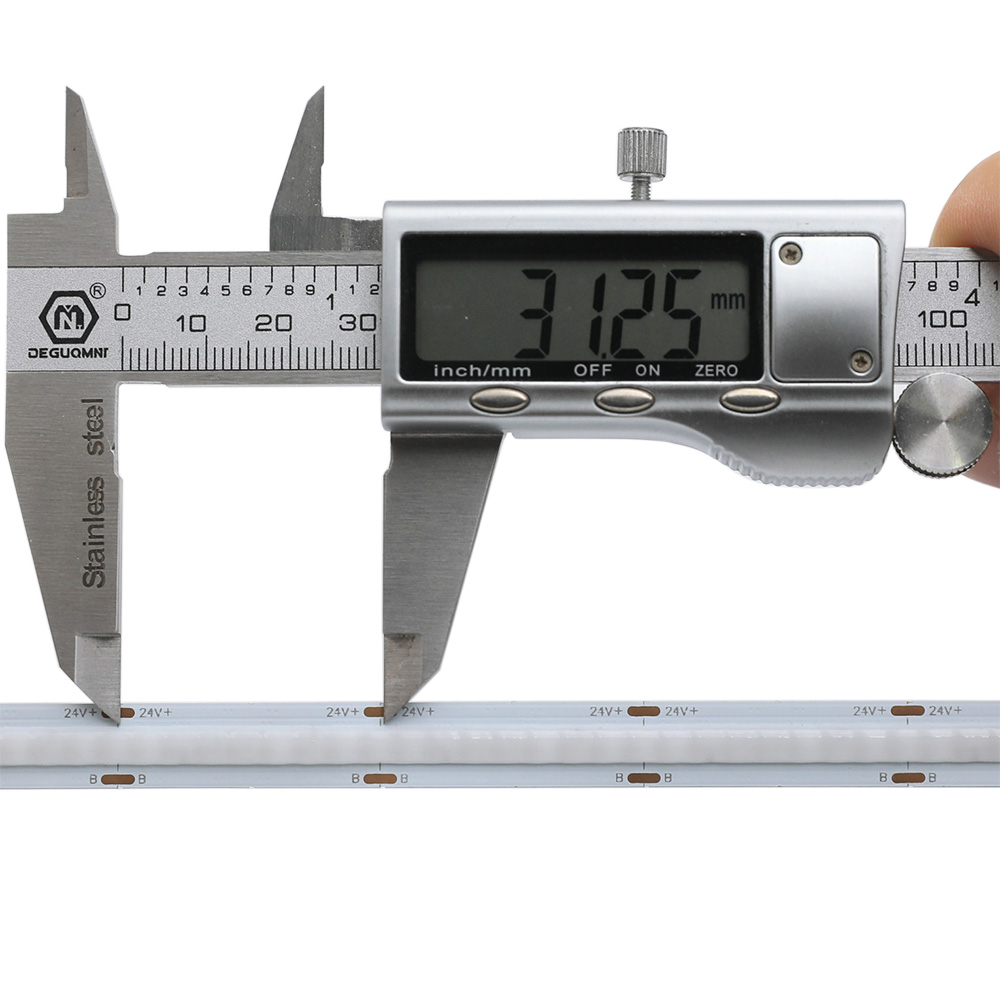

| Cut Length: | 31.25mm |
| PCB Color: | White |
| Beam Angle: | 180° |
| Waterproof Rating: |
IP20/65/67/68 |
Wiring Diagram: How to Wire RGB Color Changing LED Strip Lights?
RGB COB led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
|
|
|
