| Select Length: | 16.4ft (5 meters) (Base), 32.8ft (10meter) Roll |
|---|---|
| Select Operating Voltage: | 12VDC (Base), 24VDC (Base) |
| Select PCB Color : | Black Background (Base) |
| Select PCB Width: | 12mm - 720Chips/m (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Outdoor Silicone Tube IP67 - With Brackets, Underwater IP68 - Adhesive Back, Outdoor Silicone Tube IP67 - Adhesive Back, Underwater IP68 - With Brackets |
| Availability | In Stock |
| Condition | Brand New |

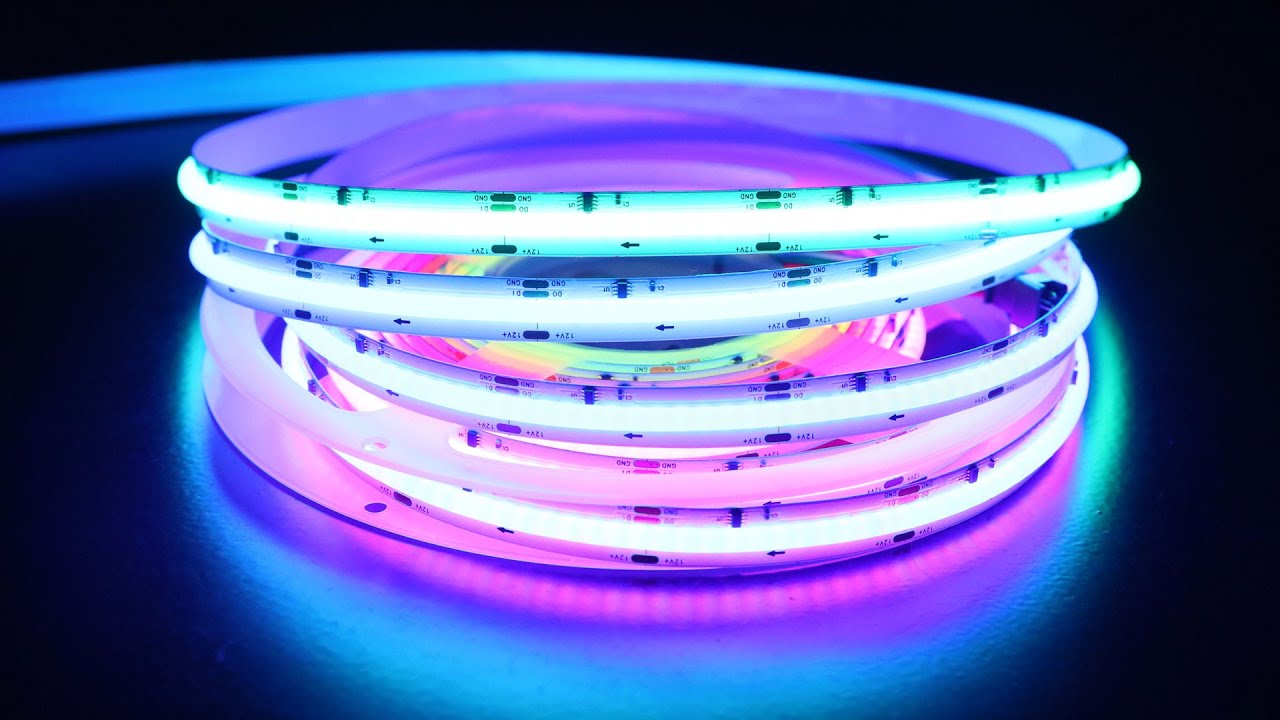

This digital RGB COB LED light strip is available in both 12V and 24V version. The density is 720 LEDs per meter, with a total of 3600 LEDs per roll (5m/16.4ft). Super high density and COB technology make this RGB COB LED tape light completely spotless, providing a more natural and colorful COB LED lighting. If you want smoother illumination, you can use an aluminum profile or a neon tube to better diffuse light.
Addressable COB LED strip RGB, controlled by WS2811 ICs, has 20 ICs across each meter. Every 50mm/1.96in can be cut with scissors to customize the length of the strip. With arduino or wled wifi programmable controller, you can easily program this color changing COB LED strip to DIY creative lighting, such as blinking, jumping, chasing, fading and many other lighting effects.
This RGB COB strip light has a 12mm/0.47in wide board with adhesive backing, making it very easy to install as you just need to peel and stick. The color of the board is specially designed to be black with a low presence, blending better into the background and harmonize with dark colored decoration. COB addressable high density RGB LED strip is very flexible and can be easily bent into different shapes, suitable for placing around your corners, ceilings, and garden outskirts to offer colorful ambient lighting.
1. Programmable COB LED strip, RGB color, 12V or 24V options available.
2. High density of 720 LEDs per meter, 3600 LEDs per roll. (5m/16.4ft)
3. WS2811 IC, 20 ICs per meter, 100 ICs per roll. (5m/16.4ft)
4. Flexible PCB, black background, 12mm/0.47in wide, 3mm/0.11in high.
5. Cuttable every 50mm/1.96in, with guide lines marked on board.
White Background Version Video (only difference is in PCB color)
DCFLS-24V-WS2811X720
Standards and Certifications
Product Specification
|
LED Strip Type:
|
WS2811 High Density RGB Brightest COB LED Strip Addressable
|
| LED Chip: | Epistar Chip |
| Input Voltage: | DC12/24V |
|
Power:
|
DC12V - 12W/m, DC24V - 21W/m
|
| Working Temperature: | -20℃~+50℃ |
|
Cuttable:
|
50mm/1.96in
|
|
IC Quantity:
|
20 pixels per meter, 100 pixels/Roll
|
| PCB Width: | 12mm/0.47in |
| LED Quantity: | 720 Chips per meter (3.28 ft) |
| Waterproof Rating: | Non-waterproof IP20 / Outdoor Waterproof IP67 / Underwater IP68 |
| Strip Length: | 5m/16.4ft, 10m/32.8ft |
| Beam Angle: | 180° |
| Dimentions: |
L5m/16.4ft x W12mm(0.47 in) x H3mm(0.12in)
|
| Lamp Luminous Flux(lm): | 1440 lm/m |
Wiring Diagram - How To Wire WS2811 COB Addressable LED Strip Lights?
