DC24V/12V High Density COB Color Chasing Lights Addressable RGB LED Strip
Check this 12mm addressable COB led strip light with dream color. Chip-On-Board technology, 3600 LEDs are integrated with the PCB board, high density 720chips/m, super bright, no LED light spot, and no stroboscopic. The addressable RGB COB led lighting strip can be bent arbitrarily, and its flexibility is better than that of SMD LED strip lights.
The combination of addressable IC and LED enables a variety of different light colors to appear on a COB led lights strip, which is a great item for the atmosphere of various entertainment venues. The LED IC is controlled by the corresponding addressable led light controller, typically, the SPI controller has built-in multiple color modes, you just need to find and play to get the color changing LED lights effect.

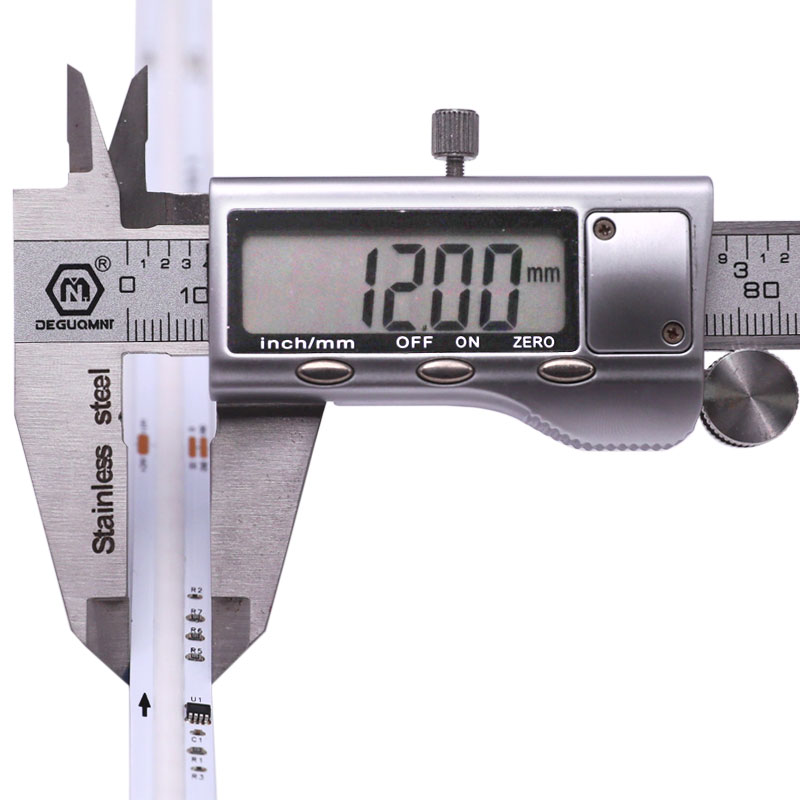

Both DC12V and DC24V of this addressable COB led strip are with 20 ICs per meter, 100 pixels per roll, convenient for long-distance lighting use and has better length adaptation.

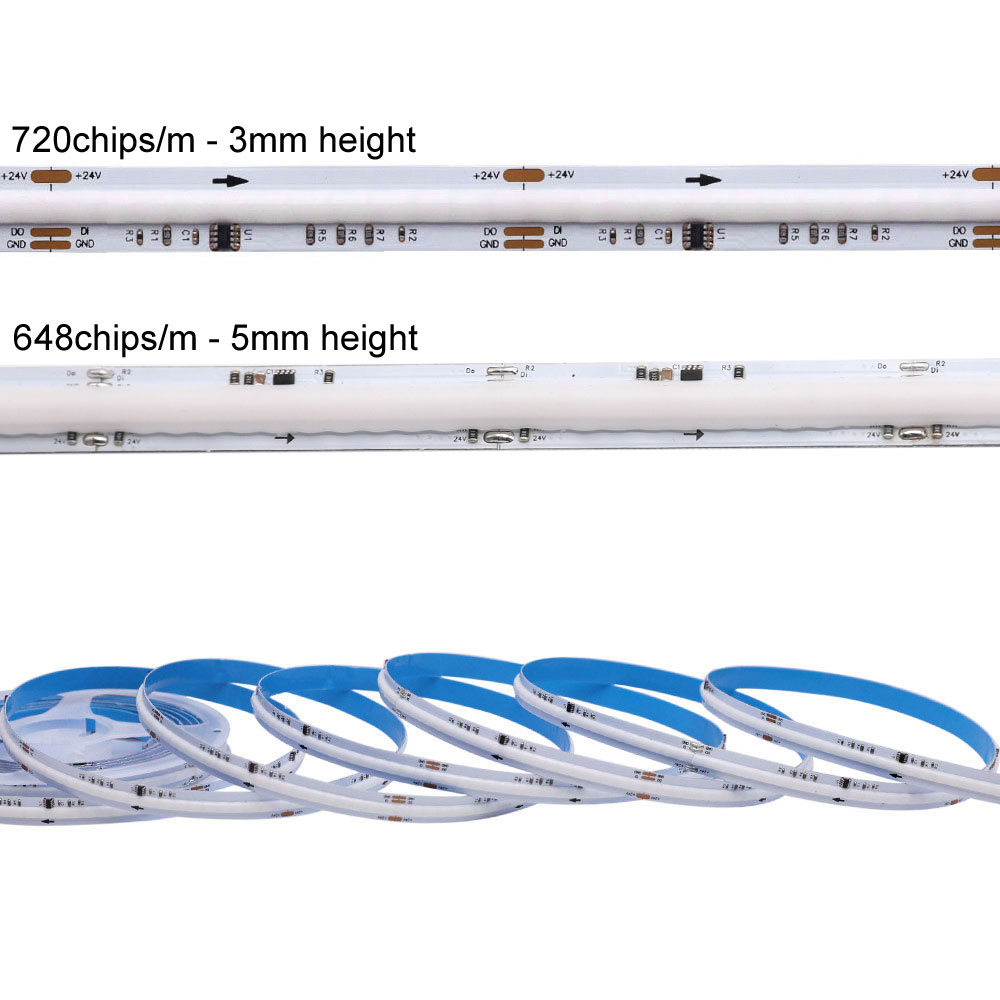

720chips/m vs. 648chips/m addressable COB strips

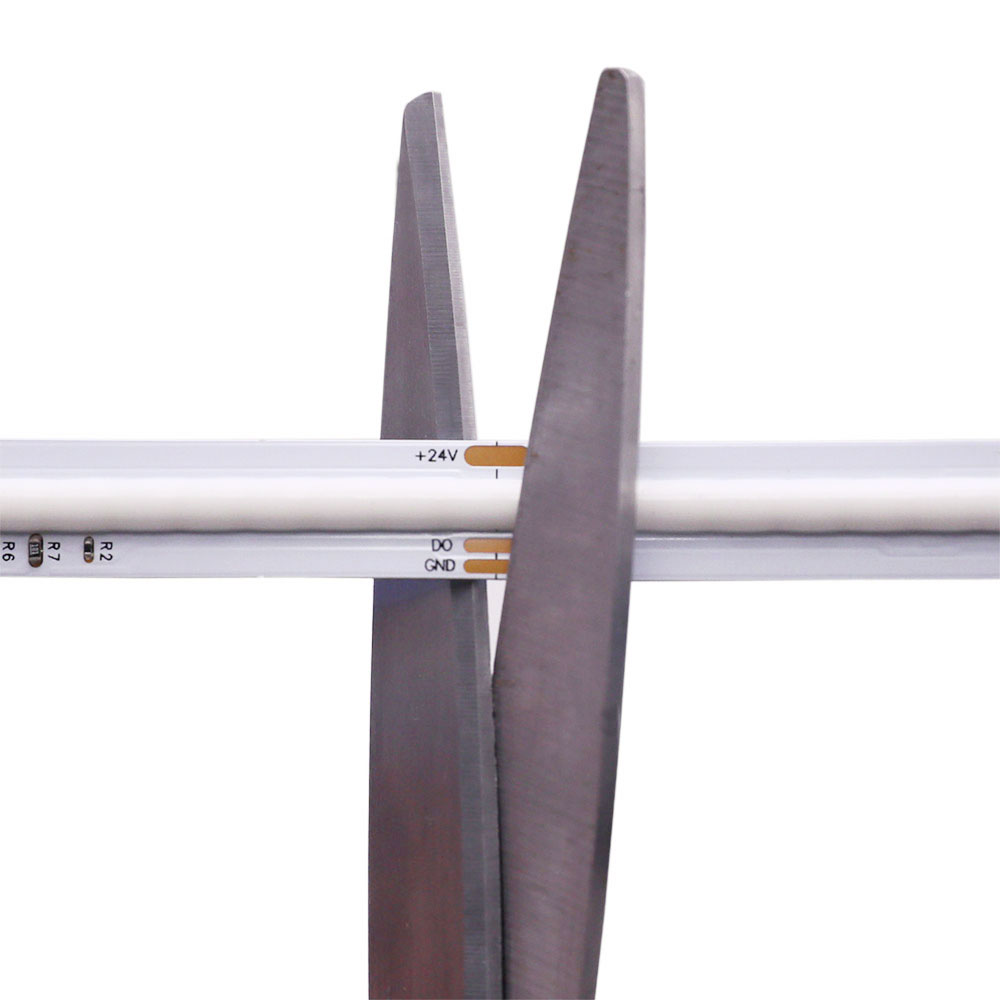

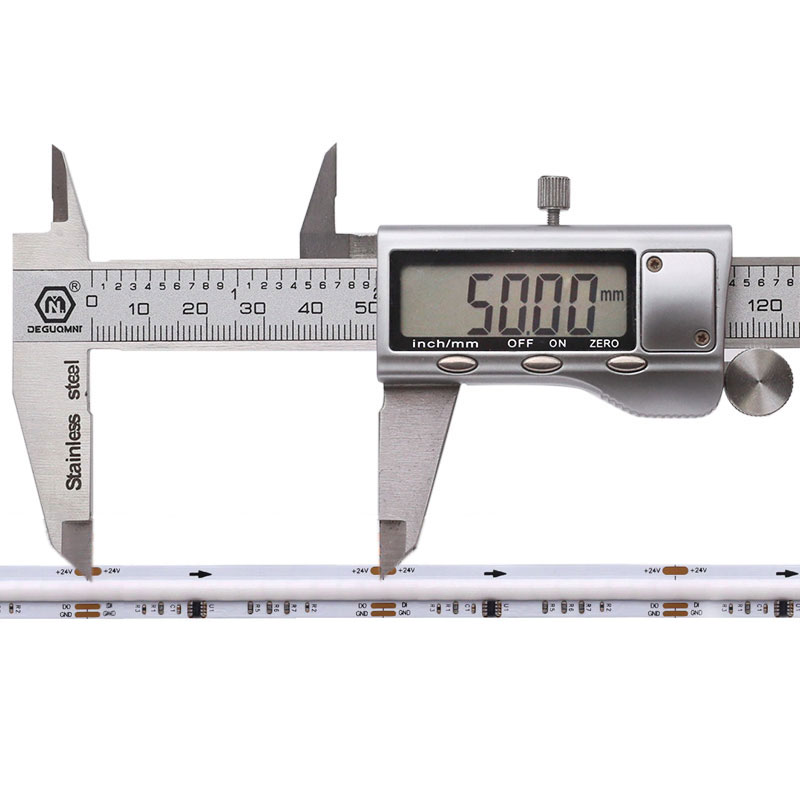

720chips/m addressable COB strip: 3mm PCB height, 4.5mm luminous layer width, 50mm/1.96" cut, DC12V - 12W/m, DC24V- 22W/m;
648chips/m extremely bright addressable COB strip: 5mm PCB height, 6.5mm luminous layer width, 55.6mm/1.1" cut, 22W/m; Here to purchase.
There is almost no light difference between these two types, and they are both 12mm wide, but the 648chips/m COB strip type has a slightly glare-reducing effect (no difference in brightness).
Standards and Certifications
|LED Strip Type:||WS2811 High Density COB Addressable RGB LED Strip|
|LED Chip:||Epistar Chip|
|Power:||DC12V - 12W/m, DC24V- 22W/m|
Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
|LED Quantity:||720 Chips per meter (3.28 ft)|
|Waterproof Rating:||IP20 / IP67|
|Strip Length:||1m/3.28ft, 2m/6.56ft, 3m/9.84ft, 4m/13.12ft, 5m/16.4ft, 10m/32.8ft|
W1.2cm(0.47 in ) x H0.3cm(0.12in ) x L500cm
|Lamp Luminous Flux(lm):||8-10lm/LED|
Wiring Diagram - How To Wire WS2811 COB Addressable LED Strip Lights?
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
