Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape

Model: GL-C-015WL
Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape
  • Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape
  • Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape
  • Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape
  • Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape
  • Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape
  • Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape
  • Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape
  • Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape
  • Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape

Select Specifications:

Select Input Voltage:

Starting at: $25.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$25.98
10-49
$24.68
50-99
$24.16
100+
$22.08
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Check out this ESP32 WLED controller equipped with over 100 color changing modes, suitable for controlling RGB and RGBW digital LED tape. There are black and white color versions for you to choose from, and this wled compatible controller also supports mott and home assistant automation. With cycling function, controller esp32 can control up to 800 ICs and is able to synchronize the various light stripe' lighting effects under the same wifi network. Segmented color control function allows you to freely decide the color and brightness of every part of LED strip, creating different room atmospheres.

    This WLED controller can support a total of three output channels. The output terminal connections "G D V" correspond to the "GND DATA VCC" pins of the digital LED strips. Among them, D refers to the default output group for GPIO16, so please prioritize using this group. The other group, D for GPIO2, can only be used after configuration in the APP. IO33 is an extended GPIO signal port that can be customized for use.

    Compatible IC Chips: WS2811 2812B 2813 2814 2815/GS8208/SM16703P SK6812 /TM1814 etc.





    WLED Controller Manual PDF

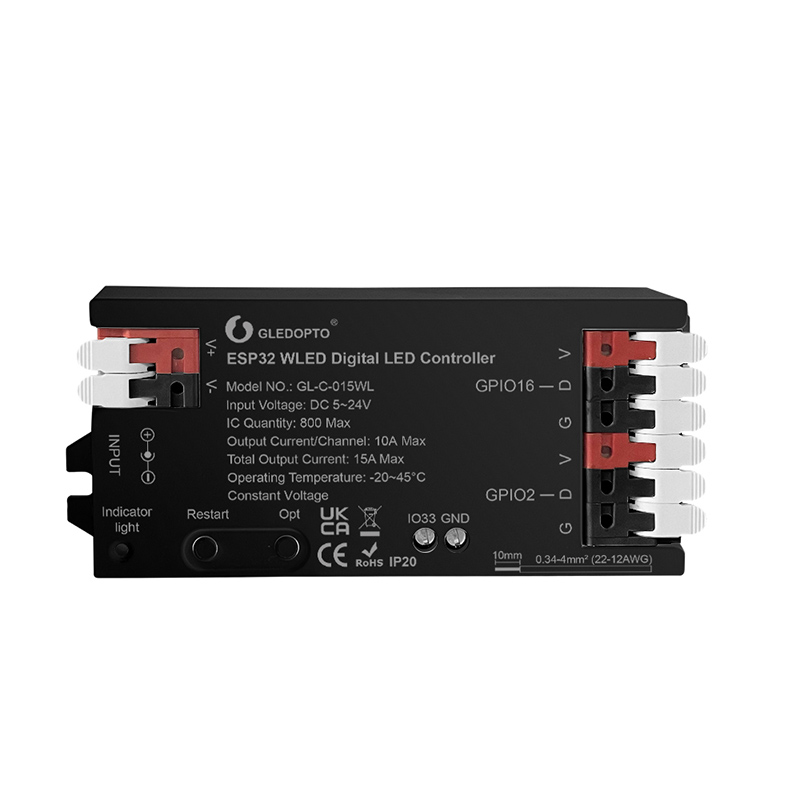

    Product Specification

    Product Name:

    WIFI ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape

    Model:  GL-C-015WL
    Input Voltage:  DC5-24V
    Output Current/Channel:  Max 10A
    Total Output Current: Max 15A
    Wireless Connection:  Wifi

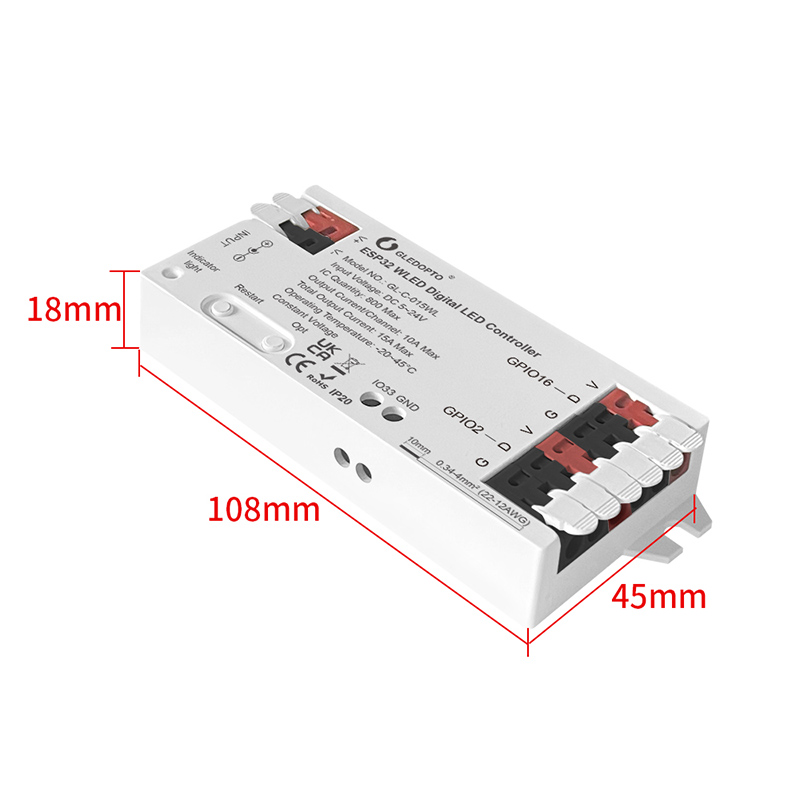

    Dimensions:  L108mm*W45mm*H18mm
    Working Temperature:  -20℃ ~ 45
    IP rating:  IP20
    Control Chip Quantity: 800 IC Max

    Wiring Instruction

    IO33 Interface

    Button Functions

    Product Comparison





    APP Download Steps

    APP Configuration Steps

    Steps for Connecting with Alexa

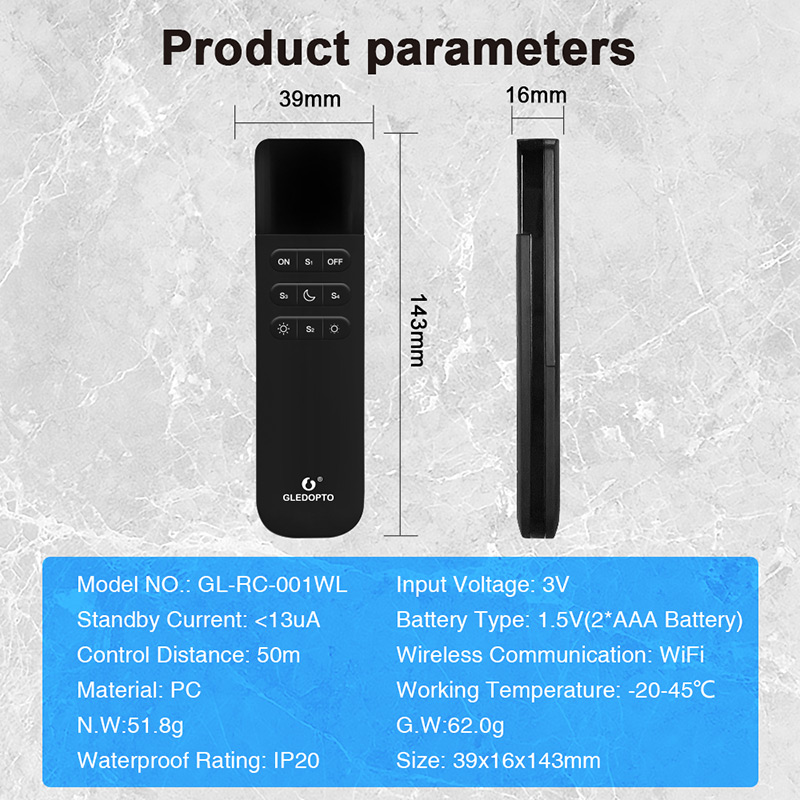

    WLED Remote Control at Kit

    Remote Control at Kit

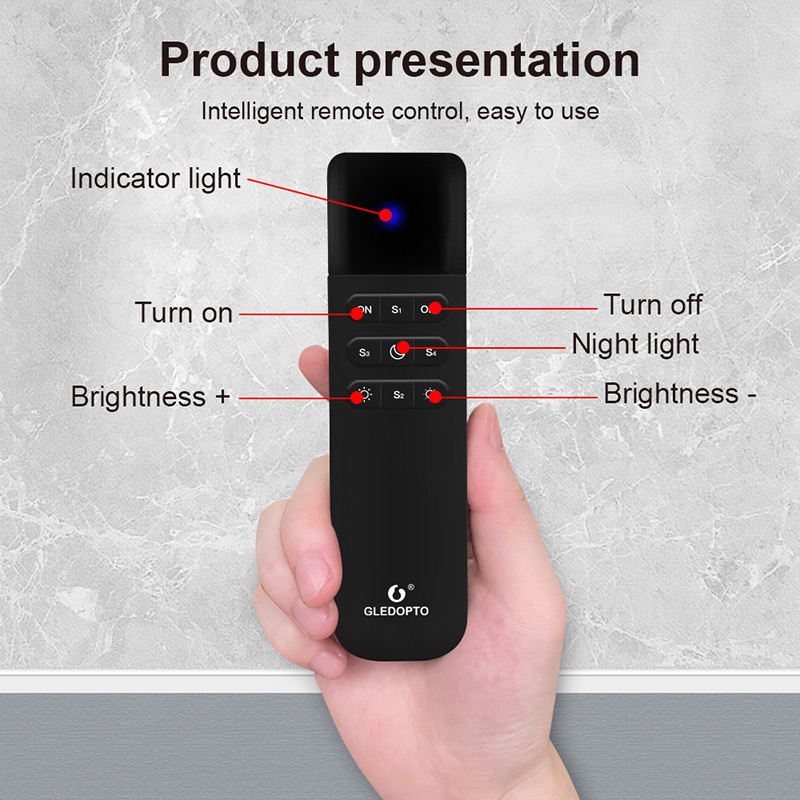

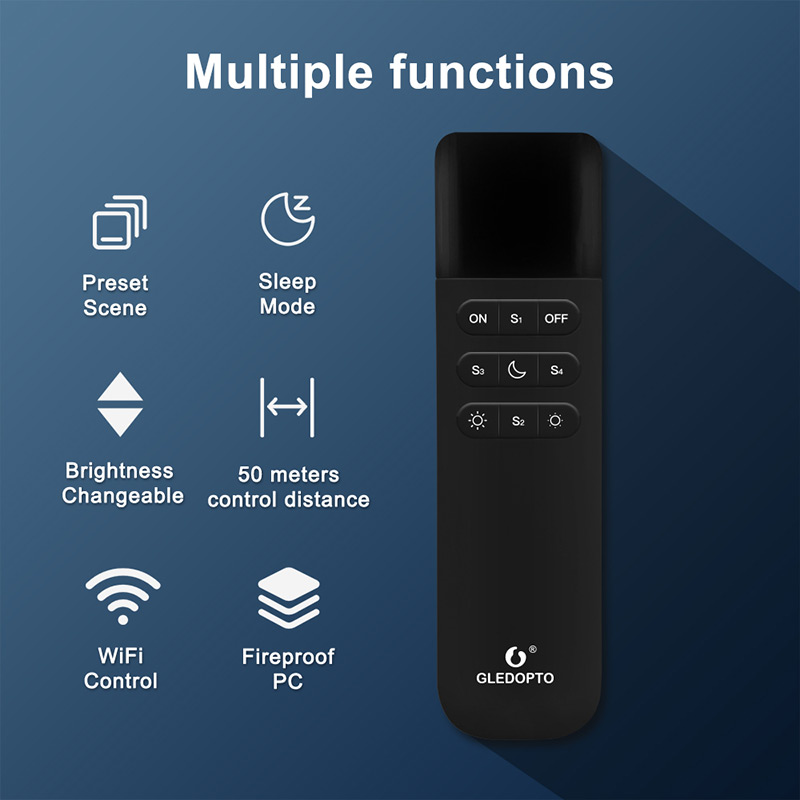

    WLED Remote Control Functions

    Wifi ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
