| Select Length: | 16.4ft (5 meters) (Base) |
|---|---|
| Select Light Color : | Warm White(3000K) (Base), Cool White(7000K) (Base), Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm), Natural White(4000K) (Base), Daylight White(6000K) (Base), Pink, Ice Blue |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Transparent Heat Shrink Tube IP67 |
| Availability | In Stock |
| Condition | Brand New |
3mm/0.12in ultra slim led lights with single color super bright 3014 SMD(LED size 3.0mm*1.4mm), this flexible narrow led strip supports 3000K warm white, 4000K natural white, 6000K daylight white, 7000K cool white, red, green, blue, ice blue, yellow, and pink. - 3000K warm white vs 4000K natural white vs 6000K pure white vs 7000K cool white, what is the difference.

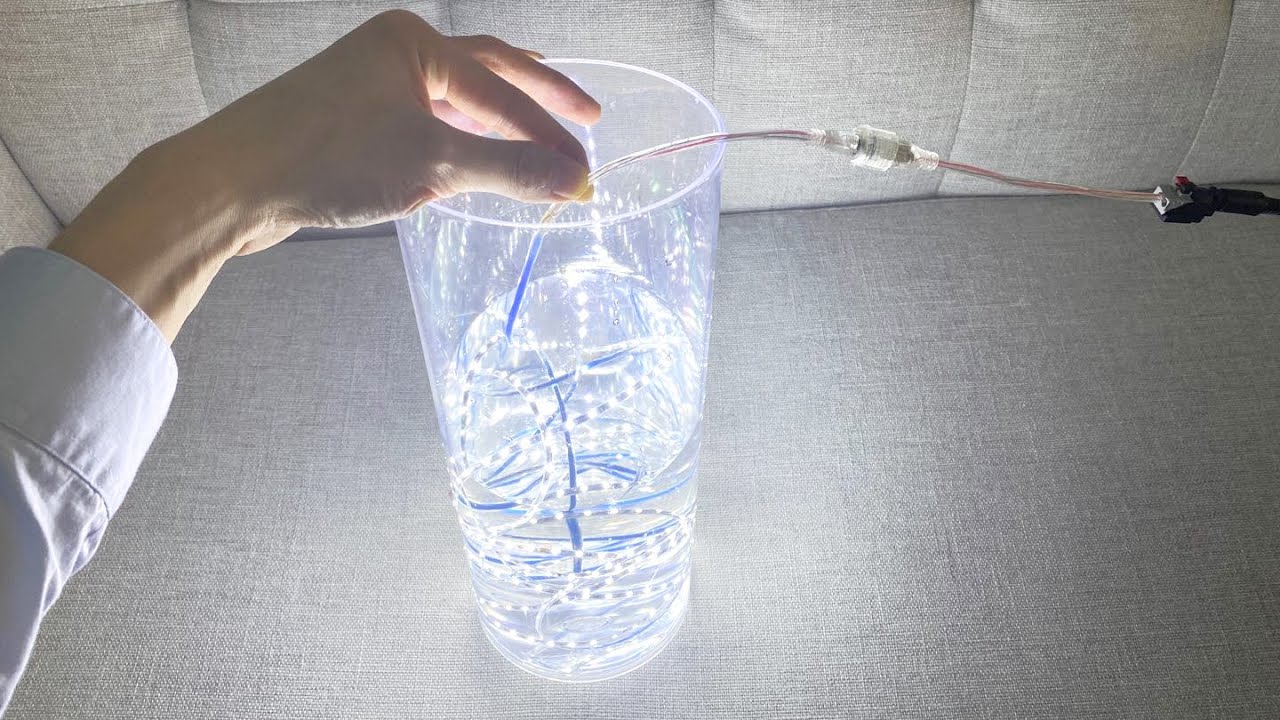

We also provide IP67 waterproof ultra narrow led light strip to meet your outdoor lighting project - IP20 non-waterproof thin led strip vs IP67 outdoor waterproof narrow led light strip.
12V DC operation. This slim led light can be cut into 3-LED segments, so you could cut a different length for your lighting project and request.
Our brightest 12volt ultra narrow led light strip is soft and easy bent for installation, with adhesive backing and can be stuck just about anywhere. The narroow LED strips are suitable for the average home lighting as well as lighting professionals.
Notice: 3014SMDs will be very very hot when it is working, please do not let the LED srip be in touch with anything including the LED Reel!
Standards and Certifications
Product Specification
LED Strip Type: SMD 3014 450LEDs/16.4ft (FSLSR-12V-3014X450W3
)
LED Chip: Super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Ice Blue, Yellow, Pink (optional)
Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 90 LEDs per 1meter (3.28 ft)
Lifespan: 50,000+hours
Dimensions: L500cm(196.8 in ) x W0.3cm(0.12 in ) x H0.08cm(0.04 in )
Input Voltage(V): 12VDC
Working Power: 4A 50W /16.4ft Max
Lamp Luminous Flux(lm): 9~10lm/LEDs 5000lm/16.4ft
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(4500-6500k), Cool White(7000-8500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof
CRI (Ra>): 80+
How to wire single color led strip lights?
 |
 |
 |
 |
You will need a led strip light, a power supply(Please use a DC12V 75Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection.
►Detail knowledge about choosing a suitable LED strip light power supply:
How to calculate power for led strip lights?
How to choose led strip light power supply?
►Single color led light strip wiring diagram:
*Click the wiring diagram picture to know more detail.
