LED Light Strip Accessories
LED Strip is a very flexible and versatile lighting solution widely used in home, commercial and outdoor lighting projects. In order to meet the quick and customized led lighting installation needs of different projects, LED strip lights come with a range of accessories, including connectors, extension cords, splitters, mounting accessories, etc.
Anyone planning to install LED strip lights should first know how to properly make connections between strip and strip, strip and wire, strip and controller, strip and power supply, and more. These LED Light Connectors help you save time and no soldering work, just plug and play. With them, you can achieve easy, fast, and professional installation of LED light strips.
We provide a variaty of LED accessories for your lighting application. View our ledstrip connector products now and find what you need.
Please choose the appropriate accessories according to your LED light strip type:
-
2-PIN for single-color LED strip
-
3-PIN for dual-color temperature CCT led strips, single-signal addressable led strips like WS2811, WS2812, SK6812, etc.
-
4-PIN for the RGB color changing led strips, dual-signal breakpoint resume led strips like WS2815, GS8208, etc, single-signal DMX512 led strips
-
5-PIN is RGBW led strips, breakpoint resume dual-signal DMX led strips
-
6-PIN for RGBCCT/RGBWW led strips.
How To Choose LED Strip Light Connectors?
A Small LED Strip Connector Can Solve Your Installation Problems
Shop By LED Tape Accessories Type
LED Light Strip General Parts
Superlightingled.com offers a comprehensive collection of LED strip lighting parts and accessories. This page features a product assortment including a sample box of 65 individual silicone neon tubes and strip covers, and more than 400 kinds of LED Aluminum profile sample box. You can find our custom led strip welding service, waterproof box, AC plug, IP67 silicone tube, 3M adhesive backing, fast wiring terminal, end caps, solderless heat shrink tubing, and mounting brackets. Superlightingled provides versatile solutions catering to all your LED strip lighting requirements.

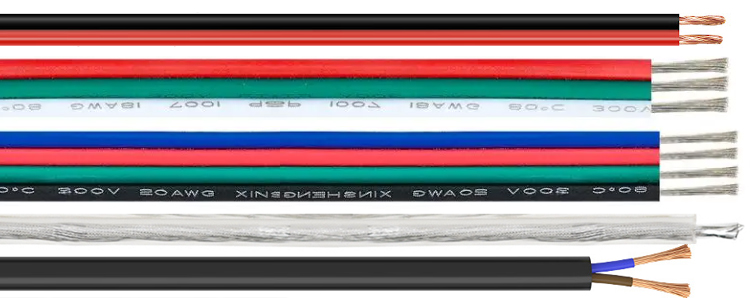

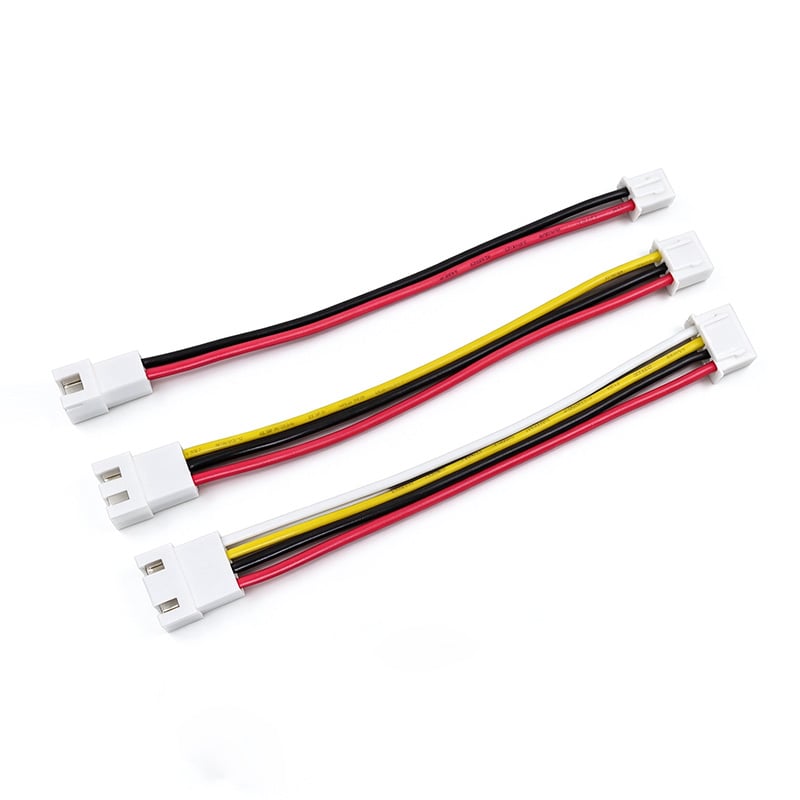

LED Light Cord Extension Cable
LED Light Cord Extension is a wire cable designed to extend the power supply or electrical transmission to led lights. It usually consists of conductive copper wire with an insulating material wrapped around the outer layer to ensure safety and prevent short circuits. Also have outdoor cable for led lights.
We offer a wide range of low voltage LED strip and LED light electrical extension cords, including 2/3/4/5/6 pins, wire gauges from 26AWG thin to 12AWG thick, UL certified, to meet the needs of different LED lighting projects. Quick connect Dupont/termial/hippo cords, JST extension cables, outdoor waterproof plug cables are also available for convenience.
Please choose the right pin extension cables according to your light strip type. You can freely combine the led wire color corresponding to light color.
LED Light Wire Splitter Cable
LED Light Wire Splitter Cable separates a main cable into 2 or even more cables to connect more LED light strips. By splitting the cable, LED strip lighting system can be extended to a larger area and more fixtures. Strip lights with different interfaces can also be interchanged.
DC splitter cable is for connecting DC power supply, it can split one female head into two, three, four, five or even eight male heads to provide flexible power connection solutions.
Waterproof 1-in-2 or 1-in-3 splitter cables make cable management more organized for 2/3/4/5pin static and color changing outdoor lighting, providing greater scalability and convenience.

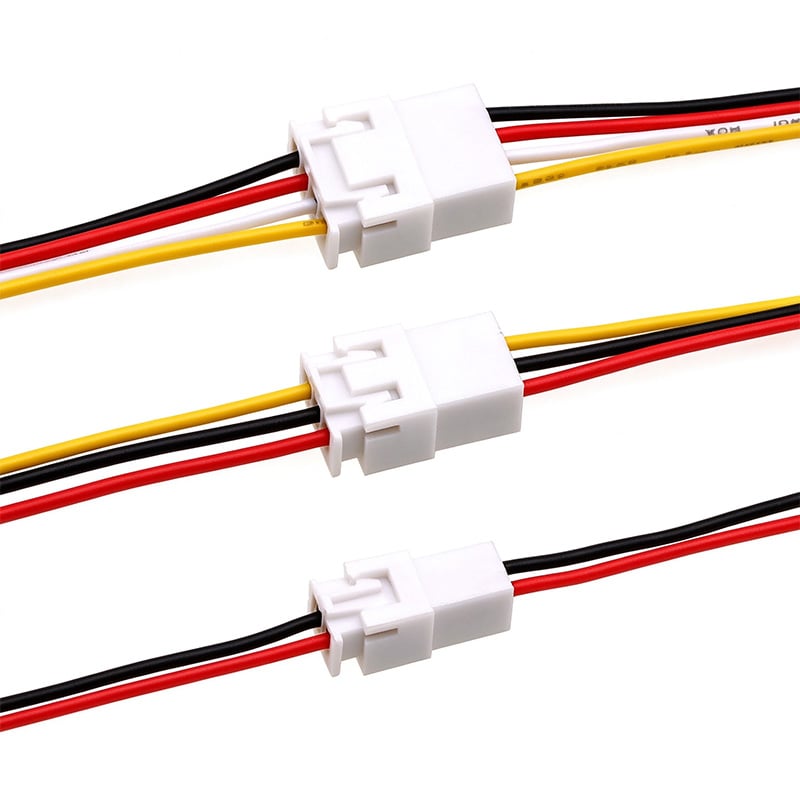

3pin 4pin JST 1-in-2 y splitter can connect two addressable led strips at the same time, and 4pin 5pin terminal 1-to-2 split cable for combining two RGB or RGBW strip lights. And through the corresponding extension cord to complete the overall project installation.
Also, terminal to JST wire splitter is a special accessory that allows the connection of different types of led strip connectors, increasing the compatibility and flexibility of the strip lighting system.
Quick Electrical Wire Splice Connectors
Electrical wire splice connector tool for low voltage LED lighting projects, easy to use, quickly creates an electrical connection with a snap. Fits 16, 18, 20 to 22 gauge wires. Multiple wire splices types available.
Quick splice wire connectors are snap or crimp connectors that do not require stripping the wire. Tthe wire is placed directly into the connector, put on the cover, and the wire jacket is pierced to make an electrical connection. Or use pliers to crimp the butt splice wire connectors to make an electrical connection. Copper wire splice connector twists two strands of copper wire together to ensure that current is conducted smoothly through the twisted portion.
In LED strip lighting connections, there will be situations where you need to combine LED wire with wire, such as connecting multiple led tapes. When dealing with more complex LED strip projects, it may be necessary to manage wires in different directions, such as 1 in 2, 3-way T tap, etc. Use wire splitter for multiple in 1 wire connections or splice connectors for 3-way wire connections. A small wire to wire connector and wire splitter accessory can make the connection easier and faster. Please choose the right lighting cable connector according to your light strip pin, 2pin, 3pin, 4pin, 5pin, or 6pin.

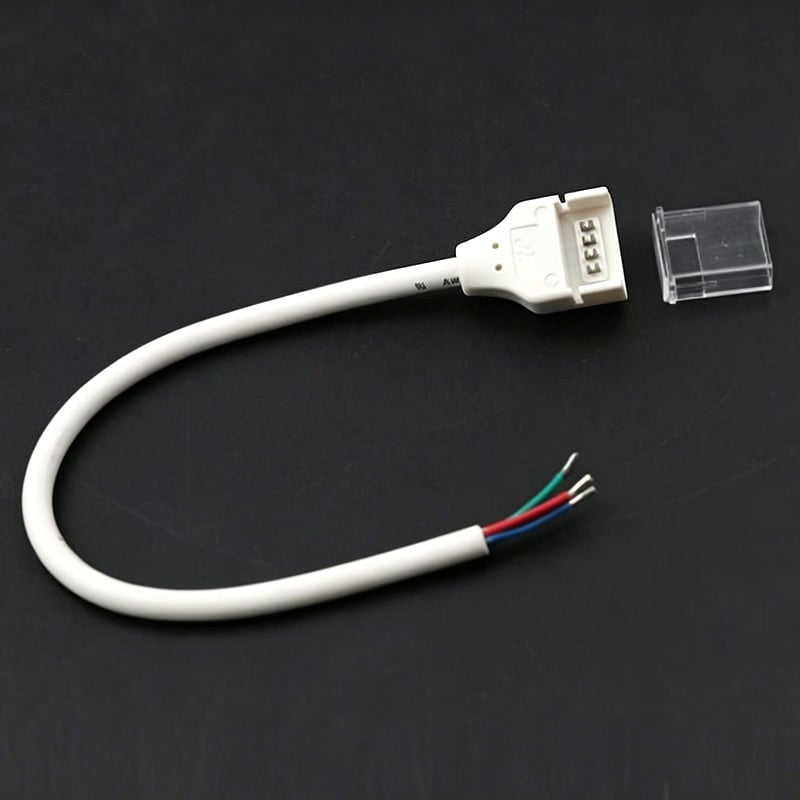

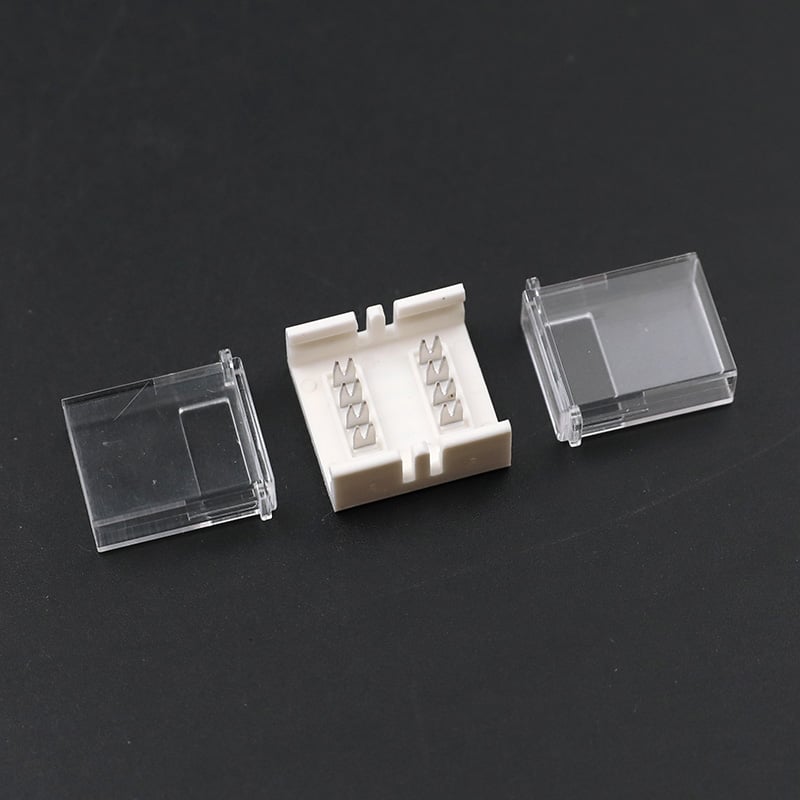

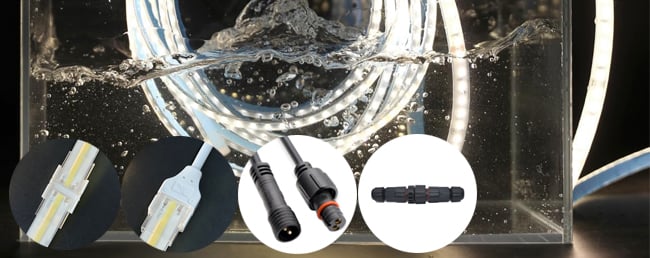

Waterproof IP68 Connector Series
IP67 & IP68 Waterproof Wire Connectors are specially designed for various low voltage landscape lighting applications in outdoor LED lighting industry and outdoor led strip lights applications. These 2 pin, 3 pin, 4 pin, 5 pin male female outdoor electrical fast connectors offer excellent waterproof and weatherprof properties (rated IP68), thereby ensuring optimal performance even in challenging outdoor conditions.
Which LED outdoor lighting scenarios are waterproof connectors suitable for?
Waterproof low voltage wire connectors are ideally suited for LED strip lights, led underwater lights, led wash wall lights, led street lighting, led display screens, led building lighting lamps and lanterns, widely used in car and ship manufacturing, communications equipment, detection equipment, as well as with LED driver power supplies.
Explore the waterproof wire connector series at Superlightingled for a reliable, robust, and practical solution for your LED connection needs while maintaining top-notch waterproof protection. With these exterior cable connectors, extending light distances and connecting lights in multiple directions outdoors becomes easy and safe.
Due to the unique molding dimensions of each manufacturer, our LED connector waterproof is only compatible with our products. Even if the shapes appear identical, a deviation of more than 0.2mm can make connection difficult. Therefore, please purchase our outdoor waterproof connector with compatible models.

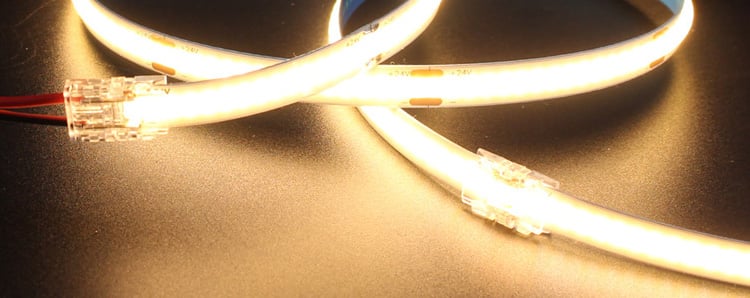

COB LED Strip Light Connectors
These led cob strip connectors are specially designed for our COB led strips, due to the special sealing design of COB led strip resulting in its solder joints being placed in a different location than common led strips, the led parts used for COB light strips are also different from common light strip fittings.
COB led strip connector is a solder-free, convenient, fast and easy-to-use installation method. We provide appropriate connectors for various types of COB led tape, supporting COB light PCB boards with widths between 5mm and 12mm, and adapting to different pin configurations such as 2, 3, 4, 5, 6 pins to meet your COB led connection needs. Allows you to connect COB strip to strip, strip to cable, strip to power supply, etc. in multiple directions.
How To Choose LED Strip Light Connectors?

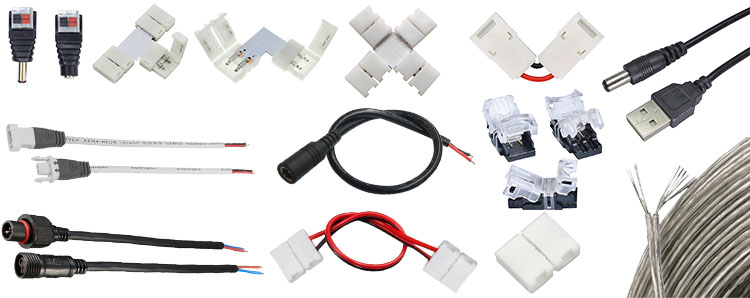

2-Pin Single Color LED Strips Parts
LED Strip Light 2 Pin Connector is for single color LED strips that contains two contact pins for connecting the positive and negative terminals of the led light strip. This 2 pin (2 prong) led connector eliminates the need for soldering and makes the installation process fast and easy.
2 pin connector types include the piercing connector, the screw connector, and the clamp or clip connector that can be strip to strip, strip to wire, wire to wire.
• Piercing Connector: Users need to align the pins of the led connector 2 pin with the conductor portion of the cable or light strip, and then press down firmly so that the pins penetrate the insulation and contact the conductor.

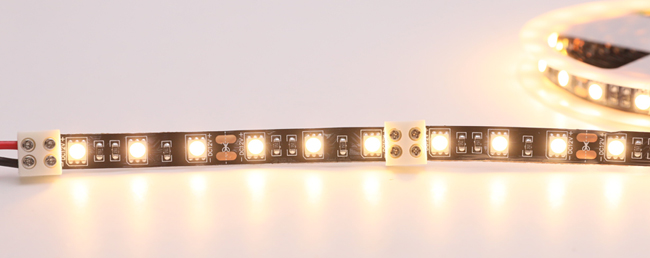

• Screw Connector: Users insert the light strip/wire cable into the 2 pin led light connector and then use a screwdriver to rotate the screw until the light strip/wire cable is securely fastened. This connector can be removed and reused.
• Clamp Connector (Clip Connector): Combining the functions of clamping and piercing, the pins of the 2 pin pcb connector penetrate the insulation of the light strip/wire cable through the clamping action.
Each type of 2 pin connectors operates differently, so please select the appropriate connector according to your needs and preferences. With these 2pin fittings, you can decide whether the end of your led tape comes with 2 pin electrical power wires, DC cable, JST or Dupont male female connector for ease of use and extended distance.

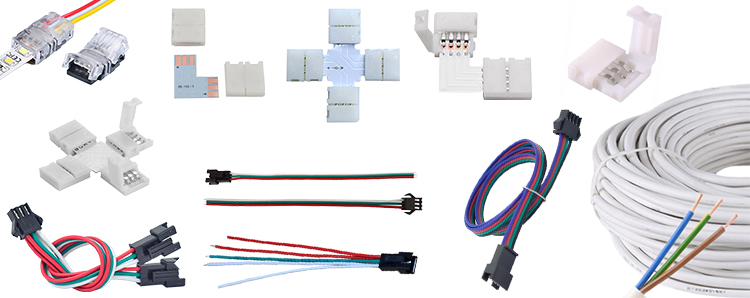

3-Pin Addressable LED Strip Parts
How to get 3 pin and 4 pin connector for digital led strip?
Superlightingled.com presents the 3 pin (3 prong) and 4 pin (4 prong) connector designed for a wide range of addressable led strip applications. WS2812 WS2815 strip connector is a crucial component used for establishing connections in LED strip lighting systems, particularly those involving addressable LED strips. These RGB 3 pin ws2811 connector serve as optimal solutions for a variety of LED lighting systems.
When installing LED strips, we always need to cut the LED strip many times because of the multiple locations and different lengths of the project. LED strips are supported to be cut arbitrarily, after cutting, if you want to connect these LED strip signals in series, you need to weld them, but welding is not a simple job for many users, these quick connectors play an important role here, according to our order display, 90% of purchasers add these accessories when ordering LED lighting list to improve the efficiency when installing because spending money to hire an electrician which is expensive. Explore this selection on Superlightingled, and find the perfect fit for your needs.
We can also customize the length and soldering for users, if you have any questions or needs, please feel free to contact us!
3-Pin CCT LED Strips Parts
Supplement your CCT LED strip lighting system (adjustable white light system) with these accessories, including 3-pin extension cords, connectors, etc. As long as your light strip is designed to come with 3 wires, you can use these accessories. The benefit of using these 3 pronged connectors for your custom led strip lights project is ease of installation, simplifying the connection of light strips to light strips and light strips to power cables.
4-Pin RGB LED Strips Parts
Here are various 4 pin (4 prong) connector types for RGB led strip lights, available with +/-/L/T shapes led light strips connectors, COB led strip connectors, JST connectors, terminal connectors, led strip splitters, and more. With solderless led connector, you can easily connect the strip to another strip or controller or power supply to solve your problem.

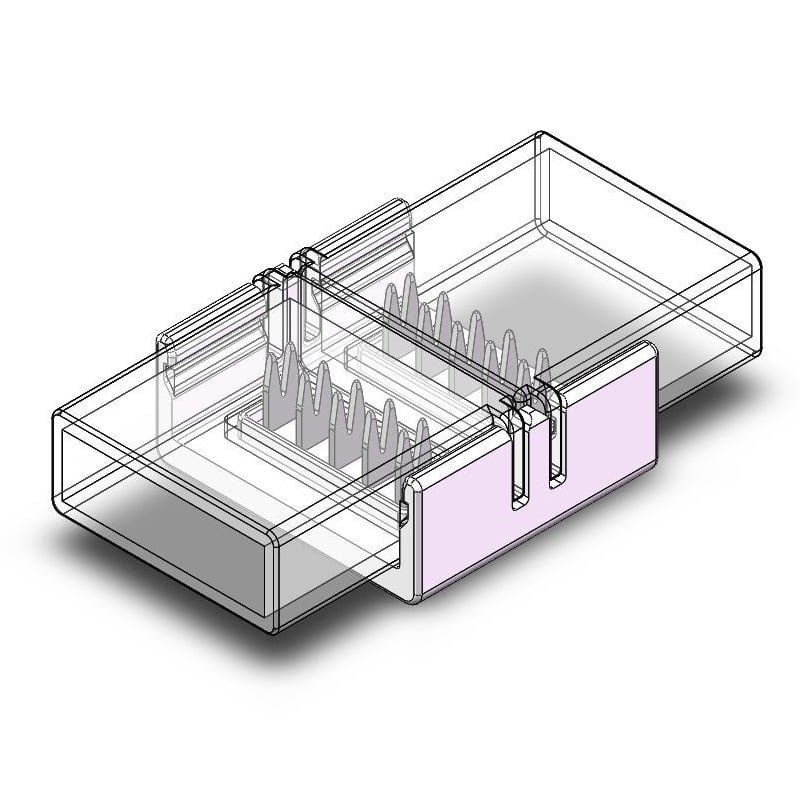

5-Pin RGBW LED Strips Parts
RGBW LED Strip Connectors: A Comprehensive Selection for Customizing and Extending Your RGB LED Lighting Setup
If you are looking for a range of connectors to extend or customize your RGBW LED light strips, you have come to the right place. From quick connectors and corner connectors to T-shape connectors and waterproof connectors, we offer a variety of options to fit your needs. Here is a breakdown of the most commonly searched-for connectors:
rgbw 5 pin strip to wire connectors,rgbw 5 pin connectors,rgbw 5050 waterproof connector,rgbw led connector,high cri rgbw led strip corner connectors,5 pole connector low voltage rgbw,smd 5050 rgbw connectors,10mm rgbw strip 5 pin connector,5 pin rgbw connector,rgbw quick connectors,5-pin rgbw connector,5 pin rgbw led connector extension wire,rgbw led strip connector,solderless rgbw connector,rgbw connector,extra long rgbw connectors,rgbw 90 degree connector,rgbw easy connector,rgbw led tape light corner connector,rgbw 90 degree led strip connector,T-Shape 5 Pins Connector RGBW,rgbw corner connector,
No matter which RGBW LED connector you choose, make sure to follow the manufacturer's instructions and use the correct PCB wide for your installation. By using connectors that are specifically designed for your LED strips, you'll ensure that you get the best possible performance and longevity from your lighting system.
6-Pin RGB+CCT LED Strips Parts
Components for RGB CCT LED Strip Lights, including extension wires, strip to strip connectors, strip to wire connectors, waterproof led strip connectors, male and female accessroies, and more.
DMX512 Lights Accessories
Wiring accessories are critical components of a DMX lighting system, they ensure that complex DMX512 LED lighting installations work efficiently and consistently.

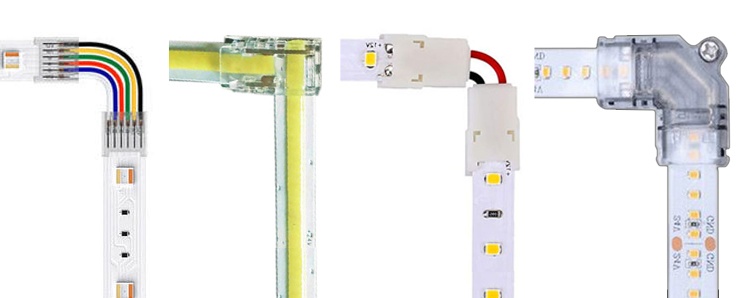

90 Degree LED L Connector Corner
Led L Connector is a specially designed 90 degree L shape connector for turning LED light strip around corners. This shaped led tape corner connector ensures the light continuity and neatness in corners and avoids led strip damage or performance degradation due to PCB bending or folding.
In indoor lighting projects, led strip lights are installed in areas with corners such as room ceilings or kitchen cabinets. The use of 90 degree led strip connector makes these applications more flexible and versatile.
Suitable for LED strips from 5mm to 12mm width as well as terminal wire cables.
High Voltage LED Lights Parts
2-Pin 3-Pin 4-Pin accessories for complete single color & CCT and RGB AC 110V/220V high voltage LED strip lights systems. High-voltage LED strips use pin connections to ensure stability and reliability due to the high protection requirements of the LED lights circuit board. If your project requires cutting line voltage light strips, you can use the following types of connectors to connect the strips to dimmers, controllers or AC power lines.
• 2 Pin connector: for static single color led connections
• 3 Pin connector: for CCT (Adjustable Color Temperature) and UCS1903, WS2811 intelligent IC chips led connection
• 4 Pin connector: for RGB light connection
