| Select LED Quantity: | 320Chips/m, 400 Chip/m (Base), 384 Chips/m |
|---|---|
| Select Length: | 16.4ft (5 meters) (Base) |
| Select Light Color : | Warm White(3000K) (Base), Natural White(4000K) (Base), Red, Blue, Green, Ice Blue, Daylight White( 6500K) (Base), Pink-Purple, Golden Yellow |
| Select Operating Voltage: | 12VDC (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Underwater IP68 - Adhesive Back, Transparent Heat Shrink Tube IP67, Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

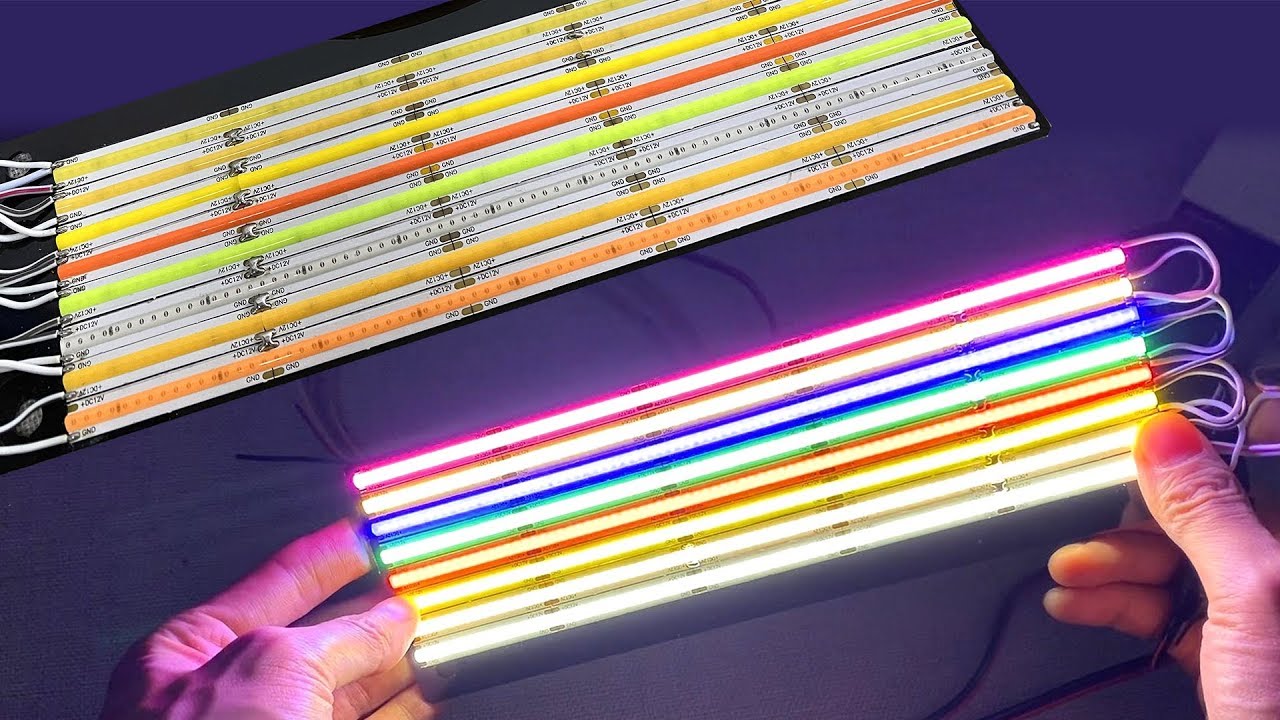

COB LED strip series are our hot sales products in 2020, super slim 5mm/0.20in, which can be installed in any narrow lighting environment, like the bookshlf, car lighting; warm white 3000K, natural white 4000K; daylight white 6500K, Red, Green, Blue, Golden Yellow, Pink, Ice Blue available, high CRI up to 90+. 24V type is here.
LED density of this white COB LED strip light is 384chips per meter, output 576 lumens per meter, 180 degrees top lighting, sofely achieve without light spot in any direction; with good flexibility, you can bend at any angle. Dimming via smart controllers or dimmable drivers.
For indoor & outdoor LED strip lighting, we provide IP20 non-waterproof and IP67 waterproof optional, work with the transparent silicone tube, only increase 1-2mm for the wide.
Every 20.83mm or 50mm cuttable, please cut along the cut line, if you don't know how to cut the LED light strip, please read the following article: Can i cut the LED strip lights?
The back paste with the high quality adhesive, easy to install, which can also work with our super slim LED aluminum channel.
Product Specification
| LED Strip Type | Slim COB LED Strip Light (5m/16.4ft) |
| LED Chip | Chips on board |
| Input Voltage | DC12/24V |
| Lumen | 576lm /m |
| Power | 10W/m; 50W/Roll |
| PCB Width | 5mm/0.196in |
| LED Quantity | 384chips/m, 400chips/m, 320chips/m |
| Light Color | Warm white(3000K), Nature whtie(4000K), Daylight White(6000K), Red, Green, Blue, Ice Blue, Golden Yellow, Pink |
| Cut Length |
20.83mm/0.82in for 384chip/m; 50mm/1.97in for 320chip/m |
| Beam Angle | 180° |
| Color Rendering Index | Ra>90 |
Don't know how to wire? please read the following article: How to wire the single color LED strip light
If you have any requirements for other types of the LED Controller, you can visit our Single Color Dimmer Series.
Don't know how to choose the correct LED power supply, please read the following article: How to calculate power for led strip lights?
When you purchase the LED power supply, please read the following article: How to choose led strip light power supply?
Installation Diagram:
1. The required length of the COB light strip should be measured in advance.
2. COB light strip with interface plug cannot be reversed.
3. Place the COB light strips correctly.
4. Pay attention to the installation environment..
