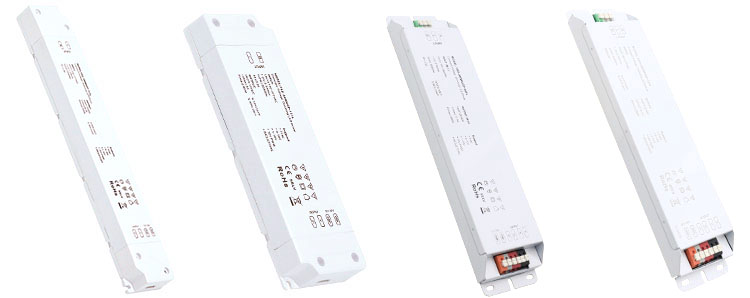

TRIAC 0/1-10V PWM Dimmable Driver

5-In-1 versatile dimmable LED driver provides a highly flexible lighting solution in different environments. This kind of dimmable led power supply features the following five dimming options, allowing you to adjust the brightness of your LED lights according to different needs.

1. TRIAC Dimming: A common type of AC dimming for home and commercial environments. It changes the brightness by controlling the waveform of the AC power.

2. 0-10V Dimming: A low-voltage dimming method that controls the LED light brightness by changing the size of the voltage signal, 0V means off and 10V means maximum brightness.

3. 1-10V Dimming: Similar to 0-10V dimming, but 1-10V dimming range starts from 1V instead of 0V. This means that the lights will not turn off completely.

4. PWM Dimming: Pulse Width Modulation dimming, controls the LED brightness by changing the pulse width of the signal.

5. Resistance Dimming: Change light brightness by changing the resistance value in the circuit.

How to calculate power for led strip lights?


DC12V 300W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)
Review stars(0)
Model:YSD-300WUGP-12TL

DC12V 300W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)

  • Input Voltage: 100-277Vac
  • Output voltage: 12VDC
  • Output сurrent: Max 25A
  • Output power: Max 300W
Various Options In Stock
$69.98
TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM With soft-on and fade in function, visual more comfortable. Dimming range: 0~100%, LED start at 1% possible. 0-100% flicker-free, High-frequency exemption level. High Efficient driver: efficiency 90%, PF>0.95, THD<10% Over load / Over temp. / Short circuit / Over voltage protection, recover automatically Suitable for internal lights application for...
DC24V 300W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)
Review stars(0)
Model:YSD-300WUGP-24TL

DC24V 300W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)

  • Input Voltage: 100-277Vac
  • Output voltage: 24VDC
  • Output сurrent: Max 12.5A
  • Output power: Max 300W
Various Options In Stock
$69.98
TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM With soft-on and fade in function, visual more comfortable. Dimming range: 0~100%, LED start at 1% possible. 0-100% flicker-free, High-frequency exemption level. High Efficient driver: efficiency 90%, PF>0.95, THD<10% Over load / Over temp. / Short circuit / Over voltage protection, recover automatically Suitable for internal lights application for...
DC12V 60W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)
Review stars(0)
Model:YSD-60WUGP-12TL

DC12V 60W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)

  • Input Voltage: 100-277Vac
  • Output voltage: 12VDC
  • Output сurrent: Max 5A
  • Output power: Max 60W
Various Options In Stock
$44.98
LED Intelligent Driver (CV) TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM With soft-on and fade in function, visual more comfortable. Dimming range: 0~100%, LED start at 1% possible. 0-100% flicker-free, High frequency exemption level. High Efficient driver: efficiency 88%,PF>0.95, THD<10% Over load / Over temp. / Short circuit / Over voltage protection, recover automatically. Suitable for...
Min:  5
DC24V 60W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)
Review stars(0)
Model:YSD-60WUGP-24TL

DC24V 60W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)

  • Input Voltage: 100-277Vac
  • Output voltage: 24VDC
  • Output сurrent: Max 2.5A
  • Output power: Max 60W
Various Options In Stock
$44.98
LED Intelligent Driver (CV) TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM With soft-on and fade in function, visual more comfortable. Dimming range: 0~100%, LED start at 1% possible. 0-100% flicker-free, High frequency exemption level. High Efficient driver: efficiency 88%,PF>0.95, THD<10% Over load / Over temp. / Short circuit / Over voltage protection, recover automatically. Suitable for...
Min:  5
DC12V 100W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)
Review stars(0)
Model:YSD-100WUGP-12TL

DC12V 100W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)

  • Input Voltage: 100-277Vac
  • Output voltage: 12VDC
  • Output сurrent: Max 8.3A
  • Output power: Max 100W
Various Options In Stock
$49.98
TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM With soft-on and fade in function, visual more comfortable. Dimming range: 0~100%, LED start at 1% possible. 0-100% flicker-free, High frequency exemption level. High Efficient driver: efficiency 90%,PF>0.95, THD<10% Over load / Over temp. / Short circuit / Over voltage protection, recover automatically. Suitable for internal lights application for...
Min:  5
DC24V 100W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)
Review stars(0)
Model:YSD-100WUGP-24TL

DC24V 100W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)

  • Input Voltage: 100-277Vac
  • Output voltage: 24VDC
  • Output сurrent: Max 4.17A
  • Output power: Max 100W
Various Options In Stock
$49.98
TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM With soft-on and fade in function, visual more comfortable. Dimming range: 0~100%, LED start at 1% possible. 0-100% flicker-free, High frequency exemption level. High Efficient driver: efficiency 90%,PF>0.95, THD<10% Over load / Over temp. / Short circuit / Over voltage protection, recover automatically. Suitable for internal lights application for...
Min:  5
DC12V 200W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)
Review stars(0)
Model:YSD-200WUGP-12TL

DC12V 200W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)

  • Input Voltage: 100-277Vac
  • Output voltage: 12VDC
  • Output сurrent: Max 16.7A
  • Output power: Max 200W
Various Options In Stock
$59.98
TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM With soft-on and fade in function, visual more comfortable. Dimming range: 0~100%, LED start at 1% possible. 0-100% flicker-free, High-frequency exemption level. High Efficient driver: efficiency 90%, PF>0.95, THD<10% Over load / Over temp. / Short circuit / Over voltage protection, recover automatically. Suitable for internal lights application for...
Min:  5
DC24V 200W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)
Review stars(0)
Model:YSD-200WUGP-24TL

DC24V 200W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)

  • Input Voltage: 100-277Vac
  • Output voltage: 24VDC
  • Output сurrent: Max 8.4A
  • Output power: Max 200W
Various Options In Stock
$59.98
TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM With soft-on and fade in function, visual more comfortable. Dimming range: 0~100%, LED start at 1% possible. 0-100% flicker-free, High-frequency exemption level. High Efficient driver: efficiency 90%, PF>0.95, THD<10% Over load / Over temp. / Short circuit / Over voltage protection, recover automatically. Suitable for internal lights application for...
Min:  5
DALI-2 DT6/DT8 Dimmable IP67 Waterproof LED Power Supply
Review stars(0)
Model:PSWP-DALI-PWM-IP67

DALI-2 DT6/DT8 Dimmable IP67 Waterproof LED Power Supply

  • Input Voltage: 100-264Vac
  • Output Voltage: DC12V/24V
  • Output Power: 60/100/150/200/250W
  • Dimming Range: 0~100%
  • DALI Frequency: 4000Hz
  • Dimming Interface: DT6/DT8/Push DIM
Various Options In Stock
$41.98
This product is a unique slim IP67 waterproof led power supply, it is compatible with DALI-2 DT6/DT8 single color/CCT dimming, and DALI push dim.  And its compact size makes it easy to place in indoor and outdoor installation locations.   DALI-2 DT6/DT8, DIM and color temperature adjustable LED driver Dimming range: 0~100%, LED start at 0.1% possible. Color temperature adjusting...
