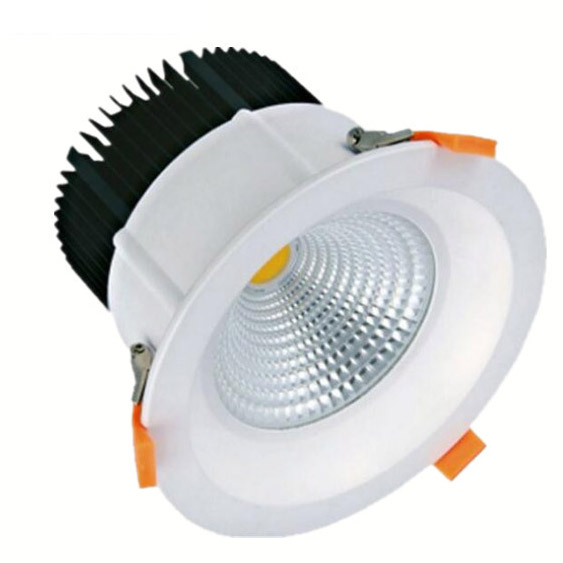

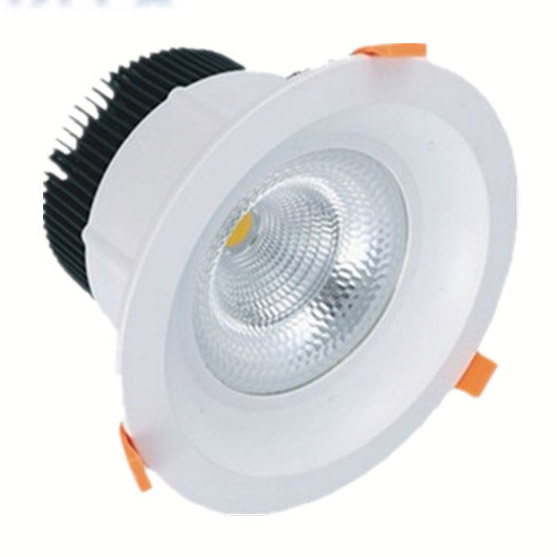

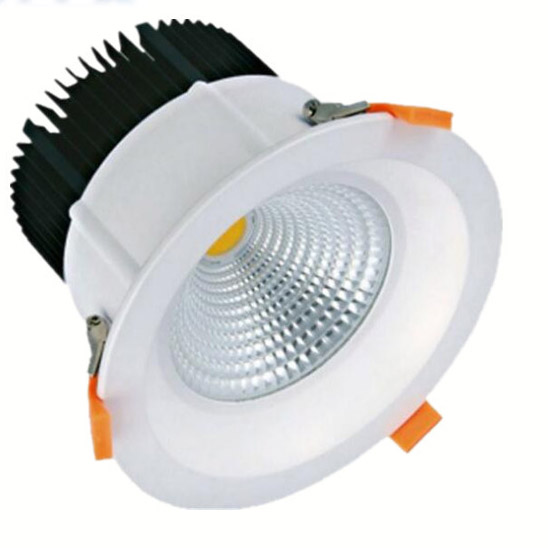

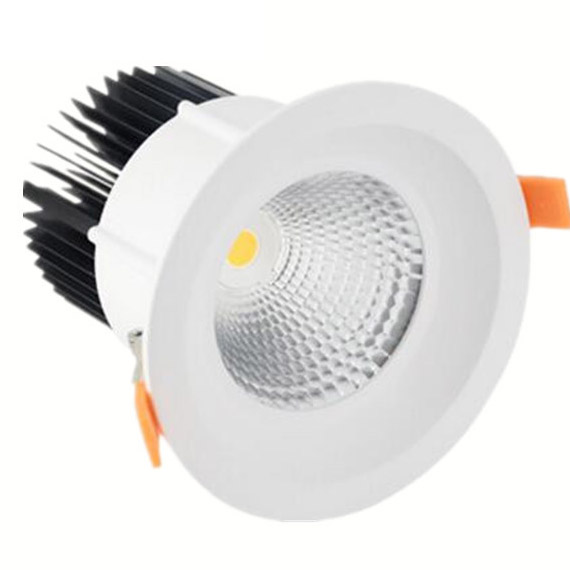

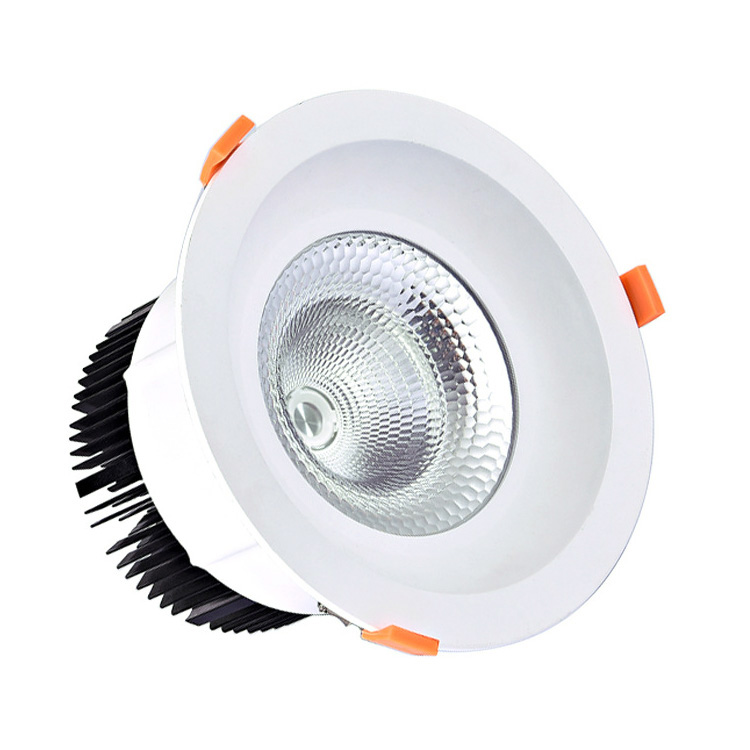

7.87in 80W LED COB Ceiling Light - Flush Mount LED Downlight-1600LM-24/40/60°Light speed angle
Photoelectric technology parameters:
LED light source: COB CREE
Color temperature: 3000k/4000k/5700k
Voltage: AC 85~265V 50/60Hz
Power factor: >0.9
Luminous flux: 1600 lm ± 5%
Color temperature: 3000K, 4000K, 5700K
Color rendering index: >80 or >90Ra
Light speed angle: 24/40/60 degrees
Certification: CE, ROHS
IP rating: IP42

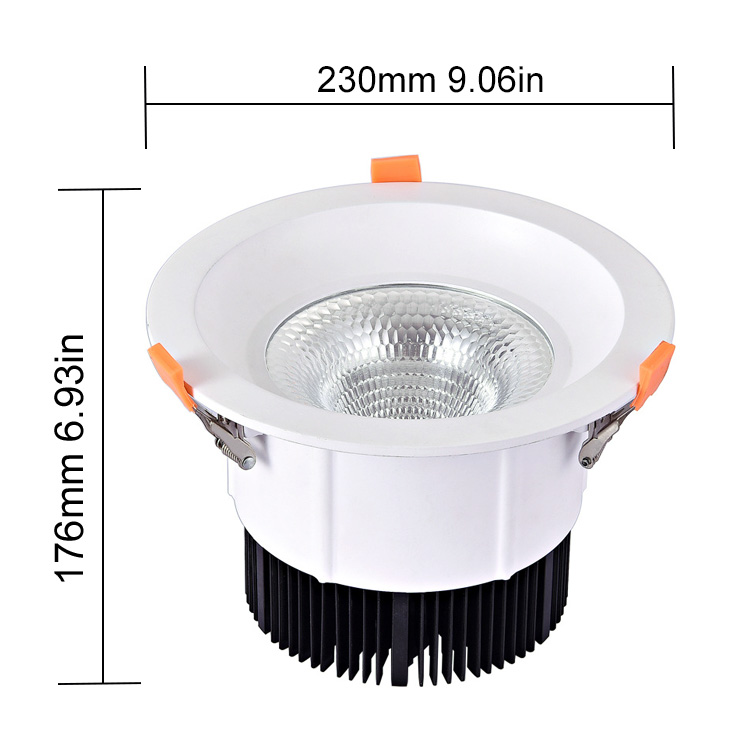

Size: Surface diameter: Φ230mm/9.06"*176mm/6.93" Opening Hole: Φ200mm/7.87"
This LED downlights support AC Triac dimming, please use our Triac dimmer controller
Imported American CREE LED COB Celling lights source.
Installation method: embedded, spring bracket fixed.
High color rendering index, strong color reproduction, suitable for high-end commercial lighting applications.
Light speed angle: 24/40/60 degrees °
LED COB Celling lights have passed the CE certification and RoHS certification.
Materials and processes

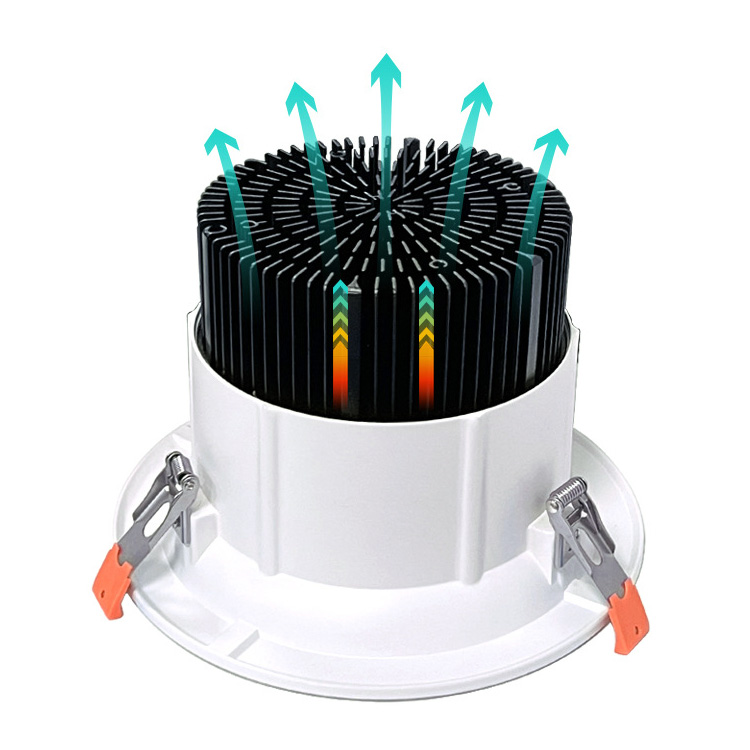

Lamp body:LED COB Celling light is extruded with aluminum anodizing to make the heat dissipation better.
Adopting the original imported light source from the United States, the specific brightness is high, LED COB Downlight decay is small, the current margin is large, and the quality is guaranteed.
Commodity display, commercial lighting, such as car display, jewelry display, brand clothing display and star-rated hotels, high-end clubs, cultural relics, chain stores, brand business halls, boutique windows, walls and other key lighting, wall washing and leisure Atmosphere lighting in entertainment venues.
