DC5V MW Class II Power Adapter

9 products

When you need a compact, plug-and-play 5V power source but want more than a basic consumer-grade adapter, SuperLightingLED's Mean Well 5V Class II & Class I Power Adapter Series provides a professional alternative. These adapters combine the convenience of a direct wall-plug connection with Mean Well's established power supply technology, making them well suited to smaller 5V LED lighting projects where reliability, safety, and easy installation matter.

Wall-Mounted Class II vs. Desktop Class I

The Mean Well 5V adapter range includes two different protection classes and physical designs.

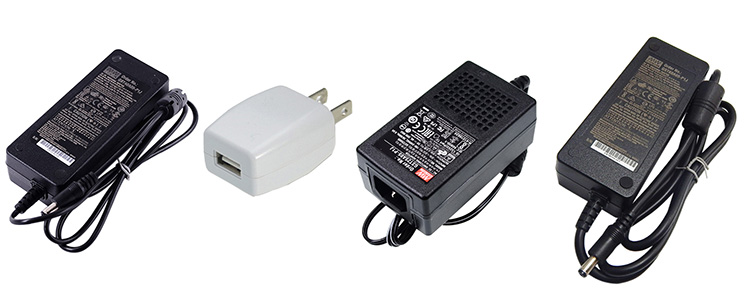

Class II Wall-Mounted Power Adapters include models such as GS06E/GS06U, GS15E/GS15U, GST25E/GST25U, and GST36E/GST36U. These adapters use double insulation and do not require a protective earth/ground connection. Their integrated wall-plug design provides a compact and convenient solution for small 5V LED projects and other applications where a simple plug-in installation is preferred.

Class I Desktop Power Adapters include models such as GST18A, GST25A, GST40A, and GST60A. These desktop-style adapters use single insulation and require a protective grounding connection. They are typically used with a separate AC power cord and can be a better choice when a desktop or equipment-mounted power supply format is preferred.

Efficient 5V Power for LED Lighting

Mean Well's 5V adapter series is designed with energy efficiency in mind, helping reduce unnecessary energy consumption during both normal operation and standby conditions. The applicable models comply with relevant international energy-efficiency requirements and certifications, depending on the specific model.

This makes them suitable when you want more than simply converting AC power to 5V DC—you also want a compact and energy-conscious power source from an established industrial power supply manufacturer.

Ideal for Small 5V LED Lighting Projects

Mean Well 5V Class II adapters are best suited to small residential, commercial, and DIY lighting installations where the LED load is relatively low and a wall-plug connection is more convenient than hardwired installation.

Typical applications include:

  • Small 5V LED strip lighting
  • Cabinet and shelf lighting
  • Display and showcase lighting
  • Desktop and furniture lighting
  • Small addressable LED projects
  • LED controllers and accessories
  • DIY decorative lighting
  • Low-power 5V LED modules

A typical installation is straightforward: AC Wall Outlet → Mean Well 5V Class II Adapter → 5V LED Strip / Controller.

This plug-in format eliminates the need to install an exposed-terminal switching power supply and makes the power source easy to connect, replace, or relocate.

Choose a Mean Well 5V Class II Power Adapter when your project:

  • Requires 5V DC
  • Has a relatively small total LED load
  • Needs a convenient plug-in installation
  • Is located in a dry indoor environment
  • Benefits from a compact and easy-to-handle power source
  • Does not require a high-current hardwired power supply

If your LED system requires more than the available adapter capacity, a hardwired switching power supply is usually the better solution. SuperLightingLED's Mean Well 5V Switching Power Supply range extends into much higher current and wattage levels for larger LED systems.

For outdoor or moisture-prone installations, choose a properly rated Mean Well 5V waterproof power supply instead of a Class II indoor adapter.

Frequently Asked Questions for DC5V Power Adapters

Got questions before you buy? I've answered thousands of them over the years. Here are the most common ones for these 5V adapters.

This is the most important step. First, find the watts-per-meter (or foot) for your LED tape. Multiply that by the total length of your run in meters. That gives you the total watts your lights need. Now, add a 20% safety buffer—so multiply your total watts by 1.2. Choose a power adapter with a wattage rating equal to or, even better, slightly higher than that final number.

That's a common point of confusion. 'Green' here has nothing to do with the color green or the forward voltage of green LEDs. It refers to the adapter's high energy efficiency. These are MeanWell 'Green Power' adapters, meaning they meet strict international standards (like Level VI) for low power consumption when they're idle and high efficiency when they're running. It just means less electricity is wasted as heat.

A class 2 LED power supply is defined by a specific safety standard (UL1310 in the US) that limits the output to under 60VDC and 100VA. This lower-power output is considered much safer from fire and electric shock, which is why in many areas, using a class 2 power supply simplifies the electrical inspection for a low-voltage lighting installation. It's often required in commercial jobs.

MeanWell has a great reputation for a reason. In a typical indoor environment, running at about 80% of its rated load, you should expect 5-7 years of reliable service, and often much longer. The biggest things that shorten their life are overloading them, poor ventilation that lets them run too hot, and exposure to moisture if they aren't waterproof models.
