DMX512 Series

These MiBoxer Mi-Light auto-writing DMX address lights automate the writing of DMX addresses with the DMX address auto-editor FIR-DMX-XL. Using an intelligent algorithm to automatically assign addresses to DMX light fixtures, the tedious process of manual addressing is eliminated for ease of use.

This is very user-friendly for DMX systems containing a large number of fixtures. The DMX address auto editor is connected to the DMX console and outputs DMX512 signals to these DMX address auto writer lights.

A DMX512 LED decoder converts digital DMX control signals into PWM (pulse-width modulation) outputs that compatible constant-voltage LED strips can use for dimming and color control. It connects a DMX lighting console or compatible DMX controller to LED strips, allowing individual channels to be adjusted through a centralized lighting control system.

MiBoxer (Mi-Light) DMX512 & RDM decoders are designed primarily for DC 12V–24V or 12V–48V constant-voltage LED strips and lights. They work with a separate compatible DC power supply and a DMX signal source, making them suitable for integrating LED strip lighting into architectural, commercial, entertainment, and other DMX-controlled installations.

MiBoxer DMX/RDM lighting fixtures integrate a five-channel RGB+CCT LED light source and DMX control electronics into a complete lighting fixture. Unlike a separate DMX decoder designed to control an external constant-voltage LED strip, these fixtures have built-in control circuitry, allowing them to receive DMX512 commands directly without requiring an additional external LED strip decoder.

Five-Channel RGB+CCT Lighting in One Fixture

The integrated RGB+CCT lighting structure combines three RGB color channels with separate cool-white and warm-white channels. This gives users independent control over red, green, blue, cool white, and warm white to create a wide range of colors, adjustable white light, and customized lighting scenes.

Use saturated RGB colors for decorative effects, blend colors for architectural accents, or adjust the warm-white and cool-white channels to create different white-light atmospheres. The five-channel configuration offers greater flexibility than RGB-only fixtures when both colorful effects and functional white lighting are required.

DMX512 and RDM for Professional Lighting Control

MiBoxer DMX/RDM fixtures are designed for integration into DMX-controlled lighting systems. DMX512 enables centralized control of brightness and color through a compatible lighting console or DMX controller, while RDM-supported equipment can provide remote device management functions through a compatible RDM controller.

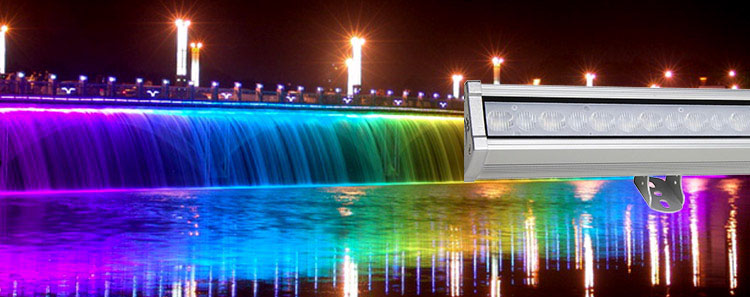

MiBoxer DMX/RDM lighting includes garden lights, wall washers, and downlights for applications such as building facades, landscape features, outdoor decorative lighting, hospitality spaces, and commercial interiors. Integrated lighting and DMX control electronics simplify system design by reducing the need for separate external decoders at each fixture.

RF remote control LED controllers and DMX light bulbs that can be wirelessly controlled by DMX consoles (DMX wireless transmitter FUTD01 is required). Wireless DMX eliminates the limitations of traditional DMX wiring, allowing for greater flexibility in the placement of lighting equipment in a variety of settings.

By installing the Mi-Light FUTD01 wireless DMX transmitter on a DMX console, it will output a wireless DMX signal to light controllers and bulbs that are compatible with the FUTD01 DMX wireless transmitter, thus controlling these lighting fixtures through the DMX console.

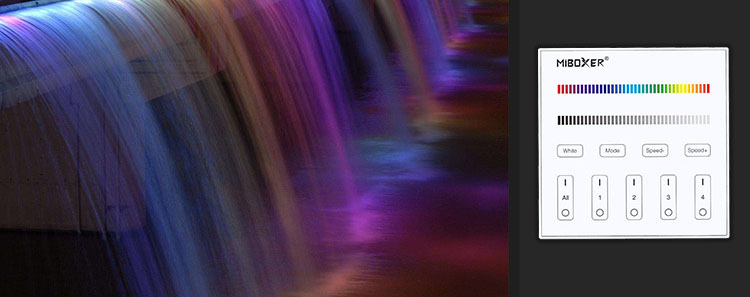

MiBoxer Mi-Light smart DMX wall panel controllers output DMX512 signals and wireless RF 2.4GHz signals to connect to DMX decoders to control white, CCT, RGB, RGBW, and RGBCCT LED strips, and directly wired to DMX lights for adjustment. These Mi-Light DMX panel controllers can be matched with the same brand of RF remote for wireless control.

Touch panel DMX512 masters, can also be used as RF receivers. Touch the function buttons on the panel to realize the DMX control of LED strip lights. 4 zone control.
