Intelligent LED driver is suitable for home lighting, enable to adjust the brightness/coloro flight and stepless dimming with out flicker. It also supports avariety of control modes:intelligentaudio voice control and timing control. Also it can be controlled by remote and wireless dimmer panel, which meets the application of different scenes to make life more intelligent.
Ltech Control System
Sponsors
Sponsors
WiFi Control Series
(0)Model:WIFI-101
WIFI-101 WIFI Controller For RGB/RGBW LED Strip Lights
- Input voltage: DC5V-DC24V
- Max current load: 3A×4CH Max12A
- Output power: 60W/144W/288W
- size: L125×W33×H20
WIFI-101,4A*3CH 12A Max, High-end LED Controller WIFI Series Smart Control RGB/RGBW Multic Colour LED Lights Strips, Warranty 5 years Communication standard Wi-Fi，802.11b/g/n protocol Input voltage DC5V-DC24V Max current load 3A×4CH Max12A Max output power 60W/144W/288W(5V/12V/24V) Working temperature -30℃～55℃ Dimensions ...
(0)Model:WIFI-102
WIFI-102 WiFi Controller For Single Color, CCT, RGB LED Strips - Replaced by WiFi-104
- Input voltage: DC12V-DC24V
- power supply: DC CV SMPS
- Output power: 144W/288W(12V/24V)
- control distance: Max 100m
- scene mode: 9
- size: L128×W73×H45mm
WIFI-102, 4A*3CH 12A Max, High-end Controller WIFI Series Smart Device Flexibly Control Single Color, CT, RGB LED Lgihting fIxture,Warranty 5 years NOTE: If you purchase WIFI-102 , we will send you the WIFI-104 Brief introduction WIFI-102 controller appeared, with the installation of controlling software on mobile devices like Android & IOS phones, tablet PCs, they can remote control LED...
(0)Model:WiFi-102-RGBW
DC12-24V WiFi Controller WiFi-102-RGBW For LED Strip Light
- Input Voltage: DC12V-24V
- Out Control: RGBW
- Current Load: Max 12A
- Network Type: WiFi 2.4GHz
- RF Frequency: 2.4GHz
- size: L125 x W33 x H20
16.7 million kinds of colors Lights changing with the music DIY Scene Mode Limitless long-range control Intelligent lighting timing set Supporting remote control Supporting panel control Product Name: WiFi LED Controller Model : WiFi-102-RGBW Input Voltage: 12 ~ 24Vdc Out Control：RGBW LED Lights Current Load : 3A x 4CH Max 12A Output Power: （0~36...72W）x4CH Network Type : WiFi 2.4GHz...

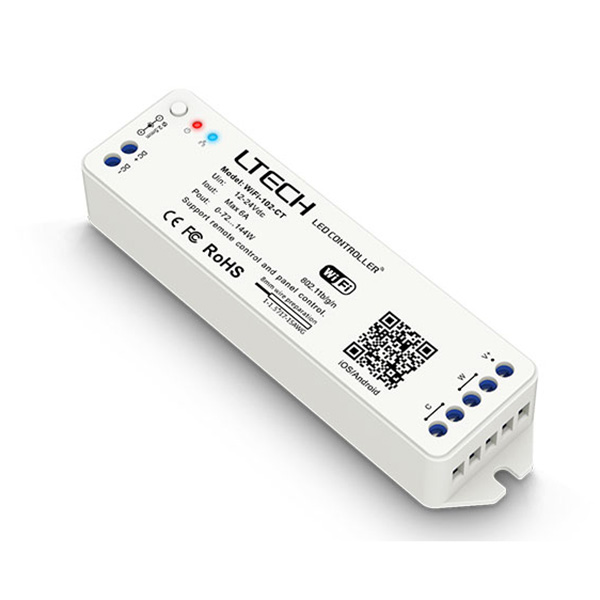

(0)Model:WiFi-102-CT
LED WiFi Controller WiFi-102-CT, Supporting remote control, Supporting panel control,Customize the lighting scene mode
- Input voltage: DC12V-24V
- RF Frequency: 2.4GHz
- Out Control: CT LED Lights
- Current Load: Max 6A
- Power: 0~72...144W
- size: L125 x W33 x H20
WiFi LED controller can be connected with lamps directly, support remote control via the intelligent device, mobile phone, remote and touch panel etc., the flexible application makes life more intelligent. WiFi-102-CT

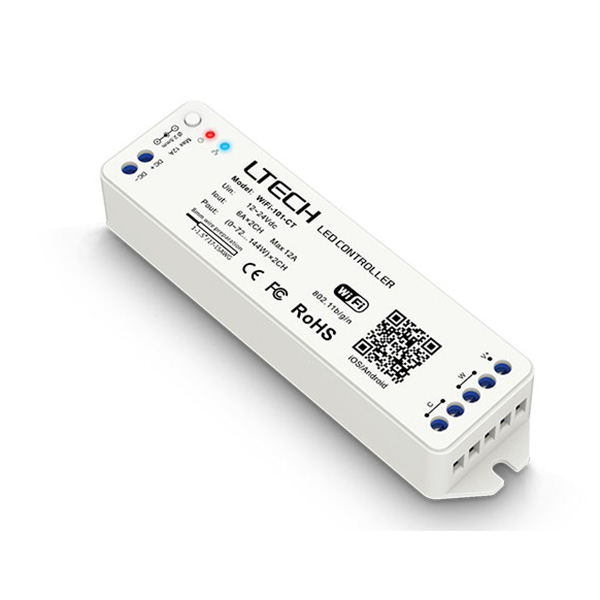

(0)Model:WiFi-101-CT
DC 12 ~ 24V LED WiFi Controller WiFi-101-CT, For CT LED Lights
- Input voltage: DC12V-24V
- Out Control: CT LED Lights
- Current Load: Max 12A
- Output Power: 0~72...144W
- size: L125 x W33 x H20
- Network Type: WiFi 2.4GHz
Product Name: WiFi LED Controller Model: WiFi-101-CT Input Voltage : 12 ~ 24Vdc Out Control：CT LED Lights Current Load: 6A x 2CHMax 12A Output Power: (0~72...144W) x 2CH Network Type : WiFi 2.4GHz , IEEE 802.11b/g/n Dimension : L125 x W33 x H20(mm) User-defined lighting mode Specialized smart home setting 2 CT mode selection Limitless long-range control Intelligent lighting timing set...
(0)Model:CV-800220-WF03-A
AC110/220V 400W/800W WiFi Music Smart LED Driver Controller For AC110/220V RGB LED Strip Lights - CV-800220-WF03-A
- Input voltage: 110/220VAC
- current load: 1.25A x3CH
- Output power: 400W/800W
- Work temp: -30℃~ 55℃
- frequency: 50/60Hz
- size: L143×W58×H32
- Type: High voltage WiFi Controller
Model: CV-800220-WF03-A Communication standard: 2.4GHz Wi-Fi, 802.11b/g/n Input voltage: 110-120Vac; 220-240Vac Output voltage: 90-110Vdc/180-220Vdc Max current load: 1.25A x3CH Max output power: 400W(110V)800W(220V) frequency: 50/60Hz Working temperature: -30℃～55℃ Dimensions: L143×W58×H32mm Package size: L168×W123×H35mm Weight (G.W.): 400g Product details：...
(0)Model:WiFi-101-RGBW
DC12-24V LED Limitless long-range Controller WiFi-101-RGBW
- Input voltage: DC12-24V
- Protocol: 2.4GHz Wi-Fi
- Output Power: 72W
- Current Load: Max 12A
- Out Control: RGBW
- size: L125 x W33 x H20
16.7 million kinds of colors to choose Lights changing with the music Intelligent lighting timing set Limitless long-range control DIY Scene Model Products Specifications WiFi-101-RGBW
(0)Model:CV-7512-WF03-A
75W WiFi Smart LED Driver For RGB LED Strip CV-7512-WF03-A
- Input voltage: 100-240Vac
- Output voltage: 12Vdc
- Max load : 2.1A x3CH
- Max power: 75W
- Frequency: 47~63Hz
- Weight (G.W.) : 350g
2.1A 75W WiFi Smart LED Driver, 110V or 220V AC input, DC12V or DC24V output, for RGB color changing LED strip lights. Technical Parameters Model: CV-7512-WF03-A Communication standard: 2.4GHz Wi-Fi 802.11b/g/n Input voltage: 100-240Vac Output voltage: 12Vdc Max current load：2.1A x3CH Max output power：75W Frequency: 47~63Hz Working temperature: -30℃～55℃...

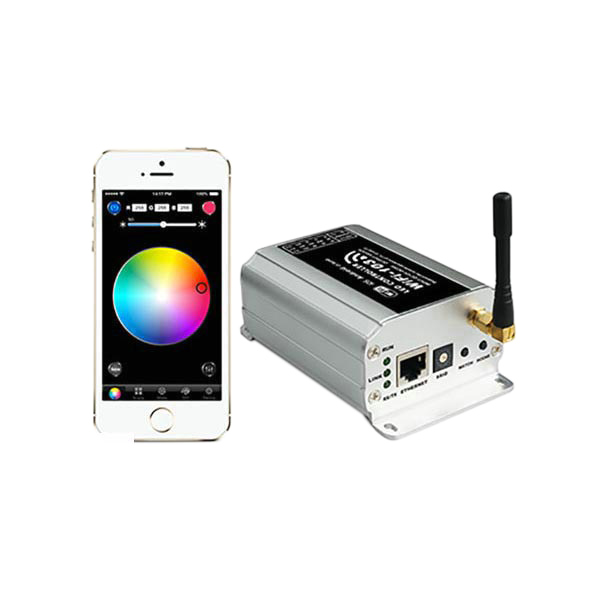

(0)Model:WIFI-103
WIFI-103,4A*3CH 12A Max, High-end Controller Connection Directly or By Router,Flexibly Control SC, CT, RGB LED Lgihting fIxture, (Replaced by WiFi-104)
- Input voltage: DC12V-DC24V
- Max current load: 4A×3CH Max 12A
- output power: 144W/288W
- scene mode: 9
- size: L128×W73×H45mm
Sorry to tell you that the WiFi-103 has been discontinued, please use the WiFi-104 for replacement. WIFI-103,4A*3CH 12A Max, High-end Controller Connection Directly or By Router,Flexibly Control SC, CT, RGB LED Lgihting fIxture,Warranty 5 years Brief introduction WiFi-103 is a versatile office/home lighting control system. Through WiFi function build-in mobile devices...

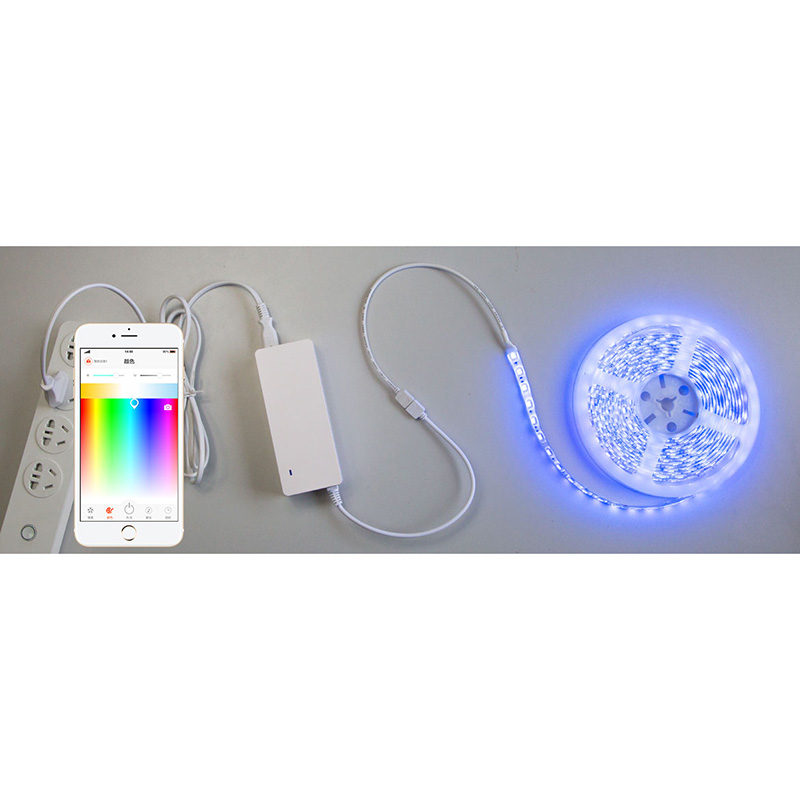

(0)Model:CV-7524-WF03-A
WiFi Smart LED Driver CV-7524-WF03-A
- Input Voltage: 100-240Vac
- Input Current: 0.7A@230Vac
- Frequency Range: 50/60Hz
- Output Voltage: 24Vdc
- Output Current: 1.05×3CH
- Size: L143×W58×H32(mm)
- Max Output Power: 75W
Product Parameters Model: CV-7524-WF03-A Protocol: 2.4GHz WiFi，802.11b/g/n Input Voltage: 100-240Vac Input Current: 0.7A@230Vac Frequency Range: 50/60Hz Working Temp.: TC:80°C ta -30°C~55°C Protection： Short circuit, Overload protection Output Voltage: 24Vdc Output Current: 1.05×3CH Max Output Power: 75W Product Dimensions: L143×W58×H32(mm) ...
(0)Model:WiFi-101-DMX4
LED WiFi Controller WiFi-101-DMX4
- Input voltage: 12-24VDC
- Output: DMX512,512CH
- size: L125×W33×H20
- Weight: 100g
16.7 million kinds of colors to choose Lights changing with the music Intelligent lighting timing set Limitless long-range control DIY Scene Model Product Name: WiFi LED Controller Model: WiFi-101-DMX4 Input Voltage : 12 ~ 24Vdc Output : DMX512, 512CH Working Temperature: -30℃ ~ 55℃ Protocol : 2.4GHz Wi-Fi, 802.11b/g/n Dimension : L125 x W33 x H20(mm) Attention 1 . The product...

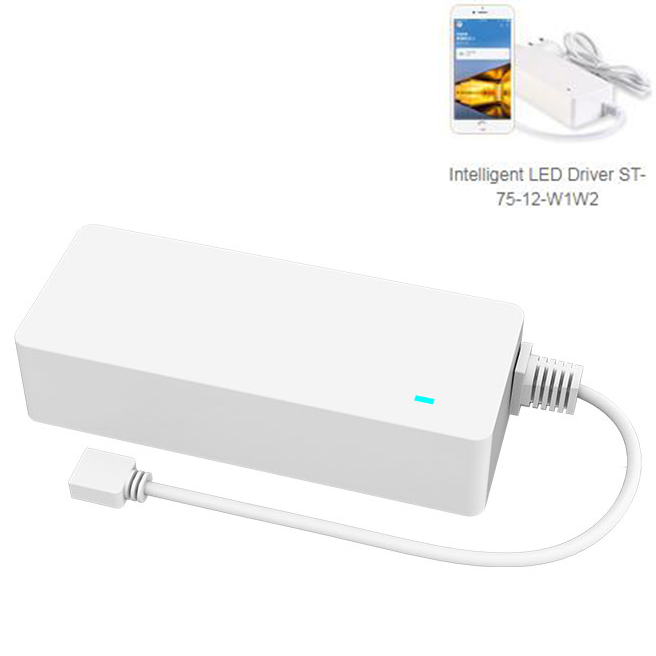

(0)Model:ST-75-12-W1W2
WiFi, RF 2.4GHz Intelligent LED Driver ST-75-12-W1W2
- Input Voltage: 100-240Vac
- Output Current: 5A
- Output Power: Max.60W
- Ripple & Noise: ≤200mV
- Frequency: 3600Hz
- Input Current: Max. 0.77A
- Efficiency(type.): 91%
- Type: Dimming
Product Introduction Intelligent LED driver is suitable for home lighting, enable to adjust the brightness/color of light and stepless dimming without flicker. It also supports a variety of control modes: intelligent audio voice control and timing control. Also, it can be controlled by remote and wireless dimmer panel, which meets the application of different scenes to make life more intelligent....
(0)Model:ST-75-12-W2W2
Color temperature Intelligent LED Driver ST-75-12-W2W2
- Type: Color temperature
- Output Current: 2.5Ax2CH
- Output Power: Max.60W
- PWM Frequency: 3600Hz
Product Introduction Intelligent LED driver is suitable for home lighting, enable to adjust the brightness/color of light and stepless dimming without flicker. It also supports a variety of control modes: intelligent audio voice control and timing control. Also, it can be controlled by remote and wireless dimmer panel, which meets the application of different scenes to make life more intelligent....
(0)Model:ST-75-12-W3W2
RGB Intelligent LED Driver ST-75-12-W3W2
- Input Voltage: 100-240Vac
- Output Current: 1.67Ax3CH
- type: RGB
- Output Power: Max. 60W
Product Introduction Intelligent LED driver is suitable for home lighting, enable to adjust the brightness/color of light and stepless dimming without flicker. It also supports a variety of control modes: intelligent audio voice control and timing control. Also, it can be controlled by remote and wireless dimmer panel, which meets the application of different scenes to make life more intelligent....

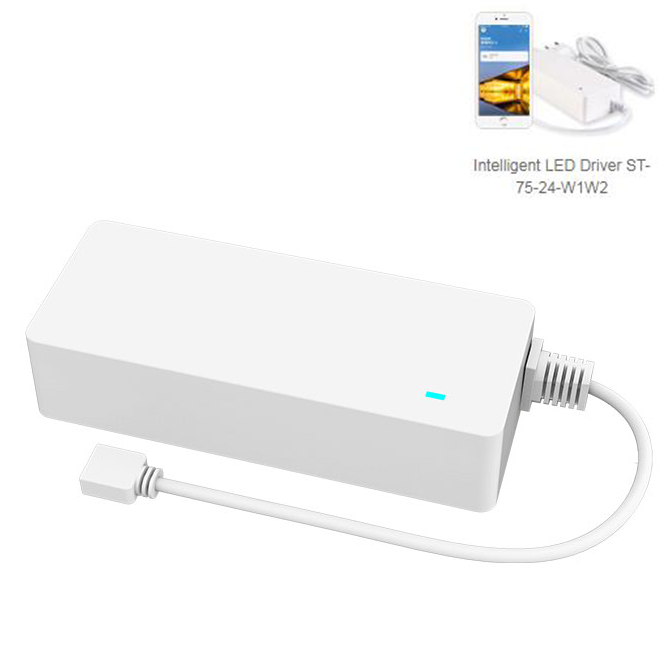

(0)Model:ST-75-24-W1W2
WiFi, RF 2.4GHz Intelligent LED Driver ST-75-24-W1W2
- Input Voltage: 100-240Vac
- Type: Dimming
- Output Current: 3.125A
- Output Power: Max.75W
- Efficiency: 91%
- Frequency: 50/60Hz
Product Introduction Intelligent LED driver is suitable for home lighting, enable to adjust the brightness/color of light and stepless dimming without flicker. It also supports a variety of control modes: intelligent audio voice control and timing control. Also, it can be controlled by remote and wireless dimmer panel, which meets the application of different scenes to make life more intelligent....
.png "Color temperature Intelligent LED Driver ST-75-24-W2W2")
(0)Model:ST-75-24-W2W2
Color temperature Intelligent LED Driver ST-75-24-W2W2
- Input Voltage: 100-240Vac
- Output Voltage: 24VDC
- Type: Color temperatuer
- Output Power: Max.75W
- Frequency: 3600Hz
- Frequency: 50/60Hz
Product Introduction Intelligent LED driver is suitable for home lighting, enable to adjust the brightness/color of light and stepless dimming without flicker. It also supports a variety of control modes: intelligent audio voice control and timing control. Also, it can be controlled by remote and wireless dimmer panel, which meets the application of different scenes to make life more intelligent....

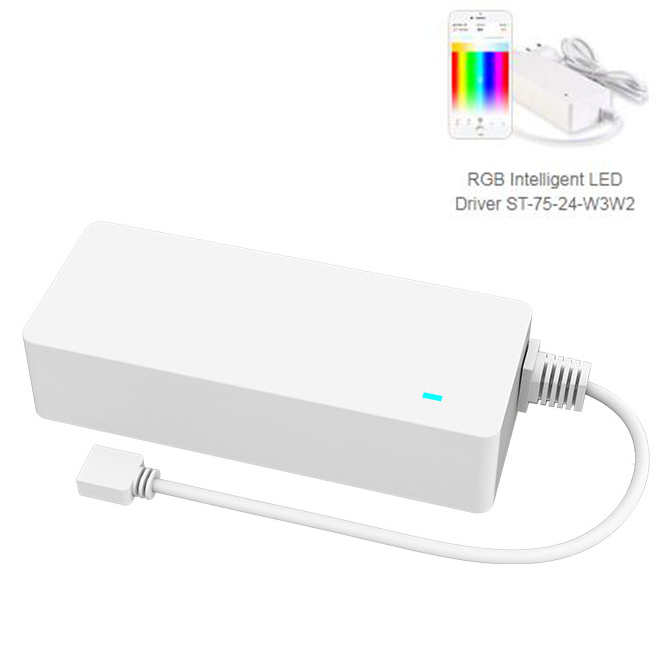

(0)Model:ST-75-24-W3W2
RGB Intelligent LED Driver ST-75-24-W3W2
- Output voltage: 24VDC
- Output Power: Max.75W
- type: RGB
- Output Current: 1.04Ax3CH
- Frequency: 50/60Hz
- Input Voltage: AC100-240V
Product Introduction Intelligent LED driver is suitable for home lighting, enable to adjust the brightness/color of light and stepless dimming without flicker. It also supports a variety of control modes: intelligent audio voice control and timing control. Also, it can be controlled by remote and wireless dimmer panel, which meets the application of different scenes to make life more intelligent....
(1)Model:WIFI-104
LED WiFi 16 Zones Wireless Synchronization Group Controller Work With M12 RF Remote and APP WiFi-104
- Communication: 2.4GHz
- Input Voltage: DC12V~DC24V
- Max current: 4A x4CH
- Max output: 192W/384W
- Control distance: 100m
- Size: L128×W73×H45
WIFI-104,4A*4CH 16A Max,Supports 12 Zones,High-end Controller Connection By Router,Flexibly Control SC,CT,RGB LED Lgihting fIxture,Warranty 5 years WiFi-104 is a versatile office/home lighting control system. Through WiFi function build-in mobile devices could control various types of LED lighting products after installing related software on our ios or Android phones, tablet PCs and other...
