Handheld RF Remote Control

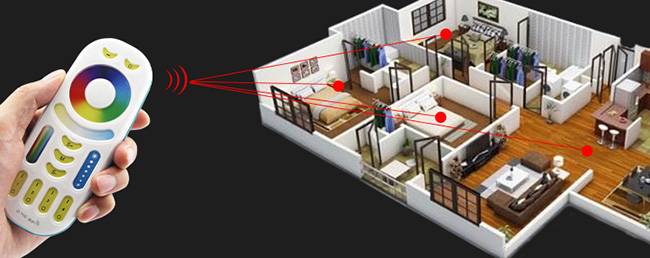

A multi-zone handheld RF remote control assigns different receivers to separate zone channels so you can adjust each space on its own or together. On models like the 4-zone FUT096 or the 8-zone FUT089-B, each zone button pairs to its own dedicated receiver controlling RGBW LED strip lights in a kitchen, bedroom, or cove. Pressing a specific zone number directs color, CCT, and dimming commands strictly to that room, while the master 'All On' and 'All Off' buttons switch every synced zone simultaneously without resetting your saved color states.

Every zone on a handheld RF remote control accepts an unlimited number of MiBoxer 2.4GHz receivers. The remote simply broadcasts a one-way radio packet containing its unique pairing address and channel number, and every linked controller within its 30-meter open-air radius executes the instruction at once. If you run 6 separate 24V power supplies feeding cabinet tape along a 15-meter run, pairing all 6 receivers to Zone 1 makes them react as a unified group without any inter-controller sync wiring.

You can pair up to 4 different transmitters to a single receiver, combining a handheld RF remote control with bedside or tabletop units for multi-location control. A single receiver accepts commands from two separate handheld remotes, or a handheld paired alongside our battery-operated wall panel RF remotes without stepping on each other's addresses. Each transmitter links via the standard 3-second power-up sequence until the receiver reaches its 4-channel memory ceiling, making it easy to keep one remote on the nightstand and one by the room entrance.

A 2.4 g rf remote operates through dry construction materials without requiring direct line-of-sight to the receiver. Unlike infrared remotes that demand an exposed sensor eye, 2.4GHz radio waves pass cleanly through 18mm plywood millwork, drywall partitions, and acrylic diffuser lenses up to 30 meters away. Signal attenuation only becomes severe when you bury the controller inside a fully enclosed metal junction box or behind foil-faced insulation panels, which act as a Faraday shield and drop effective range below 5 meters.

Any multi-zone handheld RF remote control running on the 2.4GHz protocol pairs directly with compatible MiBoxer LED bulbs, downlights, and magnetic track fixtures. Because the wireless command structure is shared across our ecosystem, you can assign tape lighting under the kitchen island to Zone 1 and ceiling spotlight bulbs to Zone 2 on the same remote.

Signal lag on a handheld RF remote control usually stems from co-channel radio crowding caused by high-power 2.4GHz Wi-Fi routers positioned within 1 to 2 meters of the receiver. The remote transmits on the 2400 to 2483.5MHz band using Gaussian Frequency Shift Keying (GFSK). If an access point broadcasts heavy traffic on overlapping Wi-Fi channel 6 or 11, small data bursts get dropped, causing stepped dimming. Moving the LED controller 1.5 meters away from networking hardware or replacing old AAA cells immediately restores responsive 30ms latency.
