Recessed Channel With Flange Series
62 products
The Practical Choice When You Want a Clean Recessed Lighting Finish With More Installation Tolerance. This type of led strip light recessed channel comes exclusively with a flange to cover small, unsightly gaps that may be created during recessed installations. And with two aluminum lines to finish the light path. So when recessing the channel light in a piece of furniture or an architectural structure, the flanged led channel completely covers the recess/groove bringing you a pleasing result.
At SuperLightingLED, we go beyond one standard recessed aluminum LED profile. We offer flanged recessed LED channels in a wide range of widths, depths, lengths and finishes, making it easier to match the profile to different installation spaces and design requirements. SuperLightingLED gives you the flexibility to build a recessed LED lighting channel solution around your project, your space and your lighting goal.
Recessed 60° Lens LED Channel for 12mm White Strip Lighting
Recessed Black LED Profile for Ultra Narrow 5mm LED Strip
Mini Recessed LED Aluminum Profile - Perfect for 5mm Strips
Recessed Mini 8Mm Led Strip Light Aluminum Channel With Flange
Black LED Aluminum Channel: Ultra Narrow Recessed 7mm
Mini LED Strip Recessed Lighting Channel With Flange
Recessed Mini Lighting - Premium Led Strip Lighting Solutions
Mini Recessed LED Aluminum Channel for 12mm LED Strip - Shop Now!
Black Diffuser LED Strip Channel for 10mm White Lights – Sleek & Durable
Flanged LED Strip Recessed Channel For 12mm Kitchen Lighting
Ultra Thin Recessed Asymmetrical Under Cabinet LED Channel
Recessed Led Strip Diffuser Aluminum Profile for 12mm Led Strips
Exterior In Ground Recessed Path Lights LED Channel Flanged
Recessed Aluminum Channel for LED 10mm Rope Lighting - Shop Now!
Recessed Black Aluminum LED Channel for 10mm DC5V LED Tape Lights
Mini Recessed 45-Degree Under-Cabinet LED Lighting Profile
Recessed LED Strip Channel Aluminum Profile - Enhance Your Lighting
Recessed Black Aluminum Channel with Flange for 12mm LED Strip | Diffuser
Cabinet Shelf Recessed LED Light Channel | SuperLightingLED Profiles
Recessed Black LED Aluminum Profile QSG-2515B - 12mm Strip Channel with Flange

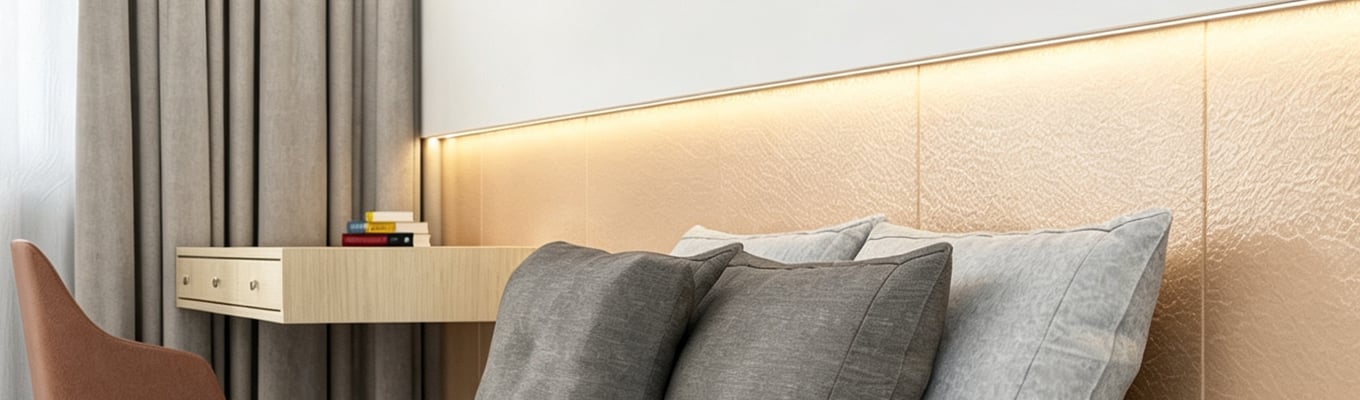

General-Purpose Direct Lighting with Flanged Recessed LED Profiles
Our flanged recessed LED profiles provide one of the most straightforward and widely applicable ways to integrate LED strip lighting into ceilings, walls, cabinets and other surfaces.
In this configuration, the LED strip faces outward and provides direct illumination toward the surrounding space, making it a practical choice for general-purpose linear lighting. The flange around the aluminum profile helps cover the edge of the installation opening, creating a cleaner finished appearance while offering more tolerance during installation.
We recommend this design as the standard recessed lighting solution for a wide range of projects. It works well when you want the LED strip to provide functional illumination while keeping the light source neatly integrated into the surface.

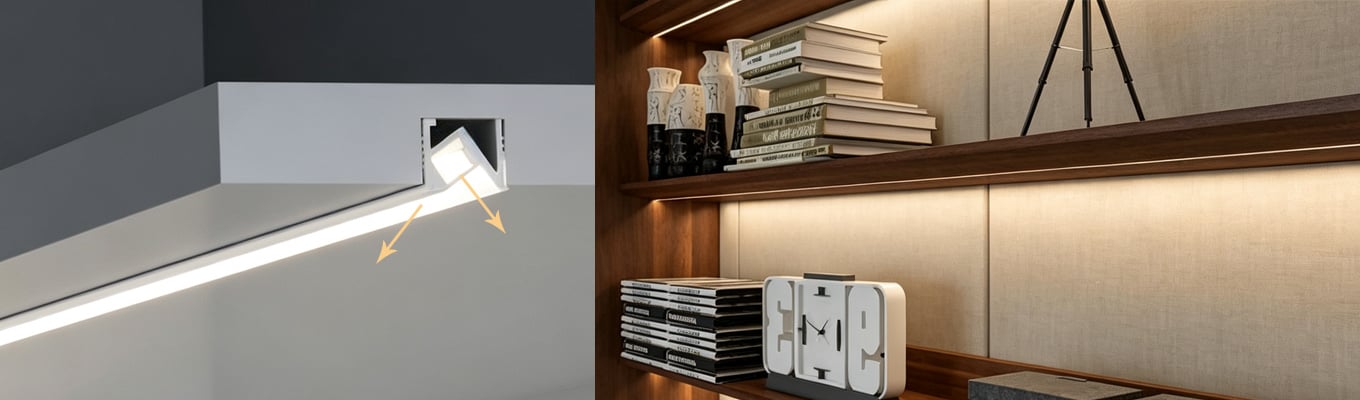

Directional Under-Cabinet Lighting with Flanged Recessed LED Profiles
For cabinet and furniture applications, we offer recessed profiles designed to direct light toward the work surface rather than straight down.
This directional approach is especially useful under kitchen cabinets, display cabinets, shelving and other shallow spaces where you want to illuminate the countertop or surface in front of the cabinet while reducing unnecessary light on the cabinet face.
The flange helps the profile sit neatly within the prepared opening, while the angled light distribution can create a more controlled task-lighting or accent-lighting effect.
Choose this design when you need: Focused countertop illumination · Reduced direct glare · Directional cabinet lighting · Display lighting · Accent lighting
Indirect Ceiling Lighting with Flanged Recessed LED Profiles
We also use flanged recessed profiles (MS-AL8350 and QSG-10048) to create indirect ceiling lighting, where the LED strip is positioned to direct light toward the ceiling rather than directly into the occupied space.
The profile then becomes the reflective surface, producing a softer and more architectural lighting effect. This approach is useful when you want to create ambient illumination, a ceiling glow or a layered lighting effect without making the LED source the visual focus.
The flanged construction helps define the recessed opening while keeping the installation practical for suitable ceiling structures.
We recommend this approach for: Hotels · Restaurants · Bedrooms · Living spaces · Reception areas · Architectural feature ceilings
Floor-Recessed Lighting with Flanged LED Profiles
Our flanged recessed LED profiles can also be used for floor-integrated linear lighting, where the profile is installed flush or near-flush within the floor surface to create a defined line of light.
The flange provides a visible border around the opening, helping create a more controlled transition between the aluminum profile and the surrounding floor material. This makes the design useful for pathways, corridors, steps, architectural floor details and interior accent lighting where a continuous linear light needs to be integrated into the floor.
For floor applications, we recommend selecting the profile, diffuser and installation method according to the expected foot traffic, floor construction and required mechanical load rather than using a ceiling-oriented profile without checking its suitability.
Frequently Asked Questions About Recessed Channels With Flange
Got a question about installing flanged LED channels? You're in the right place. I've answered thousands of these over the years—here are the most common ones.
The flange is your best friend for hiding any imperfections in your cutout. If your router wobbled or your drywall cut isn't perfectly straight, the flange—sometimes called a wing or lip—sits on top and covers the gap. It gives you a clean, professional finish without needing a perfect cut. Flangeless channels demand a perfect groove because there's no lip to hide the edge.
You can, but the strip will likely fail within a couple of years. The aluminum channel is a critical heat sink. Without it, the LEDs overheat, which causes their color to shift and their lifespan to plummet. The channel also protects the strip from dust and physical damage, and the diffuser gives you that smooth, finished look instead of glaring LED dots.
Check the 'Height' dimension on the product page for the specific channel you're looking at. You need to cut a groove at least that deep for the channel to sit flush with the surface. For example, if the channel is 8mm high, your groove needs to be 8mm deep. The flange will cover the edges of the cut, so the width is a little more forgiving.
It's all about how the edge is finished. A flanged channel (this category) has a lip that sits on top of the surface, hiding the cut. It's the most forgiving to install. A flangeless channel sits perfectly flush, which requires a very precise, clean groove. A trimless, or plaster-in, channel has a perforated flange that you cover with drywall mud, making the light source appear to be part of the wall or ceiling itself.
Yes, they do. Every 1-meter or 2-meter section of our recessed channel comes as a kit with a diffuser cover, a pair of end caps (one with a wire hole, one without), and the correct number of mounting clips. All you need to add is the LED strip and a power supply. If you need extras, we sell all the accessories separately too.
Absolutely. A large part of what we ship is built to customer drawings. Just send us a sketch or a list of the exact lengths you need, down to the millimeter. We can cut the channels, pre-install the LED strips, solder on custom-length lead wires, and label each piece for your installer. There's no fee for the consultation; we'll send back a full parts list and quote, usually within 12 hours.
