LED High Bay Lights
2 productsWhy people buy High Bay LED Lights?

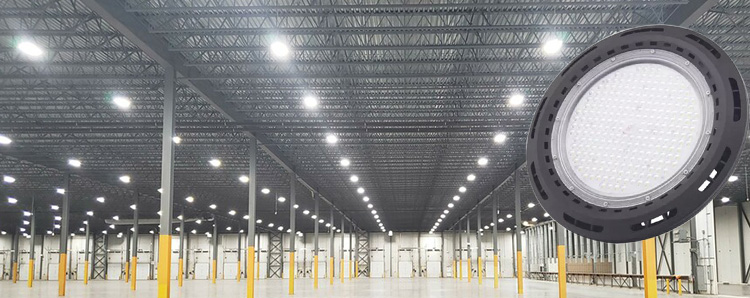

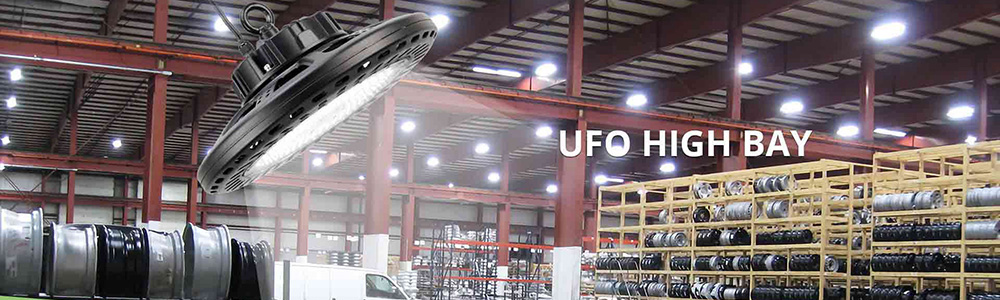

LED high bay light adopts ultra-narrow and thick pure aluminium plate to conduct heat dissipation and stamping + oil pressure + spinning process. The whole lamp is equipped with a respirator to make the lamp breathable, dry and fog-free, ensuring that the LED lamp can light up under harsh conditions. The whole lamp can be equipped with three kinds of lenses of 60 degrees, 90 degrees or 120 degrees. The entire lamp is waterproof up to IP65 and high CRI dimmable. Unlike LED floodlights (outdoor lighting, the light-emitting angle is more significant than 120 degrees, and the lighting range is wide), LED high bay lights are used in indoor high ceiling lighting, with large light-emitting angles and wide lighting ranges. Suitable for exhibition halls, highway toll stations, large supermarkets, etc.
We provide two different lumens of LED high bay lights for your choice, 100/150/200W or 100/160/240W optional and 60/90/120 different beam angles optional. They have the same input voltage with widely used.
Dimmable UFO LED High Bay Light 100-200W - IP65 Waterproof, 16000LM Max
Dimmable UFO LED High Bay Light 100-240W IP65 - 20400lm Workshop & Factory
Frequently Asked Questions About LED High Bay Lights
Your questions about choosing, installing, and running UFO high bay lights, answered by our engineers.
A high bay light is a powerful fixture designed specifically for illuminating large indoor spaces with high ceilings, typically anything from 15 to 40 feet (about 4.5 to 12 meters). An LED high bay light uses lenses to direct its output downwards in a more controlled cone. This gets the light efficiently from the ceiling to the floor without excessive glare.
It's all about the mounting height. High bay fixtures are engineered for ceilings above 15-20 feet. They use specific optics to prevent the light from scattering too much on its way down. Low bay lights are for ceilings under 15 feet. Using a high bay light on a low ceiling can create uncomfortable glare and hot spots on the floor.
It's pretty straightforward for a qualified electrician. The fixture typically hangs from a hook that screws into a secure mounting point in the ceiling structure. You must always attach the included steel safety cable to a separate anchor point — this is a critical safety step. The light's power cord is then wired into a junction box with your AC100-265V mains power.
The ideal range is between 15 and 30 feet. If you mount them too low, you'll get very bright, concentrated pools of light with dark areas in between. If you mount them too high without the right narrow-beam optics, the light can feel dim by the time it reaches the floor. It's a balance between intensity (foot-candles) and uniformity.
Yes, they do. Both of our LED high bay light models are designed for universal AC100-265V input, so they work in commercial buildings worldwide without needing an external power supply. This makes them different from the vast majority of our other lighting products, which run on low-voltage DC power. The driver that converts the power is built right into the fixture.
