Timing Dimmer

3 products

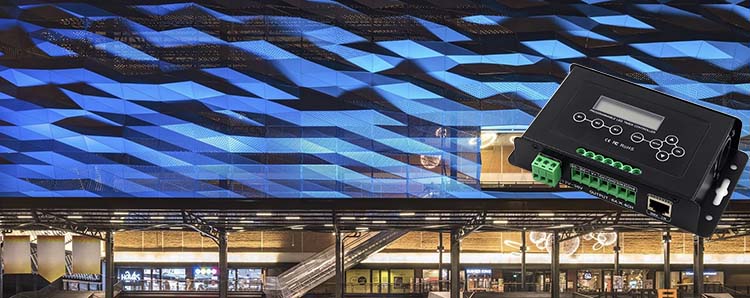

The BinColor LED Timing Dimmer Series is designed for automated lighting control, allowing users to schedule LED brightness and lighting changes according to a built-in real-time clock. With an LCD display and intuitive operation, users can set specific times and corresponding brightness levels to create customized lighting schedules throughout the day.

Featuring four independently configurable output channels, these timer controllers support flexible lighting configurations for single-color, CCT, RGB, and RGBW LED strip lights. Users can select from one manual mode, four timing modes, and 12 preset lighting effects to create smooth, natural-style lighting transitions that simulate changes in natural light. Also support programming and recording custom effects through a DMX512 master or lighting console.

SuperLightingLED BinColor Timing Dimmers are suitable for commercial lighting, plant growth lighting, aquarium lighting, and other applications that require scheduled brightness adjustments or customized lighting transitions.

FAQ About Timing Dimmer

Direct engineering answers on automated scheduling, multi-channel wiring, and DMX integration for BinColor timing dimmers.

A timing dimmer automates LED strip light brightness and color changes based on an internal real-time clock rather than manual knob turns or app triggers. You set specific times of day and target brightness percentages on its LCD interface, and the controller gradually transitions between them. With 4 independent output channels, you can run automated schedules for single-color runs, tunable white circadian curves, or multi-color dynamic cycles without needing an external smart hub or continuous Wi-Fi connection.

A 4-channel timing dimmer natively manages single-color, dual-white CCT, RGB, and 4-channel RGBW LED strip lights through its multi-mode menu. In CCT mode, channels 1 and 2 automatically coordinate warm white and cool white levels to track daylight Kelvin shifts. In RGB or RGBW mode, channels 1 through 4 handle Red, Green, Blue, and White individually, letting you program custom color temperatures during work hours and shift to saturated colors or soft night accents automatically.

Setting up a 24-hour day-night cycle on a timing dimmer requires defining key time points across the 4 built-in timing modes. For example, set 06:30 at 0% brightness, 07:15 at 30% warm white, 12:00 at 100% cool white, 18:30 at 40% warm white, and 21:00 at 0%. The internal processor calculates a linear PWM ramp between each timestamp, delivering smooth, imperceptible transitions that eliminate abrupt stepped switching throughout the day.

If your LED strip light load exceeds the 6A per channel rating of the timing dimmer, the internal MOSFETs will overheat and trip thermal protection or fail permanently. On a 24V line, 6A limits you to 144W per channel. When your run requires more current, keep the timer as the master control signal and split the load across constant-voltage power repeaters. This keeps the timing dimmer cool while synchronizing hundreds of feet of high-output tape seamlessly.

An LED timing dimmer can record live DMX512 lighting frames directly from a console and save them into internal scene slots for scheduled playback. Simply patch your console into the DMX input port, trigger your custom dynamic sequence, and capture the scene via the timer's LCD record menu.

Aquarium and terrarium tanks work exceptionally well with an LED timing dimmer because its 4 channels allow isolated scheduling of individual spectrum bands. You can wire 450nm royal blue actinic diodes to channel 1, 660nm deep red plant diodes to channel 2, and 6500K daylight white to channels 3 and 4. This lets you simulate gentle dawn, noon peak PAR levels, and soft moonlight without subjecting sensitive fish, corals, or seedlings to sudden on-off light shock.
