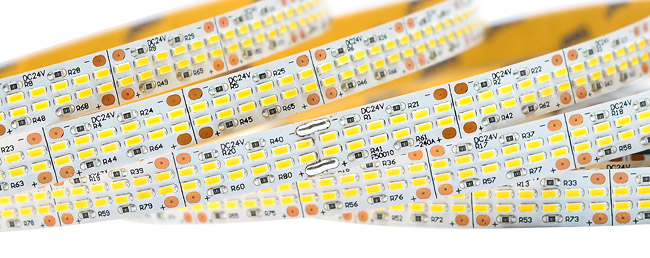

What is 3014 LED strip light?
3014 LED strip with high quality LEDs, color rendering index of 95, installed by isometric intelligent control of electrical technology, LEDs are evenly arranged on the PCB to ensure stable current output, more harmonious luminous color, and high color consistency; special heat dissipation technology (low Rth), with good thermal conductivity, improving the sustainable time of the LED strip; waterproof strip using PU rubber surface material, improve the flexibility of the strip, to ensure the transparency of the strip up to 90%; the narrowest can achieve 3mm/0.12in, the maximum LED density can achieve a single row of 240LEDs/m, double row of 480LEDs/m, dense LED arrangement, with LED aluminum channel to achieve perfect no light spot; LED strip with LED controller to achieve the perfect dimming effect, suitable for display lighting, work lighting, retail lighting, mood lighting, etc.
What is the difference between SMD2110, SMD2216 and SMD3014?
1. Single LED size: 2110SMD is 2.1*1.0mm; 2216SMD is 2.2*1.6mm; 3014SMD is 3.0*1.4mm.
2. LED strip minimum width: SMD2110 LED strip minimum width is 3.3mm/0.13in, but 2216SMD LED strip and 3014SMD LED strip is 3mm/0.12in.
3. LED strip maximum LED density: 2110 LED strip maximum density is 700LEDs/m, 2216SMD LED strip is 300LEDs/m; 3014SMD double row LED strip is 480LEDs/m, single row LED strip is 240LEDs/m.
4. Single LED lumens: In the same LED density, single LED lumens: SMD3014>SMD2216>SMD2110LED. The more the LED density, the more LED lumens.

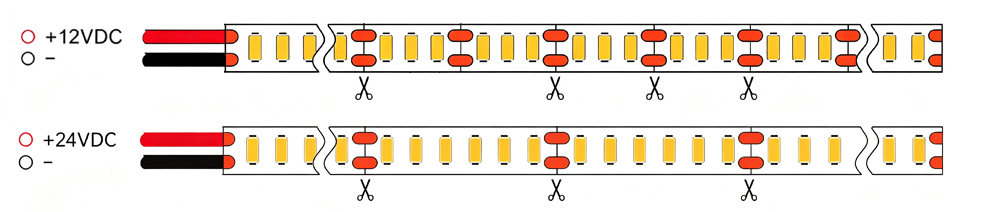

5. Input Voltage: 3014 LED support DC12/24V input voltage; but 2110 and 2213 LED strip only support DC24V.
What you need to know about led strip installation:
How to connect two light strips together?
