Multi-Color RGB LED Strips

What is the difference between RGB, RGBW and RGBWW LED Strip Light?

RGB LEDs integrate red, green, and blue (3in1) LED chip, which is a 4-channel LED strips, you can also connect R/G/B common anode at the same time to produce white light, but the color temperature up to 9000K, display cool white lighting color with low color rendering index and long time load work, it is not recommend for daily lighting. So If you only need basic RGB colors for decorative lighting in your home environment, RGB LED strips are more cost effective.

RGBW LEDs integrate red, green, blue, and single white (4in1) LED chip,  among single white color is Warm White (2800-3200k); Netural White (4000-4500k); and Daylight White (6000-6500k) optional, which is a 5-channel LED strips and can produce high-quality single white light for home decorative lighting and daily ambient lighting.

RGBWW LED integrated red, green, blue, and tunable dual-white (5in1) LED chip, dual-white adjustment range is 2700K-6500K, CRI 85+ with a more flexible design structure, which is a 6-channel LED strip, can produce more pure warm white light-neutral white light-daylight white light, suitable for commercial decorative and task lighting.

What you need to know about led strip installation:

How to cut led strip lights?

How to connect two light strips together?

How to wire RGB color changing led strip lights?

How to wire RGBW led strips?

How to wire RGBCCT led strip lights?

Shop By Color Changing LED Strips Type

  • RGB Flexible LED Strip LightsRGB Flexible LED Strip Lights

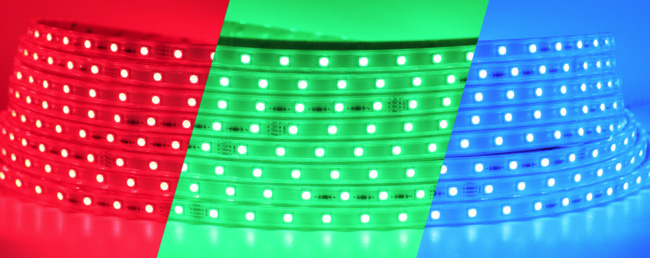

    What are RGB LED strips?

    RGB LED strips are flexible LED light sources with integrated red, green and blue SMD LED chips inside by matching color changing RGB led controller, for multiple single color gradients in static and dynamic modes, generating smooth lighting effects, supporting smartphone APP and LED remote controller DIY LED strip light emitting color, brightness and mode, high color saturation, mix RGB to produce 16 million colors.

    Support DC5/12/24 low voltage input, high efficiency and energy saving, can increase the sustainable time of LED strip; flexible design structure, achieve top/side-emitting and multi-angle light, super-narrow 5mm/0.20in, high-density 240LEDs/m, high brightness 2k-2.5k mcd; multiple LED chips (COB/SMD3535/3838/4040/5050 SMD) flexible selection.

    Can be individually controlled to light R/G/B, Or connect R/G/B common anode at the same time to produce white light (The color temperature of RGB mixed to produce white light up to 9000K+, cool white lighting color (not true), low color rendering index and long time load work, not recommended for daily lighting use).

    RGB LED strip light has a wide range of applications(Customizable LED strip length and waterproof level) for indoor (IP20/65 waterproof) TV, refrigerator, PC, furniture, wall hanging and other small electronic equipment and outdoor (IP67/68 waterproof) pool, building, deck, etc. to provide more attractive decorative lighting to enhance the beauty of space.

    How to Connect RGB LED Strip Lights?

  • RGBW LED Strip LightsRGBW LED Strip Lights

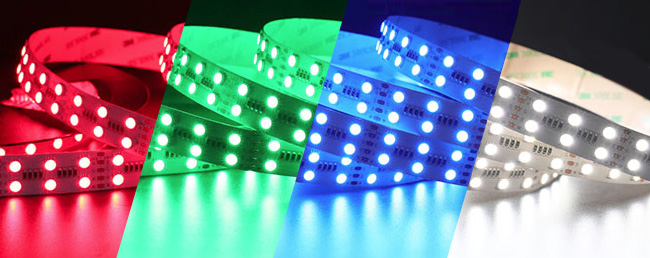

    What is RGBW led strip light?

    RGBW led strip integrates RGB color change and independent high-brightness white LED packaged in the SMD5050 component, which is further improved in color and visual range than the RGB led strip.

    White option is wider, Warm White (2800-3200k);Netural White (4000-4500k);Daylight White (6000-6500k).

    4in1 or White chip individually integrated into a SMD5050, the positions of the white led and RGB led are not unique.Flexible structure design to meet complex environmental changes.

    Unique innovation in external form, providing S-shaped, double-row, and four-row structures, with many choices and strong adaptability.

    The difference between RGB and RGBW LED strip light:

    Intelligent control LED light source that integrates the control circuit and RGB/RGBW chip into a package of 5050 components.

    RGB led light strip is a 3in1 LED chip integrated by red, green and blue, which is a 4 channels LED light strip, for decorative lighting.

    RGBW is a usually 4in1 LED chip integrated by red, green, blue, and white, and is a 5 channels LED strip, for decorative lighting and building lighting.

    RGB led strip, connect the three wires of R, G, B as the negative pole, can display white light, while RGBW led strip can display white light only by connecting the W wire, and the white light brightness of RGBW is higher than RGB led strip light.

    How to Connect RGBW LED Strip Lights?

  • RGB+CCT LED Strip LightsRGB+CCT LED Strip Lights

    What is RGBWW(RGBCCT) LED strip?

    RGBWW is RGB+CCT(dual-white), the LED strip adopts a flexible design structure and integrates Red, Green, Blue, Warm White, Daylight White 5in1 LED chips to produce purer warm white and daylight white light; with many different display forms (5in1, RGB+CW+DW, RGBW+WW, RGB+CCT); different from mixed R/G/B to produce white light(display light cool white color; low CRI; color temperature up to 9000K ), single color from RGBCCT with 95+ CRI, safety and high-efficiency; by matching RGBCCT LED controller (support smartphone app/Amazon Alexa) and LED remote controller(need to compatiable with the LED controller and LED strip light), you can achieve precise color control, adjust LED strip light color, brightness, and mode to achieve static and dynamic single color gradient in static and dynamic modes. Accept custom LED strip lengths and waterproof ratings, for indoor and outdoor commercial decorative lighting and task lighting.

    How to Connect RGBCCT LED Strip Lights?

  • High Voltage RGB LED StripsHigh Voltage RGB LED Strips

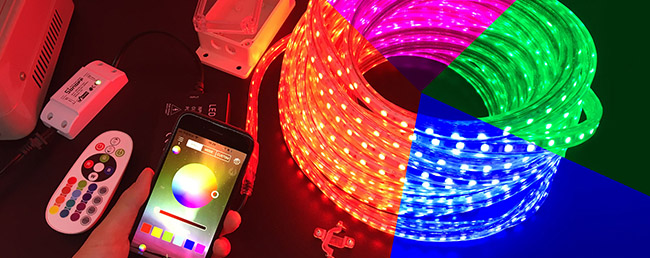

    What is the longest run length of Flexible LED Strip Lighting?

    Supports AC110/220V high voltage input, adopts high efficiency LED and environmental protection material, stable voltage during transmission, so it can achieve 164/328Ft ultra-long lighting with no light spot and no voltage drop (can be customized length), easy installation by straight power plug; internal adopts high quality LED strip, high-brightness, 22-24LM/LED, external wrapped by PVC neon tube or Silicon tube (waterproof IP67), heat and sun resistant to ensure continuous working time in an outdoor environment; Matching high voltage LED controller, controlled by smart phone APP and LED remote control to achieve multi-color gradient; Suitable for indoor and outdoor decorative lighting.
