5-in-1 LED Controller Series

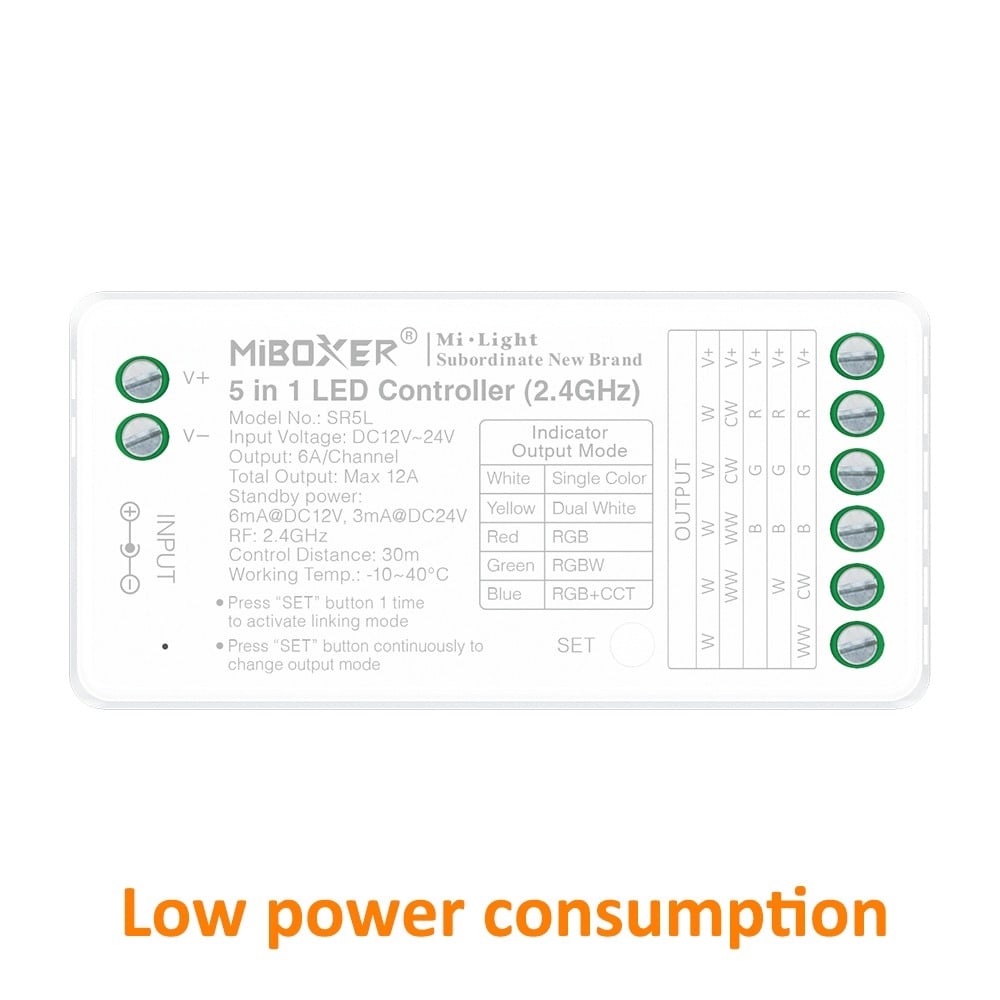

A 5 in 1 led controller uses an onboard 'SET' button or pilot indicator to cycle through five output configurations: single color, tunable white (CCT), RGB, RGBW, and RGBCCT. You press the button briefly to toggle modes; the indicator LED changes color (for instance, white for single color, yellow for CCT, red for RGB, green for RGBW, and blue for RGBCCT) to verify which channel layout is active. This mode selection re-assigns the PWM output terminals inside the micro-controller firmware. You must select your output mode before pairing remotes or commissioning apps, otherwise your color wheel coordinates will address the wrong terminals.

A miboxer 5 in 1 led controller pairs with 2.4GHz MiBoxer handheld remotes and wall panels that match or exceed your selected strip mode, such as the FUT089, FUT092, or B4 panel. If you set the receiver to RGBCCT, you need an RGBCCT remote to access both RGB color and dual-white Kelvin sliders. Pairing takes three seconds: cycle mains power off and on, then tap the 'ON' button of your target zone three times within three seconds. The connected LED strip will blink three times to confirm.

No wifi 5 in 1 led controller can connect directly to a 5GHz Wi-Fi network; they operate strictly on 2.4GHz Wi-Fi (802.11 b/g/n) channels. If your home uses a dual-band mesh router broadcasting both frequencies under a single SSID, the setup app often stalls during the initial pairing handshake. You can resolve this immediately by temporarily splitting your SSID into distinct 2.4GHz and 5GHz names or disabling the 5GHz radio in router settings for 10 minutes during commissioning. Once paired, your phone can sit on 5GHz or cellular data while controlling the lighting controller with zero lag.

Color mismatches on a 5-in-1 led strip controller almost always point to swapped DC negative output wires or an incorrect operating mode. The controller layout usually routes terminal V+ to common positive, then R, G, B, W, and CCT/CW to ground-switched PWM channels. If pressing red yields blue, swap the wires on terminals R and B. If your red channel turns on when sliding color temperature, the unit is running in RGBW mode instead of RGBCCT. Confirm your mode indicator light matches your strip type before trimming or re-landing terminal leads.

To pair a wifi 5 in 1 led strip controller with Tuya SmartLife, place the unit into discover mode by cycling DC input power on and off five times until the strip flashes rapidly. Open the SmartLife app with your phone's Bluetooth and 2.4GHz Wi-Fi active; the app will autodetect the controller via Bluetooth beaconing within 15 seconds. Confirm your Wi-Fi password to register the device to the cloud. From there, you can configure lighting mode profiles, countdown timers, and Amazon Alexa or Google Home skill integrations without needing a separate hardware gateway.

Standard 12V-24V controllers will burn out instantly if exposed to a 48V rail, but specialized models handle it cleanly. In our range, we supply wide-voltage hardware which accepts DC12V up to 48V with a heavy-duty 30A rating. Running 48V constant-voltage strips allows you to extend continuous runs up to 20 or 30 meters from a single feed point while eliminating visible voltage drop. Always ensure your driver output, controller input rating, and LED strip operating voltage match exactly before energizing the line.

No, every led lights controller in this range features non-volatile EEPROM memory that retains network configuration and dimming states across outages. When power restores after a trip or blackout, the controller reboots automatically to its last recorded brightness, hue, and mode setting without needing to re-pair with RF remotes or Wi-Fi routers. Furthermore, Wi-Fi and Zigbee models re-establish link connections to your cloud network within 30 seconds of line restoration, allowing automated smart home routines and scheduled timers to resume operation uninterrupted.
