LED Controller Set

An LED controller set bundles a constant-voltage DC receiver with a matched wireless remote control in one package. While our standalone wireless LED controllers require you to source compatible handheld remotes or wall panels separately, these models give you a verified transmitter-and-receiver pair right out of the box. You get the DC12-24V terminal controller, the handheld RF remote, and pairing instructions ready for immediate hookup to your power supply and LED strip lights.

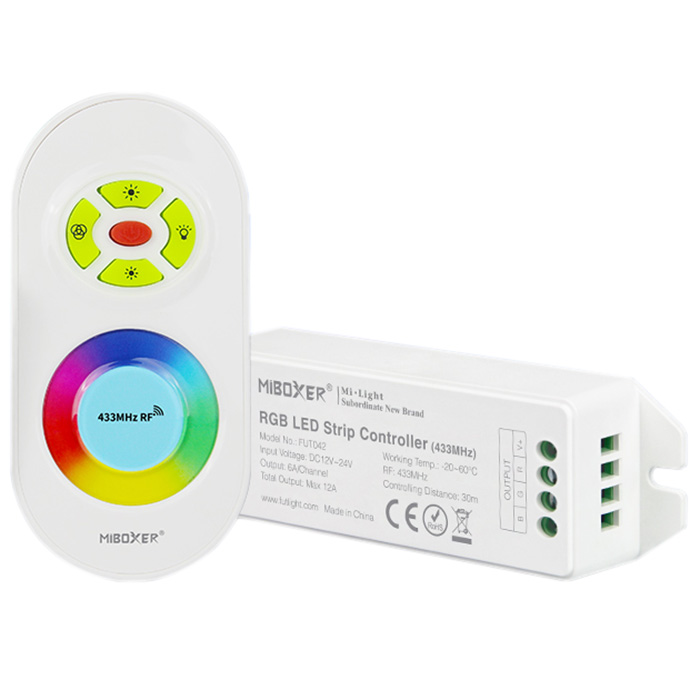

A 2.4GHz LED controller set provides two-way signal auto-transmitting and synchronization between receivers, whereas a 433MHz set relies on direct line-of-sight RF transmission. In a 2.4GHz MiBoxer setup like the FUT037SA+, each receiver relays the RF command to adjacent receivers within 30 m, allowing infinite control distance across complex layouts. The 433MHz kits, such as the FUT042UP and FUT040, use a sub-GHz frequency with lower bandwidth that cuts through thick masonry walls effectively, but they do not support mesh auto-transmission or mobile gateway integration.

A remote from a MiBoxer remote control set can sync to an unlimited number of receivers within its 30 m wireless broadcast range. You can link 10 separate receivers to a single zone on the remote, and every receiver will execute color, CCT, and dimming commands simultaneously. If your runs are spaced apart across a large room, the 2.4GHz auto-sync feature aligns dynamic color modes across all receivers within 30 m of each other, preventing the desynchronized flashing common on unlinked RF hardware.

Most receivers in an LED controller set handle 6A per channel with a maximum total output limit of 10A across DC12V to DC24V. That translates to a continuous ceiling of 120W on 12V LED strip lights or 240W on 24V LED strip lights.

An unlinked remote or a depleted battery is responsible for over 90% of unresponsive LED controller set installations. First, verify the remote indicator LED lights up when pressed; standard AAA batteries drop below operating voltage within 12 to 18 months of regular use. Next, execute a fresh pairing sequence: cycle main DC power off for 10 seconds, switch it back on, and immediately press the remote zone 'ON' button 3 times within 3 seconds. The connected LED strip will blink 3 times slowly to confirm linking.

A 2.4GHz MiBoxer remote control set connects to smartphones and voice assistants by adding an optional 2.4GHz Wi-Fi gateway (WL-Box1). The gateway translates 2.4GHz RF signals into Tuya smart protocols, letting you operate your LED strip lights via the Tuya Smart or Smart Life app alongside your physical remote. Once bound to the gateway, you can command brightness levels, run automation schedules, and trigger voice scenes through Amazon Alexa or Google Home without disconnecting the original handheld remote control set.
