Surface Mount Corner Channels

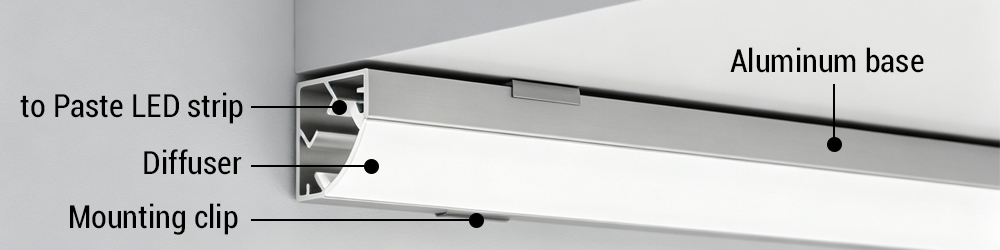

Angled LED channel for corners has a V shape/90-degree shape, shining light at a 45-degree angle towards under-cabinet, under-counter, under-shelf, or bathroom basin sink areas. Surface mount led angled aluminum extrusion channel is very easy to install, using screws to secure the clips to the mounting location and then snap the extrusion in. You can add these angled led channel profiles in any location to upgrade your home and commercial lighting.

Our v shaped led channel offers a diverse selection of sizes ranging from 08*08 (0.3in*0.3in) to 30*30 (1.2in*1.2in), with comprehensive coverage of led strips from 2mm to 20mm PCB widths, providing the flexibility to adapt to indoor corner lighting needs of all sizes.

V-Shape LED Aluminum Channel vs. Silicone Corner LED Strip

V shape led aluminum channel has good heat dissipation to prevent overheating, which is helpful for the life and performance of the light strip. Silicone material is softer and more flexible, can be easily installed on surfaces of flat and irregular corners, and it usually has better waterproof performance for outdoor or wet environment.


8mm Wide Mini Corner LED Channel For 4mm Small Strip Lights
Review stars(0)
Model:ILED-0808

8mm Wide Mini Corner LED Channel For 4mm Small Strip Lights

  • Material: 6063-T5 Aluminum
  • Channel Size: W8mm*H8mm
  • Inner Width: 4.9mm
  • Channel Color: Silver
  • LED Diffuser: Opal
  • Length: 1m/2m
Various Options In Stock
$3.98
Check our Mini Corner LED Channel, the perfect solution for showcasing your small led strip lights, and it's the smallest size of our corner aluminum profiles. This sleek and compact corner led strip channel is designed to fit snugly in corners, evenly illuminate the area under the cabinets and under the shelves. Crafted with a width of 8mm and an internal width of 4.9mm, this mini 45 degree...
10mm Wide Small LED Strip Light Corner Channel For 4mm Tape
Review stars(0)
Model:ZM-1010

10mm Wide Small LED Strip Light Corner Channel For 4mm Tape

  • Material: 6063-T5 Aluminum
  • Channel Size: W10mm*H10mm
  • Inner Width: 5mm
  • Channel Color: Silver
  • LED Diffuser: PC Opal
  • Length: 1m/2m
Various Options In Stock
$4.59
Illuminate your corners with our Small LED Strip Light Corner Channel, tailored to accommodate your 4mm or 5mm narrow led tape . Crafted from premium-grade aluminium materials, our small angled led profile with superior performance and exceptional heat dissipation, ensuring your lighting remains bright and reliable for extended periods. Measuring 10mm*10mm (0.4inch*0.4inch) outer size with an...
13mm Wide Tiny Corner Mount LED Strip Channel For 8mm Tape
Review stars(0)
Model:ILED-1313

13mm Wide Tiny Corner Mount LED Strip Channel For 8mm Tape

  • Material: 6063-T5 Aluminum
  • Channel Size: W13mm*H13mm
  • Inner Width: 8.5mm
  • Channel Color: Silver/Black
  • LED Diffuser: Opal
  • Length: 1m/2m
  • Model: ILED-1313/MS-13x13ZJ
Various Options In Stock
$5.69
Discover our Tiny Corner Mount LED Strip Channel for your home and furniture corners, specially designed to house 8mm led tape securely and beautifully. This compact led angled aluminum channel is the ideal choice to illuminate your corners under cabinets and under counters. Boasting a tiny size of 13mm*13mm (0.5inch*0.5inch) and an internal width of 8.5mm, this led diffuser channel corner is...
2020 Model 45 Degree Angle LED Channel, For 12mm Strip Light
Review stars(0)
Model:QSG-2020C

2020 Model 45 Degree Angle LED Channel, For 12mm Strip Light

  • Material: 6063-T5 Aluminum
  • Channel Size: W20mm*H20mm
  • Inner Width: 14.9/13.5mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC Semi-Clear
  • Length: 1m/2m
Various Options In Stock
$9.99
This 2020C 45 degree led channel is slightly larger than 1616 corner channel, but it can accommodate 12mm strip light for more lighting choices like RGBW and RGBCCT.  45 degree aluminum led channel is a popular choice for shelf and cabinet lighting. Its diffusion cover reduces the intensity of the LED light to a comfortable level.  Semi-clear  PC diffuser cover with 70-80% light...
Min:  400
Corner Channel Aluminum LED Profile For 10mm LED Strip Lights
Review stars(0)
Model:QSG-1616D

Corner Channel Aluminum LED Profile For 10mm LED Strip Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W16mm*H16mm
  • Inner Width: 10.6mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1616D
Various Options In Stock
$9.99
The 1616D square corner-mounted led aluminum profile is made of high-quality 6063-T5 aluminum alloy material with silver anodized oxidation surface treatment. With a 10mm inner width, this corner mount led strip channel is perfect for low-voltage 2110 white led strip lights . LED strip lighting with led profile to get better heat dissipation and achieve much better diffusion effects. ...
Corner Mounted Aluminum LED Diffuser Channel For 10mm Flexible LED Strip Lights
Review stars(0)
Model:QSG-1616C

Corner Mounted Aluminum LED Diffuser Channel For 10mm Flexible LED Strip Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W16mm*H16mm
  • Inner Width: 10.6mm
  • Channel Color: Silver
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1616C
Various Options In Stock
$9.99
This 1616C corner-mounted LED angled aluminum channel with 10mm inner width can be surface mounted or suspended as linear pendant, is made of high-quality 6063-T5 aluminum alloy, composed of the aluminum corner extrusion, PC diffuser cover, end caps, and mounting clips, suitable for DC5V led strip lights . LED light strips installed in the angled led profile can get a good heat dissipation effect...
Corner Mounted Black Aluminum Profile LED Channel For 10mm LED Strips
Review stars(0)
Model:HL-BAPL006

Corner Mounted Black Aluminum Profile LED Channel For 10mm LED Strips

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W16mm*H16mm
  • Inner Width: 10mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1616/MS-601/ZM
Various Options In Stock
$12.00 $9.9917% off
Check this corner-mounted angle aluminum channel with 10mm/0.43in inner width, made of high-quality 6063-T5 aluminum alloy, composed of the aluminum led channel, led diffuser, end caps, and mounting clips, suitable for DC5V led strip lights . LED light strips installed in the led profile can get a good heat dissipation effect while protecting the led strip from dust, moisture, and external force...
Corner Mounted Black Anodized Aluminum LED Profile For 10mm LED Lighting Strips
Review stars(0)
Model:HL-BAPL005

Corner Mounted Black Anodized Aluminum LED Profile For 10mm LED Lighting Strips

  • Material: 6063-T5 Aluminum Alloy
  • Surfac: Anodic Silver Oxidation
  • Channel Size: W16mm*H16mm
  • Inner Width: 10mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1616B/MS-601ZJ/ZM
Various Options In Stock
$10.99
This angle aluminum led channel is made of high-quality 6063-T5 aluminum alloy material with silver anodized oxidation surface treatment. With 10mm/0.43in inner width, this angle LED channel is perfect for low-voltage white led strip lights . LED strip lighting with alu profile can get better heat dissipation and achieve much better diffusion effects.  Choose a suitable led diffuser...
Silicone LED Strip Diffuser Corner Channel Neon Tube 90° Top Emitting 16*16mm
Review stars(0)
Model:FLNLT-ST1616

Silicone LED Strip Diffuser Corner Channel Neon Tube 90° Top Emitting 16*16mm

  • Length:1m/2m/5m
  • External Width:16mm/0.63in
  • Inner Width:11.5mm/0.45in
  • External Height:16mm/0.63in
  • PCB Width:10mm/0.39in
  • Beam Angle:90°
  • Waterproof Rating:IP67
  • Lighting Direction:Top Lighting
Various Options In Stock
$8.00 $6.9913% off
Check this silicone tube led corner diffuser, 16*16mm outer size, does not take up space, easy to hide, suitable for bringing LED lighting to various corners. The LED light strip with diffuser can obtain a softer LED linear light and achieve no dot effect. 10mm led strips installed in this flexible LED V channel silicone tube and with sealing end caps can reach IP67 waterproof level and can be...
60° Lens Aluminum LED Corner Channel For 12mm LED Lighting Strip
Review stars(0)
Model:QSG-1919F

60° Lens Aluminum LED Corner Channel For 12mm LED Lighting Strip

  • Material: 6063-T5 Aluminum
  • Model: QSG-1919F
  • Channel Size: W18mm*H18mm
  • Inner Width: 12.3mm
  • Channel Color: Silver/Black
  • LED Diffuser: Semi-Clear(Frosted)
  • Length: 1m3.28ft /2m6.56ft
Various Options In Stock
$10.99
With 12.3mm/0.48in inner width, this 60° lens corner led aluminum profile concentrates LED light into a narrow light-emitting angle, the mounting channel is made of 6063-T5 high-quality aluminum alloy, suitable for DC12V/DC24V white led strip lights , and the aluminum led channel works as a heat sink for better heat dissipation and protect the led strip from dust, moisture, and external...
Black Corner LED Aluminum Channel For 10mm Flexible LED Strips
Review stars(0)
Model:QSG-1919

Black Corner LED Aluminum Channel For 10mm Flexible LED Strips

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W19mm*H19mm
  • PCB Width: 10mm/12mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1919/MS-604
Various Options In Stock
$12.99
This corner shape aluminum led profile made of 6063-T5 high-quality aluminum alloy, is an 11.2mm/0.44in inner width LED angle aluminum channel with a PC led light diffuser cover which has better diffusion effects, suitable for 10mm warm white led strip lights. 3528/2216/5050/5730/2835 led  light  strips with aluminum profiles have better heat dissipation and physical protection,...
Corner Aluminum LED Strip Channel For 10mm LED Lighting Strips
Review stars(0)
Model:QSG-1919E

Corner Aluminum LED Strip Channel For 10mm LED Lighting Strips

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W19mm*H19.2mm
  • Inner Width: 11.8mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1919E
Various Options In Stock
$12.99
This 1919E corner shape aluminum led profile made of 6063-T5 high-quality aluminum alloy, is an 11.2mm/0.44in inner width aluminum corner extrusion with a PC led light diffuser cover which has better diffusion effects, suitable for 10mm warm white led strip lights. 3528/2216/5050/5730/2835 led  light  strips with aluminum corner extrusion profiles have better heat dissipation and...
Corner Sharp Channel LED Black Aluminum Profile For 12mm LED Strip Lights
Review stars(0)
Model:QSG-1919D

Corner Sharp Channel LED Black Aluminum Profile For 12mm LED Strip Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W18mm*H18mm
  • Inner Width: 12.3mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC/Silicone
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG/MS/ZM
Various Options In Stock
$9.99
Check this V-channel aluminum profile for led strip light with a push-in light diffuser (clear, semi-clear, or opal matte), end caps, and mounting clips for under cabinet installation to add light to kitchens, living rooms, or stairs. This product is a led light strip accessory, does not include the led strip lights. It is suitable for 8mm/10mm/12mm  led light strips . The length of the...
LED Aluminum Corner Channel Diffuser For 12mm LED Light Strips
Review stars(0)
Model:QSG-1919B

LED Aluminum Corner Channel Diffuser For 12mm LED Light Strips

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W18.5mm*H18.5mm
  • Inner Width: 12.2mm
  • Channel Color: Silver
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1919B
Various Options In Stock
$13.99
With 12.2mm/0.48in inner width, this corner-mounted led profile is suitable for low-voltage addressable white light led strips . This corner shape led aluminum channel made of high-quality 6063-T5 aluminum alloy, contains a sliver aluminum channel, a PC led diffuser, two end caps, and two mounting clips per meter.  Different led light diffuser provides different lighting effect, it can...
LED Corner Channel Aluminum Profile For 12mm LED Lighting Strips
Review stars(0)
Model:HL-BAPL007

LED Corner Channel Aluminum Profile For 12mm LED Lighting Strips

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W18.4mm*H18.4mm
  • Inner Width: 12.2mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC/Silicone
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1919C
Various Options In Stock
$10.99
With 12.2mm/0.48in inner width, this corner-mounted led profile is suitable for DC12V addressable led strips . This corner shape led aluminum channel made of high-quality 6063-T5 aluminum alloy contains a sliver, white, or black aluminum channel, a PC led diffuser, two end caps, and two mounting clips per meter.  Different light diffuser provides different lighting effect, can smooth led...
LED Light Diffuser Corner Channel Aluminum Profile For 10mm LED Rope Lights
Review stars(0)
Model:QSG-1919K

LED Light Diffuser Corner Channel Aluminum Profile For 10mm LED Rope Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W18mm*H18mm
  • Inner Width: 10mm/12mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1919K/MS-614
Various Options In Stock
$10.99
With 10mm/0.39in inner width, this corner-mounted aluminum led profile is suitable for most flexible or rigid led strip lights like 5050 white light led strips .  Made of high-quality 6063-T5 aluminum alloy, t his corner shape led aluminum channel contains a sliver, white, or black aluminum led channel, a PC led diffuser, two end caps, and two mounting clips per meter.  Different light...
Waterproof LED Aluminum Profile For 12mm LED Lighting Strip
Review stars(0)
Model:QSG-1919W

Waterproof LED Aluminum Profile For 12mm LED Lighting Strip

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W18.4mm*H18.5mm
  • Inner Width: 12.5mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC/PMMA
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-1919W
Various Options In Stock
$13.98
Check this outdoor waterproof led channel diffuser with aluminum housing which is available in silver color, white color, and black color. The 8mm/10mm/12mm LED strip light is wrapped by the PC led light diffuser, outdoor installation is possible by sealing the end caps, and the waterproof corner led profile is fixed on the object surface by mounting clips. The default channel length is one...
Corner LED Strip Light Channel Aluminum For 10mm LED Rope Lights
Review stars(0)
Model:QSG-2215

Corner LED Strip Light Channel Aluminum For 10mm LED Rope Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W20mm*H15.8mm
  • Inner Width: 10.6mm
  • Channel Color: Silver
  • LED Diffuser: PC Frosted
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-2215
Various Options In Stock
$12.99
This corner shape aluminum led profile made of 6063-T5 high-quality aluminum alloy, is an 10.6mm/0.42in inner width LED aluminum channel with a PC frosted led diffuser cover which has better diffusion effects, suitable for CCT tunable white led strip lights or 2216 warm white led lighting strips .  3528/2216/5050/5730/2835 warm white, natural white, or cool white led  light ...
22*14mm Sector 120° Top Emitting Silicone LED Channel For 5mm Thin LED Strip
Review stars(0)
Model:FLNLT-V22

22*14mm Sector 120° Top Emitting Silicone LED Channel For 5mm Thin LED Strip

  • Length:1m/2m/5m
  • External Width:22mm/0.87in
  • Inner Width:6mm/0.24in
  • External Height:14mm/0.55in
  • PCB Width:5mm/0.20in
  • Beam Angle:120°
  • Lighting Direction:Top Lighting
  • Waterproof Rating:IP67
Various Options In Stock
$5.99
Sector silicone led strip diffuser for 5mm narrow led strip lights, the silicone tube structure is mainly divided into shading surface and diffusion surface, the led light refracted from the light source through the conduction of silicone diffusion to produce the ultimate lighting effect which is more artistic and practical.    The combination of high-density or ultra-dense LED light...
1 Inch Corner LED Light Strip Aluminum V Channel, 20mm Inner
Review stars(0)
Model:MS-AL-606

1 Inch Corner LED Light Strip Aluminum V Channel, 20mm Inner

  • Material: Aluminum
  • Channel Size: W23.5mm*H23.5mm
  • Inner Width: 20mm
  • Channel Color: Silver
  • PC Cover: White
  • Length: 1m/2m
Various Options In Stock
$5.99
This 23.5mm*23.5mm (1inch*1inch) corner V aluminum channel is a lighting solution designed for corner LED light strip. The 45-degree V channel measures a 23.5mm*23.5mm size and has a corner shape, making it ideal for installation in corner locations in spaces such as kitchens.  With an internal width of 20mm, this corner led channel is able to accommodate double row and colorful LED strips,...
