2 sub-categoriesThe SkyDance RF Controller Sets are convenient, ready-to-use wireless lighting control combinations designed for LED strip lighting and TRIAC-dimmable lighting. Each set comes with a compatible lighting controller or dimmer and a matching handheld RF remote, giving you a straightforward starting point for wireless lighting control. You don't have to spend extra time selecting a controller and remote separately or worrying about their compatibility — simply choose a set that matches your lighting type and application.

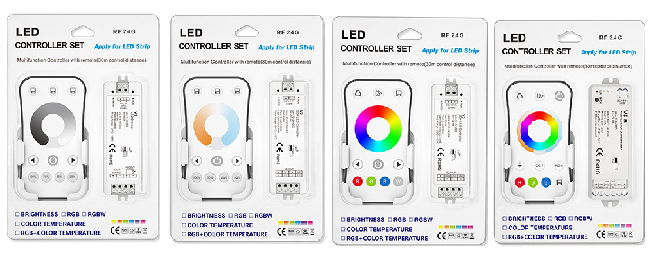

Classic RF Controller Sets for Different LED Strip Types
Our Classic RF Controller Sets offer a wide selection of pre-matched wireless controller and remote combinations for different LED strip lighting applications, including:
- - Single-Color LED Strips: Wireless on/off switching and brightness dimming. Explore the SkyDance RF Dim System.
- - CCT Tunable White LED Strips: Brightness and color temperature adjustment between warm white and cool white. Explore the SkyDance RF CCT System.
- - RGB LED Strips: Static color selection, brightness adjustment, and dynamic color-changing effects. Explore the SkyDance RF RGB System.
- - RGBW LED Strips: Full RGB color control combined with a dedicated white light channel. Explore the SkyDance RF RGBW System.
- - RGB+CCT LED Strips: Five-channel control for RGB colors and adjustable warm-to-cool white lighting. Explore the SkyDance RF RGBCCT System.
- - Addressable RGB LED Strips: Programmable pixel effects and dynamic lighting control for compatible SPI LED strips. Explore the SkyDance SPI System.
RF TRIAC Dimmer Kits for AC Dimmable Lighting
For AC TRIAC-dimmable lighting applications, our RF TRIAC Dimmer Kits combine compatible AC phase-cut dimmers with wireless RF handheld remotes. These kits provide convenient wireless on/off switching and brightness adjustment for compatible TRIAC-dimmable LED lights and drivers.

Classic RF Controller Set
The SkyDance Classic RF Controller Set Series is specifically designed for LED strip lighting, offering a variety of pre-matched wireless controller and handheld remote combinations for different LED strip types and lighting requirements.
Each Classic RF Controller Set comes with a corresponding handheld remote designed to work with the included controller. Depending on the Single-Color / CCT / RGB / RGBW / RGBCCT / Addressable set, you can conveniently switch lights on and off, adjust brightness, select colors or color temperatures, recall lighting scenes, and customize dynamic effects. Some models also support Wi-Fi app control and integration with smart lighting systems, offering additional flexibility for convenient wireless operation and smart home automation.
Choose the Right Set for Your LED Strip
When selecting a Classic RF Controller Set, make sure its output type, operating voltage, channel configuration, and supported LED protocol match your LED strip. For addressable LED strips, also verify that the controller supports the specific IC or control protocol used by your strip.
With the controller and remote already matched, SkyDance Classic RF Controller Sets make it easier to find a compatible wireless control solution for your LED strip lighting installation.

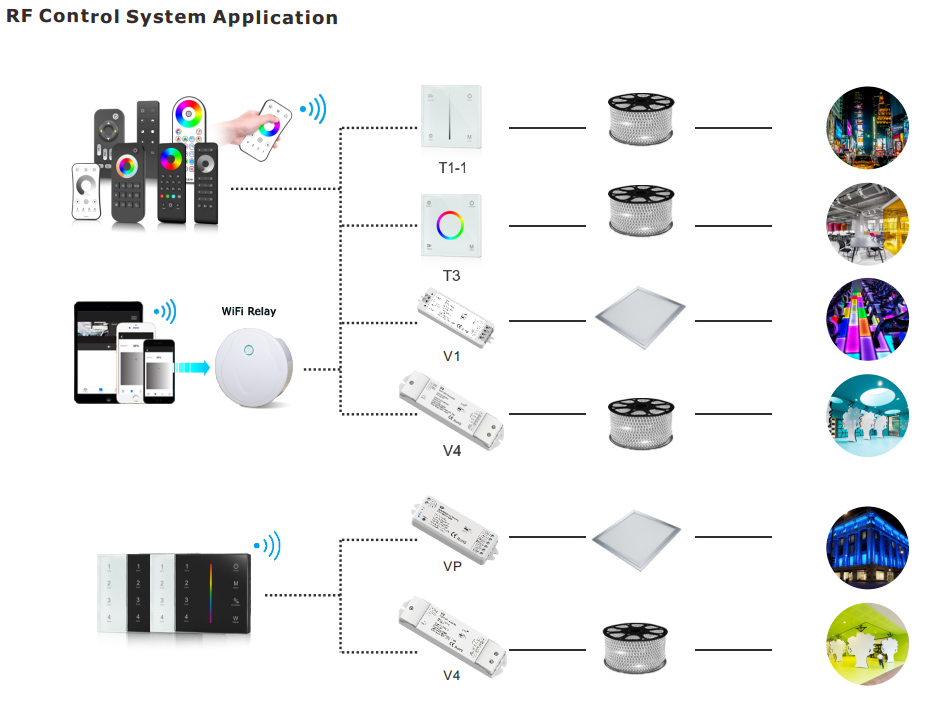

SkyDance RF wireless products support both single-zone and multi-zone control, allowing one remote to operate a single lighting setup or manage multiple independent lighting zones, depending on the model. With a wireless control range of up to 30 meters (98 ft), compatible controllers can also synchronize their lighting effects wirelessly within the supported range. Multiple controller-and-remote sets can be used in the same space, making it easier to create coordinated lighting across different areas while maintaining flexible zone control.

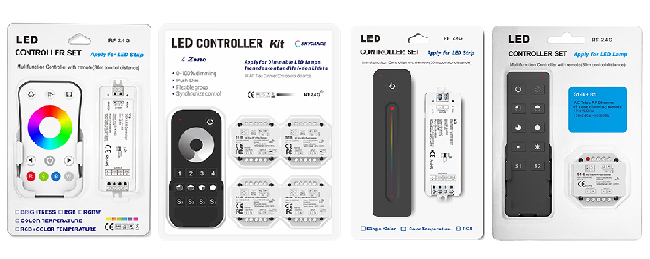

RF Triac Dimmer Kits
SkyDance RF TRIAC Dimmer Kits are specifically designed for wireless control of TRIAC-dimmable lighting. Each kit includes either one or four compact TRIAC dimmer modules paired with a handheld touch or button remote control, providing a convenient wireless lighting control solution without the need for a separate wall-mounted dimmer.
The handheld remote allows you to turn connected lights on or off, adjust brightness smoothly, and manage individual zones or multiple lighting groups. Depending on the TRIAC dimmer kit configuration, you can also use preset lighting scenes for quick access to your preferred lighting levels. The touch and button remote options offer intuitive operation for different control preferences.
Compact TRIAC Dimmer Modules for AC Lighting
These mini TRIAC dimmer modules support AC 100–240V input and output, making them suitable for a wide range of compatible dimmable AC lights, incandescent lights, high-voltage Halogen lamps, and TRIAC CC or CV drivers. Supported load capacities range from 150W to 360W. Their compact design makes them easier to integrate into suitable wiring locations and existing AC lighting installations.
The modules also support an external push switch, providing an additional wired control option alongside wireless remote operation. This allows users to control lighting through either the handheld RF remote or a compatible external push switch.
Wi-Fi-enabled models offer additional control through a compatible smartphone app, also support integration with compatible smart home systems, providing greater flexibility for line-voltage lighting control and automation.
**Note:** TRIAC dimming is designed for compatible AC dimmable lighting loads. Always check the dimming method, load type, voltage, and maximum wattage of the selected module before installation to ensure compatibility. Explore more SkyDance TRIAC dimmers.
Best-selling RF Controller Set
1–20 of 29 productsFrequently Asked Questions About RF Controller Sets
Direct answers to common questions about selecting, wiring, pairing, and troubleshooting our 2.4GHz RF wireless LED controller sets.
An RF controller set bundles a 2.4GHz wireless receiver with a factory-matched handheld remote or wireless wall panel. The receiver wires directly between your constant-voltage DC power supply and your low-voltage lighting, while the pre-paired remote sends radio-frequency commands up to 30 m away without needing line-of-sight. We offer models in this set range across single-colour, tunable white, RGB, RGBW, RGB+CCT, and high-voltage TRIAC phase-cut dimmers, saving you from sorting out compatibility codes manually.
An RF LED strip controller does not require line of sight because it operates on 2.4GHz radio frequency rather than optical infrared. The wireless signal punches through drywall, wood cabinetry, stone backsplashes, and acrylic diffusers up to 30 m in free air. That means you can conceal the receiver inside a kitchen soffit, cabinet run, or drop ceiling. The only barrier that kills RF range is a fully enclosed solid metal junction box, which turns into a Faraday cage and drops practical reach down to 1 m to 3 m.
One handheld remote can pair with an unlimited number of SkyDance receivers within its 30 m transmission bubble. In addition, each receiver accepts pairing signals from up to 10 different remotes. When you link several receivers to one channel or zone, SkyDance auto-synchronisation keeps all dynamic modes running in step within 2 millisecond accuracy. As long as every receiver sits within 30 m of another receiver, the units automatically relay the RF command along the chain across large open spaces.
Calculate total strip wattage for your RF LED controller by multiplying the receiver's rated output current per channel by your DC supply voltage, then keep total continuous load under 80% to prevent thermal shutdown. For example, our 15A single-channel dimmer set handles up to 180W on 12V or 360W on 24V. If your installation runs a continuous 24V strip drawing 450W, running it off a single 15A receiver will trigger over-current shutdown within an hour. Read our guide on how to choose LED strip light controllers for detailed formulas.
Wiring an AC TRIAC dimmer straight into a low-voltage DC LED strip light will permanently burn out the strip's circuit board. A TRIAC unit like the S1-B dimmer from our RF Triac dimmer kits runs strictly on 100-240VAC mains power and trims line voltage. It must be wired ahead of a phase-dimmable AC-to-DC constant-voltage driver, which then feeds your 12V or 24V strip. For direct low-voltage dimming without a phase-cut driver, you need a DC PWM dimmer kit such as the V1 or WT1 instead.
To pair an RF controller for LED strip lights, tap the receiver's physical 'Match' button briefly, then immediately press the remote's On/Off key (or the specific zone number on a multi-zone remote). The connected LED light strip flashes twice to confirm successful pairing. If the controller is hidden inside finished millwork with no button access, power-cycle the receiver off and on at the mains switch, then immediately press the remote's On/Off key 3 times. To delete all stored pairings, hold down the Match button for 5 seconds until the strip flashes 5 times.
You can expand your run safely by feeding an external power repeater from the controller's terminal output rather than overloading the receiver. When your total strip run exceeds the 8A to 15A rating of your RF LED controller, wire the receiver's PWM output into the signal input terminals of a power repeater. Powered by its own dedicated driver, the repeater reproduces the dimming or colour-changing signal across an extra 10 m to 20 m of tape with zero signal lag and zero voltage drop on the primary receiver.
Radio signal attenuation drops RF remote range drastically when the 2.4GHz wave hits wire lath, metal studs, or dense ceramic tile backing. While wood and drywall reduce range by roughly 10% to 20%, reinforced plaster and metal backplates absorb up to 90% of signal power. Pull the receiver's external wire antenna out of the cavity, keep the body away from grounded sheet metal, or relocate the receiver into a ceiling void and extend low-voltage DC wiring down to the fixtures.
Dual-protocol models like our WT1, WT-SPI, and S1-B(WT) combine 2.4GHz RF remote support with native 2.4GHz Wi-Fi for Tuya and Smart Life app integration. Standard Classic RF kits communicate strictly over RF, requiring a separate SkyDance WiFi-RF gateway to receive app commands. Selecting a native WT series set gives you remote control out of the box, hands-free automation through Amazon Alexa and Google Assistant, and local dimming via handheld remote or momentary push switch without buying an extra hub.
