LED Linear Bar Lighting

How to make LED Linear Bar Light?

You may need to use LED strips (with LED connectors welded on both ends), LED aluminum profiles(match to the width of LED light strips),  PC masks, 3M red adhesive and transparent glue.

1. Tear off the ordinary adhesive on the back of the LED strip, wipe the LED strip to keep it clean, and brush a layer of chemical solution on the back of the strip to acheive the seamless connection between the red back adhesive and strip light.

2. Tear off the red back adhesive, paste the adhesive on the inside of the LED aluminum channel, and closely fit the LED strip light and the red back adhesive

3. After making full waterproof treatment with translucent (transparent) glue on both ends, install the PC mask and block both ends with LED aluminum plugs.

When you install the LED linear bar light, the best to purchase LED aluminum clips.


DC24V 8/10/12W SMD5050 7 Colorful LED Digital Guardrail Tube Aluminum Bottom Outdoor Waterproof Line Light
Review stars(0)
Model:DC24V-12W-4250X7C

DC24V 8/10/12W SMD5050 7 Colorful LED Digital Guardrail Tube Aluminum Bottom Outdoor Waterproof Line Light

  • Input voltage:DC24V
  • Power:8/10/12W
  • Lighting Color: Single Color
  • Lighting Color: 7 colorful
  • Luminous: 20-22LM
  • IP Rating: IP65
Various Options In Stock
$30.98
Here is the LED tube lights bar with various solid colors and neon color chasing light colors, 36/48/60 LED quantity optional, 0.5m and 1m lengths are available.  1. This outdoor led tube light with green and environmentally friendly thickened pc face mask, UV resistant, safe and durable, not easy to burst, moisture and dustproof. Strong weather resistance, high temperature and...
Dream Color LED Tube Lighting 24V Outdoor Waterproof
Review stars(0)
Model:DMX512-line light

Dream Color LED Tube Lighting 24V Outdoor Waterproof

  • Input voltage:24 VDC
  • Beam angle:120 degrees
  • Power:11.52W/m
  • Epistar chip:SMD 5050
  • Material:pc mask+Aluminum
  • Ip waterproof: IP67
Various Options In Stock
$34.98
This outdoor line light with Green and environmentally friendly thickened pc face mask, UV resistant, safe and durable, not easy to burst, moisture and dustproof. Strong weather resistance, high temperature and low-temperature resistance, wide use environment, large face mask, and the large light- emitting surface. High heat dissipation aluminum base, strong hardness, moisture-proof, dust-proof...
Programmable DMX512 LED Tube Lights 24V 360 Degree Lighting
Review stars(0)
Model:DMX512-360D-DS24VX18

Programmable DMX512 LED Tube Lights 24V 360 Degree Lighting

  • IC Brand: DMX512
  • Voltage: DC24V
  • Power: 26W/m
  • Diameter: 40mm
  • IC Quantity: 24pixels/m
  • LED Quantity: 144LEDs/m
  • Waterproof: IP20
  • Length: 0.5/1m optional
Various Options In Stock
$74.99
Full color changing 360-degree light-emitting DMX LED tube light, external DMX512 IC meteor tube, using high-brightness 5050RGB LEDs, double-sided patch, uniform light emission, no light spots, and super bright color rendering. DC24V low voltage power, energy-saving, safe and stable. Good electrical conductivity and fast heat dissipation. These DMX led light tubes have good flexibility, easy...
RGB LED Linear Light Bar 12/24V Solderless Seamless Connection
Review stars(0)
Model:LB-12V24V-RGB-5050

RGB LED Linear Light Bar 12/24V Solderless Seamless Connection

  • Input Voltage: 12V/24VDC
  • LED Color: 5050 RGB
  • Power: 14.4W/m
  • LED Density: 60/m
  • Beam Angle: 125
  • Waterproof Grade: IP45
  • Length: 1m/3.28ft
  • Material: Aluminum Base
Various Options In Stock
$15.98
The linear LED light bar is a common solution for indoor lighting such as under cabinet lighting, dispaly lighting, shelf lighting, etc. It adapts high quality aluminum base, and uses high brightness 5050SMD LEDs as light source with 60 LED lights per meter. Each led light bar can be linkable, solderless and seamless connetion, very convenient. 12V or 24V DC operations, this rigid led light bar...
LED Guardrail Tube Light IP67 Outdoor Waterproof, 24V Multi Color LED Bar
Review stars(0)
Model:LED-TUBE-WPGT24V

LED Guardrail Tube Light IP67 Outdoor Waterproof, 24V Multi Color LED Bar

  • LED Strip Type: SMD5050
  • LED Quantity: 36pcs
  • Input Voltage: 24V/220V
  • Working Power: 10W
  • Luminous: 900LM
  • Waterproof: IP67
  • Lifespan:50,000+hours
  • Material: PC
Various Options In Stock
$14.99
This is universal engineering programmable addressable LED full color pixel guardrail tube lights, waterproof IP67, outdoor use, High-quality PC tube, anti-aging, blending uniformity, good transparency. Design according to concentric circles theory, after numerous round light refraction, LED light perspective reach 250 degrees, Strong visibility. LED is solid cold light source, epoxy resin...
DC24V 12W 28X23mm White/Yellow Light Full Color Addressable DMX512 Outdoor Waterproof IP67 Aluminum Lens Linear LED Lighting LED Wall Wash Lighting
Review stars(0)
Model:QCY-XT-01

DC24V 12W 28X23mm White/Yellow Light Full Color Addressable DMX512 Outdoor Waterproof IP67 Aluminum Lens Linear LED Lighting LED Wall Wash Lighting

  • Display: Single/Full color
  • Size: 28x23x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 48LEDs
  • Rated power: 12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$24.98
Features 1. Highlight 5050 LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4....
AC100~240V LL1-18 18W RGB+CCT LED Linear Light
Review stars(0)
Model:LL1-18

AC100~240V LL1-18 18W RGB+CCT LED Linear Light

Various Options In Stock
$59.98
Product Parameters Model No.: LL1-18 Input Voltage: AC100~240V 50/60Hz Color Temp.: 2700~6500K Luminous Flux: 1900LM Luminous Efficiency: 105LM/W CRI: >80 Working Temp.: -20~45°C Beam Angle: 140° RF: 2.4GHz Control Distance: 30m IP Rate: IP66 Specifications Download         Product Description
DC24V 12W 30X20mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens LED Linear Light LED Wall Washer lighting
Review stars(0)
Model:QCY-XT-02

DC24V 12W 30X20mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens LED Linear Light LED Wall Washer lighting

  • Display: Single/Full color
  • Size: 30x20x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 48LEDs
  • Rated power: 12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$24.98
Features 1. Highlight 5050 LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4....
DC24V 12W 30X20mm Waterproof Lens Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens LED Linear Bar Light Outdoor Wall Wash Lighting
Review stars(0)
Model:QCY-XT-02-1

DC24V 12W 30X20mm Waterproof Lens Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens LED Linear Bar Light Outdoor Wall Wash Lighting

  • Display: Single/Full color
  • Size: 30x20x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 48LEDs
  • Rated power: 12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$20.98
Features 1. Highlight 5050 LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4....
DC24V 8/12W 30X30mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens Linear LED Lighting Wall Wash Light
Review stars(0)
Model:QCY-XT-03

DC24V 8/12W 30X30mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens Linear LED Lighting Wall Wash Light

  • Display: Single/Full color
  • Size: 30x30x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 36/48LEDs
  • Rated power: 8/12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$24.98
Features 1. Highlight 5050 LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4....
DC24V 12W 35X25mm White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens LED Linear Bar Light Wall Wash Landscape Lighting
Review stars(0)
Model:QCY-XT-04

DC24V 12W 35X25mm White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens LED Linear Bar Light Wall Wash Landscape Lighting

  • Display: Single/Full color
  • Size: 35x25x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 48LEDs
  • Rated power: 12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$24.98
Features 1. Highlight 5050 LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4....
DC24V 8/12W 40X20mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens LED Linear Light LED Wall Washer Lighting
Review stars(0)
Model:QCY-XT-05

DC24V 8/12W 40X20mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens LED Linear Light LED Wall Washer Lighting

  • Display: Single/Full color
  • Size: 40x20x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 36/48LEDs
  • Rated power: 8/12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$24.98
Features 1. Highlight 5050 LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4....

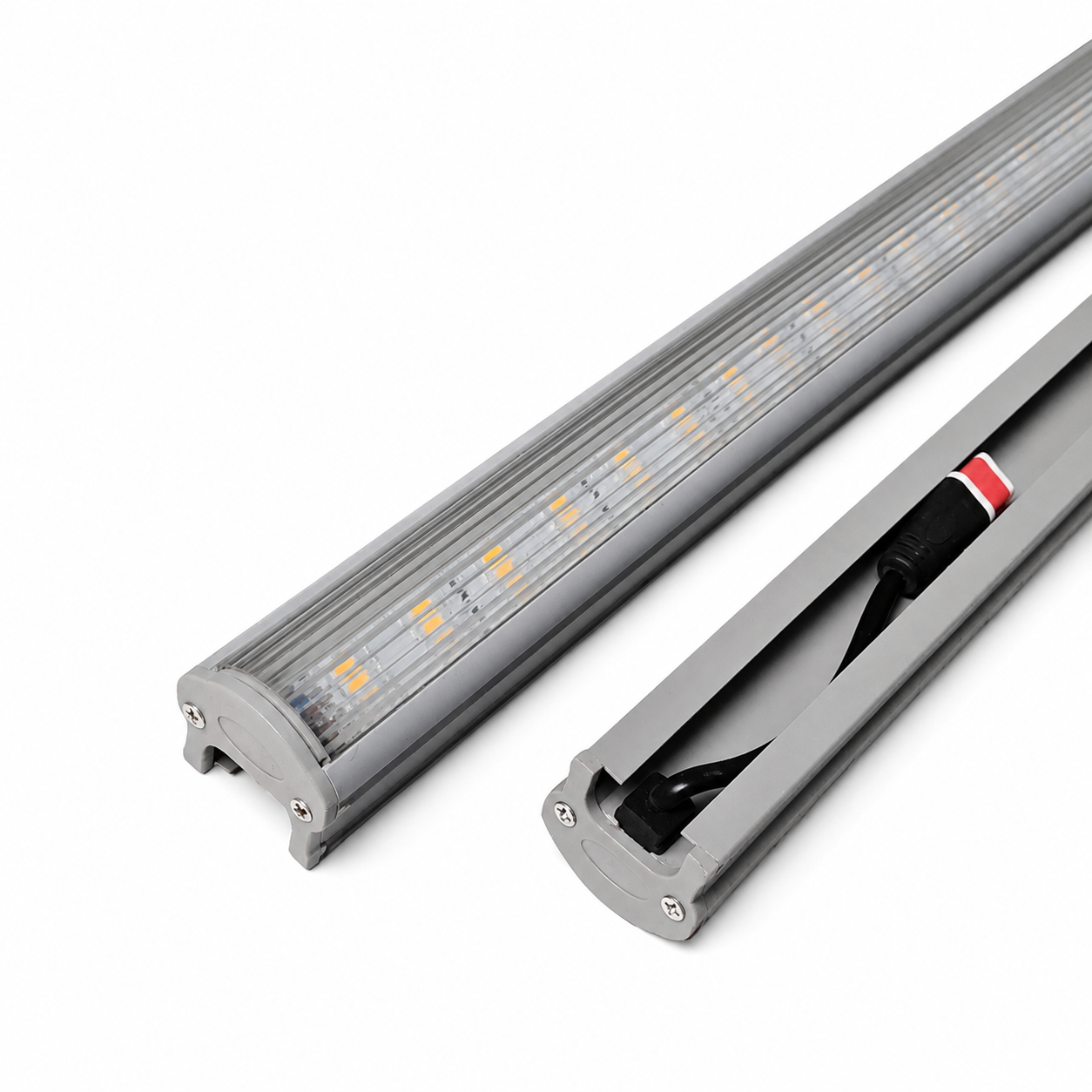

DC24V 12W 45X30mm Glass lens White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens Linear LED Lighting LED Wall Wash Outdoor Lighting
Review stars(0)
Model:QCY-XT-06

DC24V 12W 45X30mm Glass lens White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens Linear LED Lighting LED Wall Wash Outdoor Lighting

  • Display: Single/Full color
  • Size: 45x30x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 48LEDs
  • Rated power: 12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$27.98
Features 1. Highlight 5050 LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4....
DC24V 8/12W 45X40mm U-type White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens LED Linear Light LED Wall Wash Lighting
Review stars(0)
Model:QCY-XQ-08

DC24V 8/12W 45X40mm U-type White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens LED Linear Light LED Wall Wash Lighting

  • Display: Single/Full color
  • Size: 45x40x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 36/48LEDs
  • Rated power: 8/12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$19.98
Features 1. Highlight 5050 LED chip: High transmittance, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4. Luminous effect...
DC24V 8/12W 48X30mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens LED Linear Lighting Wall Wash Landscape Lighting
Review stars(0)
Model:QCY-XT-08

DC24V 8/12W 48X30mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens LED Linear Lighting Wall Wash Landscape Lighting

  • Display: Single/Full color
  • Size: 48x30x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 36/48LEDs
  • Rated power: 8/12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$19.98
  Features 1. Highlight 5050 LED chip: High transmittance, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4. Luminous...
DC24V 8W 50X30mm Solid Acrylic White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens Linear LED Lighting Outdoor Wall Wash Lighting
Review stars(0)
Model:QCY-XT-09

DC24V 8W 50X30mm Solid Acrylic White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens Linear LED Lighting Outdoor Wall Wash Lighting

  • Display: Single/Full color
  • Size: 50x37x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 36/48LEDs
  • Rated power: 8W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$30.98
  Features 1. Highlight 5050 LED chip: High transmittance, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature...
DC24V 8/12W 50X45mm U-type White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens LED Linear Lighting LED Wall Wash Lighting
Review stars(0)
Model:QCY-XQ-09

DC24V 8/12W 50X45mm U-type White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens LED Linear Lighting LED Wall Wash Lighting

  • Display: Single/Full color
  • Size: 50x45x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 36/48LEDs
  • Rated power: 8/12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$22.98
  Features 1. Highlight 5050 LED chip: High transmittance, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4. Luminous...
DC24V 8/12W 55X45mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens Linear LED Light LED Wall Wash Outdoor Lighting
Review stars(0)
Model:QCY-XT-11

DC24V 8/12W 55X45mm Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens Linear LED Light LED Wall Wash Outdoor Lighting

  • Display: Single/Full color
  • Size: 55x45x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 36/48LEDs
  • Rated power: 8/12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$27.98
Features 1. Highlight 5050 LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance. 4....
DC24V 8/12W 65X50mm Square Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens Linear LED Lighting Wall Wash Landscape Lighting
Review stars(0)
Model:QCY-XT-10

DC24V 8/12W 65X50mm Square Low Power White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens Linear LED Lighting Wall Wash Landscape Lighting

  • Display: Single/Full color
  • Size: 65X50x1000mm
  • Size of light: 5050SMD
  • Input voltage: DC24V
  • Lamp quantity: 36/48LEDs
  • Rated power: 8/12W
  • Waterproof: IP67
  • Guarantee: 2 years
Various Options In Stock
$24.98
  Features 1. Highlight 5050 chip: High transmittance PMMA lens, low energy consumption, long life, low light decay. 2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line. 3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance,...
