14 sub-categoriesLTECH LED Control Systems: Professional Architectural Solutions
Elevate your LED strip lighting projects with professional-grade LTECH control systems, specifically engineered for architectural, commercial, and high-end residential applications. SuperLightingLED™ provides a comprehensive range of LTECH controllers, decoders, and drivers that bridge the gap between complex digital protocols and intuitive user experiences.
Why Choose LTECH for Your LED Strip Projects?
If you are new to the professional lighting industry, choosing the right "brain" for your LED strips is critical. Here is why architects and contractors prefer LTECH through SuperLightingLED:
• Industry-Leading Dimming Precision: While standard dimmers often flicker at low levels, LTECH’s proprietary T-PWM™ technology achieves an ultra-deep 0.01% dimming depth . This ensures a smooth, "natural" transition from 0 to 100% brightness without the distracting "jump" common in cheaper controllers.
• Flicker-Free & Camera-Ready: LTECH systems are engineered to meet the highest stroboscopic standards (IEEE 1789). This means the light is perfectly stable for the human eye and high-speed video recording, making it the top choice for retail showrooms, studios, and high-end galleries.
• Universal Protocol Compatibility: Whether your project uses DMX512 for dynamic effects, DALI-2 for building automation, or standard 0-10V analog signals, LTECH offers seamless integration. Our hardware acts as a universal translator for virtually any LED strip application.
• Next-Gen Installation Efficiency: Save hours on-site with NFC (Near Field Communication) programming. Technical parameters and DALI addresses can be written to drivers in batches using a smartphone, even when the devices are unpowered.
• Certified Safety & Reliability: For the US market, we prioritize B2B safety. Most LTECH professional LED drivers are UL-Listed and Class 2 certified, ensuring compliance with strict building codes and reducing long-term maintenance costs.
DMX512/RDM Series
This series at SuperLightingLED includes all Ltech products that support the DMX512 and RDM protocols. DMX512 is a digital control protocol that defines the communication standard between lighting devices. And RDM (Remote Device Management) is a remote device management protocol developed on the basis of DMX512 protocol, which can realize the remote management and monitoring of lighting equipment.
To connect your LED lights to the Ltech DMX controller for precise lighting control, you first need to confirm the type of your lights. If your LED light is just a normal type without a built-in DMX512 decoder or does not support the DMX512 control protocol, you can use an additional DMX512 decoder to convert the DMX512 control signal to a normal PWM control signal or SPI control signal.
DALI Series
Standard DALI Lighting System Architecture
A standard DALI (Digital Addressable Lighting Interface) system consists of key components working together for centralized intelligent control:
DALI Power Supply Provides communication power for the DALI network.DALI Master Controller Central unit for sending commands and management.DALI Drivers Converts signals into output for LED fixtures.DALI Luminaires LED strips, downlights, or panel lights.This architecture is commonly adopted by many well-known lighting control brands such as Skydance, Sunricher, and MiBoxer (Mi-Light), forming a reliable and standardized DALI lighting ecosystem.Beyond Standard DALI: Ltech Smart Integration
Beyond Standard DALI: Ltech Smart DALI Integration
However, the Ltech DALI series goes far beyond a traditional DALI lighting system.
At SuperLightingLED, the Ltech product range integrates DALI lighting control with modern smart home technologies, transforming conventional lighting into a more intelligent and human-centric system.
Ltech DALI solutions incorporate advanced features such as:
Bluetooth 5.0 ConnectivityWireless configuration and intuitive smartphone control.
Advanced SensorsHuman presence and microwave motion detection for automation.
NFC ProgrammingFast, touch-based device setup and parameter adjustment.
Smart Scene AutomationDynamically adapts to user behavior and environmental conditions.
These innovations enable lighting systems to not only respond to manual control, but also adapt dynamically to user behavior and environmental conditions. This makes Ltech DALI systems ideal for modern residential projects, smart homes, commercial spaces, and high-end architectural lighting applications.
With Ltech, lighting is no longer just about turning lights on and off—it becomes part of a smart living environment.
0/1-10V Series
Standard 0–10V & 1-10V Dimming Architecture
0-10V or 1-10V lighting control system is one of the most reliable analog dimming solutions for commercial and residential lighting. It typically consists of:
1. 0-10V / 1-10V Control Interface Wall Dimmer / Rotary Knob▶2. 0–10V / 1-10V Driver or Controller Converts 0-10V Signal to DC Output▶3. Lighting Load LED Strips / FixturesIn most systems, the control signal (0–10V) is sent from a wall-mounted controller—commonly seen in products from brands like Skydance, BinColor, and LeyNew—using touch panels or rotary dimmers to adjust brightness. The driver or controller then converts this signal into output for the lighting load, allowing smooth and continuous dimming of the entire lighting circuit.
Smart Upgrade: Ltech 0–10V & 1-10V Lighting Control Solutions
Beyond traditional wired controls, Ltech introduces wireless flexibility and intelligent automation to the classic 0-10V system.
Multi-Way Smart Control
- RF Remote: Wireless dimming from a distance.
- Bluetooth 5.0: Advanced SIG Mesh networking.
- App Control: L-Home & NFC Lighting App.
- Hybrid Mode: Connects with touch panels or physical switches.
Advanced Automation
Integrate with professional sensors for hands-free energy saving:
Human Presence Motion Sensors Microwave TechPerfect for high-end residential and modern commercial projects.
Triac Series
TRIAC Dimming: Reliable Phase-Cut Control
TRIAC dimming is one of the most widely used lighting control methods, designed to regulate high-voltage AC power directly. By controlling the phase of the AC waveform, TRIAC dimmers can adjust brightness smoothly without requiring complex control systems.
Broad Compatibility
One of the key advantages of TRIAC dimming is its ability to work with a wide range of lighting fixtures:
• Incandescent and halogen bulbs• Dimmable LED bulbs and fixturesThe Smart Evolution
Modern TRIAC lighting control has evolved into intelligent ecosystems, integrating wireless technologies and advanced sensors:
RF (Radio Frequency) Bluetooth WiFi Zigbee Voice ControlLtech Systems
Focuses on advanced smart integration with RF control, Bluetooth connectivity, and NFC configuration.
Skydance Systems
Comprehensive ecosystem: RF, Bluetooth, WiFi, Zigbee, Voice control, and a full range of sensors (Hand sweep, PIR, Door sensors, Microwave motion sensors).
MiBoxer (Mi-Light) Systems
Flexible control through RF, Bluetooth, WiFi, Voice assistants, and Zigbee compatibility.
This makes TRIAC dimming a practical solution for both traditional lighting upgrades and modern smart lighting projects.
LT-BUS Control System
The LTECH L-BUS Lighting Control System is a flexible wireless lighting control solution designed to bring different LED lighting types and dimming methods into a coordinated control system. Combining Wi-Fi master controllers, 2.4GHz RF remotes and wall panels, wireless LED receivers, and signal converters, L-BUS helps simplify lighting control for residential, commercial, and selected architectural projects.
Rather than relying on a single control interface, L-BUS uses compatible system components to connect different lighting loads and control methods. Depending on the selected products, the system can support constant-voltage LED strips, compatible constant-current LED fixtures, and lighting equipment controlled through interfaces such as DMX512, 0–10V, or TRIAC dimming.
**Important:** Not every L-BUS product supports every dimming method or control feature. Verify the individual model's input, output, wireless compatibility, and system requirements before combining devices.
Explore the LTECH L-BUS Control System below to find compatible controllers, panels, receivers, and signal converters for your lighting installation.

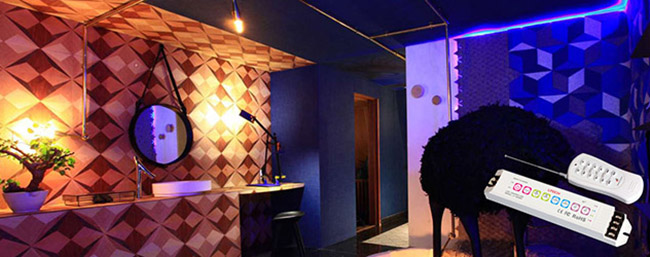

WiFi/RF Products
Wireless remote control of LED strip lights via WiFi or RF technology is a modern and convenient way. These wireless WiFi and RF LED lighting products from Ltech allow users to remotely control LED strips without the need for direct contact or physical switches. The control of LED strips is much easier and more flexible, with the added benefit of quality assurance.
The use of Synchronized Controller allows multiple LED strips to change in sync, creating a uniform and coordinated lighting effect in large lighting schemes.
The Classic Controller retains the ability to manually set the LED color, allowing users to either have intelligent control via wireless remote control or set it up in the traditional manual way, providing more flexibility.
Check out these high-quality L-tech Wireless Remote Control LED Lights Products now.
WiFi/RF Control System(DX)
The Ltech DX system for SuperLightingLED™ LED lighting primarily utilizes the WiFi-104+M12, R-series wireless controllers, along with the UX8 wall panel, as its central control hub. The LTECH DX system combines Wi-Fi app control with 2.4GHz RF wireless communication, allowing users to manage compatible LED lighting through different control methods. The WiFi-104 acts as the master controller for smartphone-based lighting control, while compatible R4-5A or R4-CC receivers provide wireless control for additional lighting zones. The M12 handheld remote offers an alternative way to adjust compatible lighting without using a mobile device.
Seamless Integration of LED Lighting Control for Residential and Commercial Spaces
This ecosystem functions as a high-performance bridge between mobile devices and LED fixtures, utilizing advanced RF synchronization to ensure zero-latency across large-scale installations. Whether you are synchronizing complex architectural LED strip displays or managing residential tape lighting, the Ltech DX control system delivers the industrial-strength reliability and aesthetic elegance required for modern, intelligent lighting environments.
IoT Intelligent Driver
Discover LTECH intelligent LED drivers designed to bring precise dimming, wireless control, and smart lighting integration to residential and commercial lighting projects. The range features two main wireless lighting technologies: Bluetooth 5.0 SIG Mesh and Matter / Matter over Thread, offering different approaches to smart lighting control, device networking, and smart home integration.
With constant-voltage (CV) and constant-current (CC) options available, SuperLightingLED LTECH intelligent drivers support a variety of LED lighting applications, including LED strip lights, tunable white lighting, downlights, and other compatible LED fixtures. Choose the driver according to your lighting load, power requirements, dimming needs, and preferred smart home ecosystem.

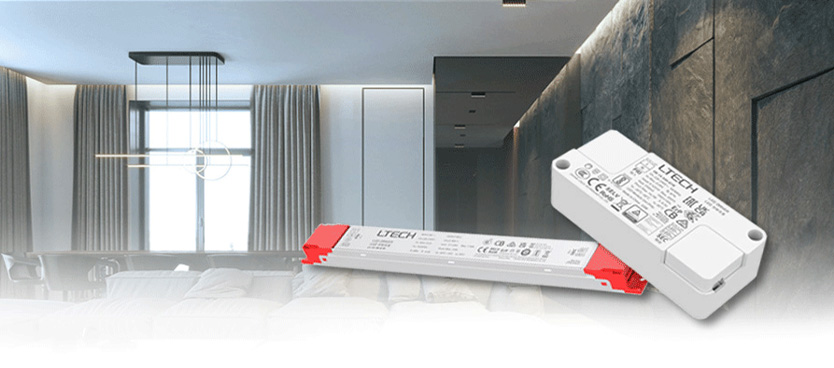

Non-dimmable LED drivers
Ltech Non-Dimmable ON/OFF LED Driver Transformers
Ltech non-dimmable on/off LED drivers available at SuperLightingLED are designed to provide a stable and reliable power supply for low-voltage LED strip lights and constant current LED fixtures. These professional-grade LED light drivers support 220–240V AC input only and focus on high-efficiency, non-dimming performance.
Note: If dimming control is required, please select from our compatible dimmable ranges: 0–10V | TRIAC | DALI | DMX Dimmable Drivers.
Ultra-Slim & Compact Design
One of the key features of Ltech non-dimmable LED driver power suppliers is their ultra-slim and compact design, making them ideal for space-limited installations, such as cabinet lighting, narrow coves, and minimalist architectural fixtures.
In addition to their high build quality, selected Ltech non-dimmable drivers feature NFC (Near Field Communication) programmability, so you can quickly configure output parameters, adjust current settings without rewiring, and program drivers using smartphones or NFC-enabled devices. This simplifies installation and commissioning, especially in professional lighting projects.
Constant Voltage (CV)
- Power Range: 30W to 240W
- Best For: LED Strip Lighting and CV applications.
Constant Current (CC)
- Power Range: 15W to 45W
- Adjustable Output: 100mA to 1050mA
- Best For: Downlights and CC LED fixtures.

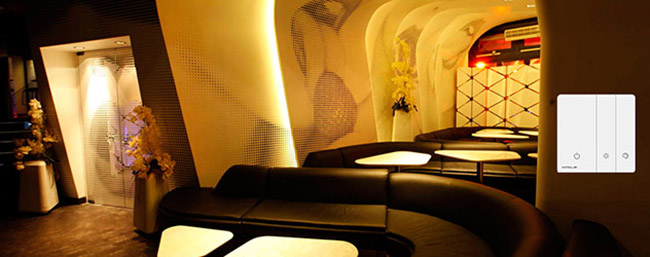

L-HOME Smart Home
Thehumanbodysensoradoptsthermo-electricinfraredsensortodetectsomeone’spassing via sensing heat. Detecting lights onduring someone comingand lights off as someone left through linkage of gateway with intelligent device and lamps,youcan set trigger conditions, trigger period and shutdown delayviatheAPP,itmakes life smart.
Smart Home(Bluetooth Mesh)
Building a modern smart home with LTECH technology centers on the seamless integration of LED lighting and intuitive control systems. Leveraging advanced Bluetooth 5.0 SIG Mesh technology, this light control system creates a robust, decentralized network that ensures your LED strips, drivers, and panels communicate with zero latency and maximum reliability.
This "composite system architecture" allows for flexible combinations of LED products. Whether you are a DIY enthusiast or a professional installer, you can manage everything from simple dimming to complex, dynamic lighting scenes through the L-Home App or physical smart switches.
Diverse Control Architectures for Every LED Setup
Depending on your lighting project requirements, you can build your smart home using these proven integration paths:
• Power Supply → CG-SPI → Pixel RGB Strip: The CG-SPI 10A Controller receives DC 5-24V input and outputs DAT+CLK signals. This configuration is designed for addressable RGBIC light strips, enabling advanced effects like "horse racing," "flow," and "chasing".
• AC Line → RELAY-BLE01 → Any LED Fixture: The RELAY-BLE01 module connects directly to AC 100-240V lines, allowing you to bring standard lighting into the mesh network for remote switching and timing without additional low-voltage wiring.
• AC Line → GC-DAM-PRO → DMX/DALI/0-10V System: The GC-DAM-PRO module serves as a bridge, integrating DMX, DALI, and 0-10V outputs into a single port. It streamlines complex architectural lighting by converting Bluetooth Mesh signals into professional control protocols.
• Flicker-Free Driver → Single/Dual Color Strip Lights: Constant voltage LED drivers provide a direct control solution for dimming and color temperature adjustment with soft-on and fade-in transitions.
• Flicker-Free Driver → Constant Current Light Fixtures: Specifically for high-performance downlights, ensure stable current delivery (constant current) while maintaining full smart connectivity via the mesh network.

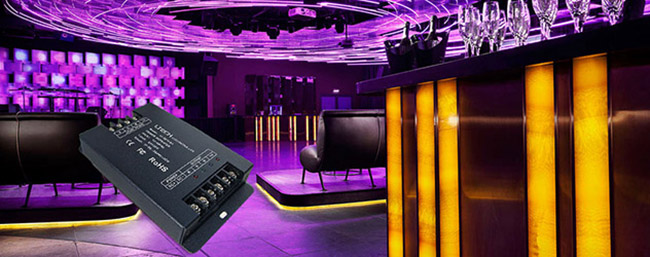

LED Power Repeater
LTECH LED strip light power repeaters receive the pulse-width modulation (PWM) output from a primary single-color dimmer or CCT/RGB/RGBW controller and replicate that exact control waveform onto additional lighting loads. SuperLightingLED provides a complete range of LTECH PWM light signal amplification hardware designed to extend architectural and commercial LED strip installations far beyond the output limits of a single driver. Within our LTECH power repeater ecosystem, these units eliminate dimmer overload and keep large multi-zone runs synchronized without signal lag.
- Accepts DC input voltages across 5V, 12V, 24V, and up to 48V DC lights.
- Supports load capacities spanning from 5W single-channel runs up to 1152W high-output multi-channel arrays.
- Repeats high-frequency PWM dimming without visible flicker or camera banding.
- Maintains synchronous dimming down to low thresholds across separate electrical circuits.
SPI LED Controllers
SuperLightingLED offers a comprehensive selection of SPI/TTL addressable LED strip lights and compatible control systems for projects requiring dynamic lighting effects, precise pixel control, and synchronized color animations. We help lighting professionals find the right combination of programmable LED strips, controllers, and control accessories for architectural lighting, digital signage, media displays, and custom lighting installations.
LTECH SPI Master Controllers – Reliable Control for Professional Projects
Designed for demanding pixel LED applications, LTECH SPI master controllers combine flexible control options with dependable performance. The LTECH SPI master controller range features a 5-year warranty, with CE, FCC, and RoHS certifications documented.
With broad compatibility across popular LED driver ICs, including WS2811, WS2812B, WS2801, UCS-series, and TM-series chips, these controllers provide versatile solutions for professional addressable LED strip installations. Always verify driver IC compatibility and signal wiring before selecting a controller.
LED Signal Converter
Ethernet Control System based on the Artnet protocol.Convert the Artnet network data package into DMX512 data.
Adopting high-speed ARM processor, stable and reliable.
Supports RJ45 network interface and DMX512 with RJ45 output interface.
With TFT 2.4" LCD screen and 4 touch keys, very easy for setting operation.
Update firmware via SD card or network.
Support program record.
Support offline playback.
Compatible with the light software based on Artnet Protocol
Widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX512 data.
Suitable for TV station recorded scene, stage performances, entertainment and so on.
Best-selling Ltech Control System
1–20 of 643 products
B5-DMX-4A-S 5CH LED Strip Wireless Bluetooth DMX Controller
LED WiFi 16 Zones Wireless Synchronization Group Controller Work With M12 RF Remote and APP WiFi-104
(1)
LM-36-12-L1T2 36W 12VDC Class 2 CV Dimmable Triac LED Driver
LM-36-24-L1T2 36W 24VDC CV Class 2 Intelligent Triac Dimming LED Driver
Ltech Control System: Engineering Support Beyond the Components
At SuperLightingLED, we don't just sell components; we provide the engineering expertise to help you architect the perfect luminous environment. From cove lighting synchronization to complex multi-zone smart home integration, our technical support team ensures that your control system operates as a reliable, high-fidelity extension of your vision.
LTECH LED Control System FAQ: Professional Dimming Solutions
Standard dimmers create "banding" or ripples on camera due to low-frequency switching. LTECH’s T-PWM™ technology operates at a high-frequency exemption level, ensuring flicker-free light output even during high-speed filming or slow-motion recording.
Pulse Width Modulation (PWM) frequency is the primary determinant of "flicker-free" lighting. Standard LED controllers often operate at 200Hz-400Hz, which can cause subtle eye strain and is highly visible on camera as moving black bands. These professional-tier LED controllers and drivers curated by SuperLightingLED typically offer frequencies above 3000Hz. This is critical for environments like television studios, retail showrooms with high-end digital displays, and luxury residential projects where visual comfort and high-speed photography compatibility are non-negotiable.
Traditional linear dimming feels "jumpy" at low levels—it seems to turn on too bright too fast. Because the human eye is more sensitive to changes in dark environments, a logarithmic curve provides more "steps" of control at the bottom end of the dimming range. This results in a smooth, cinematic fade-to-black effect that is a hallmark of high-end lighting design, and it is a standard feature in the professional LTECH units selected by SuperLightingLED.
"Ghosting" occurs from residual voltage in analog systems. LTECH 0-10V drivers often incorporate high-performance internal relays that physically cut the AC circuit when the signal reaches 0%, ensuring total darkness and zero standby power leakage.
Yes, this is a core strength of our professional range. We provide 0-10V and DALI-2 decoders that act as the interface between high-end building management systems (BMS) and LED strips. The 0-10V signal from a Lutron dimmer, for example, is translated by our decoder into a smooth PWM output for the strip. This allows for a unified control experience where your LED strip lighting behaves exactly like your traditional architectural fixtures.
Absolutely. Our curated systems are designed for universal compatibility with all standard constant voltage (CV) LED strips and constant current (CC) LED lights, whether they are single color, CCT, RGB, RGBW, or RGBCCT. As long as the voltage (12V/24V/36V/48V) and color configuration match, our controllers will optimize the performance of any high-quality LED strip, enhancing its dimming range and color consistency.
Yes. Through LTECH’s Bluetooth Mesh 5.0 or WiFi Gateways, you can bridge professional architectural LED strip lights with smart home ecosystems for voice control and mobile app scheduling.
