RF RGB+CCT Control System

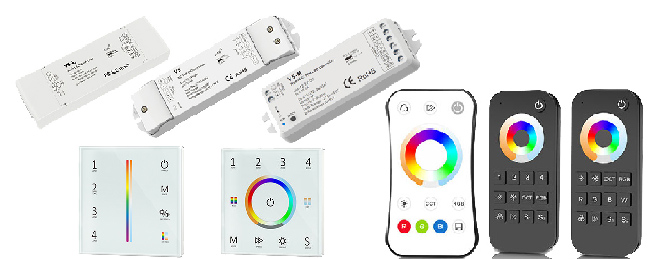

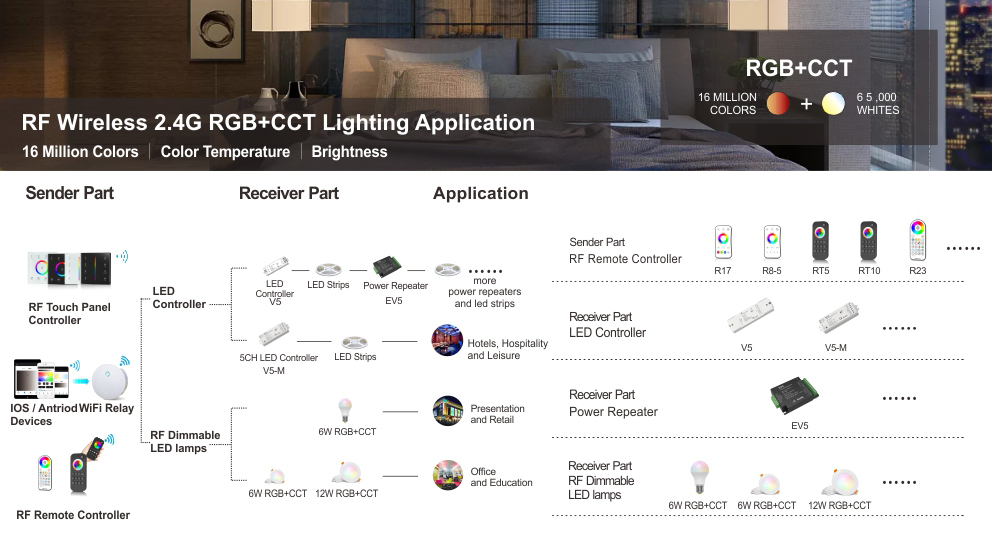

Skydance wireless RGB+CCT series includes 5 channels controller, remote control, panel remote. Through product different collocation to achieve light on/off control, color temperature&brightness adjustment, static color, dynamic effect,group partition, scene, timing, sensor and other intelligent control functions.

1. The RGB+CCT (5 channel) controller can be matched with all remote controls (including hand-held remote, panel remote), RGB+ color temperature (5 channels) can be controlled, and RGB(3 channels) and color temperature (2 channels) can be connected respectively.

2. Adopt 2.4G wireless technology, the remote control distance is 30 meters, the controller has the cascade function, through the signal forwarding between the controllers can reach hundreds of meters of control distance.

3. One controller can be matched with up to 10 remote controls. A controller can match in the same remote control of different zones, to achieve flexible grouping function.

4. A remote control can control single or multiple zones, each zone can be matched with an infinite number of controllers.

5. All controllers on the same zone are automatically synchronized.

6. The RGB+CCT series includes 5 channel constant voltage controller, RGB+CCT remote control, RGB+CCT panel, WiFi-RF converter and 5 channel power repeater, etc.

Shop By RGB+CCT Control System Type

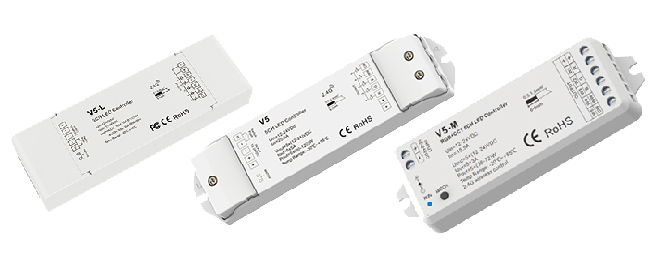

  • RF RGB+CCT CV ControllerRF RGB+CCT CV Controller

    1. DC12/24/36/48V power input, 5 channels PWM constant voltage output, control RGB+CCT LED strip.

    2. PWM achieve 4096 levels flicker-less dimming.

    3. Wireless 2.4G, remote control distance is 30 meters, with cascade function, achieve hundreds of meters of control distance.

    4. Can accept 1-10 remote control, achieve partition control through remote control.

    5. With remote control, panel, WiFi-RF converter, etc., constitute the lighting control system.

    6. Built in 10 dynamic mode, include jump or gradual change style.

    7. Over-heat / Short circuit / Reverse polarity protection.

    8. Work with power repeater to expand output unlimitedly.

  • RF RGB+CCT Remote ControlRF RGB+CCT Remote Control

    The hand-held RGB+CCT remote control can be divided into single zone and 4 zone, and 7#AAA battery or button battery powered, providing customers with a variety of choices.

    1. Used for RGB+CCT LED lights to realize on/off, color temperature adjustment, color adjustment, dynamic change, group partition, scene function, create colorful static or dynamic effect.

    2. 4 zone RGB+CCT remote can be used as universal remote, each zone can be set as single color, dual color temperature, RGB, RGBW and RGB + CCT light type, to match with corresponding color LED lights.

    3. Wireless 2.4G, remote control distance is 30 meters, control distances of several hundred meters are achieved by cascades between controllers.

    4. The remote has a standby time of six months to two years, depending on how often it is used.

    5. Each remote can theoretically be matched with an infinite number of controllers. Each zone of a multi-zone remote can also be matched with an unlimited number of controllers.

    6. Each controller can be matched with 1-10 remote controls. A controller can be matched in different zones of a remote control.

  • RF RGB+CCT Panel Remote ControlRF RGB+CCT Panel Remote Control

    The RGB+CCT panel remote control is 4 zone touch glass panel (white & black),high voltage AC100-240V or 7#AAA battery powered, providing customers with a variety of choices.

    1. Used for RGB+CCT LED lights to realize on/off, color temperature adjustment, color adjustment, dynamic change, group partition, scene function, create colorful static or dynamic effect.

    2. 4 zone RGB+CCT panel remote can be used as universal remote, each zone can be set as single color, dual color temperature, RGB, RGBW and RGB + CCT light type, to match with corresponding color LED lights.

    3. Wireless 2.4G, remote control distance is 30 meters, control distances of several hundred meters are achieved by cascades between controllers.

    4. The battery-powered panel remote has a standby time of six months to two years, depending on how often it is used.

    5. Each remote can theoretically be matched with an infinite number of controllers. Each zone of a multi-zone remote can also be matched with an unlimited number of controllers.

    6. Each controller can be matched with 1-10 remote controls. A controller can be matched in different zones of a remote control.
