Rotary Panel AC Triac RF Dimmer RF remote For Single Color LED Strip Light
● Rotary panel AC phase-cut dimmer, can also be used as dimming RF remote.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Rotate knob to change brightness, support push and long push operation.
● Smooth dimming and switch without any flickering.

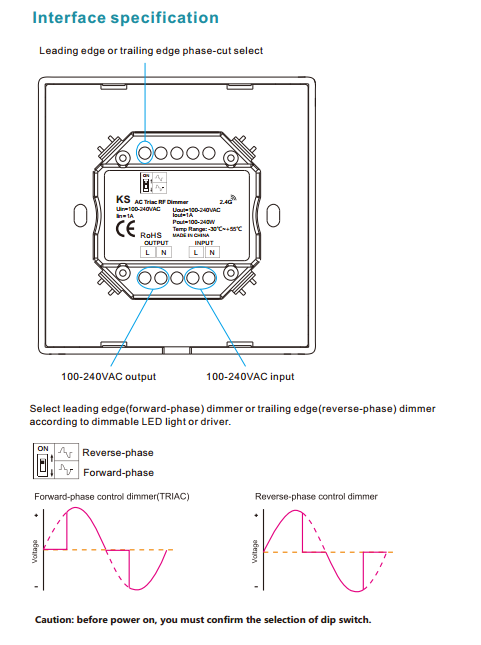

● Leading edge dimming or trailing edge dimming set by dip switch.
● Great compatibility with a variety of dimming RF remote.
● Adopt 2.4GHz wireless technology, remote distance up to 30m, one dimmer can accept up to 10 remote control.
● Work with WiFi-relay controller after install APP on IOS and Android system.
