CV Repeater
11 productsPWM Power Expansion for Constant Voltage LED Strips

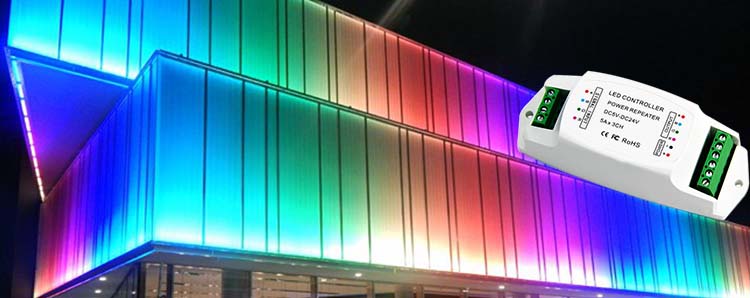

BinColor Constant Voltage (CV) Power Repeaters are designed for common-anode constant voltage LED strip lights, including single-color DIM, CCT, RGB, RGBW, and RGBCCT strips. They receive and repeat PWM control signals from a compatible main LED controller while using an additional DC power supply to drive more LED strip runs than the main controller can directly support.
By adding CV Power Repeaters, users can expand the power-handling capacity of an existing LED lighting strip control system without replacing the original controller. Additional LED strips connected to the repeaters follow the same dimming, color temperature, and color-changing commands as the main controlled lighting, maintaining synchronized operation across multiple lighting sections.
- - Single-Color DIM: 1-channel PWM repetition for single-color LED strips, max 10A.
- - CCT Tunable White: 2-channel PWM repetition for warm white and cool white LED strips, max 8A per channel.
- - RGB: 3-channel PWM repetition for red, green, and blue LED strips, 5A / 8A / 10A options per channel.
- - RGBW: 4-channel PWM repetition for red, green, blue, and white LED strips, 3A / 5A options per channel.
- - RGBCCT: 5-channel PWM repetition for RGB plus adjustable warm and cool white LED strips, 5A per channel.
Different models offer different output current ratings. Check the individual product specifications for maximum current per channel and total load capacity.
FAQ About CV Repeater
Direct engineering answers on sizing, wiring, high-frequency PWM dimming, and power expansion for constant voltage LED strip lights.
A CV repeater takes the incoming PWM dimming or color-changing signal from your primary LED controller and reproduces that identical signal across an auxiliary power feed without voltage drop. When long runs of constant voltage LED strip lights exceed the amp rating of your master controller—or when copper trace resistance causes visible dimming at the tail end—the repeater receives the clean low-current control signal and delivers fresh DC current from an independent power supply to keep every LED run perfectly uniform in brightness.
Every CV repeater requires its own dedicated DC power input sized to the wattage of the LED strip section it directly powers. While you can feed multiple repeaters from one large central driver if voltage drop along the trunk line permits, placing an independent power supply right next to each repeater eliminates long low-voltage DC cable runs. To calculate the exact supply wattage you need per unit, consult our strip power calculation guide.
A CV repeater can drive as many meters as its maximum channel amp rating allows, calculated by dividing the repeater's per-channel amperage by the strip's draw per meter. For example, a 4-channel repeater rated at 5A per channel on 24V handles 120W per channel (480W total). If your 24V RGBW LED strip lights draw 19.2 W/m (4.8 W/m per color channel), that single repeater handles exactly 25 m of tape without overloading its output stages.
A 5-channel CV repeater like our BC-965-DIN synchronizes all five channels (Red, Green, Blue, Warm White, and Daylight White) through a single DIN-rail terminal block. Many conventional expanders only carry 3 or 4 output channels, forcing installers to mount two mismatched repeaters for one 5-channel run. The BC-965-DIN accepts 5V to 24V DC input and controls up to 3A per channel across all 5 color channels simultaneously.
Color mismatch after a CV repeater is almost always caused by crossed channel wiring between the controller output and the repeater signal inputs. If the controller's green terminal is wired to the repeater's blue input terminal, color mixing will invert immediately. Power down the system and trace every conductor individually from the primary driver: confirm common positive (V+) links to input V+, and each color channel (R, G, B, W) matches identically on both input and output sides.
You can install our BC-964-WP CV repeater outdoors because it features a sealed IP67 aluminum housing and factory-potted internal electronics designed for wet locations. Pair it with an exterior waterproof 24V power supply and IP68 waterproof cable splice boxes to prevent moisture ingress through capillary wire wicking. Standard IP20 models like the BC-960 or DIN-rail series must remain inside an environmental NEMA 4 or IP66 enclosure if used outside.
High-frequency CV repeater models such as the BC-961 through BC-964 switch at frequencies above standard audible and optical thresholds, preventing the dark scanning bands commonly seen on phone cameras and broadcast equipment. Standard dimmers operating at 200 Hz to 500 Hz create visible strobing under high shutter speeds. Our high-frequency units smooth out the switching duty cycle to ensure consistent light output in television studios, trade displays, and video conferencing rooms.
