BinColor Control System

The BinColor DMX Control System provides versatile DMX512 lighting control solutions for DIM/CCT/RGB/RGBW/RGBWY LED strips, DIM/CCT/RGB/RGBW constant current LED fixtures, and professional lighting installations.

Its control functions include time-based programming and scheduling, Art-Net and E1.31 (sACN) network control, offline playback, RDM remote device management, built-in lighting program selection, DMX signal enhancement and amplification, and to manage 0-10V lighting. Explore the BinColor DMX series at SuperLightingLED to find the right solution for your DMX lighting project.

• - DMX Controllers: Generate and output DMX512 control signals to compatible LED fixtures and DMX decoders, serving as the central control source for your lighting system.
• - DMX CV Decoders: Receive DMX512 signals and convert them into PWM outputs to control constant voltage LED strips, with default or adjustable PWM output frequencies ranging from 1kHz–8kHz or 3kHz–24kHz, depending on the model.
• - DMX CC Decoders: Provide DMX512 dimming and control for constant current LED fixtures, with available output current options of 350mA, 500mA, 700mA, 750mA, and 1050mA, depending on the model.
• - DMX Signal Drivers & Converters: Regenerate, boost, and distribute weakened DMX512 signals to help maintain reliable signal transmission across larger lighting systems. Selected models can also convert DMX512 signals into 0-10V analog control signals for compatible dimmable LED drivers and fixtures.

BinColor LED Light Dimming System is designed to provide a flexible dimming solution for LED lighting, including multiple light dimmer types with different signals, such as 0-10V, DALI, and PWM.

By using a dimming signal converter, you can control different LED light dimmers with one centralized system. This is very helpful for creating specific lighting atmospheres and meeting the needs of different usage scenarios.

BinColor LED Light Dimming System with flexibility and scalability, allowing users to select the right type of dimmer for their needs and expand the system's functionality as system requirements increase.

BinColor Touch Panel Controller Series is designed around intuitive in-wall touch panels as the primary control interface for constant voltage (CV), constant current (CC), and DMX-controlled LED lighting systems.

These BinColor Touch Control LED Lights Wall Panels are consists of single zone series and multi-zone (4-zone) series, wildly used for commercial, office, and household lighting, workable for dimming, color temperature, RGB, and RGBW led lights.

1) Single Zone Series Wall Panel Controls is to control low voltage white, tunable white, RGB, and RGBW led strip lights;

2) Multi Zone Series Wall Panel Controls bring DMX control to your tape lights, connect to DMX PWM decoders;

3) Wireless Single Zone Series Wall Panel Controls include an RF DMX wall panel and an RF CC/CV controller, so you can control your DMX decoder light strips connected to the panel and other constant voltage or constant current led lights connected to the controller via one touch wall panel;

4) Wireless Multi Zone Series Wall Panel Controls are the four zones control version of the Wireless Single Zone Series.

Wireless Handheld Remote Control for CV & CC LED Lighting

The BinColor Wireless Remote Controller Series provides convenient handheld RF remote control solutions for constant voltage (CV) LED strips and constant current (CC) LED lighting fixtures. Designed to complement different types of LED lighting control systems, these BinColor wireless remotes allow users to adjust their lighting easily without always having to operate the main controller directly.

Whether your lighting system uses a wireless receiver, an in-wall touch panel, a push-button controller, or a rotary dimmer controller, the handheld remotes can provide an additional way to operate your LED lighting.

Available wireless options include 433.92MHz RF and 2.4GHz RF, depending on the model and control system. Each remote must be matched with a compatible receiver or controller using the corresponding wireless frequency and communication protocol.

The BinColor RGB/RGBW Controller Series is designed for color-changing RGB, RGBW, and RGBCCT LED lighting, providing flexible color and brightness control for different LED strip lights and lighting fixtures. The series includes both constant voltage (CV) and constant current (CC) controller solutions, offering manual and wireless control options to suit different lighting configurations.

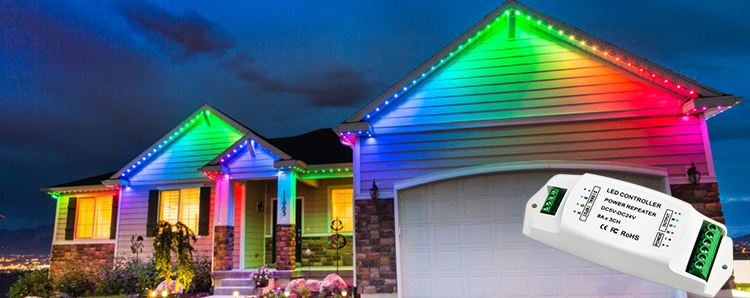

BinColor LED Power Expanders, also known as LED Power Repeaters, are designed to increase the power-handling capacity of LED lighting control systems, allowing one LED controller to operate additional LED strips or lighting fixtures.

By receiving the original controller's compatible PWM control signal and using an additional DC power supply, a power repeater provides extra output capacity while maintaining synchronized dimming and color control. LED Power Repeaters are particularly useful in two situations:
