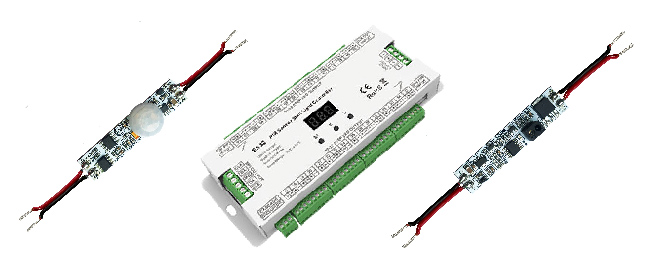

Skydance sensor switch series products include PIR body sensor switch, hand sweep sensor switch and gate control sensor switch. PCBA board mode, low cost, easy to install, generally built in the lamp tube, installed in the exhibition case, wardrobe and other occasions, used to control 5 meters of low voltage single color LED strip.
SkyDance Control System
Sponsors
Sponsors
Sensor Switch
(0)Model:E1-H
E1-H High Voltage Sensor LED Controller - RF Smart Switch
- Input voltage: AC100-240V
- Output Voltage: AC100-240V
- Output Power: 300-720W
- Input Signal: Sensor + RF 2.4GHz
- Input Current: Max 3A
- RF Control Distance: 30m
- Warranty: 5 years
- Operation Temperature: -30℃~+55℃
Features ● Sensor + RF smart switch with relay output, without dimming function. ● Input connect with 7 kinds of sensor detector optional, output connected directly to single color LED lamps, traditional incandescent, halogen lights or other electrical equipment. ● Match with RF 2.4G dimming remote control optional, except PIR motion sensor input. ● Each smart switch can also work as...
(0)Model:E1-S
E1-S 1.5A High Voltage Triac Sensor Dimmable LED Controller - RF Smart Switch
- Input voltage: AC100-240V
- Output Voltage: AC100-240V
- Output Power: 150-360W
- Input Signal: Sensor + RF 2.4GHz
- Input Current: Max 1.5A
- RF Control Distance: 30m
- Warranty: 5 years
- Operation Temperature: -30℃~+55℃
Product Features ● RF AC phase-cut trailing edge dimmer, to dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights. ● Input connect with 9 kinds of sensor detector optional. ● Match with RF 2.4G dimming remote control optional, except PIR motion sensor input. ● Each Triac dimmer can also work as Sensor - RF signal converter, controlling one or more...
(0)Model:E1-B
E1-B DC12-24V Hand Sweep Sensor Switch For Low Voltage LED Strip
- Input voltage: DC12-24V
- Output Voltage:DC12-24V
- Detective Distant:≤8cm
- Detective Angle:15-30
Features ● Hand sweep sensor switch, connected directly to the low voltage LED strip. ● When hand sweep, the strip turn on gradually. When hand sweep again, the strip turn off gradually. ● Max 4A output current, max output power 96W@24V. ● Generally installed in the aluminum lamp strip housing. ● 3M paste in the bottom of the PCBA make easy installation and security. ● Low cost and...
(4)Model:ES32
PIR Sensor LED Stair Lights Controller ES32 With Stair Lighting Kit
- Input voltage: 5-24VDC
- Output voltage: 32*(5-24)VDC
- Output Power: 32*(5-24)W
- OT: -30℃~+55℃
- CT: Tc:+85℃
- IP rating: IP20
This led product is a PIR sensor stair light controller for DIY stairway lighting, suitable for stair lights indoor decor. The motion sensor stair lights can automatically get the human body induction, and then automatically turn on the stair lighting, after a few seconds, the staircase lighting will disappear, it is an intelligent stair lighting system. This ES32 controller for stairway lights...
(0)Model:EMR
Microwave Sensor RF Switch & Dimmer EMR
- Working voltage: 9-24VDC
- Output signal: RF 2.4GHz
- HF system: 10.525GHz
- Mounting height: 15m Max.
- Motion detection: 0.5-3m/s
- Detection angle: 150°/360°
- Hold time: 10s~30min
- Warranty: 5 years
Microwave Sensor RF Switch & Dimmer. Motion detector/RF 2.4G remote/Wireless remote 30m distance. To replace ER2 . Features: ● Active microwave motion detectors with HF system 10.525GHz, motion can be detected through plastic, glass and thin non-metal materials. ● Built-in motion sensor and daylight sensor. ● Powered by low voltage 9-24VDC, output RF 2.4G...
(0)Model:E1-D
E1-D DC12-24V Door Sensor Switch For LED Strip Light
- Input voltage: DC12-24V
- Output Voltage:DC12-24V
- Detective Distant:≤10cm
- Detective Angle:15-30
Features ● Door sensor switch, connected directly to the low voltage LED strip. ● When the door open, or no obstacle ahead, the strip turn on gradually. When the door close, or obstacle ahead, the strip turn off gradually. ● Max 4A output current, max output power 96W@24V. ● Generally installed in the aluminum lamp strip housing. ● 3M paste in the bottom of the PCBA make easy...
(0)Model:ES-T
5VDC ES32/ES16 LED Stair Step Light Controller IR Sensor ES-T
- Input voltage: 5VDC
- Output Current: <10mA
- Output signal: 5V pulse signal
- Reflection distance: Max.1.4m
This IR (Infrared) sensor is specifically designed to work with the ES32/ES16 LED stair step light controller. It consists of two key components: an IR emission probe and an IR reflection plate. The IR emission probe emits an infrared signal which is then reflected by the IR reflection plate. It is important to note that the distance between the IR emission probe and the IR reflection plate...
(0)Model:EM
Delay Time Adjustable Microwave Sensor Switch & Dimmer EM For ES32
- Voltage: DC5V
- HF system: 10.525GHz
- Detection zone: Max.(DxH) 20 x 15m
- Mounting height: 15m Max.
- Motion detection: 0.5-3m/s
- Detection angle:: 150°/360°
- Hold time: 10s-30min
- Power consumption: <0.5W/1W
Microwave Sensor Switch & Dimmer. Motion Detector/ Daylight Sensoring /5V PWM Signal Output. To replace EM1, EM2, and EM3. Features: ● 10.525GHz active microwave sensor that can detect the motion of a human body or object through plastic, glass or thin non-metal materials. ● Built-in motion sensor and daylight sensor. ● Low voltage 5VDC power supply,...
(0)Model:E1-R
E1-R DC12-24V PIR Motion Sensor Switch
- Input voltage: DC12-24V
- Output Voltage:DC12-24V
- Detective Distant:≤3cm
- Detective Angle:120
Features ● PIR motion sensor switch, connected directly to the low voltage LED strip. ● When people or objects enter the sensitive field, the strip turn on. When these exit the sensitive field, the strip turn off after 30 seconds. ● Max 3A output current, max output power 72W@24V. ● Generally installed in the aluminum lamp strip housing. ● 3M paste in the bottom of the PCBA make easy...
