The housing is made of die-cast aluminum and stainless steel; The lens is with high transmittance PC; the light color is smooth, with no diffused lighting and shadow.We adopt silicone seal protection; the waterproof rate is IP68. Connecting with "SYS-T1 controller" or "SYS-PT1 controller box", you can wireless control the 16 million color, color temperature, brightness, and saturation. Widely used on the plaza, park, garden, and fountain, etc.
Miboxer LED Light&Controller
Sponsors
Sponsors

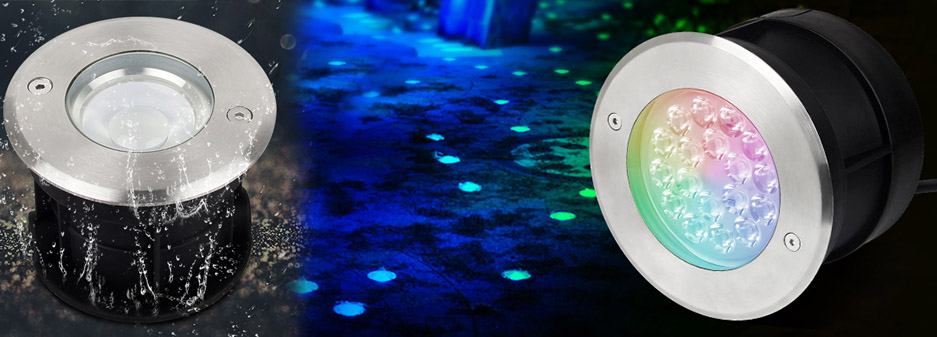

LED RGB+CCT Underground Light
(0)Model:SYS-RD1
DC24V 5W RGB+CCT LED Underground Light (Subordinate Lamp)SYS-RD1
- Input voltage: 12-24VDC
- Color temperature: 2700~6500K
- Power: 5W
- Beam Angle: 30°
- Luminous Flux: 350LM
- Light Efficiency: 70LM/W
- IP Rate: IP68
- CRI: >80
Product Name: 5W RGB+CCT LED Underground Light (Subordinate Lamp) Model No.: SYS-RD1 Input Voltage: DC24V Power: 5W Working Temperature: -20~60℃ Color temperature: 2700~6500K Luminous Flux: 350LM Light Efficiency: 70LM/W CRI: >80 Lifespan: 50000h Beam Angle: 30° IP Rate: IP68 SYS-RD1
(0)Model:SYS-RD2
9W RGB+CCT LED Underground Light (Subordinate Lamp)SYS-RD2
- Input voltage: DC24V
- Powerl: 9W
- Beam Angle: 15°
- Luminous Flux: 700 Lumen
- Light Efficiency: 80LM/W
- CRI: >80
- IP Rate: IP68
- Color temperature: 2700~6500K
Product Name: 9W RGB+CCT LED Underground Light (Subordinate Lamp) Model No.: SYS-RD2 Input Voltage: DC24V Power: 9W Working Temperature: -20~60℃ Color temperature: 2700~6500K Luminous Flux: 700LM Light Efficiency: 80LM/W CRI: >80 Lifespan: 50000h Beam Angle: 15° IP Rate: IP68 SYS-RD2
(0)Model:UG4-03A-XL
DMX512 RGBW IP68 Waterproof LED Underground Light DC12V 3W UG4-03A-XL
- Working Voltage: DC12V
- Working Temp: -20~45℃
- IP Rate: IP68
- Color Temperature: RGB+2700K
- Input Signal: DMX512
- Power: 3W
- Beam Angle: 50°
- CRI: >80
Product Description • Editing address automatically • Compatible and extend DMX512 (1990) signal protocol • Parallel control, support 1024 channel • High accurate decoding for DMX signal(200K-750Kbps) • IP68 waterproof Product Parameters Product Name: 3W RGBW LED Underground Light (DMX512) Model No.: UG4-03A-XL Input Voltage: DC12V Input Signal: DMX512 Power: 3W...
(0)Model:UG4-05A-XL
DMX512 IP68 Waterproof RGBW LED Underground Light DC24V 5W UG4-05A-XL
- Working Voltage: DC24V
- Working Temp: -20~45℃
- IP Rate: IP68
- Color Temperature: RGB+2700K
- Input Signal: DMX512
- Power: 5W
- Luminous Flux: 330LM
- Beam Angle: 30°
Product Description • Editing address automatically • Compatible and extend DMX512 (1990) signal protocol • Parallel control, support 1024 channel • High accurate decoding for DMX signal(200K-750Kbps) • IP68 waterproof Product Parameters Product Name: 5W RGBW LED Underground Light (DMX512) Model No.: UG4-05A-XL Input Voltage: DC24V Input Signal: DMX512 Power: 5W...
(0)Model:UG4-09A-XL
DMX512 IP68 Waterproof RGBW LED Underground Light DC24V 9W UG4-09A-XL
- Working Voltage: DC24V
- Working Temp: -20~45℃
- IP Rate: IP68
- Color Temperature: RGB+2700K
- Input Signal: DMX512
- Power: 9W
- Luminous Flux: 680LM
- Beam Angle: 15°
Product Description • Editing address automatically • Compatible and extend DMX512 (1990) signal protocol • Parallel control, support 1024 channel • High accurate decoding for DMX signal(200K-750Kbps) • IP68 waterproof Product Parameters Product Name: 9W RGBW LED Underground Light (DMX512) Model No.: UG4-09A-XL Input Voltage: DC24V Input Signal: DMX512 Power: 9W...
(0)Model:RD-9L
RD-9L 9W RGB+CCT LED Underground Light
- Power: 9W
- Input Voltage: AC12V / DC12~24V
- Working Temperature: -20~45℃
- Color Temperature: 2700K~6500K
- Luminous Flux: 600LM
- Light Efficiency: 70LM/W
- CRI: >80
- IP Rate: IP68
Product Parameters Model No.: RD-9L Power: 9W Input Voltage: AC12V / DC12~24V Working Temperature: -20~45℃ Color Temperature: 2700K~6500K Luminous Flux: 600LM Light Efficiency: 70LM/W CRI: >80 RF: 433MHz Modulation Method: LoRa spread spectrum Lifespan: 50000h Beam Angle: 15° IP Rate: IP68 Product specification RD-9L
(0)Model:RP1
IP67 2.4G RF Repeater RP1
- RF: 2.4GHz
- Working Voltage: 100-240V
- Standby Power Consumption: 0.2W
- Transmission Distance: 30m
- Transmitting Power: 6dBm
- IP Rate: IP67
Theitemis2.4GRFRepeaterwhichsupportsignalreceivingandtransmittingfunction.It's compatiblewithMiboxer2.4Gremoteseries,onerepeatersupport12piecesremoteatthe sametime,therepeaterissuitableforoutdoorlightswhichinstallinopenandlongdistance area. Product Description • 2.4G RF signal receiving and auto transmitting • Extend distance of remote control • Can be paired with...
