CC Controller
9 productsRGB RGBW Current Control for LED Fixtures
BinColor Constant Current (CC) RGB/RGBW Controllers are developed for color-changing constant current LED modules and lighting fixtures. Unlike constant voltage RGB controllers that regulate LED channels through PWM voltage switching, CC controllers provide regulated constant current outputs to drive compatible RGB and RGBW LED loads.
The series offers multi-channel constant current configurations for controlling different color channels, with output current options including 350mA and 700mA. By matching the controller's rated output current to the LED fixture, users can achieve consistent and controlled color output while adjusting the brightness of their constant current RGB/RGBW lighting.
BinColor CC RGB/RGBW controllers primarily offer wireless control through compatible RF remotes and receiver combinations. Users can select colors, adjust brightness, and activate preset dynamic lighting effects through the matching control interface.
The PX systems also integrate wireless touch-panel control and additional DMX512 connectivity, providing more options for incorporating constant current color-changing fixtures into different lighting control setups.

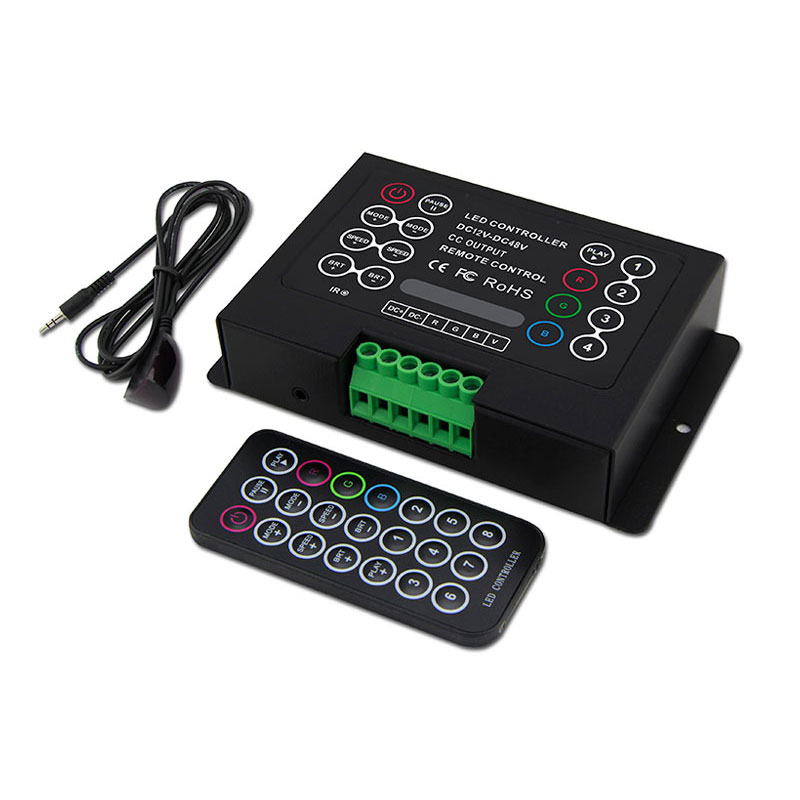

BC-380-CC DC12-48V 3 Channels 350mA/700mA Constant Current RGB Controller
FAQ About CC Controller
Direct engineering answers on constant current RGB and RGBW controllers, series wiring, drive currents, and 48V power setups.
A CC controller regulates the electrical current fed to constant current RGB or RGBW LED strip lights and fixtures, holding it at a fixed milliamp level like 350mA or 700mA. Unlike constant voltage systems that output a fixed 12V or 24V and let the strip regulate its own amperage, a constant current controller continuously adjusts its output voltage to maintain a fixed current through every diode in the circuit. This eliminates color shift and thermal runaway on high-power emitters.
You choose between 350mA and 700mA CC controller models by matching the exact milliamp rating of your constant current LED emitters. As an engineering baseline, 1W high-power emitter chips are driven at 350mA, while 3W chips run at 700mA. Running a 350mA LED on a 700mA unit causes severe thermal runaway and burns the die out inside weeks. Driving a 700mA chip on a 350mA controller is electrically safe, but you cut total lumen output by roughly 50%.
You can select one of our integrated DMX-enabled CC models like the P3X+R4-CC-2.4G. Using an integrated DMX-CC unit lets you assign starting DMX addresses via external DMX CC decoders, translating standard lighting desk faders into flicker-free PWM current control.
When a single diode burns open in a series circuit wired to a CC controller, that entire color channel turns off safely. The CC controller detects an open circuit and clamps its output voltage to the DC input rail without blowing the remaining diodes or harming adjacent channels. Once you locate the failed diode and bridge or replace it, the remaining fixtures relight instantly. If a diode shorts out instead of burning open, the controller automatically reduces output voltage to maintain the target current safely.
