DMX CC Decoder

4 products

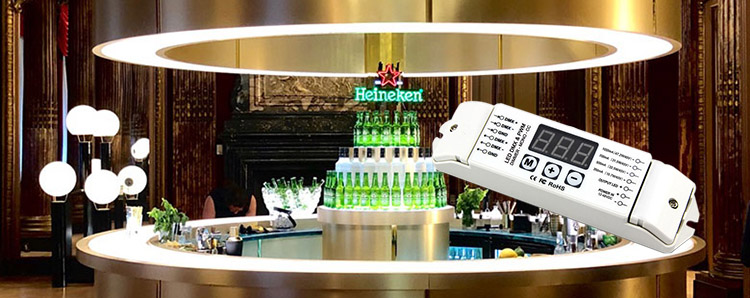

The BinColor DMX Constant Current (CC) Decoder Series is designed to control constant-current LED fixtures through a DMX master controller. It receives DMX512 control signals and converts them into constant current outputs, allowing you to centrally control the brightness and color of compatible LED fixtures through a DMX lighting system.

Depending on the model, these BinColor DMX CC decoders support 1–4 channels of single-color dimming, 1–2 channels of CCT tunable white control, or 1 channel of RGB or RGBW color control. Available output current options include 350mA, 500mA, 700mA, 750mA, and 1050mA, providing flexibility for different constant current LED fixtures and lighting requirements.

Simply connect the decoder to a DMX master controller and configure the DMX starting address and corresponding output mode to match your lighting setup. Multiple decoders can be integrated into the same DMX system for centralized lighting control. Select the appropriate decoder according to your fixture's channel configuration, rated current, and wiring requirements.

FAQ About DMX CC Decoders

Direct engineering answers on wiring, voltage sizing, mA selection, and troubleshooting constant-current DMX decoders.

A DMX CC decoder is built specifically for series-wired bare LED emitters, downlights, spotlights, and wall washers that do not have built-in current-limiting resistors. Standard LED tape uses integrated resistors designed for 12V or 24V fixed rails, whereas constant-current fixtures demand a regulated milliamp feed—typically 350mA, 700mA, or 1050mA—to prevent thermal runaway. If your luminaire datasheet specifies a fixed drive current and a variable forward voltage (Vf) range, you must use a constant-current decoder rather than a constant-voltage unit.

Match your DMX constant current decoder output to the exact milliamp rating printed on your LED fixture's specification label. Our decoders provide either selectable DIP switches or dedicated factory-configured hardware terminals to pin the drive current. Driving a 350mA diode at 700mA cuts emitter lifespan from 50,000 hours to a few days due to heat buildup. Driving a 700mA diode at 350mA is completely safe, though light output drops by roughly 50%.

With 4096 grey scale levels, a DMX CC decoder divides the pulse-width modulation output into 12-bit increments, eliminating visible stepping below 5% brightness. Human eyes perceive brightness logarithmically, so 8-bit systems with only 256 steps show distinct jumping and flickering as lights fade near zero. Decoders like our BC-854-CC 4-channel decoder calculate intermediate PWM steps across the curve. This produces smooth fades in theaters, architectural coves, and museum galleries where harsh pops during cue blackouts are unacceptable.

You can operate tunable white luminaires by assigning warm-white and cool-white diode circuits to separate channels on a multi-channel DMX constant current decoder. For a 2700K to 6500K architectural downlight requiring 700mA, assign Channel 1 to the warm string and Channel 2 to the cool string under two consecutive DMX addresses. Your DMX console mixes the two channels to blend correlated color temperature while maintaining fixed current regulation. Just verify that the downlight uses independent cathode and anode returns rather than a common-anode configuration.

If one emitter shorts closed, the DMX CC decoder instantly reduces channel output voltage to maintain your selected current, leaving remaining series LEDs running safely. Conversely, if an emitter burns open, circuit continuity breaks and all LEDs on that specific series channel shut off. The decoder simply ramps to its maximum internal voltage cap without damaging itself. Once you replace the failed open diode, the circuit restores normal operation immediately without needing a manual power reset.

You can drive different wattages simultaneously only if each channel on the DMX CC decoder operates at an independent milliamp setting. A 1W bare emitter typically requires 350mA, while a 3W emitter requires 700mA. Putting both in the same series string forces 700mA through the 1W diode, burning it out within minutes. On multi-channel units with per-channel current selection, you can run a 350mA series string on Channel 1 and a 700mA series string on Channel 2 without issues.

You can daisy-chain up to 32 DMX CC decoder units along a single physical RS-485 signal run before requiring a signal amplifier. For larger networks exceeding 32 decoders, add an optically isolated DMX splitter to branch new data runs.
