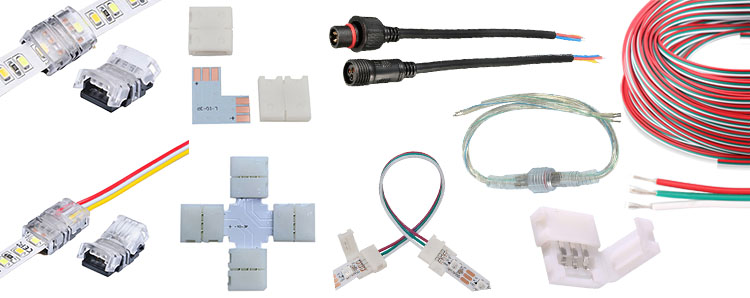

Supplement your CCT LED strip lighting system (adjustable white light system) with these accessories, including 3-pin extension cords, connectors, etc. As long as your light strip is designed to come with 3 wires, you can use these accessories. The benefit of using these 3 pronged connectors for your custom led strip lights project is ease of installation, simplifying the connection of light strips to light strips and light strips to power cables.
LED Light Strip Accessories
Sponsors
Sponsors
3-Pin CCT LED Strips Parts

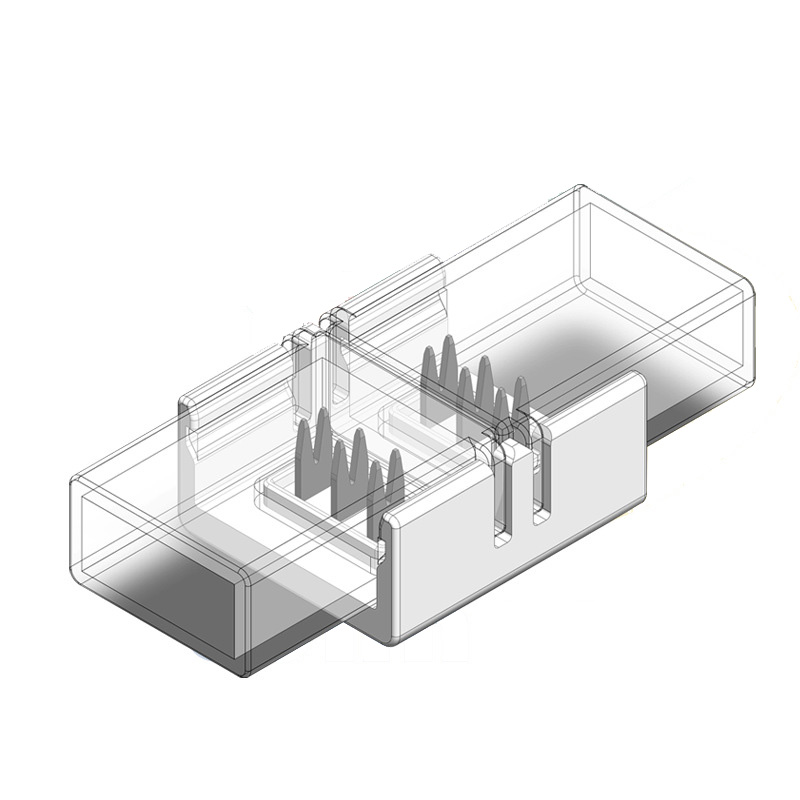

(0)Model:WPACC-SMD-BTB-3P
SMD 3 Pin Waterproof Connector Tape to Tape For 3 Wire LED Strip Lights
- Type: Waterproof Connector
- Material: Plastic
- Pins: 3
- For: SMD LEDs
- PCB Width: 8/10/12mm
- Waterproof Width: 10/12/14mm
3-pin waterproof led tape-to-tape connectors for IP-rated CCT tunable white SMD LED strips and single-signal addressable SMD LED strips , compatible with 8mm/10mm/12mm PCBs. The 3 wire waterproof connector has three parts, a base with pins and two clear plastic frames for the SMD tapes. The clear plastic frames are empty at the point where the light strip is punctured, allowing glue...
(0)Model:CT-ACCESSORIE-005
1M/3.28ft 3 Pins 20/22AWG Power Wire Extension Cable Line Wire For CCT and Addressable LED Strip Lights
- Wire Size:18/20AWG
- Length:3.28ft/1m
- Core material:oxygen-free copper
The power cord uses oxygen-free tinned copper wire, and each wire contains multiple high-quality pure copper wires twisted, low resistance, and lasting stability. Resistance directly affects the consumption at this point in the transmission process, and the smaller the resistance, the better. Using PVC insulation material, high tensile strength, super soft, not easy to break. It is suitable for...
(0)Model:HV-ACCESSORIE-3PIN
3-Pin 20/18AWG Waterproof Power Cable For High Power LED Strip Lights
- AWG:18/20 optional
- Length:3.28ft/1m
- Shell Color:White/Black
- Core material: oxygen-free copper
3-Pin 20AWG/3*0.5mm Copper Core RVV White PVC Jacket Waterproof Power Cable For High Power Color Temperature / Addressable 3 pin LED Strip Lighting, 3.28Ft/1m by sale. The waterproof power cable is made of imported high-strength plastic, which has good flexibility and is not easy to break, and uses PVC protective sleeves inside and outside, with double protection of the core, and stable...
(0)Model:CT-ACCESSORIE-010
3Pin 20Awg Waterproof Power Wire Extension Cable 3.28Ft/1m
- Length:3.28ft/1m
- Wire Size: 20Awg 3*0.5mm
- Core material: Tinned Copper
The power cord uses oxygen-free tinned copper wire, and each wire contains multiple high-quality pure copper wires twisted, low resistance, and lasting stability. Resistance directly affects the consumption at this point in the transmission process, and the smaller the resistance, the better. Using PVC insulation material, high tensile strength, super soft, not easy to break. It is suitable for...
(0)Model:ACC-COB-3P-P
3-Pin COB Press Fit Piercing Connectors For LED Light Strips
- Connect Type: Strip-to-strip, strip-to-wire
- Pins: 3
- Light Type: COB
- PCB Width: 8/10/12mm
- Apply to: CCT/Addressable
- Installation: Piercing
For 3-wire COB strip lighting applications that require cutting, the use of connectors is an accessible way to achieve a quick installation that doesn't require soldering or complicated maneuvers. Two types of connectors, board-to-board and board-to-wire, are provided here to address different COB connection needs. • Board-to-board: for connecting multiple sections of 3-pin cob...
(0)Model:ACC-COB-3P-L
Crimping Insulation Piercing LED Strip Corner Connector 3 Pin
- Shape: One-Piece L
- Pins: 3
- Light Type: COB
- PCB Width: 8/10/12mm
- Apply to: CCT/Addressable
- Installation: Piercing
Use this L-shape COB 3-pin connector to solve the corner mounting you encounter in your CCT dual color temperature lighting or addressable lighting project without any complicated maneuvers for quick installation. Cut the cob strip along the cut line; insert the cob PCB in both directions into the two openings of the L connector, adjust the strip so that the pins are aligned with...
(0)Model:SC-ACCESSORIES-029
8/10mm Wide 2-Pin PCB to PCB Fast COB Connector for COB LED Strips or High-density LED Strips
- Applicable Width: 8mm/10mm
- Applicable Color: COB singel color
- Type: Board to Board
- Waterproof Level: IP20
Type: Board to Board 8MM 10MM COB monochrome lamp with connector, board-to-board indirect soft lamp with connection buckle, 2P lamp with crystal link terminal Width Applied to 5mm 2 PIN For Single color COB LED lights 8mm 10mm 10mm 3PIN For CCT COB LED lights 4 PIN For RGB COB LED lights
(0)Model:ACCESSORIES-COB-L
2/3/4Pin L-Shape COB LED Strip Light Corner Connectors, No Dark Area
- PIN: 2/3/4
- PCB Width: 5/8/10mm
- Color: Single color/CCT/RGB
- Type: L-Shape
Check the L-Shape COB LED Strip Light Connectors for corner installation. You can use them to connect two segments linear cob strips and install them in the corner. Insert the COB LED strips inside the corner connector and press the metal clips for a strong connection. 5mm, 8mm, and 10mm for 2-pin single color cob led strips; 8mm and 10mm for 3-pin CCT cob led strips; 10mm for RGB COB led...
(0)Model:CT-ACCESSORIE-COB01
COB 3 Pin LED Strip Connector For 10mm CCT Dimmable LED Strip Lights
- Type: Board to wire
- PCB Width: 10mm/8mm
- LED Type: COB
- Pins: 3pin
COB led strip connector for 10mm/8mm nonwaterproof IP20 CCT COB led strip light, board to wire type, user-friendly, quick and safe, easy to use. This 3pin COB led connector is non-waterproof. If it fails, check if the COB led light strip is good and the positive and negative are not reversed.
(0)Model:CT-ACCESSORIE-COB
COB LED Strip 3 Pin LED Connector For 10mm COB CCT Tunable White LED Strip Lights
- Type: Board to board
- PCB Width: 10mm/8mm
- LED Strip: CCT COB
- Wire Length: 6.7in/170mm
- Wire Gauge: 20AWG
COB led connector for 10mm/8mm IP20 nonwaterproof CCT COB led strip, board to borad type, user-friendly, quick and safe, easy to use. This 3pin COB led strip connector is non-waterproof. If it fails, check if the COB led strip light is good and positive and negative are not reversed.
(0)Model:CT-ACCESSORIE-I
3 Pin SMD LED Strip Connector For 8mm/10mm PCB, Strip to Strip Type
- Type: 3 Pin LED Connector
- PCB Width: 8/10mm
This is a 3-pin LED connector for 8mm/10mm adjustable white LED strip lights or single signal addressable WS2812B/SK6812/WS2811 led strips, its function is to connect two sections of light strips together without soldering. It's a LED connector with 3 pins. Compatible with 8mm or 10mm PCB. Used with IP20 SMD LED Strip Lights. The transparent shell design does...
(0)Model:CT-ACCESSORIE-IL
3 Pin Connector Board to Board Type For 10mm CCT LED Strip
- Pin Type: 3pin CCT
- PCB Width: 10mm
This is a 3-pin LED connector for 10mm wide CCT adjustable color temperature LED strip lights, used to connect two sections of light strips. It's 2 inches in length, and 0.58 inches wide. It can be stright connected or L-shape connected. White wire: "W" / "CW" white channel Yellow wire: "WW" warm white channel Red wire: positive ...
(0)Model:CT-ACCESSORIE-L
3 Pin LED Strip Corner Connector For 8mm/10mm Tunable White LED Strips
- Type: 3 pin led connector
- PCB Width: 8mm/10mm
This product is a must-have component for your dimmable white LED strip lights project. Use this L-shape connector to join cut adjustable white led strips together without soldering. For CCT LED Strip Lights Compatible with 8mm or 10mm PCB width For corner installation Note: When using this connector, please align the positive and negative poles correctly. ...
(0)Model:3P-ACCESSORIE-W12
3 Pin 12mm SMD LED Strip to Wire Connector
- Applicable Width: 12mm
- Type: Board to Wire
The 3-pin solder-free connector for SMD LED strip is used to connect any 3-wire LED strips, such as CCT LED strips and 3 wire RGBIC LED strips. Compatible RGBIC models include WS2812B, WS2811, and SK6812, etc. It designed for LED strips with 12mm PCB width. Product Parameters Type: 3 pin led connector PCB Width: 12mm Wire Length: 15cm
(0)Model:CT-ACCESSORIE-EX
3 Pin 10mm LED Strip to Strip Connector For Extension
- Type: 3Pin Connector
- PCB Width: 10mm
- Length: 143mm/5.6"
This product is a 3-pin LED connector to connect two sections of 10mm light strips together. 143mm/5.6" long, it's to extend strip length or jump obstacles. For 3-pin tunable white or single signal WS2812B/SK6812/WS2811 addressable SMD led strip lights.
(0)Model:3P-ACCESSORIE-SW
Strip to Wire 3 Pin LED Strip Connector For 10mm SMD LED Strip
- Pin Type: 3Pin
- LED Type: SMD LED
- PCB Width: 10mm
- Length: 120mm
The 3 pin strip-to-wire LED strip connector is a versatile solderless connector, mainly used to connect cut strips or strips without soldered wires. It can connect 10mm wide SMD LED strips, including adjustable white strips and 3-wire addressable strips, etc. This connector is designed with 3 pins to transmit signals efficiently and ensure that the light strip can work properly. Meanwhile, the...
(0)Model:CT-ACCESSORIE-HD2
3-Pin CCT LED Strip Light Connector For Highest Density LED Strip
- Wire Length: 15cm
- PCB Width: 8/10mm
- Pins: 3pin CCT
- Applied To: High Density Strip
This led light conenctor is to connect two 3 pin CCT color temperature led strip lights together. The notch design will not block the light emitting diodes. It's suitable for 8mm or 10mm high density led strip lights with single row . White wire: "W" / "CW" pure white channel Yellow wire: "WW" warm white channel Red wire: positive ...
(0)Model:CT-ACCESSORIE-HD
LED 3 Pin Connector For CCT High Density LED Strip
- Wire Length: 15cm
- PCB Width: 8/10mm
3 pin led connector for CCT adjustable color temperature led strip lights. The led strip connector comes with a notch, which not can block the led diodes. It's designed for single row high density led strips with 8mm or 10mm PCB width. White wire: "W" / "CW" white channel Yellow wire: "WW" warm white channel Red wire: positive ...
(0)Model:CT-ACCESSORIE-003
3 Pin LED Strip Connector 10mm With 1.64ft Extension Wire UL Listed 22 Gauge 3 Conductor, DIY Both Strip to Power Lead and Strip to Strip Jumper, Waterproof Optional
- Display: Full color
- Line Length: 100mm
- Waterproof Level: IP20 / IP65
- Voltage: 5-24V
Features: 1. With 1.64ft 3 conductor flat wire ready, you can DIY both strip-to-strip-bridge(jumper) and strip-to-power-lead connector wire that is up to 0.5 meters long, no stripping or soldering needed 2. Just place strip light or wire above connector's pin, then press cap down by pliers, the connection will be done well. Easily connect your dual color led strip to dimmer or...
(0)Model:CT-ACCESSORIE-007
LED Strip Connector 3 Pin 10mm Board to Board, Gapless Connector for Dual Color and Digital Pixel Strip Light
- PCB Width:10mm
- Connection Type:Board to Board
Applicable to both normal dual color and digital flex strip light which have 3 solder pad on 10mm FPCB Easy to connect LED pixel strip to strip, just need a pliers, no need too many tools, no need to welding. Good for high-density light LED strip, don't mask the light of first LED. The pin pierce strip light through from the back and get contacted inside FPCB thickness gaining reliable fixing...
