CC Repeater

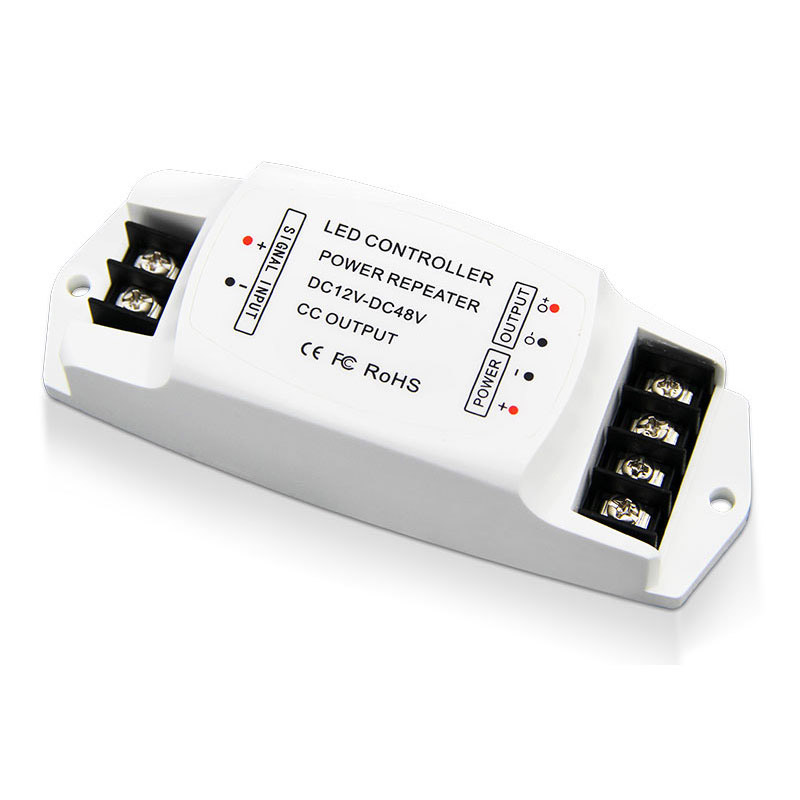

3 productsBinColor CC Repeaters are designed for constant current (CC) LED fixtures, providing reliable current amplification and power expansion for single-color and multi-color lighting systems.
Available in 1-channel and 3-channel configurations, it supports selectable constant current outputs of 350mA / 700mA for 1CH models and 350mA / 700mA / 1050mA / 2400mA for 3CH models.
Powered by an external DC power supply, it allows one CC controller to drive additional constant current LED lights while maintaining consistent current output and synchronized dimming performance.
FAQ About CC Repeaters
Direct engineering answers on wiring, voltage thresholds, and power sizing for constant current repeaters.
Connecting LED fixtures in parallel to a CC repeater will cause current imbalance, thermal runaway, and premature diode failure. Constant current drivers and repeaters are engineered strictly for series wiring. When you wire in series, the exact same regulated amperage flows through every diode in sequence. If you wire two identical fixtures in parallel across a 700mA repeater output, the current splits unevenly based on minor forward voltage differences; one fixture might draw 450mA while the other gets 250mA. As the hotter fixture pulls more current, it quickly burns out.
You must match the rated drive current specified on your LED fixture's technical datasheet to avoid burning out the diodes. High-power 1W LED chips typically require 350mA, while 3W chips run at 700mA. Running a 350mA fixture on a 700mA unit will overheat the phosphor and kill the diode within hours. If you are powering 3W multi-emitter spotlights, our BC-990-700 700mA repeater delivers dedicated 700mA output across its channels, handling up to 48V DC input to drive extensive series chains safely.
Connecting LED fixtures to a CC repeater while the power supply is energized—known as hot-plugging—will instantly destroy the diodes with an inductive voltage spike. When a constant current circuit is open, the internal output capacitors charge up to the maximum supply voltage (up to 48V DC). If you touch the fixture wires to the terminal while live, those capacitors dump their full stored energy into the cold LEDs before the regulation circuit can clamp the current. Always disconnect the primary AC power before wiring or servicing constant current fixtures.
