CC DALI Dimmable Driver

A constant current DALI dimmable driver regulates output milliamps rather than delivering a fixed voltage rail. Inside our models, the driver continuously adjusts its DC voltage—typically across a 9V to 42V window—to push an exact current like 350mA or 700mA through bare LED dies in downlights, spotlights, and linear modules. Because these LEDs lack onboard current-limiting resistors, connecting them to standard power supplies causes rapid thermal burnout. The DALI interface receives digital brightness telegrams over a two-wire bus and alters output current using pulse-width modulation without shifting the LED chip's colour temperature.

To configure a CC DALI dimmable driver correctly, you match the driver's rated milliamp output to the fixture's stated drive current, then ensure the fixture's total forward voltage (Vf) falls squarely inside the driver's DC output voltage range. If your downlight runs at 700mA with a forward voltage of 32V, a 700mA driver rated for 10V to 42V runs it effortlessly at roughly 22.4W. If your fixture's Vf drops below the driver's bottom voltage limit (say, 8V on a 10V minimum driver), the light will flicker or refuse to start.

Wiring constant current LEDs in parallel to one constant current DALI dimmable driver is a critical jobsite mistake that often destroys fixtures. When you wire in parallel, the fixed current splits between branches; if one LED warms up, its internal resistance drops, drawing more current until it overheats and burns out. Once that fixture opens, the remaining LEDs absorb the full driver output and burn out in cascade. Always wire constant-current fixtures in series: driver positive to the first light's positive, that light's negative to the next light's positive, and the final negative back to the driver.

Choosing an AC mains CC DALI dimmable driver depends entirely on whether your lighting runs on standard line voltage or an architectural low-voltage track system. These wire directly to 100-240V AC building power for ceiling cans and troffers. If you are installing magnetic track systems, our MT series drivers take 48V DC input from a central power supply and convert it down to constant current right inside standard STUCCHI track adapters.

On a constant current DALI LED driver equipped with T-PWM digital dimming, light output dims smoothly down to 0.01% without perceptible stepping or drop-out. Traditional analog amplitude dimming shifts the LED colour spectrum at low current and cuts off abruptly around 5% or 10%. DALI dimming via T-PWM maintains high-frequency pulses across the entire curve, meeting IEEE 1789 high-frequency exemption levels so video cameras and barcode scanners register zero flicker. The dimming curve can also be toggled between logarithmic (standard for human eye perception) and linear modes during system commissioning.

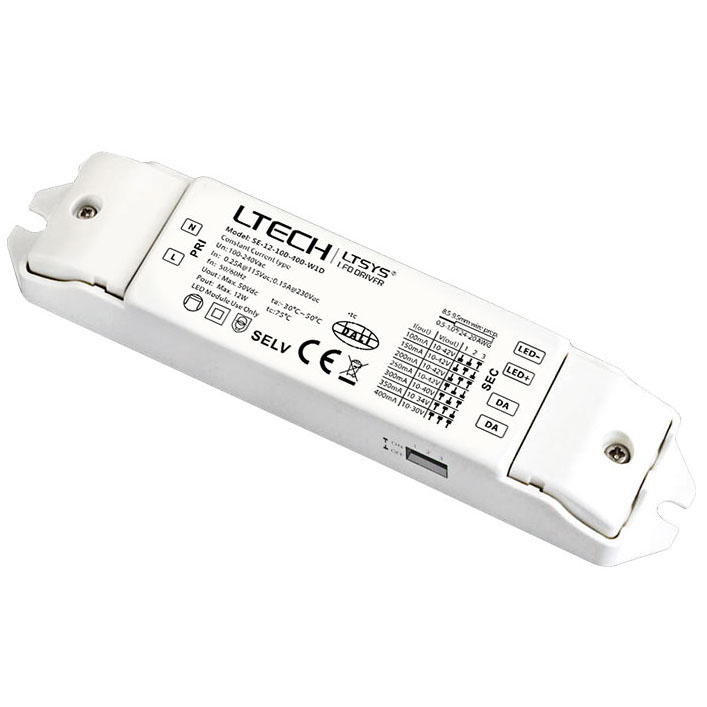

You adjust the current on an NFC-enabled DALI driver using a dedicated handheld programmer like the LT-NFC or via a compatible smartphone app without applying AC power. Simply input your target value—programmable down to 1mA increments on models—and tap the device against the driver's NFC icon. The setting writes in under a second. Older units rely on manual DIP switches, which restrict you to coarse steps such as 350mA, 500mA, or 700mA. NFC programming eliminates loose switches and lets contractors batch-configure dozens of unpowered drivers straight out of the shipping carton.

Yes, our MT series CC DALI drivers are engineered specifically for standard STUCCHI architectural magnetic tracks and low-profile linear extrusions. They feature ultra-compact housings with no input polarity restrictions on their 48V DC supply lines, preventing installation errors when inserting modules into live tracks. Operating at high carrier frequencies, they run completely silent with zero audible transformer whine or acoustic resonance inside metal channels, making them ideal for residential living rooms, retail displays, and museum spotlighting.
