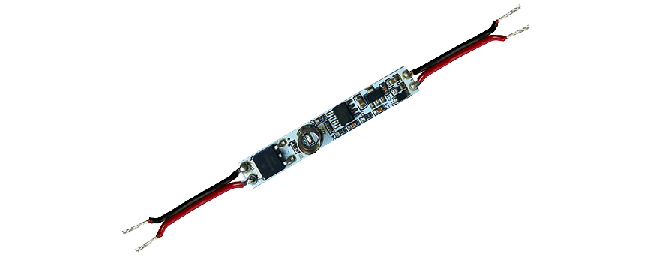

A sensor dimmer is a type of LED lighting control device that combines switching and dimming functions. The controller automatically turns LED lights on and off and adjusts the brightness level according to the compatible sensor type. This can help to conserve energy when full illumination is not needed.
SkyDance Control System
Sponsors
Sponsors
Sensor Dimmer
(0)Model:E1-L
E1-L DC12-48V Constant Voltage Sensor LED Dimmer
- Input voltage: DC12-48V
- Output current: 8A
- Operation Temperature: -30℃~+55℃
- Output voltage: DC12-48V
- IP Rating: IP20
- Output Power: 96W/192W/288W/384W
- Output type: Constant voltage
- Warranty: 5 years
Features ● Input connects with 9 kinds of sensor detector optional, output connected directly to the low voltage LED strip. ● Max 8A output current, max output power 384W@48V. ● PIR motion sensor: when people or objects enter the sensitive field, the light turns on; when this exit the sensitive field, the light turns off after 30 seconds. ● Touch sensor: short touch to turn on or...
.jpg "12-48VDC 8A Door Sensor + LED Controller E1-L+ED(C) For Single Color LED Strip Lights")
(0)Model:E1-L+ED(C)
12-48VDC 8A Door Sensor + LED Controller E1-L+ED(C) For Single Color LED Strip Lights
- Input voltage: 12-48VDC
- Output voltage: 12-48VDC
- Input current: 8.1A
- Output current: 8A
- Output power: 96W~384W
- Output type: Constant voltage
This door sensor is used to automatically turn white LED strip lights or other single color led strips on or off based on the opening or closing of a door. The door sensor typically consists of two parts: a sensor that is mounted on the doorframe and a switch that is installed near the light fixture. When the door opens, the sensor sends a signal to the controller, which turns the strip lights...
(0)Model:E1-L+EB/EB(C)
E1-L+EB/EB(C) 12-48VDC 8A Hand Sweep Sensor LED Dimmer
- Input voltage: DC12-48V
- Output current: 8A
- Operation Temperature: -30℃~+55℃
- Output voltage: DC12-48V
- IP Rating: IP20
- Output Power: 96W/192W/288W/384W
- Output type: Constant voltage
- Warranty: 5 years
Features ● Input connects with 9 kinds of sensor detector optional, output connected directly to the low voltage LED strip. ● Max 8A output current, max output power 384W@48V. ● PIR motion sensor: when people or objects enter the sensitive field, the light turns on; when this exit the sensitive field, the light turns off after 30 seconds. ● Touch sensor: short touch to turn on or...
(0)Model:E2-B
E2-B Hand Swipe Induction CCT Dimmer - Push Dim - 12-24VDC
- Input voltage: 12-24VDC
- Output power: 36/72W
- Dimming range: 0 -100%
- Input signal: Hand Swipe / Push DIM
- Dimming gray scale: 4096 levels
- PWM Frequency: 2000Hz
- Detective angle: 15-30℃
- Operation temperature: 20-50℃
Product Feature Hand swipe induction CCT dimmer, connected directly to the color temperature low-voltage LED strip. When hand swipe, switch between brightness and color temperature adjustment. When hold hand short for on/off and long for adjust brightness / color temperature continuously. Connect with external two push switches, one is used for on/off and adjusting brightness, the other is used...
(0)Model:E1-C
E1-C 1CH*3A 12-24VDC Constant Voltage LED Mini Touch Dimmer
- Input voltage: DC12-24V
- Output Voltage:DC12-24V
- Output Type:constant voltage
- Input Signal:Touch key
- PWM Frequency:128Hz
- Dimming Range:0～100％
Features ● 1 channel constant voltage single color LED mini sensor dimmer & switch for aluminum profiles. ● High sensitivity touch operation with LED indicator. ● 3A per channel, output connect with 5 meters single color LED strip, max output power 72W@24V. ● 0-100% dimming smoothly without any flash. ● The media on the touch spring can be PC cover, acrylic board or mirror glass....
(0)Model:EB
EB Hand Sweep Sensor LED Controller - 1M/3.28Ft Wire Length
- Detective Distance: <=8cm
- Detective Angle: 15-30
- Wire Length: 1m/3.28Ft
- Sensor Type: hand sweep
How to Control: When hand sweep, the light turns on gradually. When hand sweep again, the light turns off gradually. Sensor data Detective Distance: <=8cm Detective Angle: 15-30 Wire Length: 1m/3.28Ft Sensor Type: hand sweep Please note: This hand sweep sensor can not work with the ES32 LED controller EB Use Manual...
(0)Model:EC
EC Touch Sensor LED Controller - 1M/3.28Ft Wire Length
- Dimming Range: 0 -100%
- PWM Frequency: 128Hz
- Wire Length: 1m/3.28Ft
- Sensor Type: Touch Sensor
How to Control: Short touch the LED, turn on or turn off light. Long touch the LED, dimming up or down. Sensor data Dimming Range: 0 -100% PWM Frequency: 128Hz Wire Length: 1m/3.28Ft Sensor Type: Touch Sensor Please note: This touch sensor can not work with the ES32 LED controller EC Use Manual Dowmload Standards and...
(0)Model:ED
ED Door Sensor LED Controller - 1M/3.28Ft Wire Length
- Detective Distance: <=10cm
- Detective Angle: 15-30
- Wire Length: 1m/3.28Ft
- Sensor Type: Door sensor
How to Control: When the door open, or no obstacle ahead, the light turn on gradually; When the door close, or no obstacle ahead, the light turn off gradually. Sensor data Detective Distance: <=10cm Detective Angle: 15-30 Wire Length: 1m/3.28Ft Sensor Type: Door sensor Please note: This touch sensor can not work with the ES32 LED controller ...
(0)Model:EW
EW 5VDC Wood Or Glass Pane Touch Sensor With 1m Wire Length
- Voltage: DC5V
- Wire Length: 1m/3.28ft
- Medium: wood, glass or plastic
- DimmingRange: 0~100%
- Detective Distance: ≤5cm
- PWM Frequency: 2KHz
This is a Skydance sensor dimmer LED product - EW wood touch sensor, 33.5mm*19mm size, with 10mm height, 0~100% dimming range, detective distance ≤5cm. 2KHz PWM Frequency. ● Powered by low voltage 5VDC, output 5V level or PWM signal. ● Wood touch Sensor: the medium can be wood, glass or plastic. ● Short touch the sensing area to turn on or turn off light; long touch the...
(0)Model:EMR
Microwave Sensor RF Switch & Dimmer EMR
- Working voltage: 9-24VDC
- Output signal: RF 2.4GHz
- HF system: 10.525GHz
- Mounting height: 15m Max.
- Motion detection: 0.5-3m/s
- Detection angle: 150°/360°
- Hold time: 10s~30min
- Warranty: 5 years
Microwave Sensor RF Switch & Dimmer. Motion detector/RF 2.4G remote/Wireless remote 30m distance. To replace ER2 . Features ● Active microwave motion detectors with HF system 10.525GHz, motion can be detected through plastic, glass and thin non-metal materials. ● Built-in motion sensor and daylight sensor. ● Powered by low voltage 9-24VDC, output RF 2.4G signal....
(0)Model:EH-M
100-240VAC RF/0-10V Ceiling Microwave Induction Dimmer & Switch EH-M
- Working voltage: 100-240VAC
- Output signal: 0/1-10V, RF 2.4GHz
- Motion detection: 0.5-3m/s
- Detection angle: 360°
- Mounting height: 10m Max
- HF system: 10.525GHz
Typical application 1: used as a switch Turns on the light upon detection of motion, and turns off after a pre-selected hold time when there is no movement. Typical application 2: used as a switch with two-step dimming Turns on the light upon detection of motion, after a pre-selected hold time, dim to 20% brightness, and turns off after a pre-selected standby time when there is no movement....
(0)Model:EH-R
100-240VAC RF/0-10V Ceiling Mounted PIR Sensor Dimmer & Switch EH-R
- Working voltage: 100-240VAC
- Output signal: 0/1-10V, RF 2.4GHz
- Output current: Max 4A (AC)
- Detection zone: Max.(DxH) 10 x 5m
- Power consumption: <1.3W (Operation)
- Mounting height: 5m Max
Typical application 1: used as a switch Turns on the light upon detection of motion, and turns off after a pre-selected hold time when there is no movement. Typical application 2: used as a switch with two-step dimming Turns on the light upon detection of motion, after a pre-selected hold time, dim to 20% brightness, and turns off after a pre-selected standby time when there is no movement....
(0)Model:EM
Delay Time Adjustable Microwave Sensor Switch & Dimmer EM For ES32
- Voltage: DC5V
- HF system: 10.525GHz
- Detection zone: Max.(DxH) 20 x 15m
- Mounting height: 15m Max.
- Motion detection: 0.5-3m/s
- Detection angle:: 150°/360°
- Hold time: 10s-30min
- Power consumption: <0.5W/1W
Microwave Sensor Switch & Dimmer. Motion Detector/ Daylight Sensoring /5V PWM Signal Output. To replace EM1, EM2, and EM3. Features ● 10.525GHz active microwave sensor that can detect the motion of a human body or object through plastic, glass or thin non-metal materials. ● Built-in motion sensor and daylight sensor. ● Low voltage 5VDC power supply, 5V...
(0)Model:ER
ER PIR Motion Sensor LED Controller - 1M/3.28Ft Wire Length
- Sensitive Field: <=3m
- Sensitivity Angle: 120
- Wire Length: 1m/3.28Ft
- Sensor Type: Pir motion sensor
How to Control: When the door open, or no obstacle ahead, the light turn on gradually; When the door close, or no obstacle ahead, the light turn off gradually. Sensor data Sensitive Field: <=3m Sensitivity Angle: 120 Wire Length: 1m/3.28Ft Sensor Type: Pir motion sensor ER Use Manual Dowmload Standards and Certifications ...
(0)Model:EM1
EM1 Microwave Motion Sensor Switch - Without Dimming Function - Replaced By EM
- Working voltage: 9-24VDC
- HF system: 10.525GHz
- Detection sensitivity: 10%-100%
- Hold time: 10s-30min
- Daylight threshold: 10-200lux
- Mounting height: 15m Max
- Motion detection: 0.5-3m/s
- Detection angle: 150/360°
EM1 is replaced by EM now . If you still purchase this product, we will send you EM. Product Features ● Active microwave motion detectors with HF system 10.525GHz, motion can be detected through plastic, glass and thin non-metal materials. ● Built-in motion sensor and daylight sensor. ● Powered by low voltage 9-24VDC, output 5V level or PWM signal. ●...
(0)Model:EM2
EM2 Dimmable Microwave Motion Sensor Switch - Replaced By EM
- Working voltage: 9-24VDC
- HF system: 10.525GHz
- Detection sensitivity: 10%-100%
- Hold time: 10s-30min
- Daylight threshold: 10-200lux
- Mounting height: 15m Max
- Motion detection: 0.5-3m/s
- Detection angle: 150/360°
EM2 is replaced by EM now . If you still purchase this product, we will send you EM. Product Features ● Active microwave motion detectors with HF system 10.525GHz, motion can be detected through plastic, glass and thin non-metal materials. ● Built-in motion sensor and daylight sensor. ● Powered by low voltage 9-24VDC, output 5V level or PWM signal. ●...
(0)Model:EM3
EM3 Microwave Two Steps Dimmable Motion Sensor Switch - Replaced By EM
- Working voltage: 9-24VDC
- HF system: 10.525GHz
- Detection sensitivity: 10%-100%
- Hold time: 10s-30min
- Daylight threshold: 10-200lux
- Mounting height: 15m Max
- Motion detection: 0.5-3m/s
- Detection angle: 150/360°
EM1 is replaced by EM now . If you still purchase this product, we will send you EM. Product Features ● Active microwave motion detectors with HF system 10.525GHz, motion can be detected through plastic, glass and thin non-metal materials. ● Built-in motion sensor and daylight sensor. ● Powered by low voltage 9-24VDC, output 5V level or PWM signal. ●...
