0/1-10V CC LED Driver

10 products

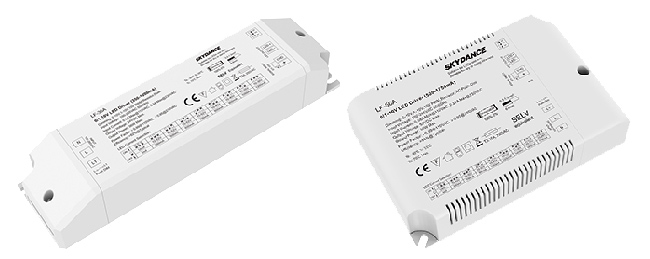

SkyDance 0/1-10V CC LED Driver Series is specially designed for constant current LED lighting fixtures, including LED downlights, spotlights, panel lights, and architectural LED modules. These drivers convert AC mains power into regulated constant current outputs while accepting 0-10V, 1-10V, and other compatible dimming signals from external dimmers and control units.

With selectable output currents ranging from 100mA to 700mA and output power from 12W to 20W, the series provides flexible current-matching options for different LED modules and lighting fixtures.

With a 5-year manufacturer's warranty and up to 50,000 hours of specified service life, they provide a dependable power and dimming solution for residential, commercial, hospitality, retail, office, and architectural lighting projects.

Things You Need To Know About 0-10V Dimmer & Dimming

FAQ About 0/1-10V CC LED Driver

Direct answers to technical questions on wiring, current configuration, dimming limits, and load matching for our 0/1-10V constant current drivers.

A 0/1-10V CC LED driver delivers a fixed output current—such as 350mA, 700mA, or 1050mA—while automatically adjusting its output DC voltage to match the connected LED load. Unlike constant voltage drivers that supply a fixed 12V or 24V, a constant current unit directly feeds bare LED emitters, downlights, commercial spotlights, and architectural fixtures wired in series. The driver reads a 0-10V or 1-10V analog signal across its control terminals to adjust the constant output current down to 1%, preventing thermal runaway and extending emitter life.

On a 0/1-10V CC LED driver, you set the output current by toggling the physical multi-position DIP switch on the housing while the power is completely off. Each switch combination selects a specific mA output rating, such as 350mA, 500mA, 600mA, or 700mA on our LF-15A unit. Check the current rating stamped on your LED fixture or chip spec sheet first; setting a DIP switch higher than your fixture's rating will overdrive the diodes and cause rapid thermal failure. Always verify the toggle layout diagram printed on the driver label before applying mains AC power.

Wiring multiple fixtures to a single 0/1-10V CC LED driver requires a series circuit loop, never a parallel connection. In a series run, the positive output connects to the first fixture's anode, the cathode connects to the next fixture's anode, and the final cathode returns to the driver's negative terminal. Add the forward operating voltages (Vf) of all fixtures together: the total must fall within the driver's output window, such as 10V to 42V DC. If you wire them in parallel, current splits unevenly, causing some LEDs to burn out while others remain dim.

You cannot wire an AC push-dim switch and a 0-10V control line simultaneously on a 0/1-10V CC LED driver. While multi-interface models like the LF-25A, LF-36A, and LF-50A feature terminals for both 0/1-10V analog signals and mains-rated AC push switches, they run on separate internal logic circuits. Connecting both inputs concurrently creates signal conflict and can feed high-voltage AC mains into the isolated low-voltage control circuitry, instantly destroying the driver. Choose either low-voltage 0/1-10V analog wiring back to a wall console or local momentary push-dim switching across your neutral line.

The built-in active power factor correction (PFC) circuit in our 0/1-10V CC LED driver models maintains a power factor of 0.95 or higher across normal loads. In large commercial installations where dozens of drivers share a single 20A branch circuit, a low power factor draws excessive reactive current that trips breakers and overheats neutral conductors. With active PFC and total harmonic distortion (THD) kept below 15%, the driver operates coolly, meets commercial electrical codes, and supports its 50,000-hour operational life rating across five years of daily continuous cycling.
