Color Changing RGB Module String Lights
25 productsIn Color Changing RGB LED Module String Lights, each module is a combination of red, green, and blue colored chips. At SuperLightingLED, we offer two distinct RGB module light configurations to suit different visual and color-mixing preferences:
- 3-in-1 Integrated RGB LED Module Type
Each LED diode integrates Red, Green, and Blue chips within a single package. This ensures seamless color blending directly inside every single LED chip, allowing each light point to emit an identical, perfectly mixed color with superior color uniformity.
- Discrete Red + Green + Blue RGB LED Module Type
Each individual module contains three separate single-color LEDs—one Red LED, one Green LED, and one Blue LED. The individual colored light outputs mix externally, creating classic RGB light dispersion effects.
Various light colors are produced by mixing different colored chips (controlled by an external RGB controller). This RGB light module string system offers great flexibility and customization for a variety of colorful lighting applications.
Each RGB LED module can contain one or more LED chips. Different types and wattages of LEDs are selected as required, while different led lens options produce different optical effects (soft, even light or high-intensity light).

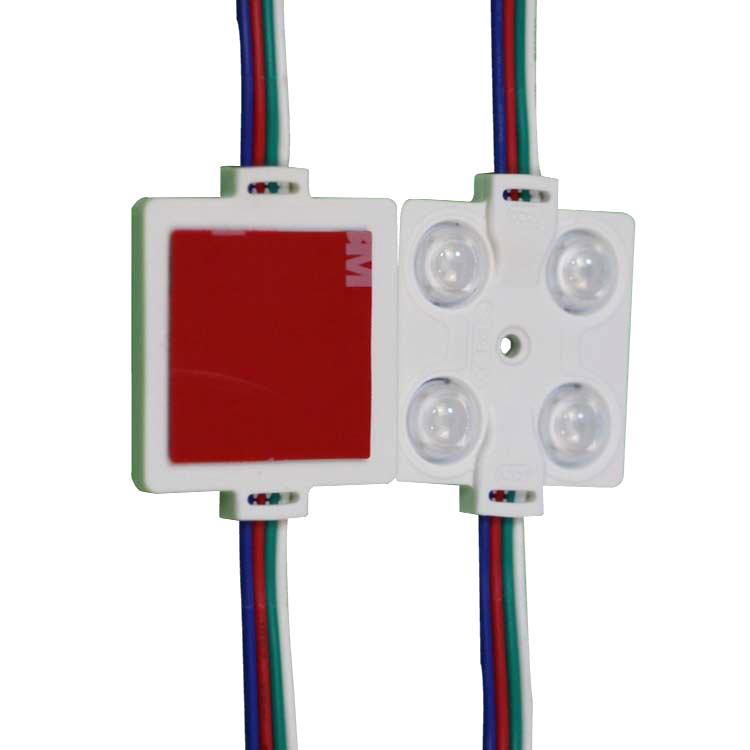

RGB Color Change LED Sign Modules 12V 1.5W - 3030 SMD, IP65 - 20 Pcs/String

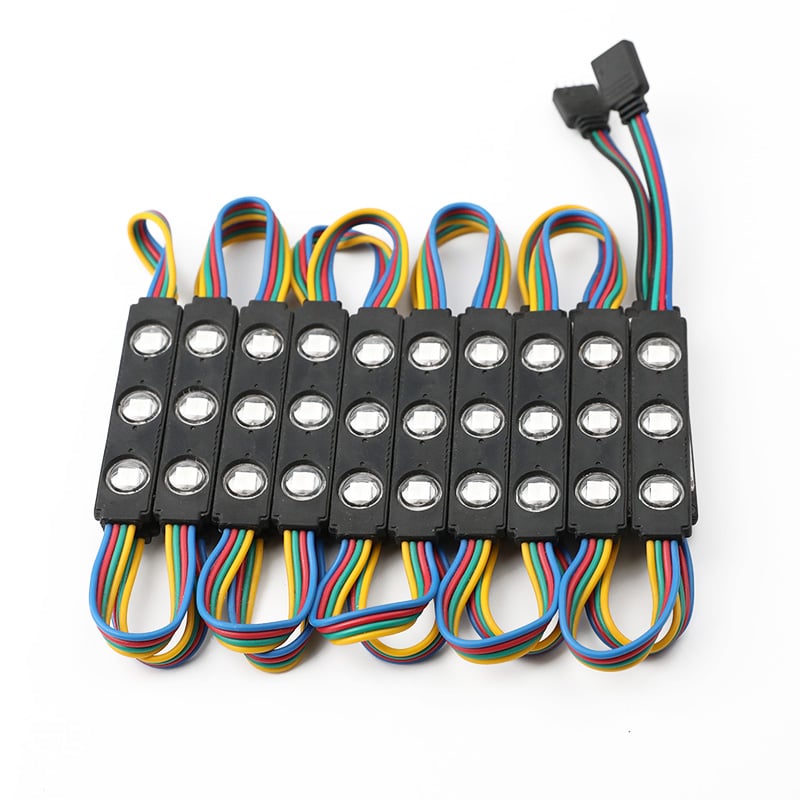

12V Color Changing RGB 3-LED Black Modular Lens Light String
12V 5050SMD RGB Color Changing Module LED String Light Waterproof
12V 0.72W 3 SMD5050 Color Change RGB/RGBW LED Module String Lights
DC12V RGB Color Changing Module Lights - SMD5050, CRI90 Sign Lighting
RGB Color Changing LED Module Lights - IP65 Waterproof, SMD5630, Alexa/Google
DC12V RGB 5050 LED Module String - Color Change Sign Lighting | IP65
UL 24V 5054 3-in-1 RGB Cuttable LED Sheet Panel Lights 1.29FT² 45W
Bright 65W Paper-Thin RGB Flexible LED Light Panels For Backlighting 1.24FT²
24V 5050 RGB Multi Color LED Sheet 1.24FT² 18W Ambience Backlighting
LED Point Light Source Outdoor Waterproof Single Color or Colorful Optional Aluminum Pixel Light
DC24V 3030 Diffuse Reflections RGB Rigid LED Light Bar with Lens
DC24V Diffused RGB LED Sign Modules Light with Lens 175 Degrees
92*19mm RGB LED Module String Lights - High CRI 90 - 20Pcs/String
Outdoor RGB Backlighting (IP65 Waterproof LED Module RGB Strings)
Built with individual, injection-molded plastic modules linked in series via flexible, 4-core color-coded interconnect cables (such as Red, Green, Blue, White or Red, Green, Blue, Yellow wires to easily distinguish RGB channels and Common Positive V+). IP65 sealed housing protects internal LED chips and circuits against outdoor rain, moisture, and dust exposure.
Operating primarily on low-voltage 12V DC, each individual RGB module LED features a pre-applied peel-and-stick self-adhesive backing. Input and output connections are available as bare wire leads for direct soldering/wire-nutting or pre-molded 4-pin male/female connectors.
The loose wire connections allow installers to freely position, rotate, and space individual modules around complex 3D shapes, tight corners, and irregular sign frames.
Primary Applications:
- Outdoor commercial lightboxes and billboard backlighting.
- Front-lit and halo-lit 3D channel letters for store facades.
- Exterior canopy, fascia, and architectural sign enclosures.
Large-Area Indoor RGB Backlighting (IP20/IP54 Flexible RGB LED Sheets)
Designed as a wide LED matrix panel, this solution integrates hundreds of surface-mount RGB LEDs across a continuous, ultra-thin flexible printed circuit board (FPCB). Rated IP20 for dry indoor spaces or IP54 with a splash-proof protective coating, these RGB light sheets typically operate on a 24V DC system to minimize voltage drop across large surface areas.
The entire back surface is lined with self-adhesive tape. Sheet lights feature built-in wire terminal block ports along the edges for solderless plug-in grid interconnection, while the main feed line connects directly to the system power driver and controller via hardwired terminal blocks. Provides completely shadowless ambient color backlighting.
Functions as a parallel/series circuit grid distributed uniformly across a wide plane. Can be tailored to match complex geometric layouts, circular frames, or custom architectural cutouts without manual wire-to-wire assembly. This allows the full RGB LED sheet panel to maintain continuous power flow and deliver perfectly distributed 24-bit color rendering across flat or curved backdrops.
Primary Applications:
- Ultra-thin indoor poster lightboxes and tension fabric displays.
- Backlit translucent stone, marble, onyx, and acrylic feature walls.
- Retail showcase backdrops, reception desks, and exhibition booths.
- Stretched ceiling lighting and interior architectural ambient panels.
Linear RGB Backlighting (SMD & COB Flexible RGB Strip Lights)
Constructed as a narrow, continuous flexible PCB tape lined with RGB LEDs and backed with continuous self-adhesive tape. Perfectly suits slim aluminum profiles, narrow troughs, edge-lit frames, and shallow perimeter gaps where wider LED sheets or modular strings cannot fit. Available in two main optical technologies:
SMD 5050/2835 RGB LED Strips: Discrete surface-mounted RGB light chips spaced evenly along the strip, ideal for traditional channel backlighting where medium depth is available. Excellent for creating smooth perimeter halos and continuous border lighting.
COB (Chip-on-Board) RGB LED Strips: Packed with dense micro-LED chips directly on the FPCB under a continuous silicone diffusion, providing a completely seamless, dot-free line of light with no visible hot spots even at ultra-close proximity to translucent diffusion panels.
Primary Applications:
- Under-counter, display cabinet, and cove backlighting.
- Reception desk front aprons, bar counters, and kick-plate backlighting.
- Recessed tray ceilings, soffit reveals, and architectural niche accents.
- Staircase risers, tread kick-plates, and handrail reveal backlighting.
SuperLightingLED RGB Backlighting Solutions
At SuperLightingLED, we offer a complete ecosystem of commercial-grade RGB backlighting solutions tailored to your specific architectural layout, waterproofing requirements, and installation depth.
Backed by premium self-adhesive backings, rigorous quality control, and full compatibility with our DMX512, SPI, RF, and Smart Wi-Fi RGB controllers, SuperLightingLED provides full technical guidance, power calculations, and custom wiring solutions for all your commercial lighting projects.
Frequently Asked Questions About Color Changing RGB Module String Lights
Your project questions, answered by our engineers. Here's what people usually ask before buying RGB module strings.
RGB lights use a combination of Red, Green, and Blue LEDs to create millions of different colors. Unlike a continuous LED strip, these RGB module string lights are individual, waterproof housings connected by flexible wires. This setup is way better for going around complex shapes, like the inside of channel letters or architectural signs, where a flat strip would buckle or be impossible to bend.
Yes, absolutely. That's a key part of their design. You can cut the wire between any two modules to shorten the string to the exact length you need. Just be sure to seal the cut wire ends with a silicone-filled wire nut or waterproof heat shrink tubing if you're installing them outdoors to protect the connection from moisture.
Most of our modular RGB lights strings come in lengths of 20 modules. You can connect multiple strings end-to-end, but pay attention to voltage drop. To go longer, you need to run a new parallel wire from the power supply.
You'll need an RGB LED controller. These modules have four wires (Red, Green, Blue, and a common positive) that connect to the controller's output. The controller then connects to your power supply. For a deep dive on wiring, check our guide on how to wire RGB strips.
This is a simple wiring mistake. Check that the four wires from the module string are connected to the correct terminals on your RGB controller. It's really common to accidentally swap the green and blue wires, or to not have the common positive V+ wire seated correctly. If just one color channel is out across the whole string, the issue is at the controller.
Most of our RGB module lights are rated IP65. This means they're dust-tight and protected against water jets from any direction, which is perfect for signs, facades, and landscape features exposed to rain. However, IP65 is not rated for permanent submersion in water. If you need to light a fountain or pool, you'll need a product with an IP68 rating.
