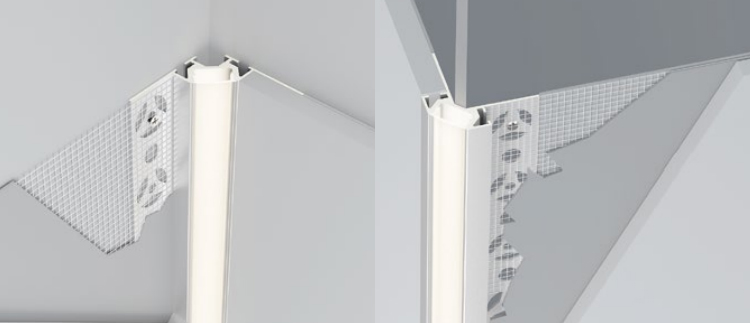

Plaster In Corner LED Profiles
23 productsInside and outside corner profiles are trims to reinforce and protect drywall corners from breakage. Plaster-in corner LED profiles emphasize the vertical lines and contours of internal or external corners with light, adding a sense of hierarchy and visual appeal to architectural interiors.
Building interior and exterior corners refer to the face-to-face angles of walls, ceilings, floors, and other components. Inside corners refer to recessed corners, such as the angle between the ceiling and the surrounding walls; outside corners refer to convex corners, such as the corner of the aisle formed by the angle between the two walls.
By setting up lighting in the inside and outside corners, the structural characteristics of the building can be emphasized, enhancing the visual impact and making the building's contours and levels more distinct. How To Realize Seamless Inside And Outside Corner Lighting?
1616L LED Outside Corner Tile Trim Profile For 10mm Strip Lights
LED Round Outside Tile Corner Trim Molding For 8mm Strip Lighting
Tile Wall Lights Waist Line LED Tile Edge Square Profile For 10mm Strip Light

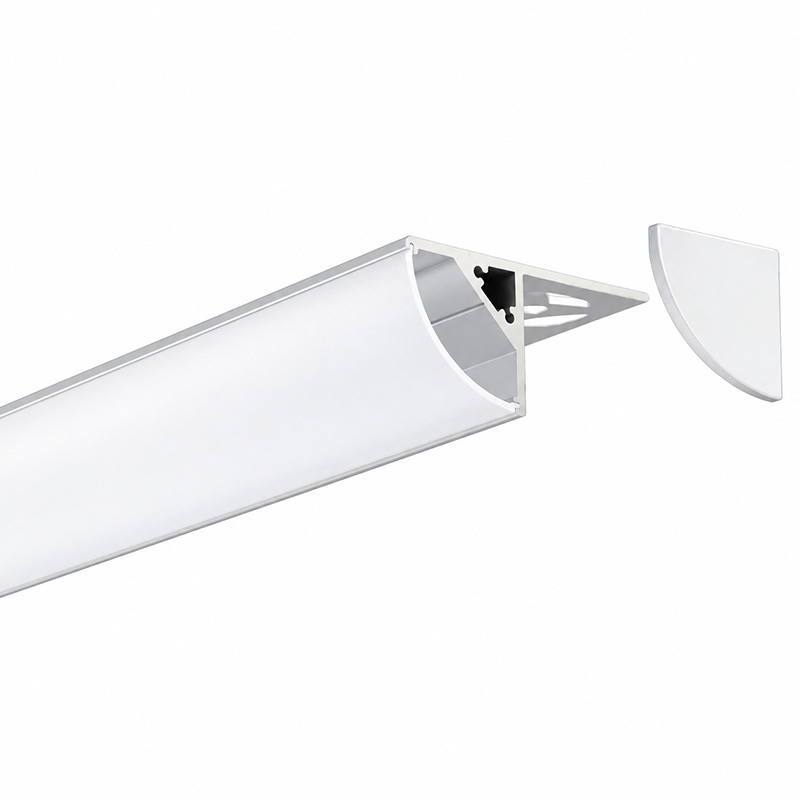

Recessed 45-Degree Corner Aluminum LED Profile For 15mm Bright Strip Lights

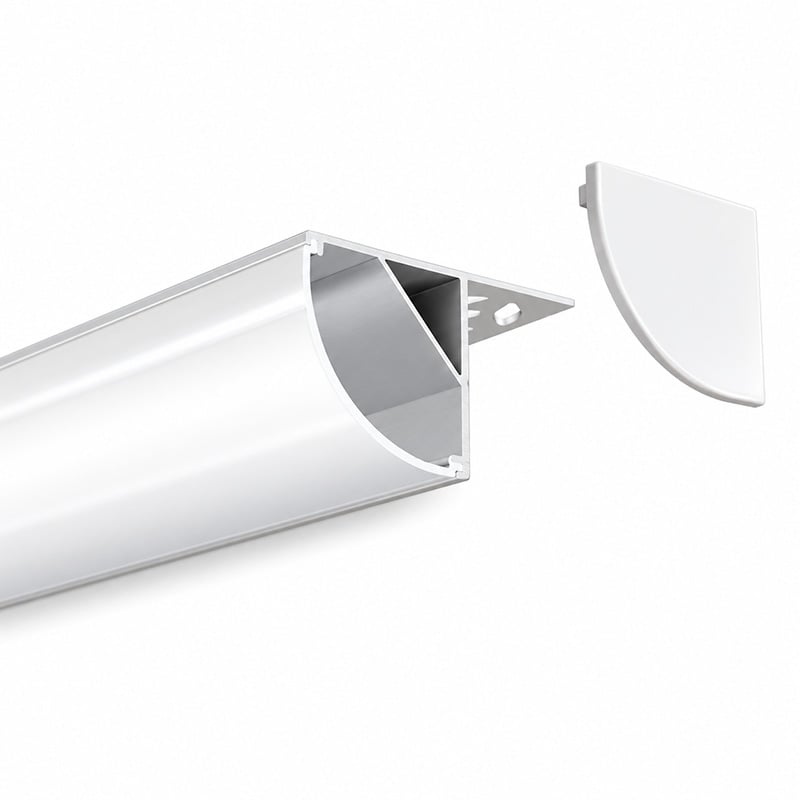

Recessed 1.18" Corner Mount LED Strip Channel For 20mm Bright Light
Mini Mud In LED Aluminum Inside Corner Moulding Profile
Curved Inside Corner Moulding LED Tape Light Channel
Curved Outside Corner Molding LED Strip Light Track
3939B Black Plaster-In Drywall Inside Corner LED Channel
3939 Black Plaster-In Drywall Outside Corner LED Profile
4141B Plaster-In Drywall LED Internal Corner Profile
4141 Plaster-In Drywall External Corner LED Channel
4242B Black Mud-In Drywall Inside Corner LED Diffuser Channel
Black Mud-In Drywall Trimless Outside Corner LED Strip Channel
Corner LED Channel Trim 12.3mm - Wall Recessed Aluminum Profile for 12mm Strips

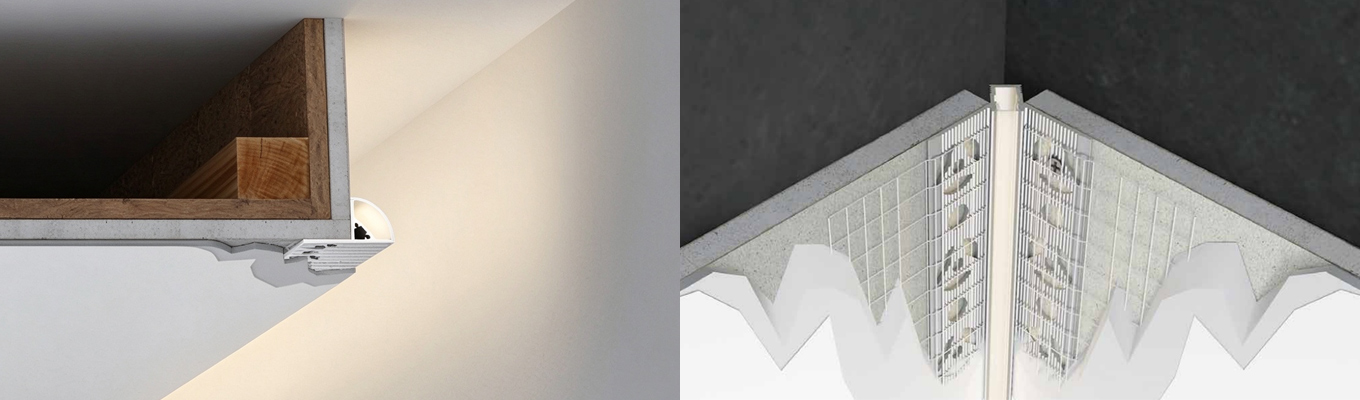

Dual-Flange vs. Single-Flange Plaster-In LED Corner V-Profiles
When selecting plaster-in V-shaped corner accent aluminum profile housing for LED strip lights, the flange design determines how the profile connects to surrounding walls and surfaces. At SuperLightingLED, we offer both double-sided and single-sided plaster flange options to suit different architectural structural conditions.
- Dual Plaster Flange: Purpose-built for traditional 90-degree inside (concave) and outside (convex) architectural wall junctions. Extending flanges on both sides allow drywall compound or plaster to be mudded over both intersecting wall planes. Once finished and painted, the metal aluminum frame becomes completely invisible, leaving only a seamless, borderless line of light running along the corner.
Single Plaster Flange: Engineered for single-side anchored corners where only one adjoining surface requires plastering or mudding. Rather than embedding into two drywall planes, one side anchors cleanly into a single mudded surface while the un-flanged side butts flush against an adjacent material. This versatile configuration is ideal for: decorative wallboards & accent paneling, ceiling & cove perimeter edges.
Beyond Drywall: Universal Compatibility for Tile, Marble, and Wood Paneling
While these aluminum profiles are commonly called "plaster-in" or "drywall" channels, SuperLightingLED trimless corner LED light profiles are engineered for universal architectural integration across a wide range of premium wall cladding materials—not just sheetrock and joint compound.
- Ceramic & Porcelain Tile: Built flush into bathroom, wet-room, or backsplash tile grout lines for sleek, waterproof corner accent lighting.
- Marble & Natural Stone Slabs: Embedded seamlessly between heavy stone panel joints without interrupting high-end stone finishes.
- Wood Paneling & Millwork: Recessed into timber accent walls, wood slat panels, and custom interior carpentry.
- Decorative Wallboards & Laminates: Concealed along panel borders to create clean, architectural lines of light across modern decorative wall coverings.
Recommended LED Light Strips for Plaster-In Corner Profiles
Because these LED aluminum profiles are embedded flush into drywall, tile, or millwork at internal and external corners, the inner LED chamber space is naturally shallow and small, which places LED chips very close to the diffuser cover and frequently causes harsh, visible light hotspots. At the same time, modern residential architectural corner lighting projects often span long continuous perimeters across an entire room, which creates severe voltage drop and uneven brightness when using conventional low-voltage LED strips.
To solve these challenges, we strongly recommend pairing our plaster-in corner LED profiles with our Low-Voltage Long-Run COB LED Strips. Because Chip-on-Board (COB) technology utilizes a high-density array of micro-diodes covered by a continuous diffusion layer, it produces a smooth and dotless ribbon of light, even within the shallowest channel depth where traditional SMD diodes would show clear points of light.
Frequently Asked Questions About Plaster In Corner LED Profiles
Got a question about getting that seamless, trimless corner lighting look? You're in the right place. Here are the questions we answer all the time.
Yes, we have specific plaster-in profiles designed for tile corners. Instead of a mudding flange, they have a wing that sits behind the tile, locked in by the thin-set mortar. This protects the tile edge and gives you a clean line of light. Just make sure you use an IP67-rated waterproof LED strip for any wet areas like a shower.
For Kelvin in LED lighting, think about the room's mood. For living rooms and bedrooms, a warm 2700K or 3000K is cozy and relaxing. For kitchens and bathrooms where you need clear, clean light, 4000K is a great neutral white. In commercial or ultra-modern spaces, a crisp 5000K can look sharp. Since these are built into the wall, it's worth getting it right. If you're unsure, a tunable CCT strip lets you adjust from warm to cool white anytime.
Absolutely. The aluminum profile itself is quite rigid. When installing on a wooden corner, you'd typically rout a channel for the profile to sit in, then use wood filler instead of plaster to blend the edges. The key is creating a recess for it to sit flush.
Yes, we do this all the time. Just send us your required lengths for the outside corner or inside corner run. We can cut the aluminum profiles and diffusers to your spec, so you have less work on site. Send us a sketch or a drawing, and an engineer will get back to you with a parts list and quote, usually within 12 hours.
