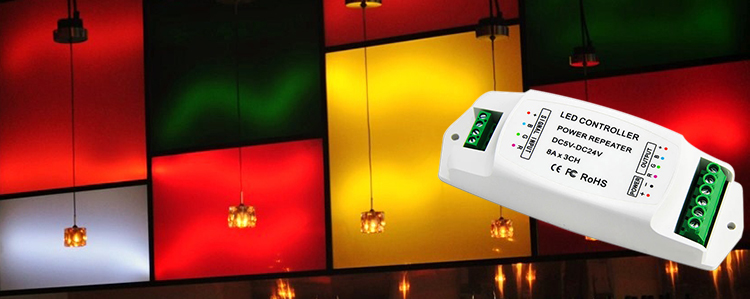

LED Dimmer & Converter

BinColor LED Light Dimming System is designed to provide a flexible dimming solution for LED lighting, including multiple light dimmer types with different signals, such as 0-10V, DALI, and PWM.

By using a dimming signal converter, you can control different LED light dimmers with one centralized system. This is very helpful for creating specific lighting atmospheres and meeting the needs of different usage scenarios.

BinColor LED Light Dimming System with flexibility and scalability, allowing users to select the right type of dimmer for their needs and expand the system's functionality as system requirements increase.



Shop By LED Dimmer & Converter Type

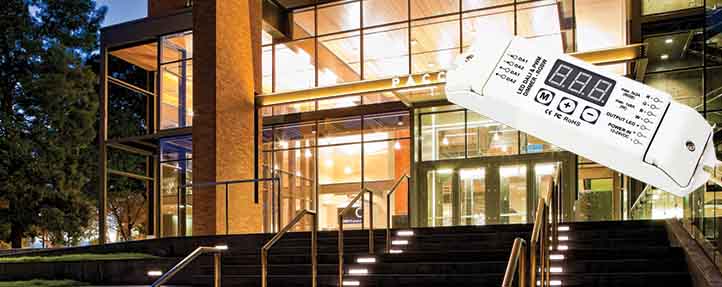

  • 0-10V DALI Series0-10V DALI Series

    BinColor LED dimming series products include 0-10V/1-10V dimmer/driver and DALI driver. 0-10V/1-10V driver is compatible with 0-10V/1-10V dimming signals, which can dim and change the color of singe-color/color temperature/RGB/RGBW LED lights through 0-10V/1-10V dimmer.

    DALI dimming drivers are compatible with DALI dimming protocols to digitally dim single-color/color temperature/RGB/RGBW LED lights through DALI controllers. Some DALI dimming drivers come with operation buttons and on-screen setting displays for easy operation.

    Things You Need To Know About 0-10V Dimmer & Dimming

  • Timing DimmerTiming Dimmer

    BinColor Adjustable Timing Controller has a built-in real-time clock system that allows users to set any time and any brightness so that single-color/CCT/RGB/RGBW LED lights are controlled for brightness/color at a predetermined time. This feature is suitable for automated lighting applications to meet the lighting needs of different time periods.

    These timer control PWM LED controllers support insertion/customization of multiple lighting effects, which can perfectly simulate the light changes in nature. And with standard DMX control compatibility, it enables users to flexibly control LEDs through DMX controller to achieve more advanced and personalized light effects.

    Widely used for general LED strip lighting and also for plant light and aquarium light lighting.

  • Dimming Signal ConverterDimming Signal Converter

    BinColor LED Dimming Signal Converter Series includes various dimming signal converters, such as DMX to 0-10V, DMX to PWM, DALI to 0-10V, DALI to PWM, 0-10V or 1-10V to PWM, PWM to 0-10V and so on. With these dimming signal converters, users can centralize the control of various light fixtures through one system.

  • LED CCT ControllerLED CCT Controller

    BinColor CCT LED Strip Controller Series includes constant voltage wall mount CCT led strip light dimmer and constant voltage / constant current touch button CCT led strip controller, available RF remote control; Adopting PWM (Pulse Width Modulation) digital brightness adjustment technology, these CCT controllers adjust LED light softly, stably and delicately, with accurate color temperature control.

  • PWM LED DimmerPWM LED Dimmer

    BinColor PWM LED Dimmer Series Products are dedicated to adjusting the brightness of constant voltage or constant current LED lights, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness adjusting technology at present. These BinColor PWM dimmers have 4096 levels of scaling for true 0%~100% brightness adjustment. It is especially effective in low brightness environments.

    PWM dimming is a dimming technique that controls the brightness of an LED by adjusting the pulse width of the signal. PWM dimmers use a combination of short and long pulses. By varying the width of each pulse to control the amount of time the current passes through the LED, the light brightness is controlled.

    As the pulse width increases, the LED stays on longer and increases in brightness; as the pulse width decreases, the LED decreases in brightness. PWM dimming allows for low LED brightness without decreasing color temperature, providing finer brightness control. Choose a classification based on the type of LED light you have.
